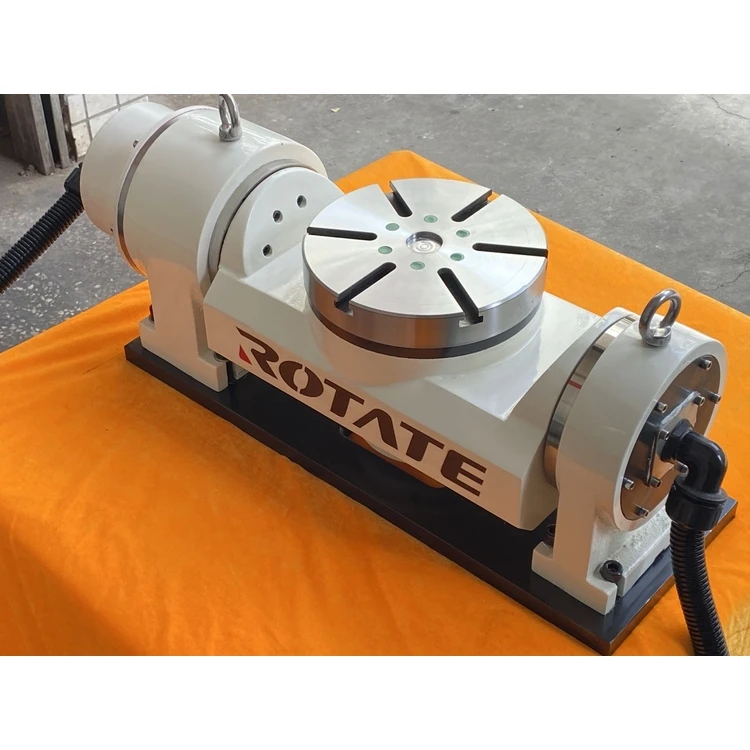

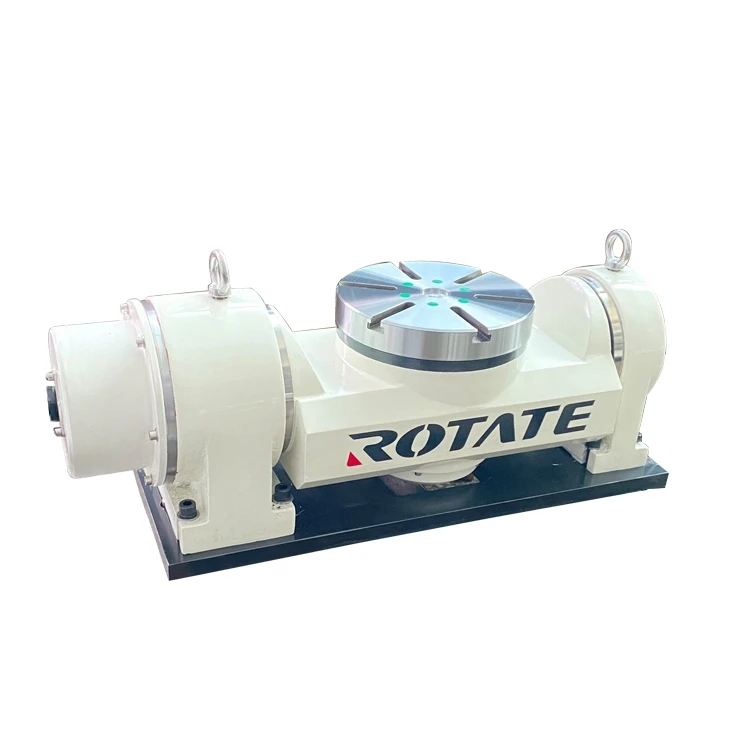

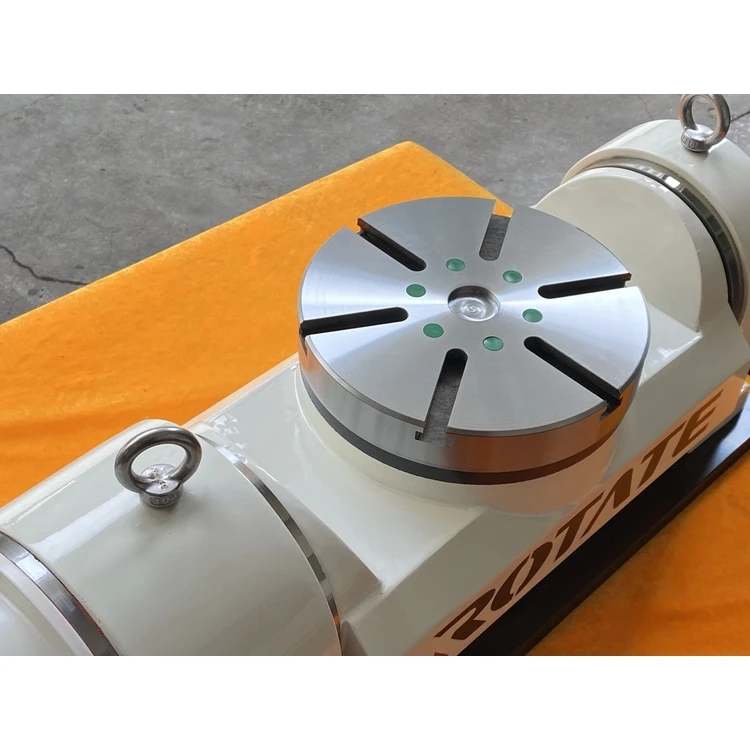

Best Quality Machine Tool Accessories 5th Axis Turntable Cnc Tilt Rotary Cnc Table
- Category: >>>
- Supplier: Shenzhen Mingchengda Technology Co. Ltd.
Share on (1600488202609):
Product Overview
Description
Product Description

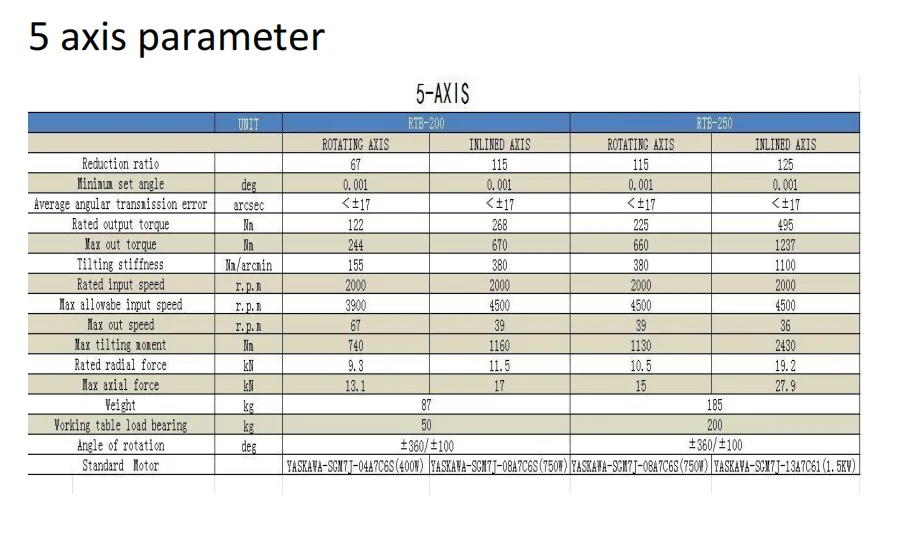

Specification
Turntable diameter | 200mm |
Reouct1on ratlo | ROTATING AXIS:67 INLINED AXIS:115 |
Minlnun set angle(deg) | ROTATING AXIS:0.001 INLINED AXIS:0.001 |
Average angular transnisslon error（arcsec） | ROTATING AXIS:<±17 INLINED AXIS:<±17 |
Rated output torgue(Nm) | ROTATING AXIS:122 INLINED AXIS:268 |
Max out torque(Nm) | ROTATING AXIS:144 INLINED AXIS:670 |
Tllting stIffness(Nm/arcnin) | ROTATING AXIS:155 INLINED AXIS:380 |
Rated Input speed(r.p.m) | ROTATING AXIS:2000 INLINED AXIS:2000 |
May allowabe Input speed(r.p.m) | ROTATING AXIS:3900 INLINED AXIS:4500 |
Max out speed(r.p.m) | ROTATING AXIS:67 INLINED AXIS:39 |
Max tillting moment(Nm) | ROTATING AXIS:740 INLINED AXIS:1160 |
Rated radial force(kN) | ROTATING AXIS:9.3 INLINED AXIS:11.5 |
Max axial force(kN) | ROTATING AXIS:13.1 INLINED AXIS:17 |
Weight(kg) | 87 |
Working table load bearing(kg) | 50 |
Angle of rotation(deg) | ±360/±100 |
