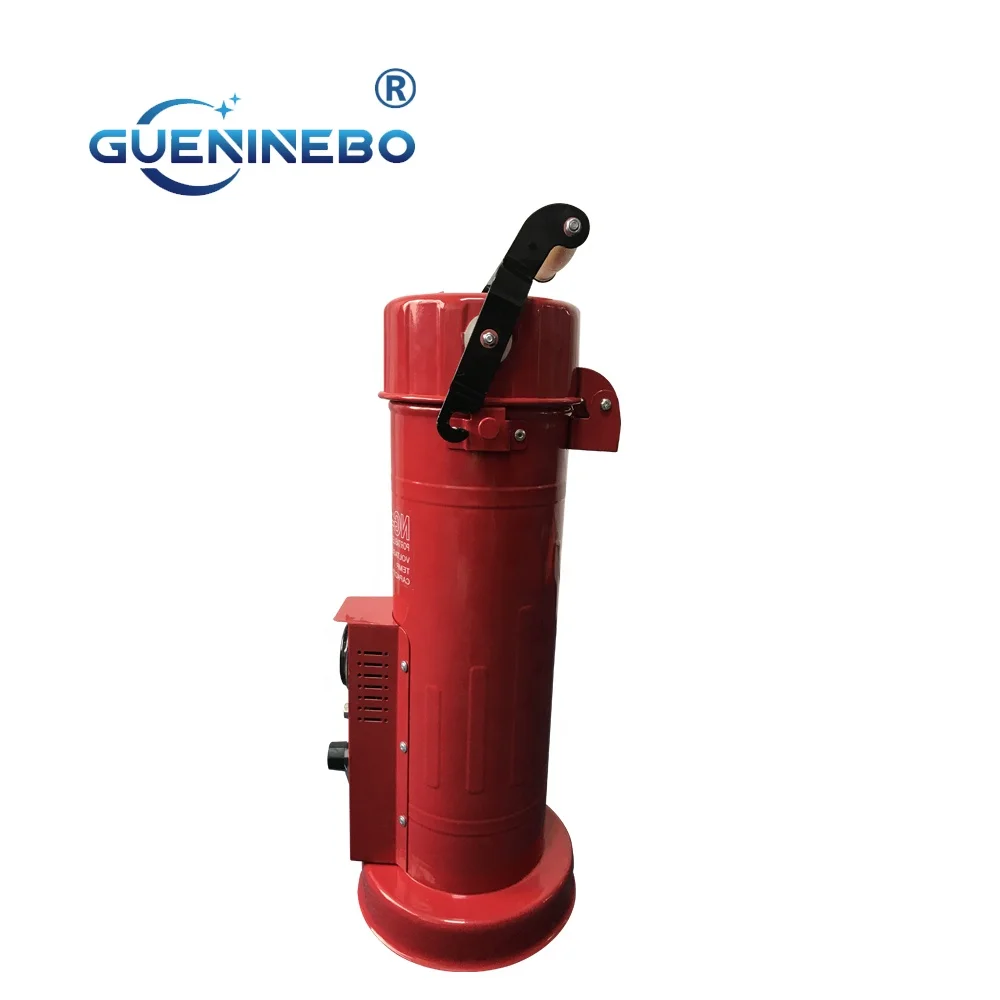

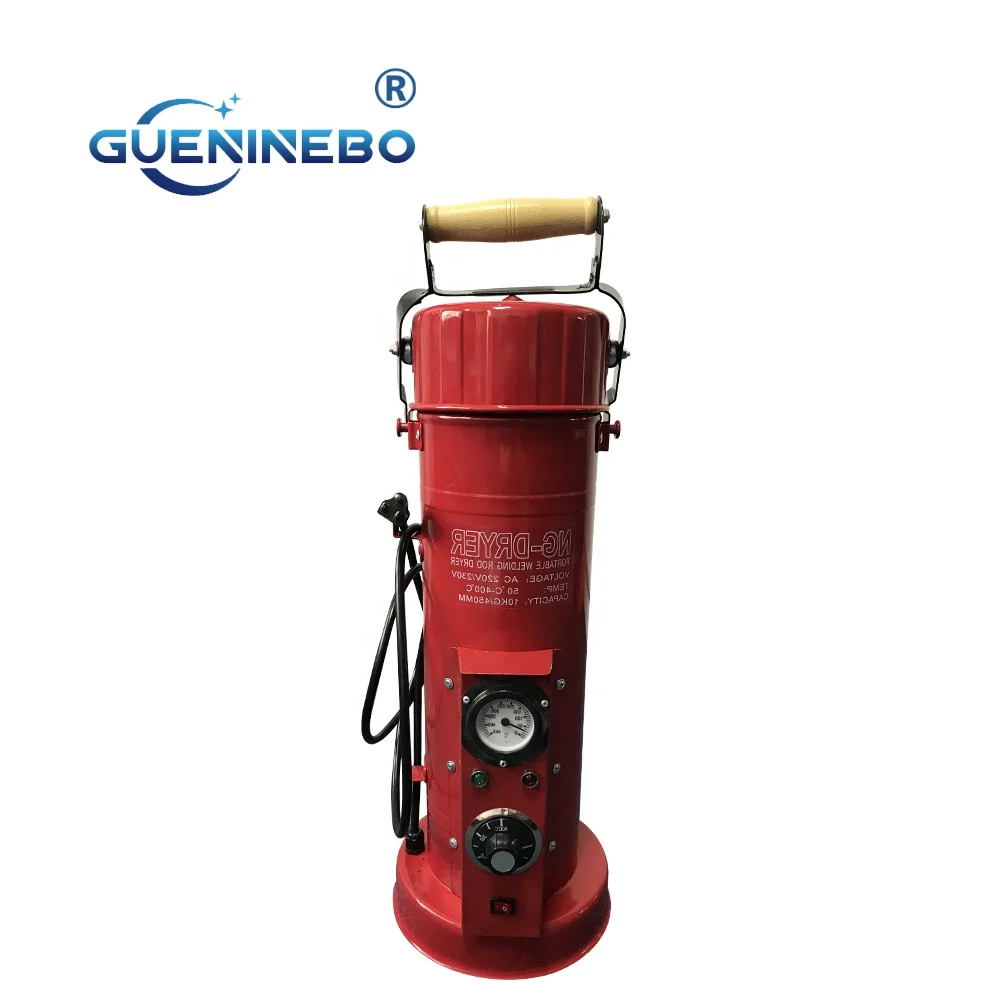

Welding Ovens and Accessories NG 10 Portable Welding Rod Drying Furnace

Product Overview

Description

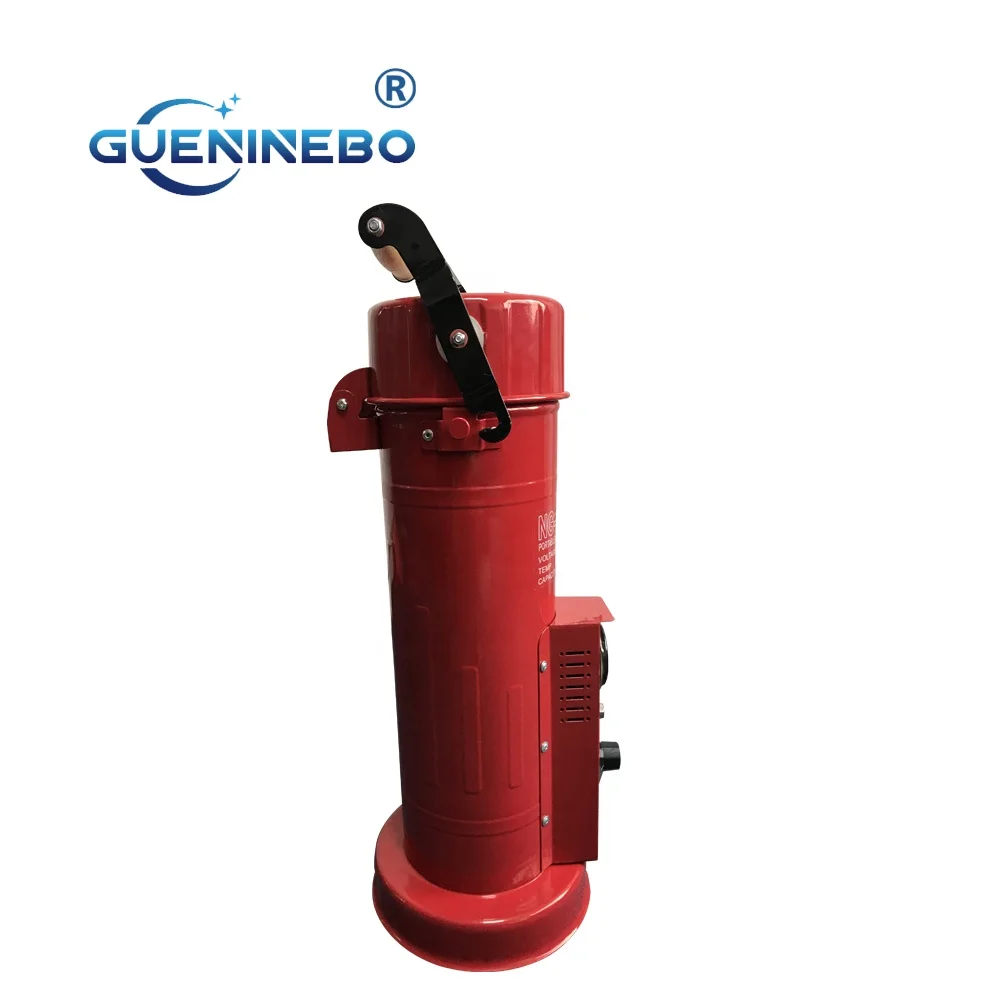

NG-10 Welding Electrode Drying Oven Rod Oven Dryer for Welder

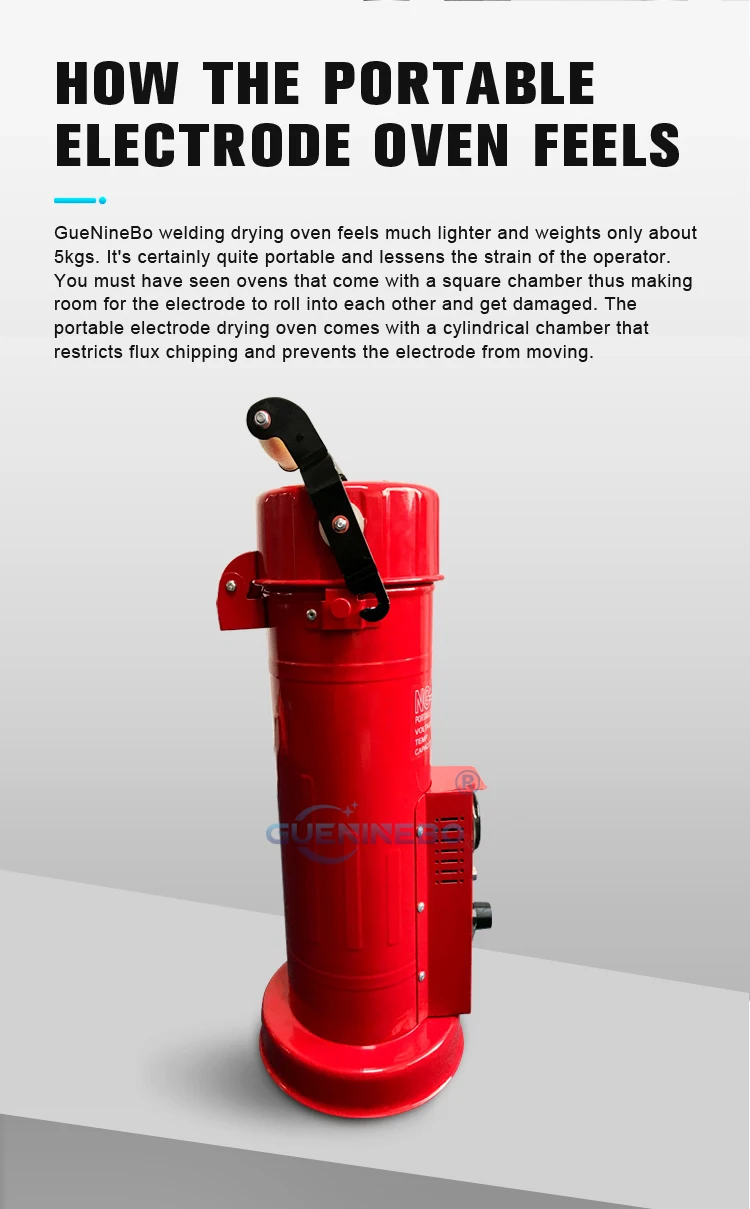

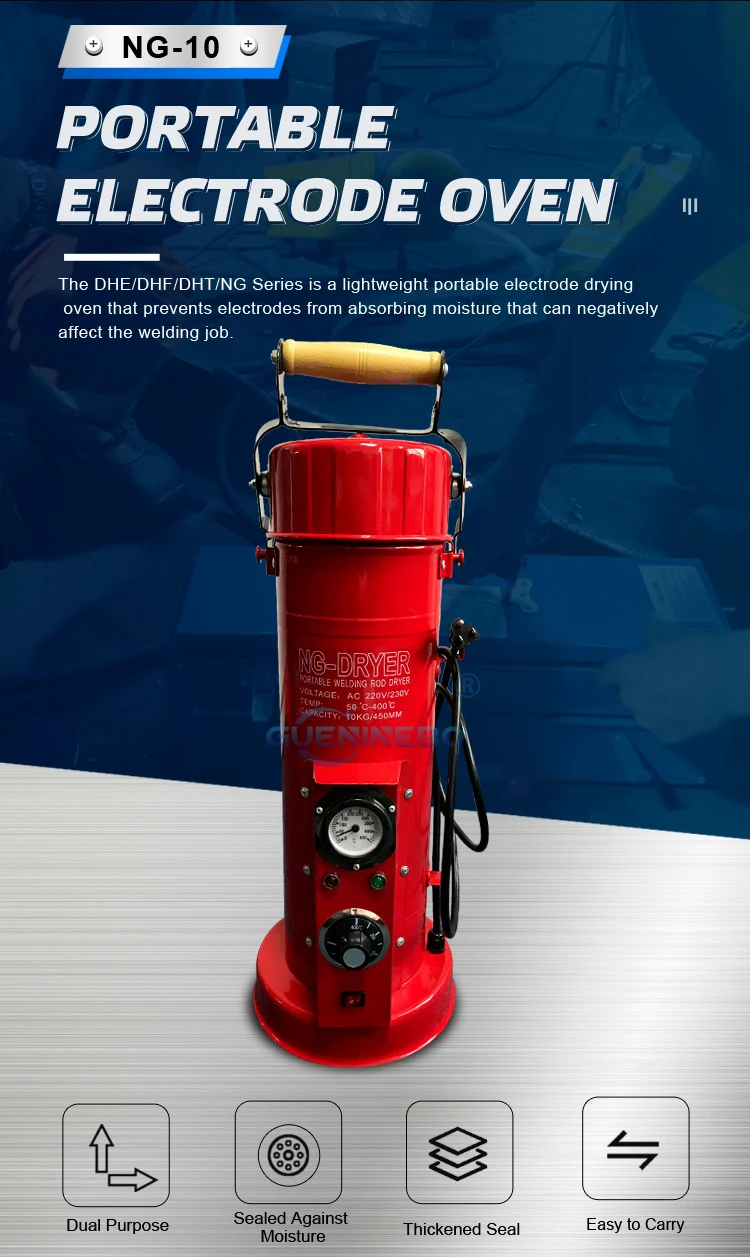

1. The DHE/DHF/DHT/NG Series is a lightweight portable electrode drying oven that prevents electrodes from

    absorbing moisture that can negatively affect the welding job.

2. When stick electrodes absorb moisture from the air, must be dried to restore their ability to deposit quality welds.

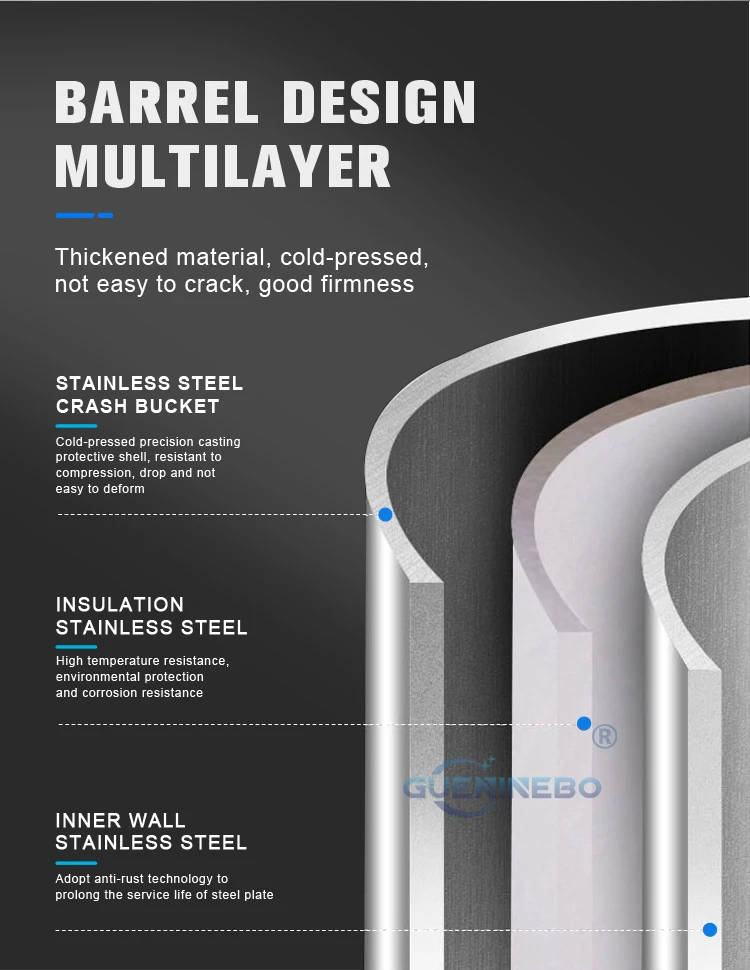

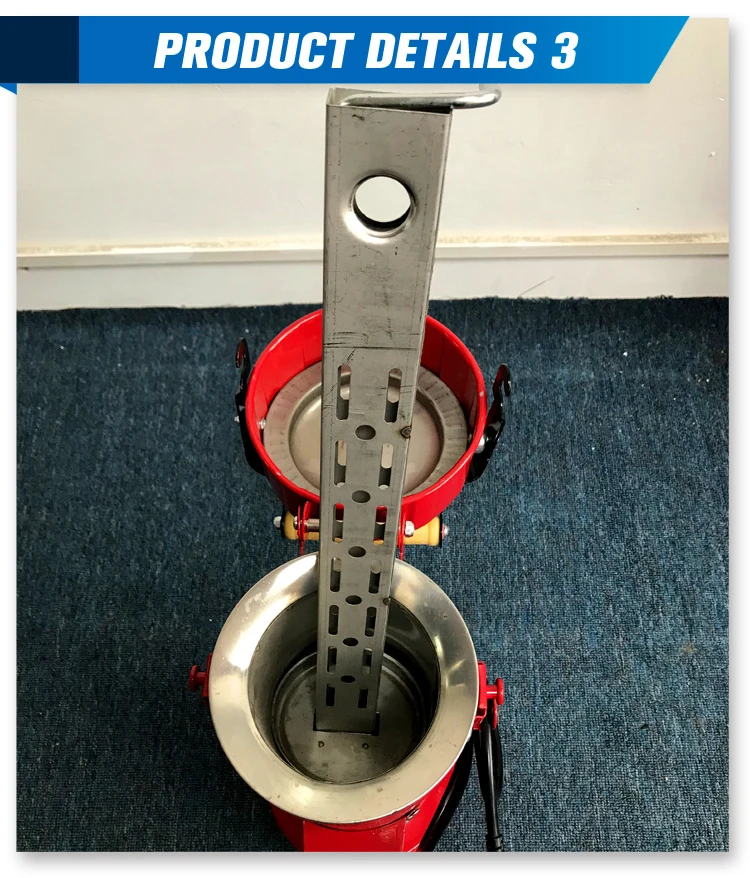

3. This electrode drying oven adopts circular heat cycle structure. It is for the chimney effect that leads heat source

    rise along the central pillar, so that the innet heat cycle is formed together with the ring and stand in the furnace

    tank, thus to heat the electrodes.

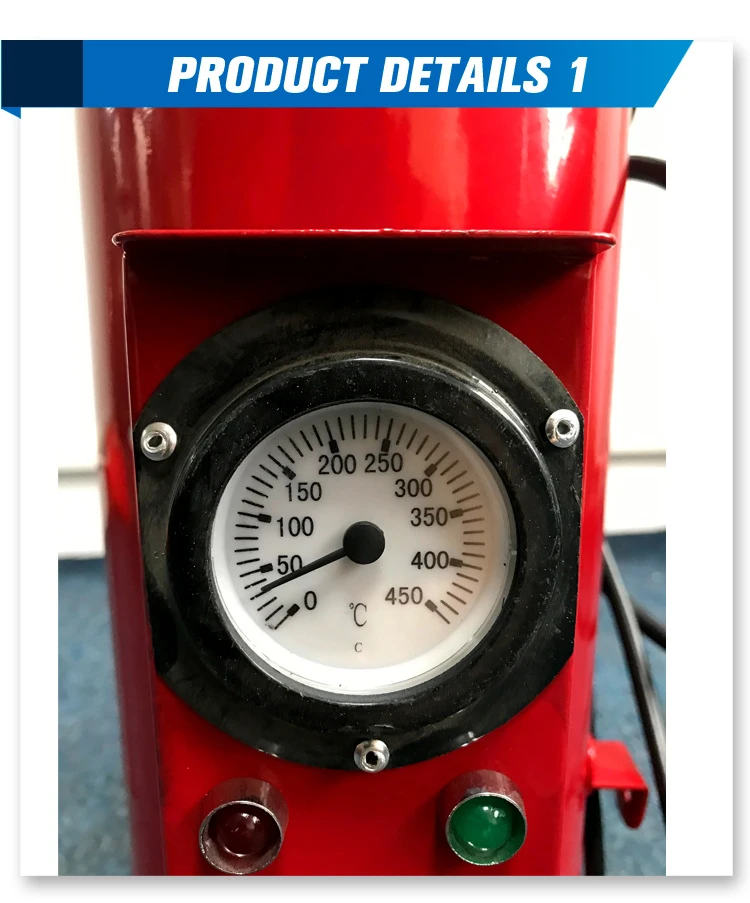

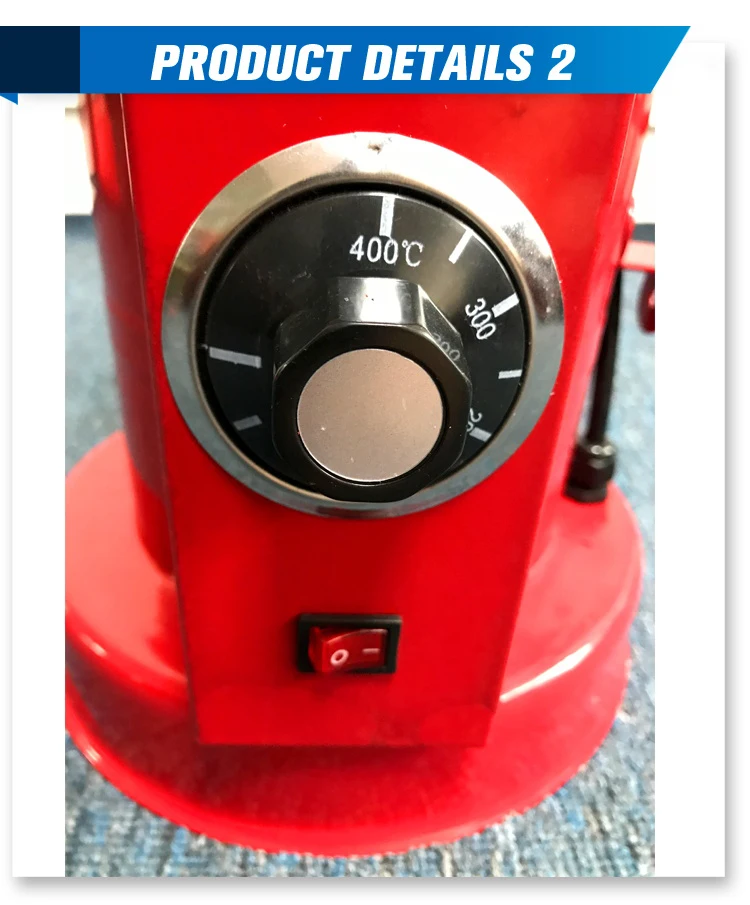

4. Automatic temperature control and timing control technology has been adopted. It has the advantage of high

    heating efficiency, large capacity, even temperature, easy to operate and energy-saving and has been widely used

    for drying treatment of electrodes prior to welding.

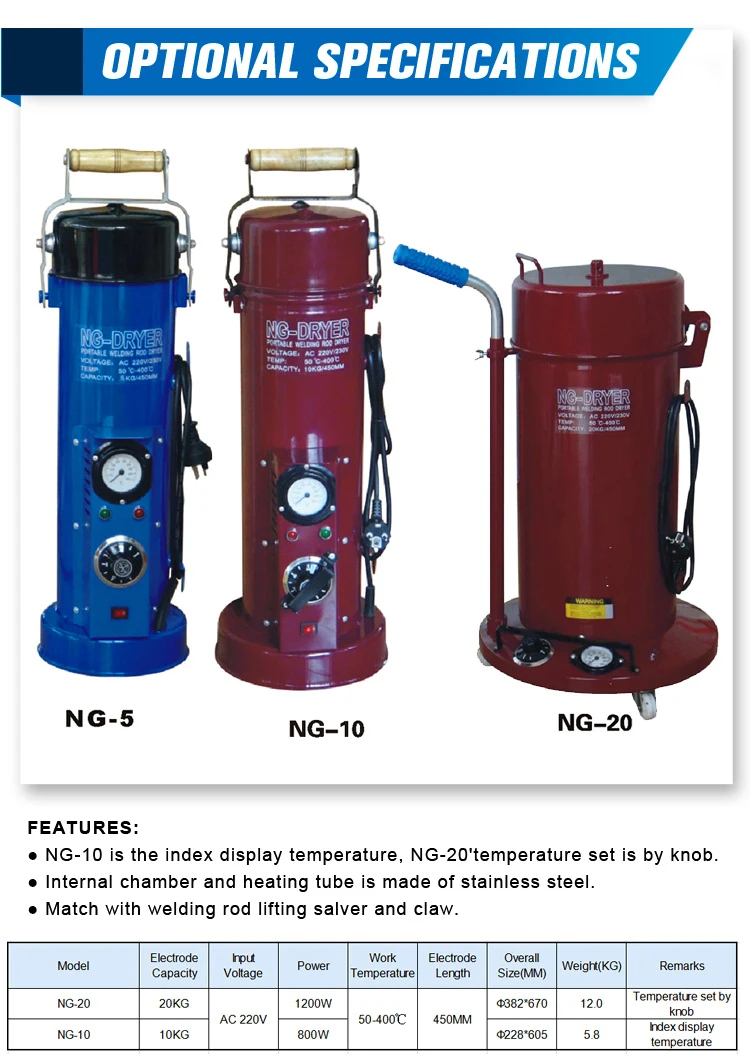

Model	NG-20	NG-10	NG-5
Electrode Capacity	20kg	10kg	5kg
Electrode Length	450mm
Input Voltage	AC220V
Power	1200W	800W	/
Max. Temperature	50℃~400℃
Overall Size (mm)	φ 382x670mm (H)	φ 228x605mm (H)	/
Weight	12.0 kgs	5.8 kgs	/
Package Quantity	1set/box, 4sets/ctn
