SJ65/33 CONICAL TWIN SCREW PLASTIC EXTRUDER FROM PVC POWDER TO PLASTIC PIPE PROFILE PLATE CHANGE MOULD SCREW AUXILIARY MACHINERY

Product Overview

Description

High Efficiency Single Screw Extruder/Conical double Twin Screw Plastic Extruder machine



Application & Features:

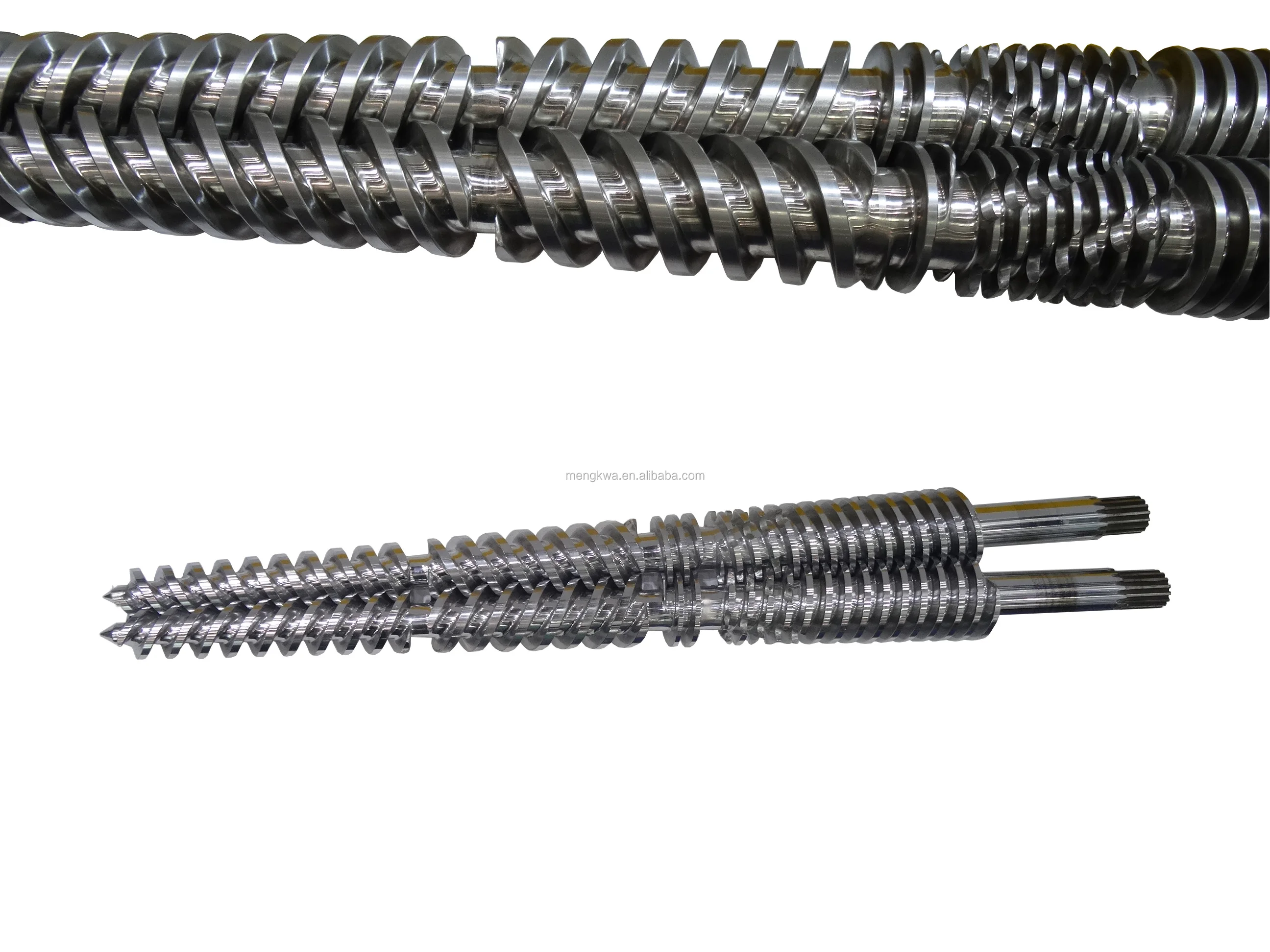

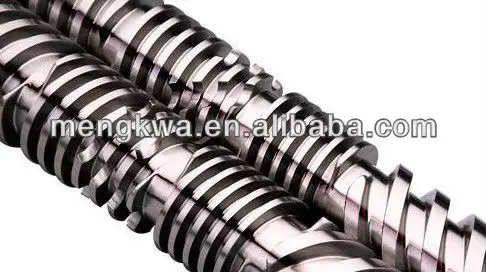

1.It is developed by our company adopting latest advanced technology.Screw optimizes composing separate type screw and mixing parts.Barrel optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by using separate type screw and groove barrel together.

2.It's optimized during material melting process.Thus get more extrusion throughout.

3.It is realized extruding  melt material in low temperature.

4.Cutting function is caused through separate  clearance and it makes materials equal well.

5.It's controlled during melt plasticization process. Therefore only granule smaller than separate clearance can enter melt channel.

6.Wide manufacture range for different materials. It's suitable for  all kind of polyolefin materials and specially for HDPE, PP, ABSpipe.



Introduction:

1.The machine is mainly to produce PP,PE,ABS and other plastics.

2.Equipment with different auxilliary equipment,

3.it can produce pipes,profiles,sheets and other plastic products and granular.

4.It has the advantage of simple production technological process,high output,stable quality and low cost.

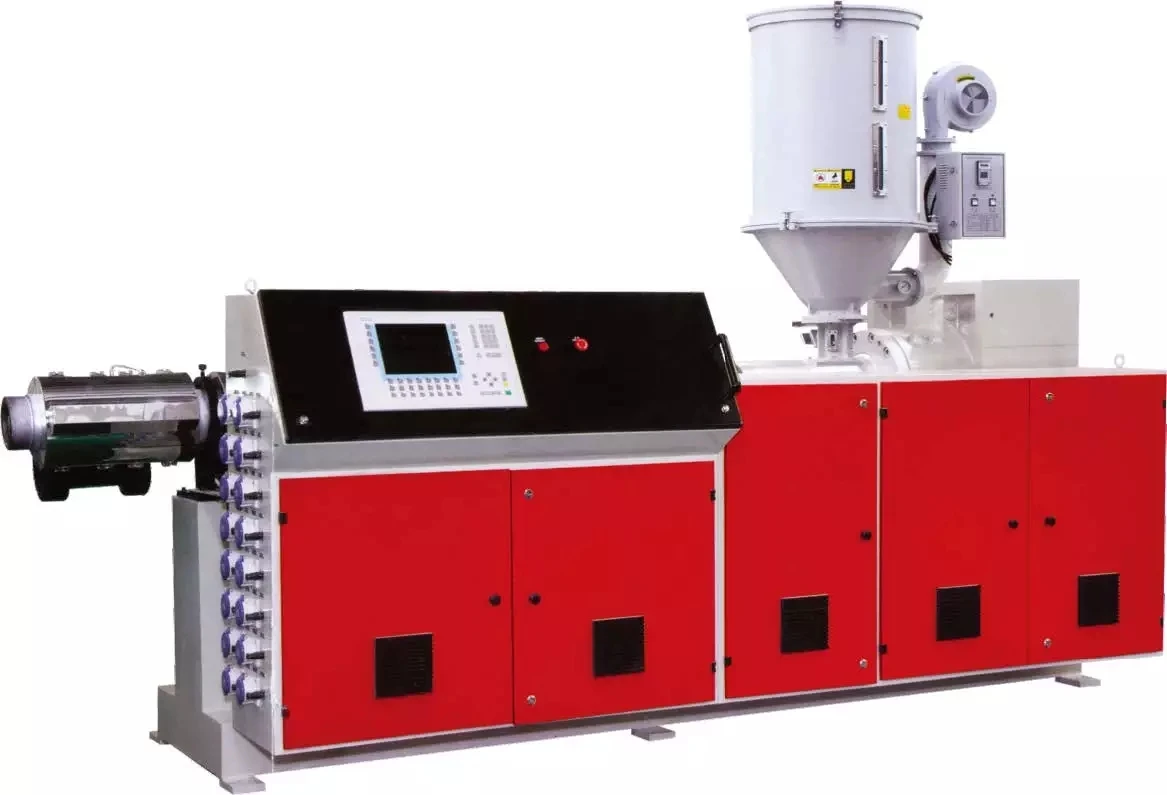

High Efficiency Single Screw Extruder

Model	SJ45/33	SJ50/33	SJ65/33	SJ75/33		SJ90/33	SJ120/33	SJ150/33
Main motor power(kw)	22/30		45/75/90	110/132		185/220	280/315	450
Screw diameter(mm)	45	50	65	75		90	120	150
L/D ratio	33	33	33	33		33	33	33
Torsion moment of screw(n.m)						11200	25000	45000
Capacity(kg/h)	90	110	200	350		500	800	1350
Dimensions(L×W×H)mm	2200× 1440×1950		2775× 1550×2200	3660× 1550×2200		4230× 1675×2200	5370× 1860×2400	6630× 1920×2450

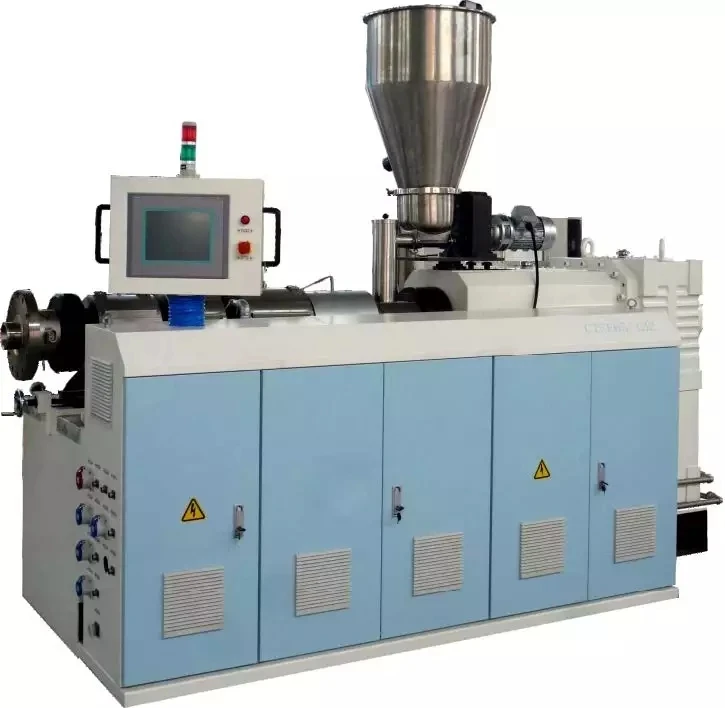

Conical double Twin Screw Plastic Extruder machine

Model	SJZ51/110	SJZ55/110	SJZ65/132	SJZ80/156	SJZ92/188
Screw diameter(mm)	51/110	55/110	65/132	80/156	92/188
Quantity of screws	2	2	2	2	2
Max. rotation  speed of screw (r/min)	38	38	38	37	36
Torsinal moment of screw(Nm)	7000	10000	11000	14000	32000
Effective length of screw (mm)	1200	1200	1440	1800	2500
Main motor power(kw)	21	22	37	55	110
Production capacity (kg/h)	100	150	250	400	750
Centre height (mm)	1000	1000	1000	1100	1200
Dimensions(L x W x H) mm	3360 x 1290 x 2127	3620 x 1050 x 2157	3715 x 1520 x 2450	4750 x 1550 x 2460	6725 x 1550 x 2814
