Operate From Anywhere Anytime No Distance Limitation Gsm Remote Water Pump Control Gate Opener Gsm Rtu5025
- Category: >>>
- Supplier: Shenzhen Ziyoumei Technology Co. Ltd.
Share on (1600488257097):
Product Overview
Description
Specification
Warranty | 1 Year |
After-sale Service | Online technical support |
Application | Villa,Office Building,Apartment,Workshop,Farmhouse |
Design Style | Modern |
Place of Origin | China |
Brand Name | Chisung |
Model Number | RTU5025 |
Product Name | RTU5025 Gsm Gate Opener Remote Access Control Unit |
Keyword | Gsm 4G Gate Opener,Gsm Remote Controller,Relay GSM Gate Opener |
GSM Frequency | Quad-band 850/900/1800/1900MHz |
3G/4G/NB-Iot | Optional: WCDMA/TDD-LTE/FDD-LTE/NB-IoT |
Digital Input | 2 NC/NO dry contact |
Digital Output | 1 Relay, 3A/240VAC |
Siren Output | 12VDC/1A |
DC Power supply | 9~24VDC/2A |
Power consumption | 12V input Max. 50mA/Average 25mA |
SIM Card | Supporting 3V SIM Card |
Antenna | 50 Ω SMA Antenna interface |
Temperature range | -20~+60 °C |
Humidity range | Relative humidity 90% |
Backup battery | 3.7V/900mAH |
Exterior dimension | W88mm*D78mm*H32mm |
Net Weight | 260 g |
Product Description

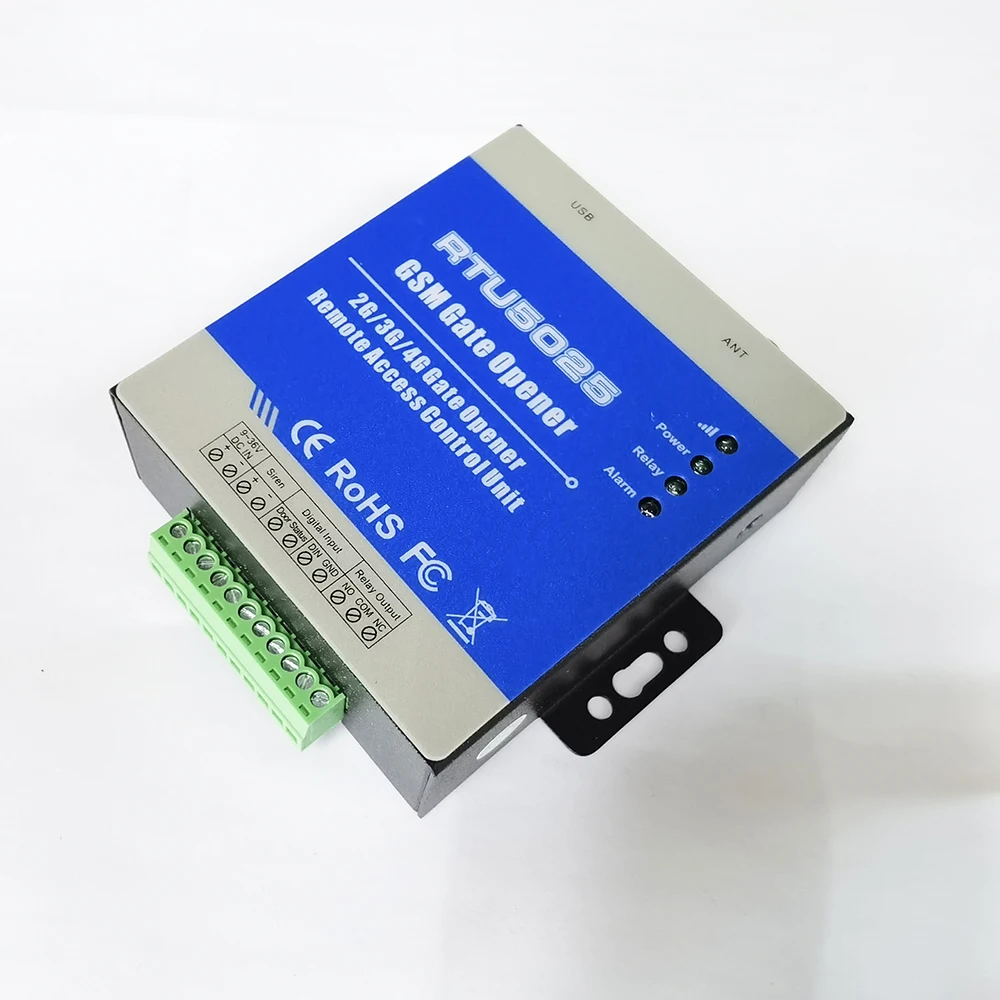

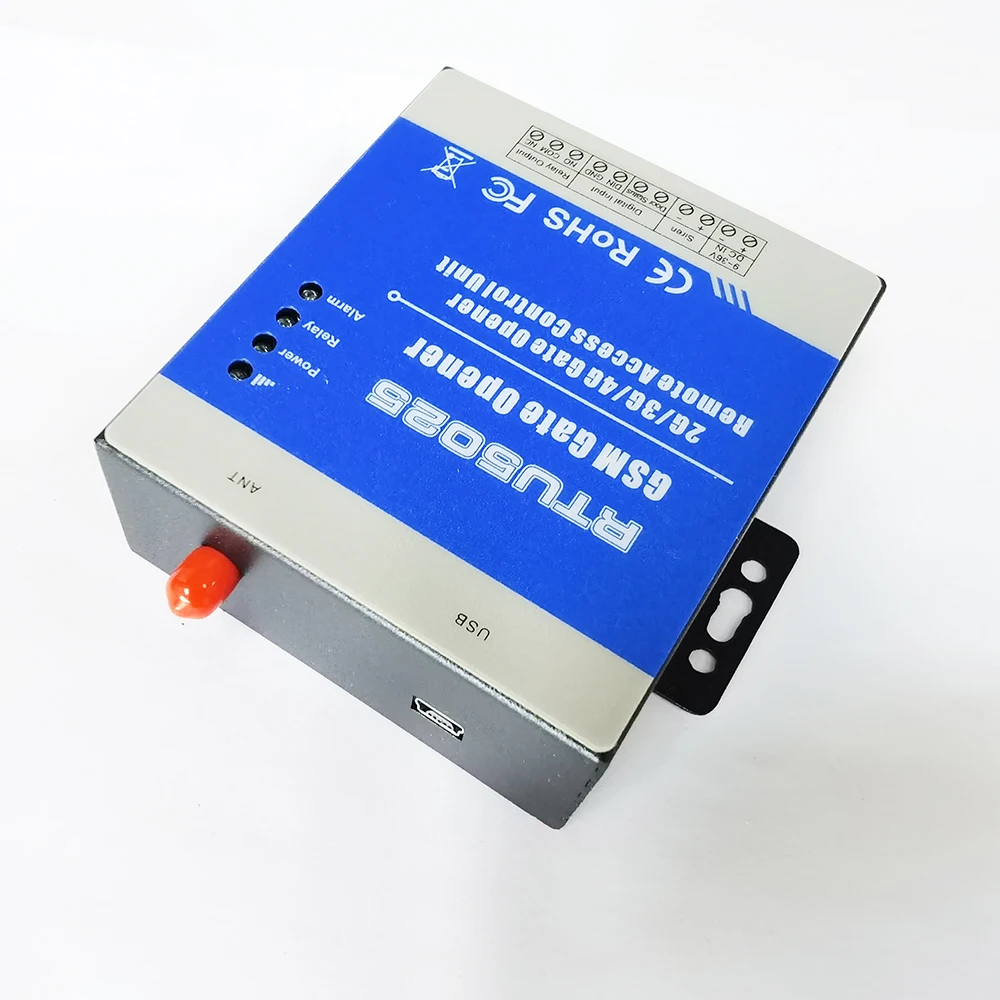

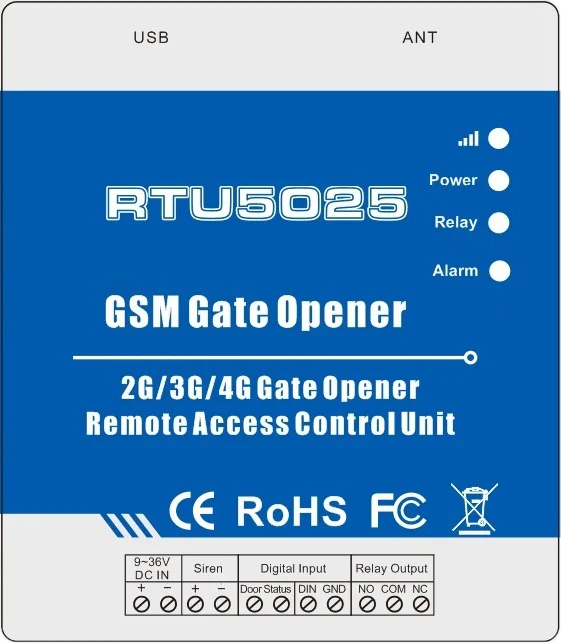

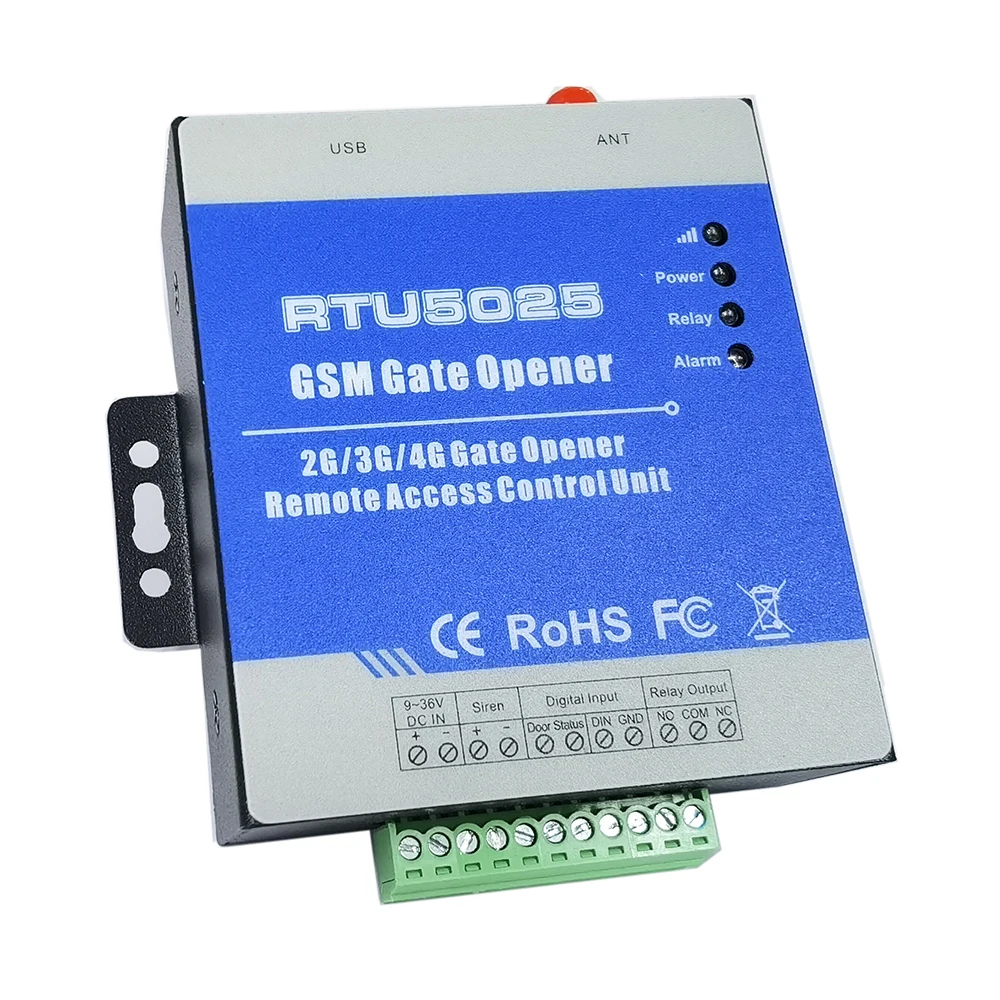

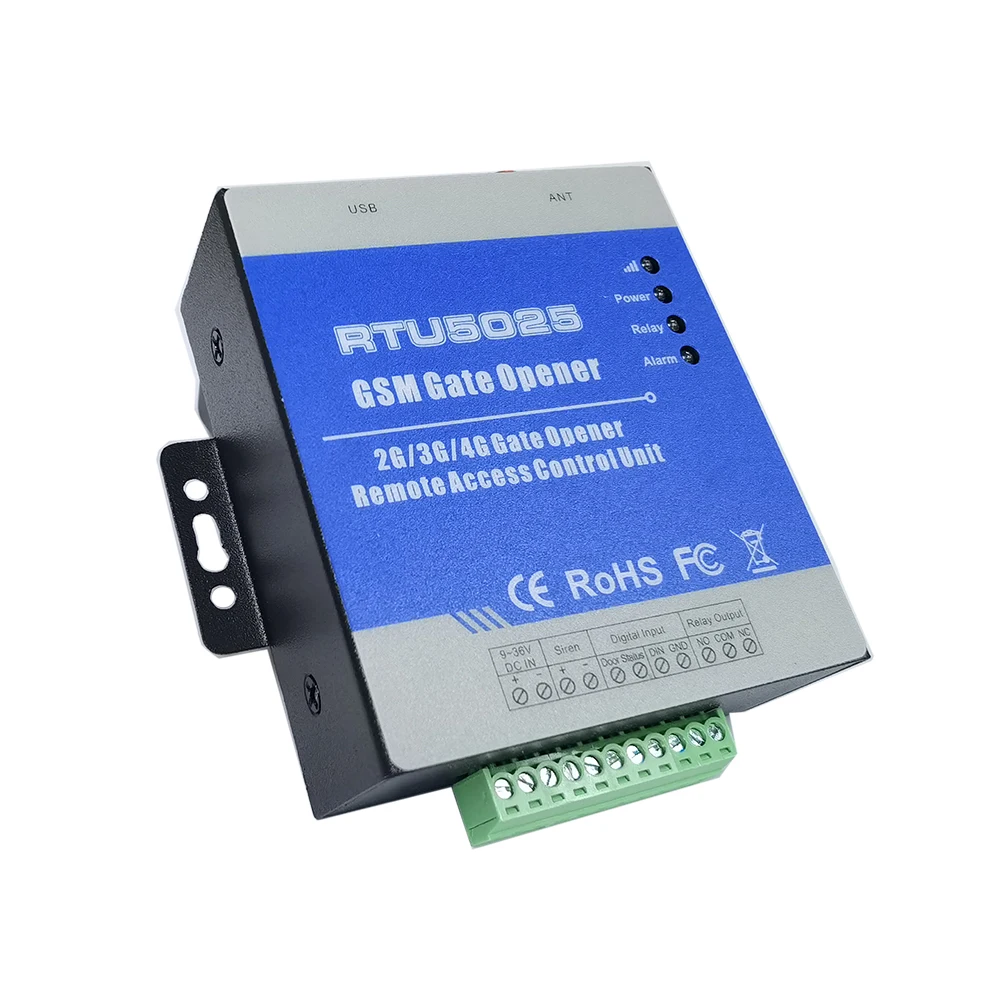

RTU5025
The RTU5025 is an upgraded version of famous RTU5015 gate opener, a very simple device which can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID),well used on door access, gate control,remote switching, or car parking systems. Actually the RTU5025 can be used in places which require to turn ON/OFF your system,machines, equipments remotely with a FREE phone call from your mobile or fixed line telephone.Android APP on Google Play available, PC software for programming via USB, remote server system over TCP/IP supported*,users caneasily download the access historical data anywhere anytime.
Advantages
* GSM,3Gor 4G band, distribute worldwide applications;
* Up to 3000 authorized phone numbers can be configured at the specified time for access control;
* No call charges. Reject calls from authorized number then carries out the turn ON/OFF action on the first 'ring';
* Secure – Using Caller-ID forverification, unknown phone calls are ignored;
* SMS confirmation of relay actions(door open)to the owner or authorized caller number.
* No need remote control or keys for different users;
* Up to 1,000 events log, download the operation historical data by USB or over GPRS;
* Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
* Android APP for configuration, search 3G Gate Opener RTU5025 on Google Play to download it.
* Up to 3000 authorized phone numbers can be configured at the specified time for access control;
* No call charges. Reject calls from authorized number then carries out the turn ON/OFF action on the first 'ring';
* Secure – Using Caller-ID forverification, unknown phone calls are ignored;
* SMS confirmation of relay actions(door open)to the owner or authorized caller number.
* No need remote control or keys for different users;
* Up to 1,000 events log, download the operation historical data by USB or over GPRS;
* Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
* Android APP for configuration, search 3G Gate Opener RTU5025 on Google Play to download it.
Digital Inputs
* TwoDigital input for motion sensor or other sensors to protect your door and windows, SMS alert to owner immediately when triggered;
Setting
* Android APP, SMS command or PC Software programming;
* Operate from anywhere anytime, no distance limitation;
* Operate from anywhere anytime, no distance limitation;

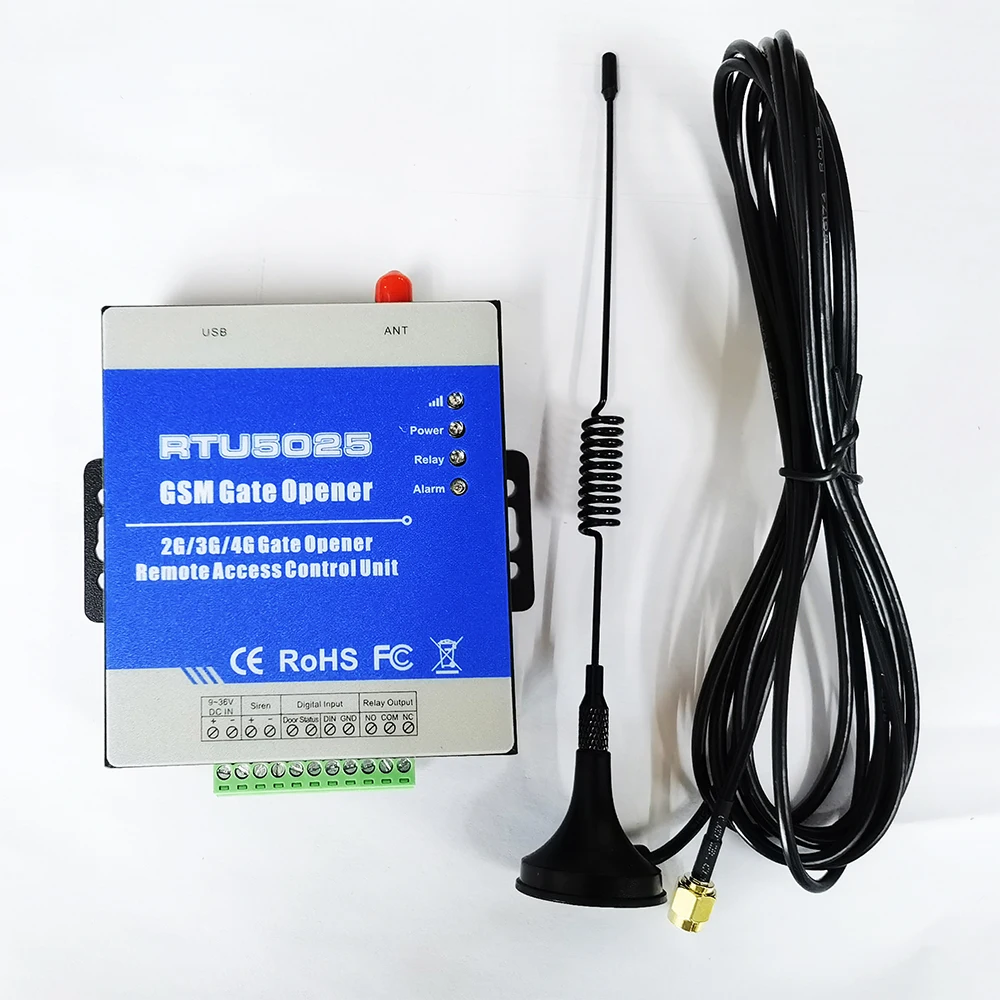

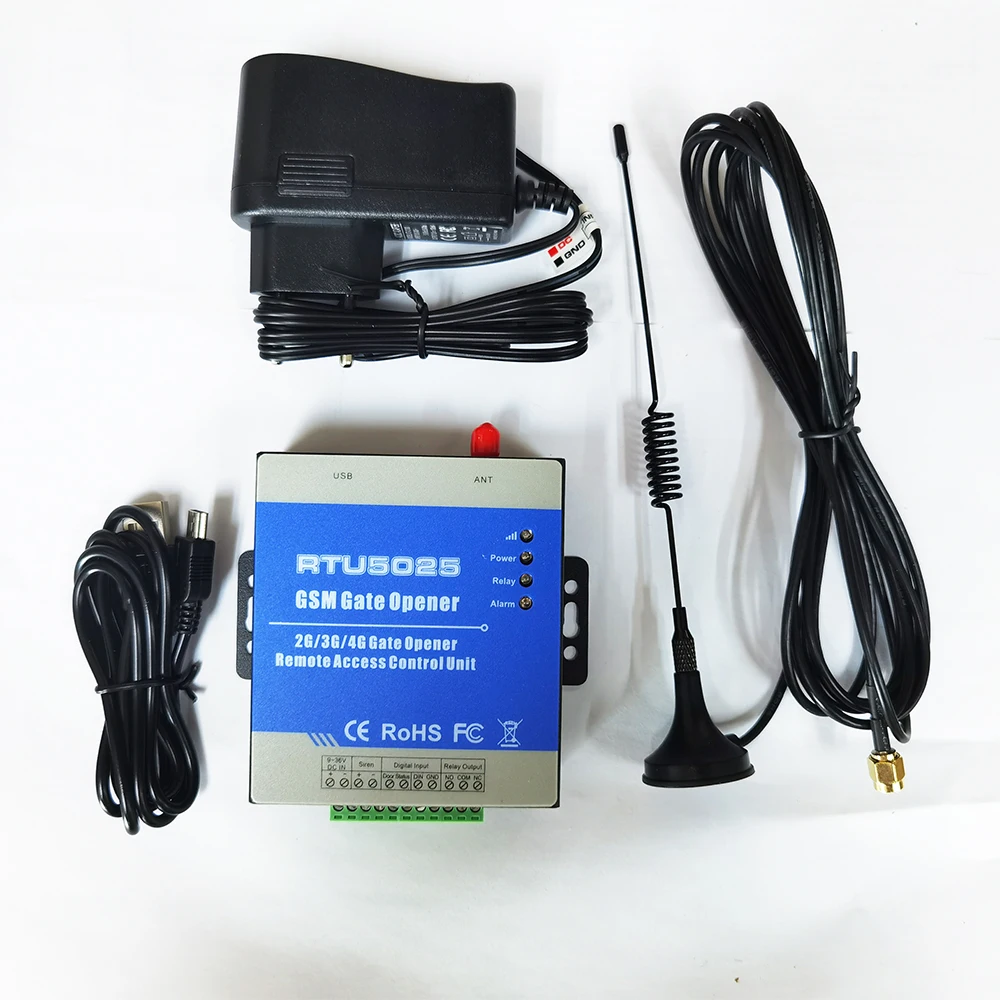

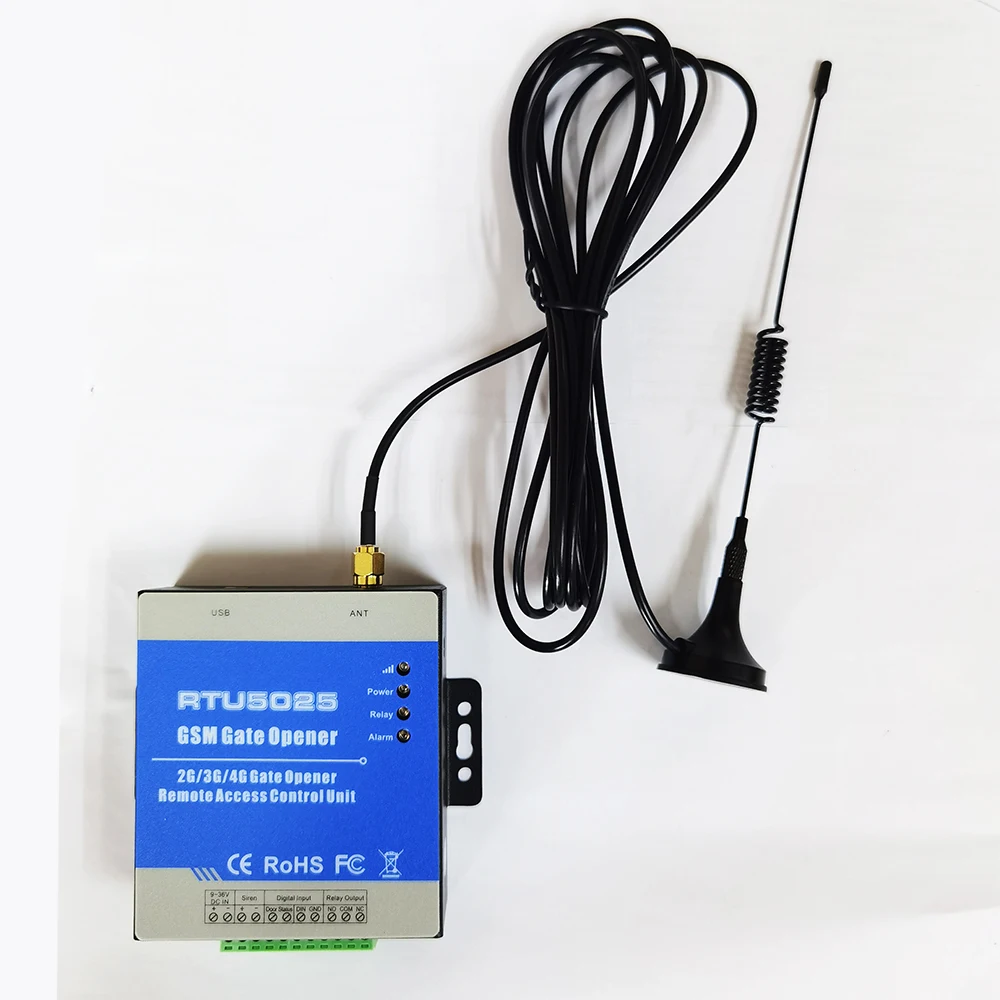

Standard Packing List
* Gate Opener * 1
* Antenna * 1
* AC/DC Power adaptor *1,
* User Manual & PC Software CD x1
* Packing size: 19*14*6 cm
* Gross Weight: 0.75kg
* Antenna * 1
* AC/DC Power adaptor *1,
* User Manual & PC Software CD x1
* Packing size: 19*14*6 cm
* Gross Weight: 0.75kg
Order Table
RTU5025: GSM 850/900/1800/1900MHz
RTU5025W: 2G: GSM900/1800MHz,
3G WCDMA : 900/2100MHz UMTS ;
RTU5025C: 2G: GSM850/900/1800/1900MHz,
3G: 850/1900MHz UMTS.
RTU5025T: 2G: GSM850/900/1800/1900MHz,
3G: 850/2100MHz UMTS.
RTU5025L: 4G
RTU5025W: 2G: GSM900/1800MHz,
3G WCDMA : 900/2100MHz UMTS ;
RTU5025C: 2G: GSM850/900/1800/1900MHz,
3G: 850/1900MHz UMTS.
RTU5025T: 2G: GSM850/900/1800/1900MHz,
3G: 850/2100MHz UMTS.
RTU5025L: 4G
Optional Accessories
* Door contact sensor,
* Motion detector,
* Temperature sensor,
* Infrared Beam Fence,
* Vibration sensor,
* and others.
* Motion detector,
* Temperature sensor,
* Infrared Beam Fence,
* Vibration sensor,
* and others.
Applications
* Remote open/close swing/sliding gates, doors, shutters, garage doors, locks with a free call!
* Intrusion security alarm, remote ON/OFF motors, lights, pumps, generators, valves and machines.
* Residential: Door, gate, garage access control, electronic fan, microwave, air-conditioner control.
* Industry:Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
* Agriculture:Remote control pumps, etc.
* Business:Remote control electronic boxes, bright billboards, LED signs, etc.
* Intrusion security alarm, remote ON/OFF motors, lights, pumps, generators, valves and machines.
* Residential: Door, gate, garage access control, electronic fan, microwave, air-conditioner control.
* Industry:Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
* Agriculture:Remote control pumps, etc.
* Business:Remote control electronic boxes, bright billboards, LED signs, etc.

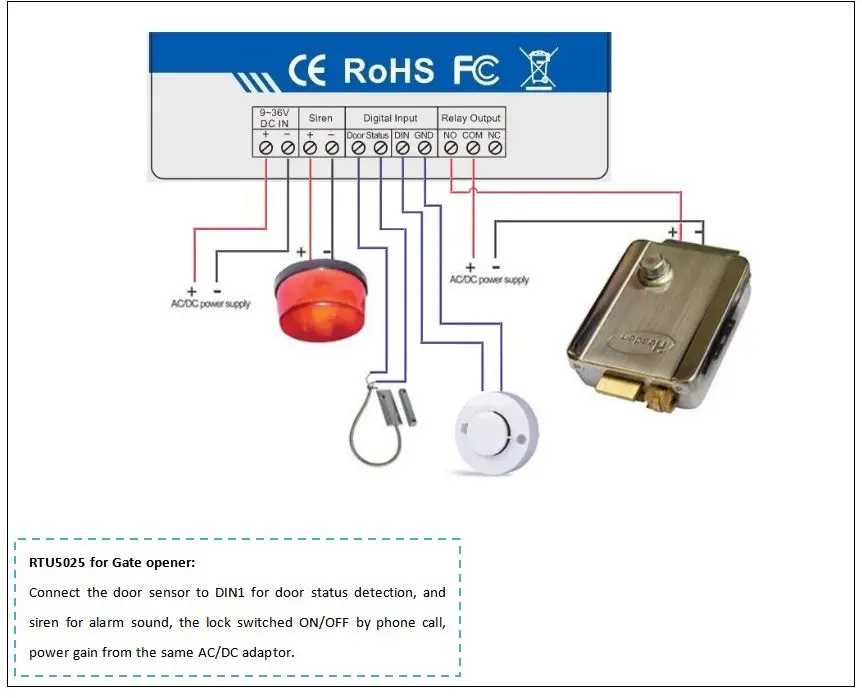

Diagram

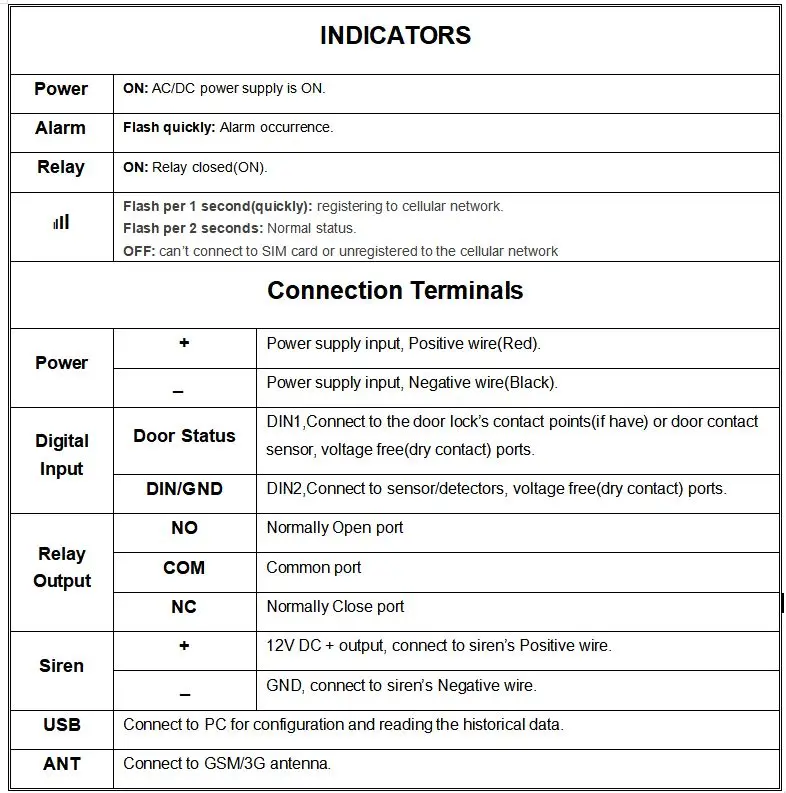

Typical wiring connection
