Outdoor Mechanical Tripod Turnstile Waist Height Turnstile
- Category: >>>
- Supplier: Shenzhen Wejoin Machinery & Electrical Technology Co. Ltd.
Share on (1600488276827):
Product Overview
Description
Product Description
WJAT210 / WJTS210
WJAT211 / WJTS211

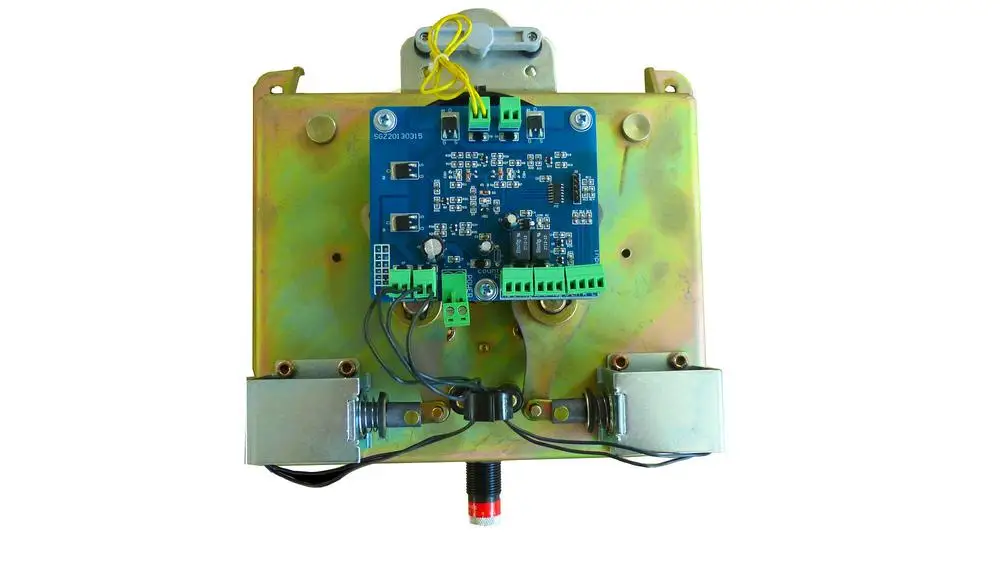

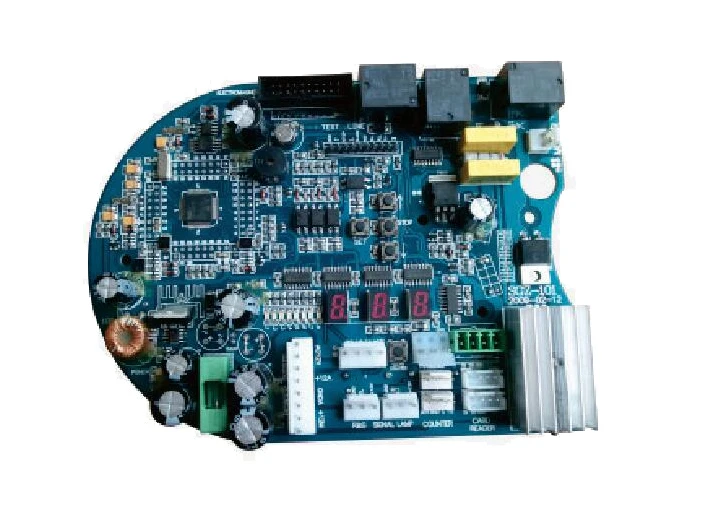

Automatic Tripod Turnstile Control Board and Mechanism

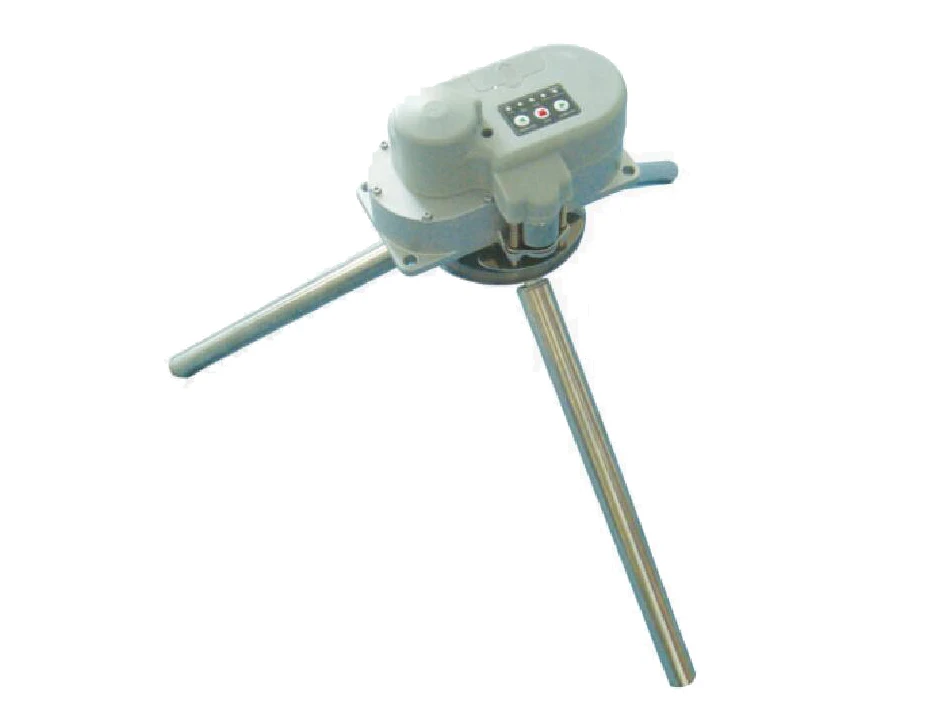

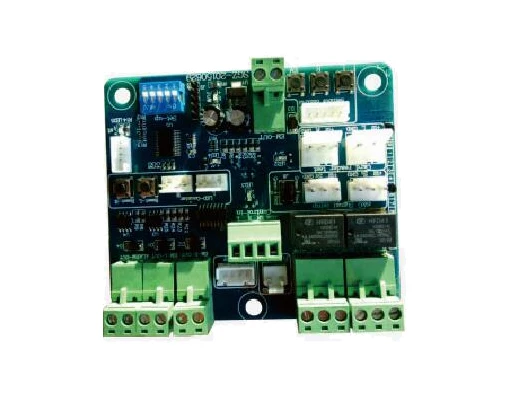

Motorized Tripod Turnstile Control Board and Mechanism
Automatic Tripod Turnstile
Model | WJAT210 | WJAT211 | |
Material of housing | 304 Stainless steel | ||
Dimension of Housing | 1200*280*990mm | 420*330*980mm | |
Length of Pole (out of housing) | 490mm | ||
Net Weight | 70KG | 50kg | |
Max Load-Bearing of Pole | 80kg | ||
Driving Force of Pole | 3kg | ||
Power Supply | AC220V±10%,50HZ; AC110V±10%,60HZ | ||
Working Voltage of motor | DC12V | ||
Rated Power | 36W | ||
Input Interface | Dry contact with the pulse between 200ms and 500ms | ||
Transit speed | 30~45 persons/min | ||
Working Temperature | -25℃~+55℃ | ||
Working environment | Indoor/ Outdoor | ||
Relative humidity | ≤95%, no condensation | ||
Functions & Features
1. Exquisite rotating plate and self-lock mechanism.
2. Bi-directional pass/any single direction pass(adjustable).
3. Arm auto-drop when power off and manual rise up when power on.
4. Self-lock within 5 seconds.
5. Avoid unauthorized access.
6. Counter output.
7. Fire alarm emergency signal output.
2. Bi-directional pass/any single direction pass(adjustable).
3. Arm auto-drop when power off and manual rise up when power on.
4. Self-lock within 5 seconds.
5. Avoid unauthorized access.
6. Counter output.
7. Fire alarm emergency signal output.
8. Input interfaces available for left access(L), right access(R), emergency(EM), GND.
Motorized Tripod Turnstile
Model | WJTS210 | WJTS211 | |
Material of housing | 304 Stainless steel | ||
Dimension of Housing | 1200*280*990mm | 420*330*980mm | |
Length of Pole (out of housing) | 490mm | ||
Net Weight | 70KG | 50kg | |
Max Load-Bearing of Pole | 80kg | ||
Driving Force of Pole | 3kg | ||
Power Supply | AC220V±10%,50HZ; AC110V±10%,60HZ | ||
Working Voltage of motor | DC12V | ||
Rated Power | 50W | ||
Input Interface | DC 12V electrical level signal, more than 10ms, or DC12V impulse signal driving current, more than 10ms | ||
Transit speed | 25~32 persons/min | ||
Working Temperature | -25℃~+55℃ | ||
Working environment | Indoor/ Outdoor | ||
Relative humidity | ≤95%, no condensation | ||
Functions & Features
1. Card reader available, support WEIGAND 26/34 communication card reader.
2. Bi-directional pass/any single direction pass(adjustable).
3. Arm auto-drop when power off and auto rise up when power on and auto stop on an obstacle.
4. Traffic light indicator/Pass direction indicator.
5. Alarm light available(optional function)/Remote control available (optional function)/Counter available (optional function).
6. RS232 socket available which can connect to a computer. It can also connect to a computer by Internet LAN socket (Optional function).
2. Bi-directional pass/any single direction pass(adjustable).
3. Arm auto-drop when power off and auto rise up when power on and auto stop on an obstacle.
4. Traffic light indicator/Pass direction indicator.
5. Alarm light available(optional function)/Remote control available (optional function)/Counter available (optional function).
6. RS232 socket available which can connect to a computer. It can also connect to a computer by Internet LAN socket (Optional function).
Packing & Delivery
Manufacturing Technique
Company Profile
SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO., LTD.
Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.
FAQ
Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with the Mifare reader and controller?
A: Yes, there is a controller, our turnstile has a control board, can connect with Mifare reader.
Q4: Can we buy this product and grant access to the user via cell phone app/bar code? What access point options does it come with?
Card? Token?
A: Yes, you can connect the turnstile with a bar code reader, and other customized access controllers.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can you provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with the Mifare reader and controller?
A: Yes, there is a controller, our turnstile has a control board, can connect with Mifare reader.
Q4: Can we buy this product and grant access to the user via cell phone app/bar code? What access point options does it come with?
Card? Token?
A: Yes, you can connect the turnstile with a bar code reader, and other customized access controllers.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can you provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
