electrical power distribution equipment for solid inflatable switchgear

Product Overview

Description

1. Description

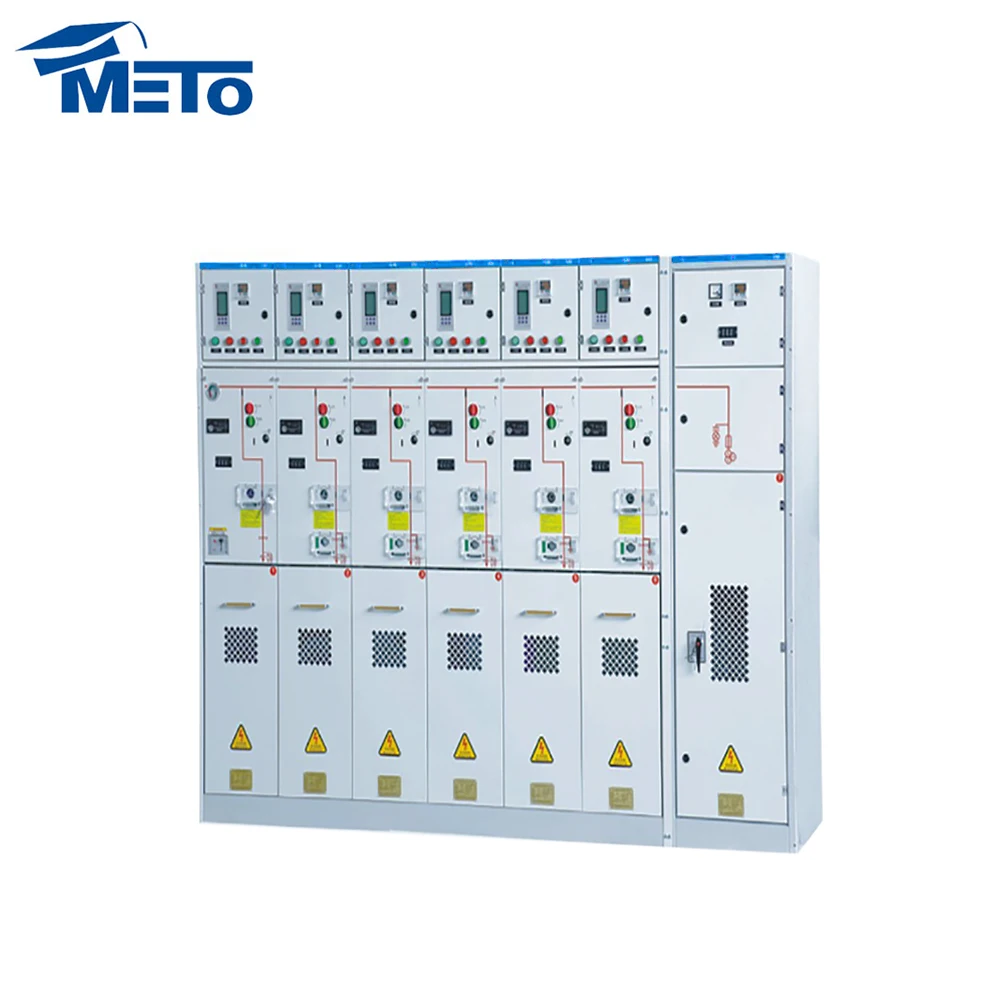

 SRM-16/12 insulated switchgear mainly has three functional unit modules, namely D unit (breaker unit), I unit (load switch unit), and R unit(fuse combination electrical unit). The main switch of each unit is a vacuumswitch.When the distribution network system requires the combination ofmultiple units, it can be arbitrarily expanded according to the distribution network requirements. Arbitrarily arrange according to different design schemes to achieve different distribution network requirements.
2. Environmental Conditions
(1) Suitable Altitude: ≤2000mSuitable

(2) Temperature: -40℃ ~ +55℃Relative

(#) Humidity: Daily mean ≤95%, monthly mean ≤90%

(4) Gradation of Earthquake Damage: ≤ Level 8

3. Technical Parameter







product number	module C	module F	module V		module C B
	load switch	composite apparatus	vacuum switch	isolatin/grounding switch	vacuum circuit breaker	isolatin/grounding switch
rated voltage	12	12	12	12	12	12
rated frequency	50	50	50	50	50	50
power frequency withstand voltage	42/48	42/48	42/48	42/48	42/48	42/48
lightning impulse withstand voltage	75/85	75/85	75/85	75/85	75/85	75/85
rated current	630		630		1250/630
rated closed loop breaking current	630
rated cable charging breaking current	135/135
rated short circuit closing current(max)	50	80
rated peak tolerance current	50
rated short-time tolerable current	20
rated short circuit breaking current		31.5	20		25
rated transfer current		1750
equipped with fuse maximum current		125
loop resistance	≤300	≤600
mechanical life	5000	3000	5000	2000	5000	5000
