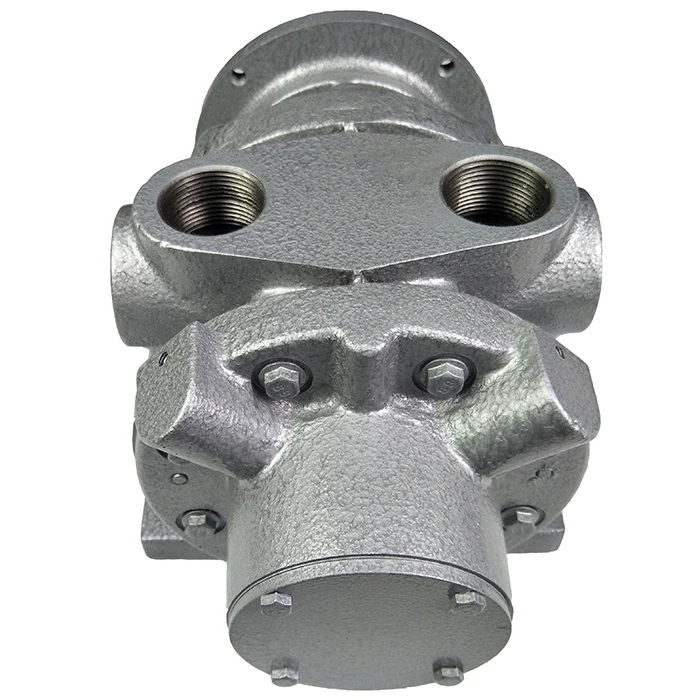

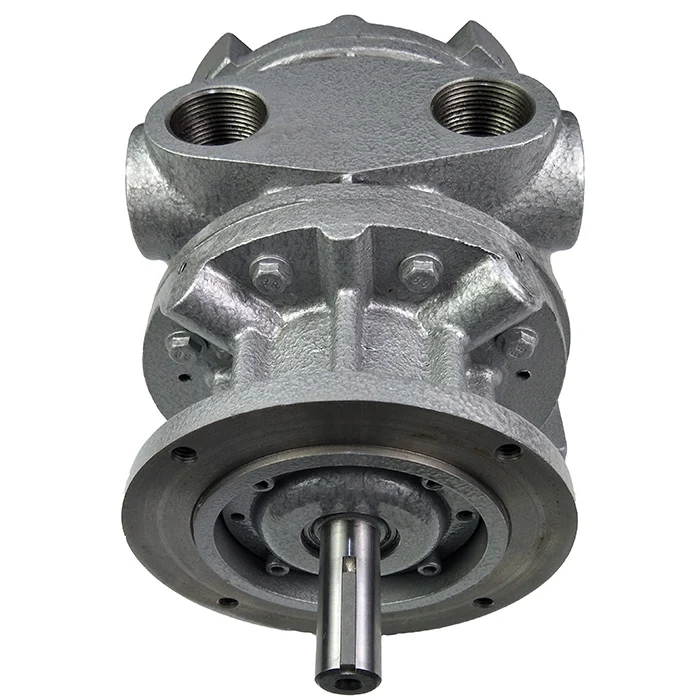

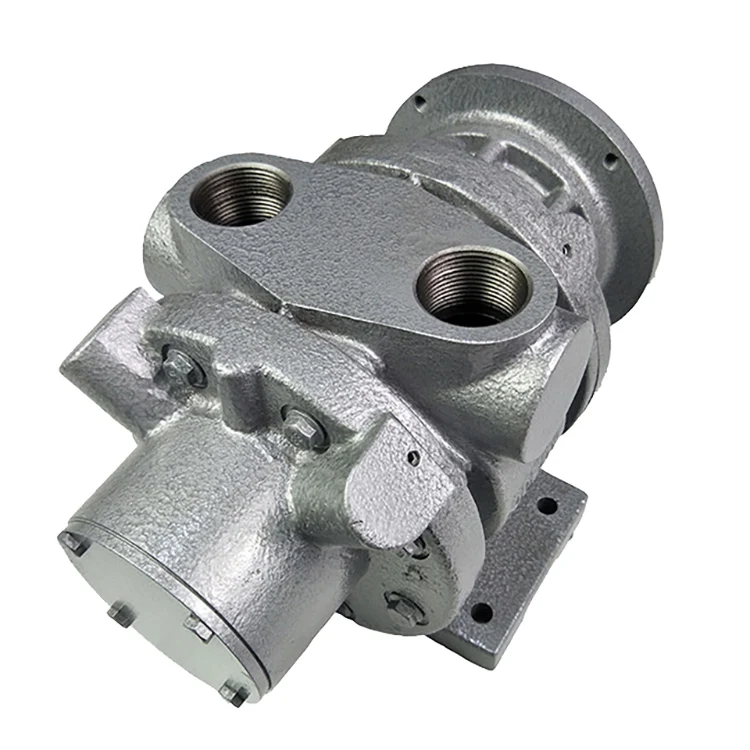

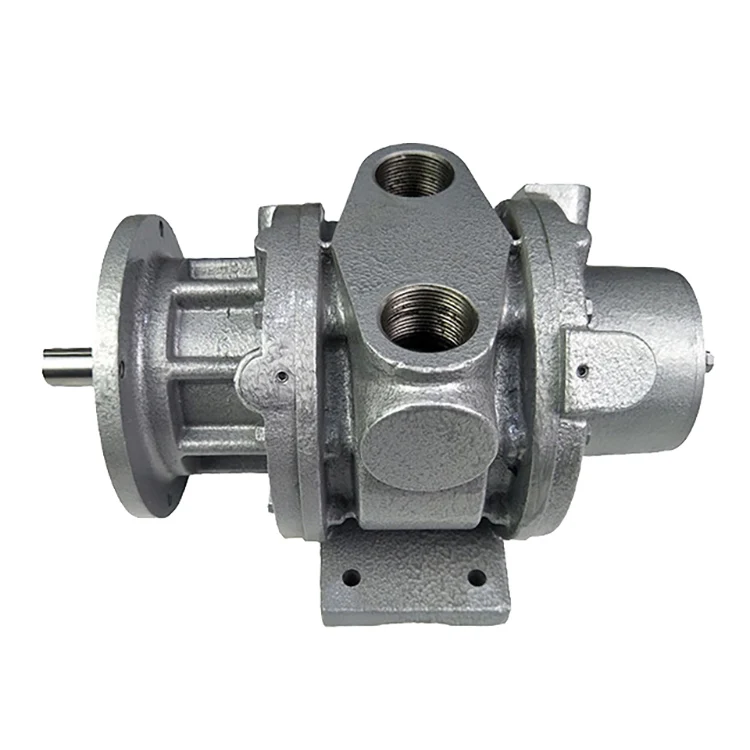

NEMA 145TC Flange Mount Vane Air Motor
- Category: >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (1600488299180):
Product Overview
Description
Product Description
Product features:
*Hongxin produces and sells standard conventional vane air motors of 0.33KW-7KW, and can also provide OEM or customized motor services, each motor has a unique product identification, which can be traced back to specific professional assembly workers;
* Hongxin vane air motor has simple structure, small size, light weight, high horsepower, easy operation and convenient maintenance. Because of its water resistance, fire resistance, explosion-proof, explosion-proof and dustproof, and high-speed rotation, it will not burn the machine and generate heat, so it is suitable for Substitute motors for work in harsh environments such as humidity, high temperature, and high dust;
*The Hongxin vane air motor series can realize stepless speed regulation through the speed control valve, and at the same time, a reducer can be installed to reduce the speed and increase the torque, so as to meet the various speed and torque requirements of customers. It is widely used in ships, metallurgy, papermaking, and offshore platforms. , petrochemical, pharmaceutical and other industries.
* Hongxin vane air motor has simple structure, small size, light weight, high horsepower, easy operation and convenient maintenance. Because of its water resistance, fire resistance, explosion-proof, explosion-proof and dustproof, and high-speed rotation, it will not burn the machine and generate heat, so it is suitable for Substitute motors for work in harsh environments such as humidity, high temperature, and high dust;
*The Hongxin vane air motor series can realize stepless speed regulation through the speed control valve, and at the same time, a reducer can be installed to reduce the speed and increase the torque, so as to meet the various speed and torque requirements of customers. It is widely used in ships, metallurgy, papermaking, and offshore platforms. , petrochemical, pharmaceutical and other industries.
Specification
Brand Name | HongXin |
Model Number | HX16AM-FRV-13 |
Type | Air motor |
Average Air Consumption | 275cfm |
Maximum Torque | 43Nm |
No-Load Speed | 2000rpm |
Power | 7kW |
Torque | 34Nm |
Maximum torque | 43Nm |
Speed at maximum torque | 300rpm |
working pressure | 0.6-0.8MPa |
Maximum air consumption | 7.9m³/min |
Connection size | 11/4"NPT |
Trachea diameter | Inner diameter I.D.=25mm |
Output shaft diameter | Φ22.23mm |
Matters needing attention
(1) The air motor must be driven by dry, clean and lubricated compressed air, and an air filter, pressure regulating valve, and lubricator must be installed in the air circuit system, that is, two or three parts. The double and triple parts must be installed close to the air motor (within 0.5 meters).
(2) The inner diameter of the nozzle is not less than 25mm. Before connecting to the air motor, it is necessary to ventilate and clean up the debris and debris that may appear in the air pipe. These foreign objects enter the air motor and cause the motor to be stuck.
(3) The air motor must be lubricated continuously when it is running (the lubricating oil enters the air motor with the compressed air after being atomized by the lubricator). Lubrication will reduce the wear of the air motor blades and the corrosion of the internal parts of the motor, and prolong the service life. The lubricating oil label is ISO-VG32 special oil for lubricator or other lubricating oil with the same label. The amount of lubrication is 1-2 drops per minute.
(2) The inner diameter of the nozzle is not less than 25mm. Before connecting to the air motor, it is necessary to ventilate and clean up the debris and debris that may appear in the air pipe. These foreign objects enter the air motor and cause the motor to be stuck.
(3) The air motor must be lubricated continuously when it is running (the lubricating oil enters the air motor with the compressed air after being atomized by the lubricator). Lubrication will reduce the wear of the air motor blades and the corrosion of the internal parts of the motor, and prolong the service life. The lubricating oil label is ISO-VG32 special oil for lubricator or other lubricating oil with the same label. The amount of lubrication is 1-2 drops per minute.
Packing & Delivery
Plywood Case
Company Profile
Rudong Hongxin Machinery Co.,Ltd established in 2002,Located in Xinlin Industry District, Rudong, Jiangsu, China which is around 200km far from Shanghai. This plant covers an area of 56,000 square meters and possesses all sorts of CNC (computer numerical control) processing and detection equipments. Also it has around one hundred people of skilled workers, R&D staffs and administrators.
Under ISO9001 quality management system, our company is specialized in development and production of gas fluid interior impetus machinery equipments, and has exploited the leading pneumatic series products both at home and abroad, such as air motor, air winch, air mixer, air hoist, air explosion proof lamp, air fan, etc.
Air winch and air explosion proof lamp series has obtained CCS technical approval and certificate as well as CE certification for air motor series products.
All pneumatic series products are widely used and approved in many fields, e.g. ship, offshore platform, mine, petrochemical industries, etc. and popular in Europe, America, Africa and Southeast Asia.
Under ISO9001 quality management system, our company is specialized in development and production of gas fluid interior impetus machinery equipments, and has exploited the leading pneumatic series products both at home and abroad, such as air motor, air winch, air mixer, air hoist, air explosion proof lamp, air fan, etc.
Air winch and air explosion proof lamp series has obtained CCS technical approval and certificate as well as CE certification for air motor series products.
All pneumatic series products are widely used and approved in many fields, e.g. ship, offshore platform, mine, petrochemical industries, etc. and popular in Europe, America, Africa and Southeast Asia.
