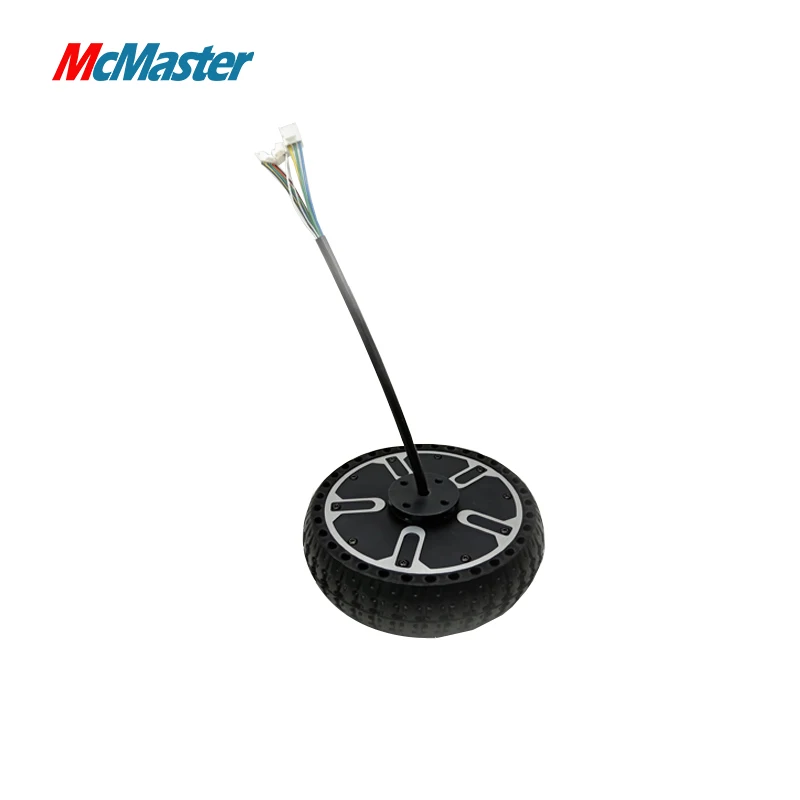

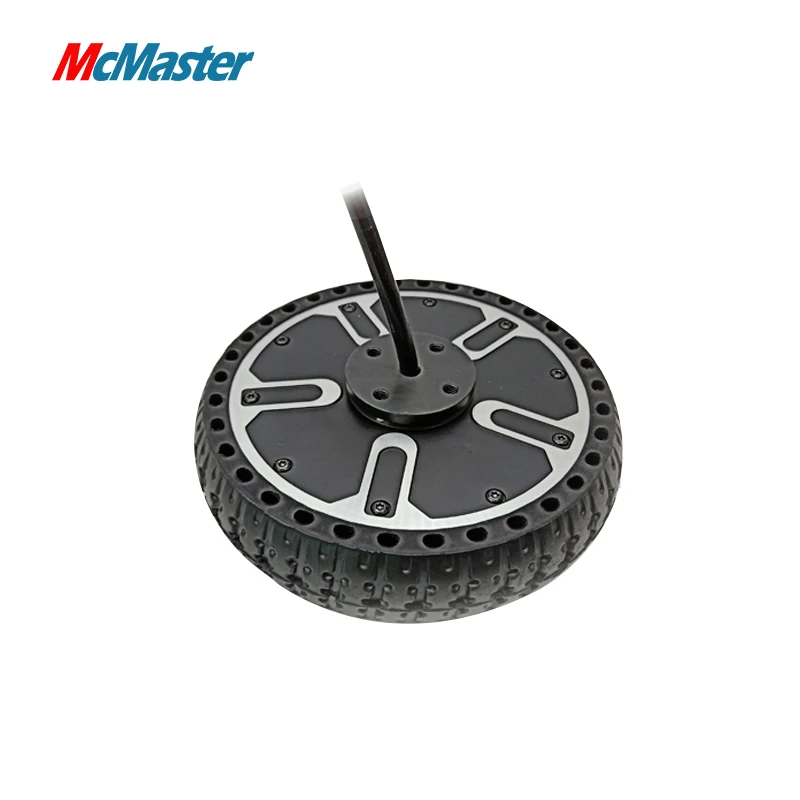

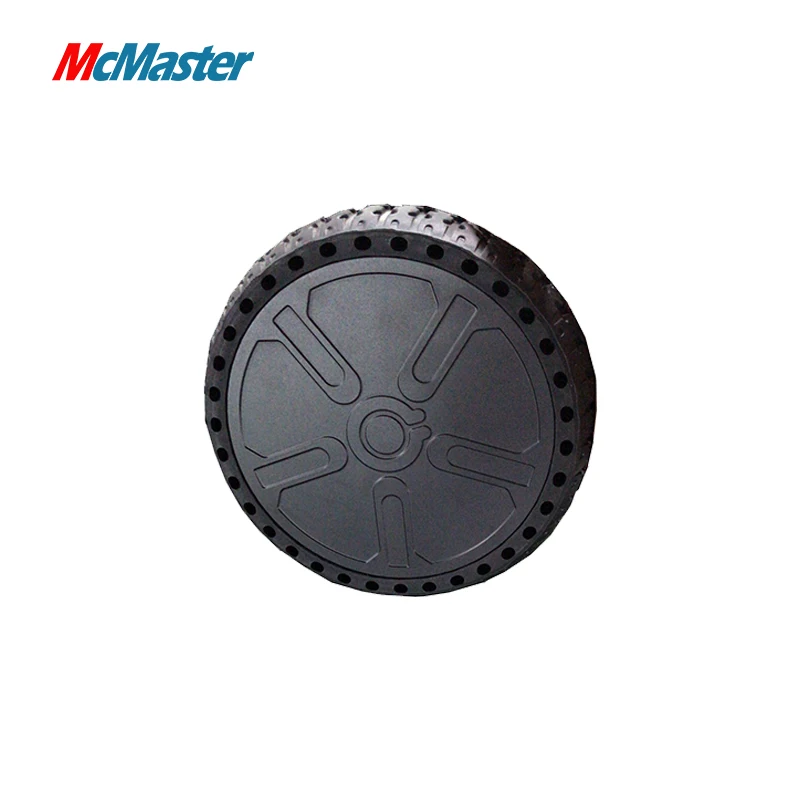

2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel
2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel
2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel
2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel
2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel
2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel
2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel

2022 Popular BMM1020 6.5 Inch 62W DC 24V Hub Wheel Motor Brushless DC Agv Motor Scooter Motor for Robot Wheel

Share on (1600488333520):


Price:$63.00 - $75.50

Quantity:


Product Overview

Description



Products Description


Model: BMM1020
STANDARD OPERATING CONDITIONS
Rate Voltage:
DC 24V
Operating Condition:
Temp.:-10ºC～+40ºC
Relative Humidity:5～85%
Storage Condition:
Temp.:-20ºC～+40ºC
Relative Humidity:5%～90%
Direction of Rotation:
CCW&CW
ELECTRICAL CHARACTERISTIC
No Load Current:
≤800 mA
No Load Speed:
210±5% RPM
Rated Load Current:
≤5.0 A
Rated Load Speed:
115±5% RPM
Rate Load:
5000 mN.m
Rate Power:
62 W
MECHANICAL CHARACTERISTIC
Weight:
≈2.22 kg

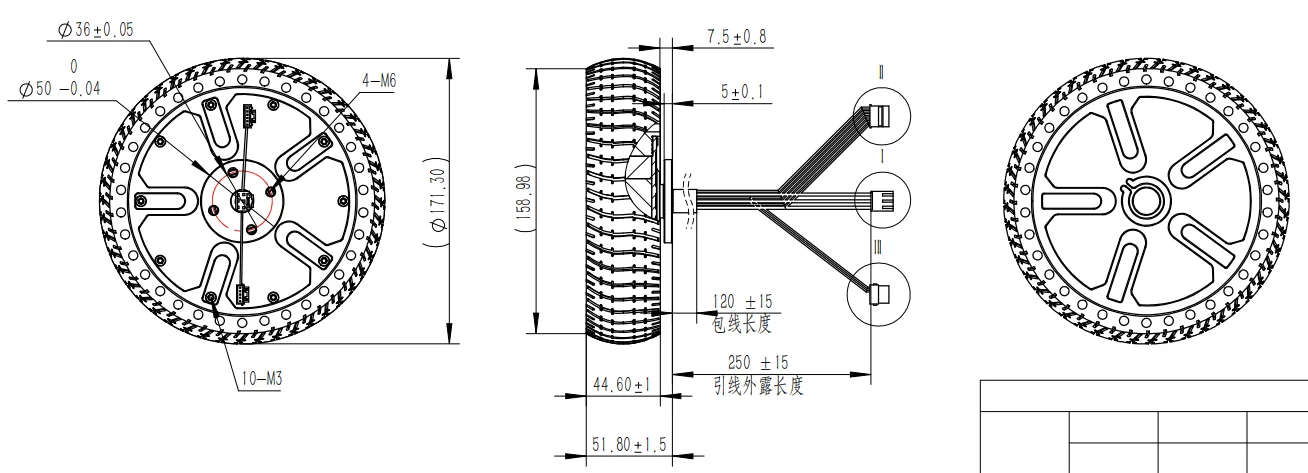

Outline:
Refer to outline drawing
Noise:
≤60 dB






Application
