SiRON Y943 Factory direct industrial solid state relay Dc To Dc Solid State Relay 40a 120v Dc Solid State Relay
SiRON Y943 Factory direct industrial solid state relay Dc To Dc Solid State Relay 40a 120v Dc Solid State Relay
SiRON Y943 Factory direct industrial solid state relay Dc To Dc Solid State Relay 40a 120v Dc Solid State Relay
SiRON Y943 Factory direct industrial solid state relay Dc To Dc Solid State Relay 40a 120v Dc Solid State Relay
SiRON Y943 Factory direct industrial solid state relay Dc To Dc Solid State Relay 40a 120v Dc Solid State Relay

SiRON Y943 Factory direct industrial solid state relay Dc To Dc Solid State Relay 40a 120v Dc Solid State Relay

Share on (1600488343909):


Price:

Quantity:


Product Overview

Description





Our company's product categories are very rich
If you have any other needs, please contact us for consultation.


Features



*Impact resistance, strong shock resistance;
* Low noise and quiet, high safety factor;
* Maintain heat when energized. The lower the temperature of the hot plate and the ambient temperature, the longer the service life.



Product Parameters


Model
Y943 series (DC control DC)
Rated current
05A max
10A max
25A max
40A max
55A max
70A max
Breakout current
15A max
30A max
50A max
90A max
150A max
225A max
Breakout voltage
300VDC
600VDC
The output voltage
5～60VDC
5～120VDC
The reaction time
1.0ms
The input voltage
4～32VDC
Close the voltage
＜3.0VDC
Trigger current
12mA max
The control mode
Random
Leakage current
1.0mA
Input breakout resistance
2KV（EN61000-4-4）
Dielectric strength
4KVrms（EN60950/VDE0805）
Dielectric strength
100MΩ/500VDC(EN60950/VDE0805)
The work environment
-40℃～+80℃；35～85%RH
Weight
about 88g


Specifications
Model

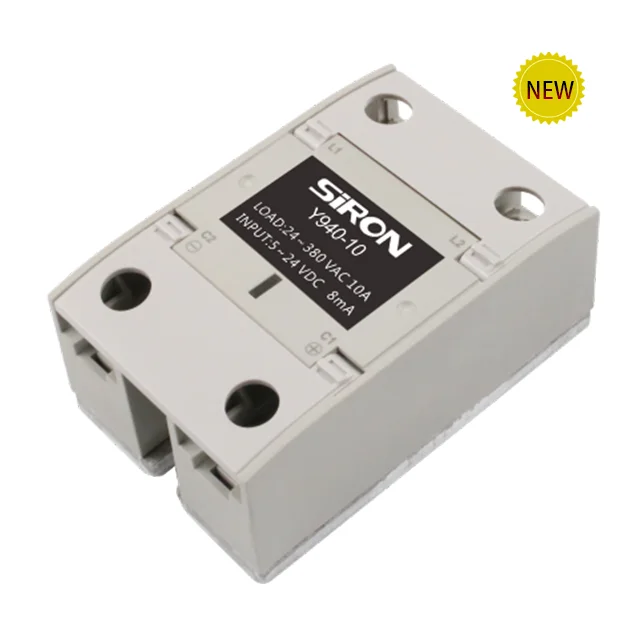

Y940 series (DC control AC)
Y942 series (AC control AC)
load
Service load voltage
24～380VAC
Peak voltage (non-repetitive)
1200V
600V
Resistant to surges
/
800V(10A)；1200V(25～70A)
Rated load current
10A 25A 30A 40A 55A 70A
Input current (8.3ms non-repetitive)
160A 250A 400A 400A 520A 520A
Frequency
50/60Hz (shared)
Leakage current
≤20mA
Output ON voltage drop
Below 1.6V(R.M.S)
Input
The rated voltage
5～24 VDC
100～240 VAC
Service voltage range
4.6～32 VDC
70～264 VAC
impedance
Below 4kΩ
Operating voltage
Above 4.6VDC
70VAC or more
Input currentWeight
Constant current mode: 8mA(±3)
220VAC; 8mA
 Response speed
1/2 Cycle +1ms max. (under 1ms for "R" type)
Insulation impedance
500VDC, 100MΩ (between input, output and shell)
Withstand voltage
2500VAC (1 minute at 60Hz)
Resistance to vibration
10～55Hz, double width: 1.5mm, 2 hours each in X, Y, and Z directions
Impact resistance
1000m/s2, 3 times in X, Y, and Z directions
Keep the temperature
-30～90℃
Environment temperature
-5～40℃ (but no condensation)
Environmental humidity
45～85%RH
Pollution level
level 2
Use
Resistive
Use the specifications
IEC 62314
Weight
about 88g


Products Description










Recommend Products






Company Profile






Certifications




Delivery




FAQ


1.What type of company are you?
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body,
Push Button, Switch, and Auxiliary Equipment, Human Machine Interface, Frequency Converter,
Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South Korea...,
and we do hope you become our agent in the future,
welcome to discuss the deep details with us.
