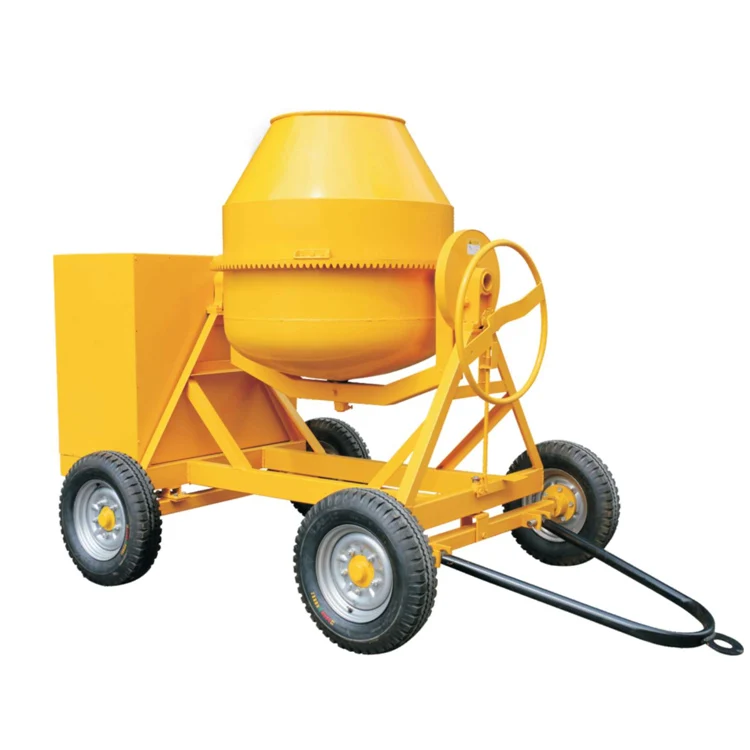

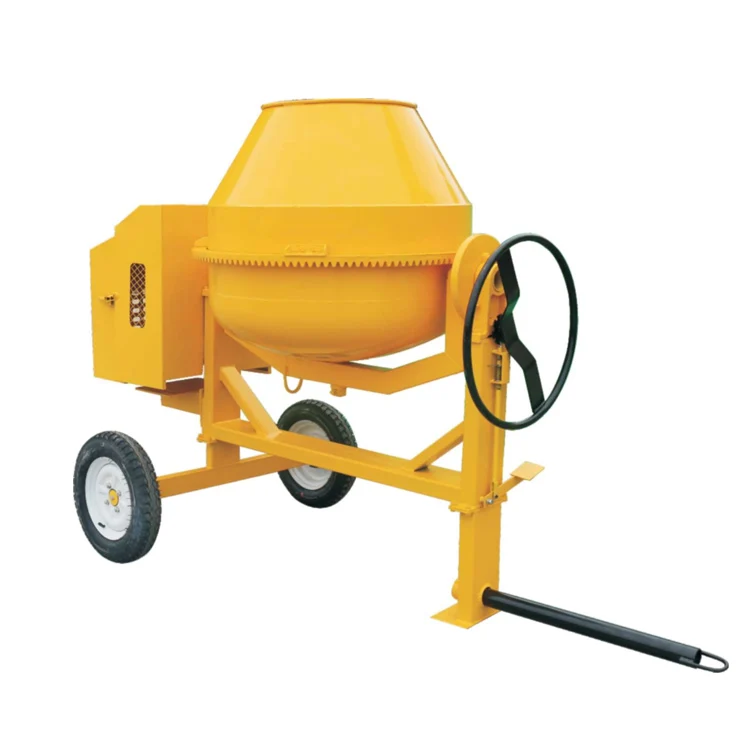

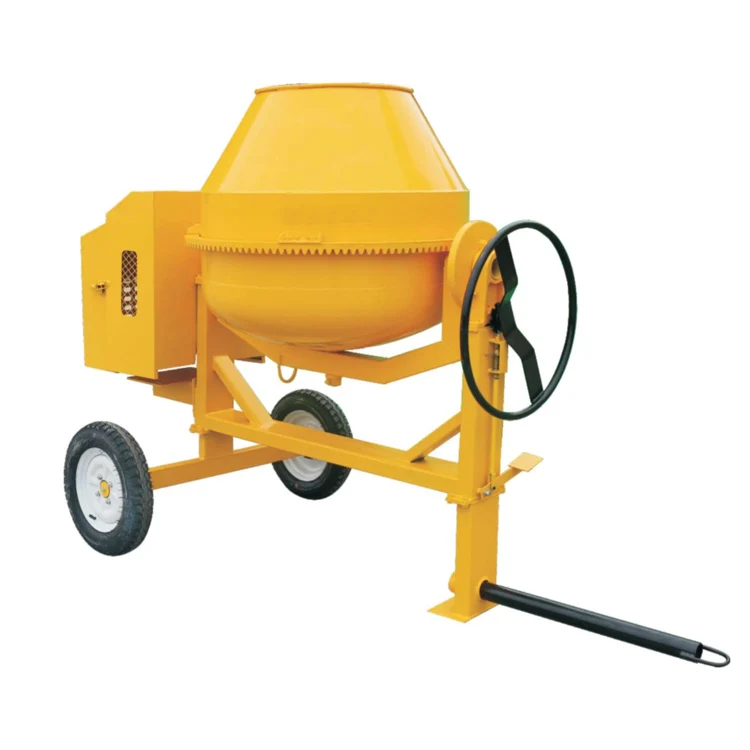

4 wheels mobile type 500L cement concrete drum mixer portable for sale
- Category: >>>
- Supplier: Linyi Shengming Machinery Co. Ltd.Linyi Ltd.
Share on (1600488377995):
Product Overview
Description
Product Application
DM-500L Tilting Drum Concrete Mixer with Diesel Engine Power is a concrete mixer of Tilting drums which discharge concrete by Sterring wheel, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Each time, the mixing drum can handle 0.32 cubic meters of concrete.
The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, DM-500L Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
| Main performance parameters | Drum Capacity | Lit | 500 |
| Loading Capacity | Lit | 400 | |
| Discharging Capacity | Lit | 320 | |
| Batches Per Hour | Ti | 20-30 | |
| Bags of Cement per Batch | ba | 50kgs | |
| Productivity | m³ | 6-8 | |
| Drum Size | m³ | Φ950*900 | |
| Drum Rotation Speed | m | 25-30 | |
| Max.Size of Aggregate | Rp | 60 | |
| Drum Thickness | m | 3 | |
| Tyre Size | m | 4*4.00-12 | |
| Engine | Engine brand | ||
| Type | motor | ||
| Rated Rotating Speed | 1440 | ||
| Power | 3KW | ||
Main feature
1.All-steel construction, Mini Concrete Mixer has long life span.
2.Big wheels, It's easy to move the Mini Concrete Mixer to anywhere.
3.Diesel/gasoline/electric motor,optional as customers' requirement. Mini Concrete Mixer is powerful.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface,colour as your request.
6.EPA certificated wheels,wheels size:520mm.
7.Guarantee time:ONE YEAR warranty
8.water supply mode:direct input
9.Discharging:semi-automatic
Details advantages:

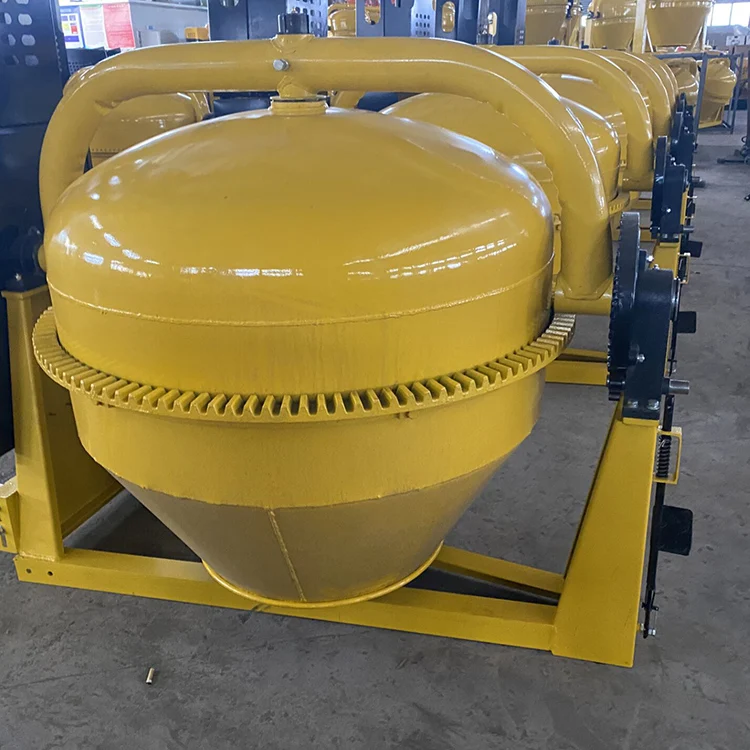

Mixing Drum
Material: Q235 Wear resistant Steel Plate
Details: The Drum Thickness is 3 mm,made by Q235 Wear resistant Steel Plate. 5 mm as Option.
Seamless steel tube for Chassis
The seamless Square tube is very Strong and Durable.Easy to cope with the complex environments.
Two Square tube design available.
Cast iron Gear Ring
Each Gear Ring and Bevel Gear have been treatment by the strict lathe finishing.
It's good for Mini Concrete Mixer steady and silent working.
Unbreakable Bow for Supportng the Mixing Drum
Name: Drum Supporting Bow
Details:Made by the Circular tube,Tube Diameter 90mm.
Single shot shaping technique.
No welding in the Corner.
Make sure the Bow doesn't break during use.
MUCH MORE STRONG AND BETTER THAN THE SQUARE TUBE WELDING BOW.
Portection Cover for Engine
Material: 1.8 mm Steel Plate
Features:Made by Steel Plate,which thickness is 1.5 mm, can protect the Engine from damaged . What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily,and the engine could have a longer service life.

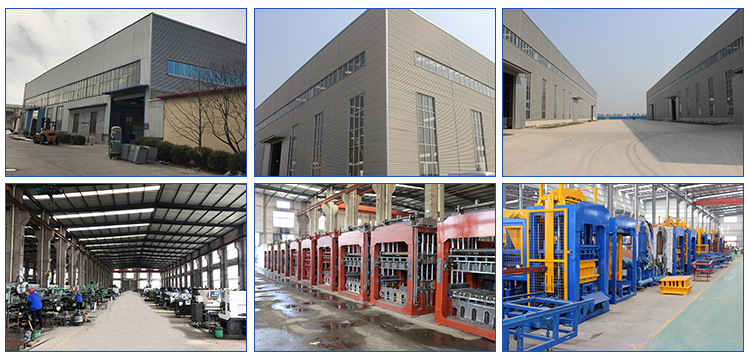

Company introduction
Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.
FAQ
Q: How about the quality of your products?
A: We are factory with more than 20years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
