Product Overview

Description

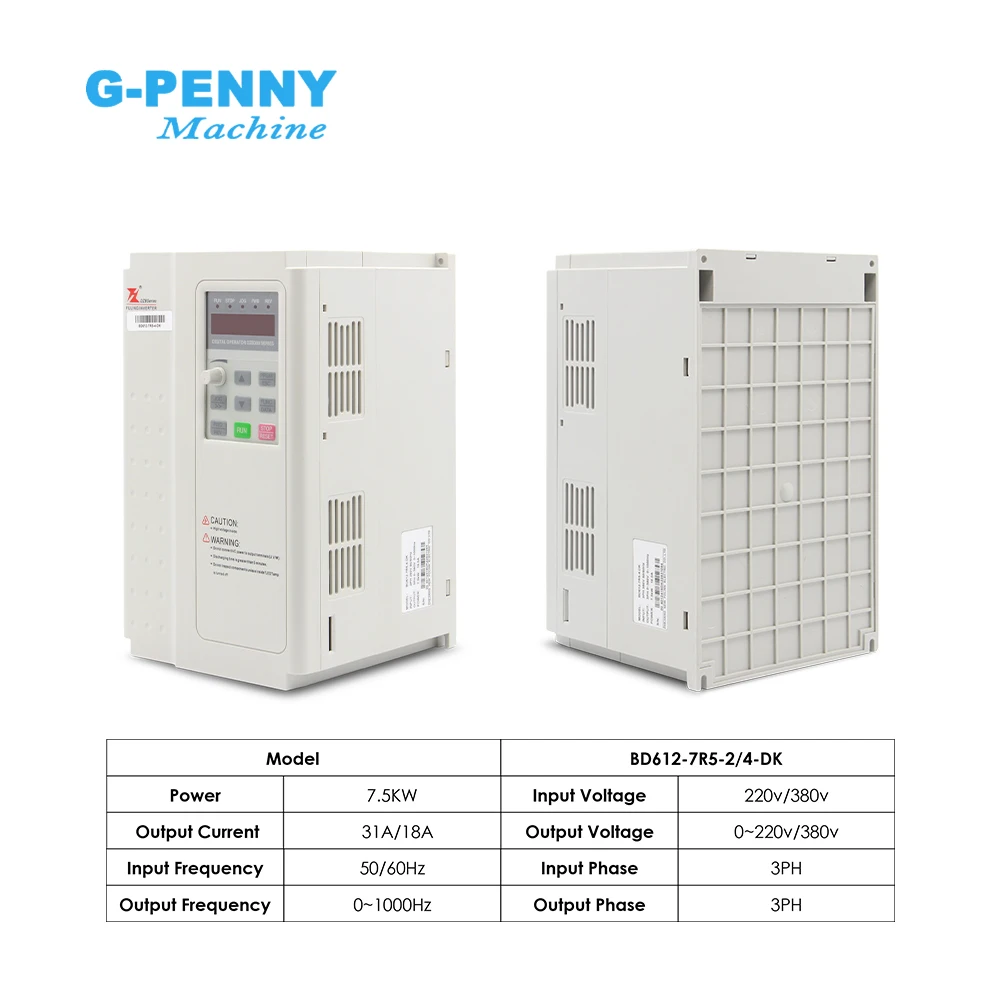

1 pcs -- 220V/380V 7.5kw Variable Frequency Drive VFD/Inverter 0-1000H output




Power
7.5KW
Input Voltage
220v/380v (+/-20%)
Input Frequency
50/60Hz
Output Voltage
220v/380v
Current
31A(220V)/18A(380V)
Output Frequency
0-1000Hz
Input Phase
3 Phase
Output Phase
3 Phase
Control Method
V/F control




◆ Control modes: V/F control mode
◆ 8-stage simple PLC, multi-stage speed control and PID control
◆ Input and output terminals are free to program, and users can combine multiple working modes according to their needs
◆0.75~15KW built-in braking units of various specifications, can connect the braking resistor directly if need to stop quickly.
◆ Support many frequency setting modes: digital setting, analog setting, PID setting, communication setting.
◆With instantaneous power-off and non-stop function.
◆The inverter above 37KW has a built-in DC react
◆Provide multiple fault protection functions: over current, over voltage, under voltage, overheat, phase lor to improve the input
side power factor and the efficiency and stability of the whole machine.

Applications：
◆ Metal processing, CNC machine tools, wire drawing machines, and other mechanical equipment
◆ Municipal engineering, central air conditioning energy-saving transformation
◆ Papermaking equipment, chemical industry, pharmaceutical industry, textile industry,etc.
◆ Various fan and pump loads

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.


Technical Features
Description
Input
Input voltage range
1AC 220V±15%，3AC 220V±15%, 3AC 380V±15%
Input frequency range
47~63Hz
Power factor
≥95%
Control performance
Control mode
V/F control
V/F control
Linear, multipoint, multiple power V/F curve
Operation command mode
Keypad control, Terminal control, Serial communication control
Frequency setting mode
Digital setting, analog setting, serial communication setting, multi-section speed setting, PID setting, etc. It can realize the
given combination and mode switching.
Overload capacity
120% rated current 60S; 130% rated current 3S.
Starting speed
1.5Hz / 150%
Speed range
1:100
Speed control accuracy
±0.5%
Carrier frequency
1.0 to 15.0kHz; automatically adjust carrier frequency according to the load characteristics
Frequency resolution
Digital setting: 0.01Hz. Anolog setting: maximum frequency x 0.1%
Torque increase
Automatic torque hoost; manual torque boost 0.1~30%
Acceleration and deceleration mode
Straight line, two kinds of acceleration and deceleration time
DC brake
DC braking during startup and DC braking during shutdown.
Inching operation
Inching frequency range: 0.0Hz~maximum output frequency, inching acceleration and deceleration time 0~3600.0s
Simple PLC and multi-stage speed operation
Up to 8 segments of speed operation can be realized through built-in PLC or control terminal.
Built-in PID
It is convenient to realize the closed-loop control system of process quantities (such as pressure, temperature, flow, etc.).
Automatic voltage regulation(AVR)
When the grid voltage changes, it can automatically keep the output voltage constant
Common DC bus
Multiple inverters share DC bus, and the energy is automatically balanced.
Human machine interface LED Display

Can display setting frequency, output frequency, output voltage, output current, etc.
Enviorment & Protection class
Place of use
It is installed vertically in a well-ventilated electrical cabinet. It is not allowed to install horizontally or in other
ways.Free from direct sunlight, dust, corrosive gas, flammable gas, oil stain and water dripping's environment
ambient temperature
-10~40 ℃, derated above 40 ℃
Humidity
5~95%, no condensation
Altitude
0 － 2000m, derated for use above 1000m, the rated output current will be reduced by 1% for every 100m increase
Storage
-40~70℃
Vibrate
Less than 5.9m/s2
Protection class
IP20； High protection grade IP54, IP65 can be customized
