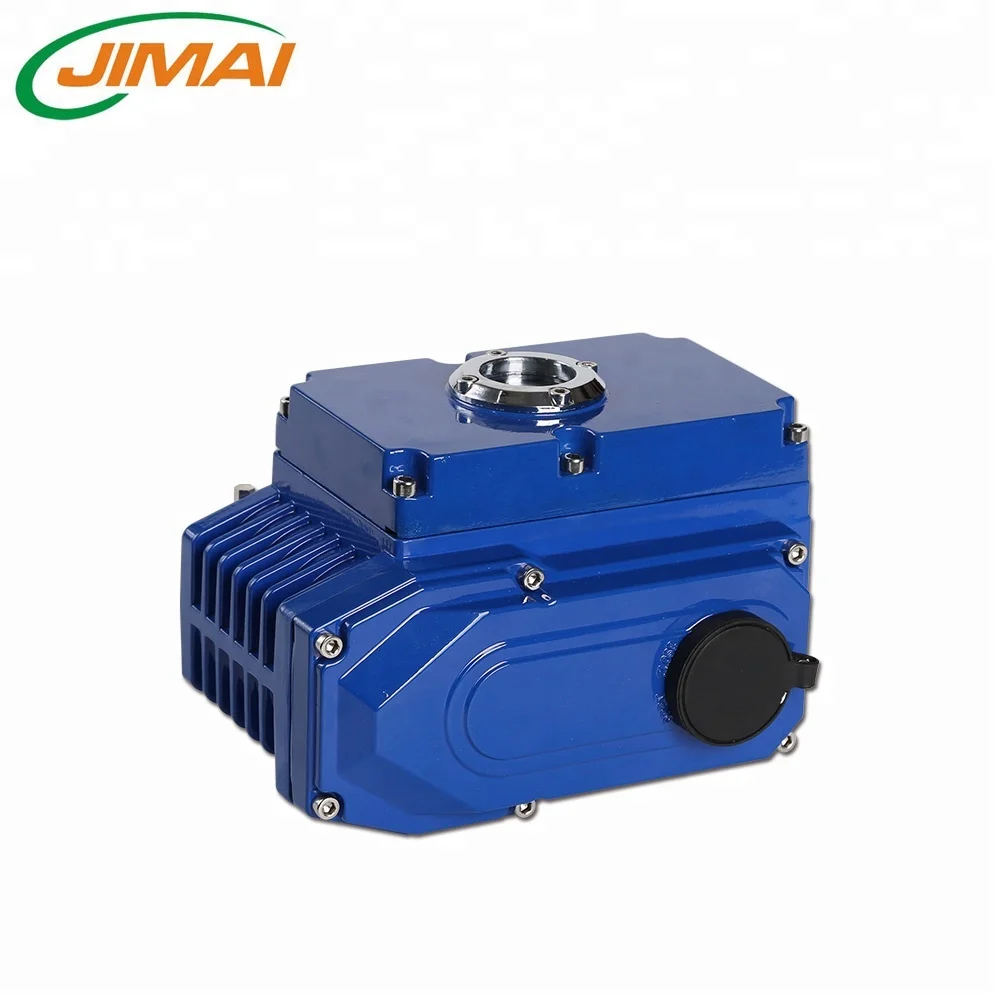

12V 230VAC quarter turn motorized valve electric actuator

Product Overview

Description











JMO series Electric valve actuator of Zhejiang Jimai Auto-Tech Co,.Ltd is known for its ability to accurately and quickly control the opening and closing of valves. It has the different alternative working voltages to meet the different working requirements. Hard oxygen is used to treat both the inside and outside of the closure, while epoxy resin and powder spraying are used to treat the exterior, which has a good antiseptic performance. The electric valve actuator's innovative product design concepts have garnered widespread praise and attention. We are expecting to cooperate with you in the near future.



Material of Actuator Body: Aluminium Alloy

Control method: On/Off, Modulating type

Operating time: 10~40s

Related humidity: <90%(25℃).

Multiple field control units, ensuring optimal performance in accordance with customer requirements



ØSmall volume, light weight, easy installation and maintenance.

ØSimple and compact structure ,90-degree rotation, rapid in opening and closing.

ØPower: AC380V/ AC220V / AC110V / AC24V / DC24V

ØAble to provide big output torque

ØApplied in automatic control industries.

ØAluminum alloy housing



Outline Dimension



MODEL	X	Y	Z	A	N-B	C	N-D	E	F	G	H	I	MXM
JMO-003	123	100	115	Ø 50	4-M8	Ø36	4-M6	50	50	114	40	150	9X9
													11X11
JMO-005	161	121	125	Ø 70	4-M8	Ø50	4-M6	66	66	114	40	150	11X11
													14X14
JMO-010	188	145	127	Ø 70	4-M8	Ø50	4-M6	100	90	114	40	150	14X14
													17X17
JMO-015	188	145	127	Ø 70	4-M8	Ø50	4-M6	100	90	114	40	150	14X14
JMO-020	268	255	164	Ø 125	4-M12	Ø102	4-M10	140	130	114	40	150	17X17
JMO-040	268	255	164	Ø 125	4-M12	Ø102	4-M10	140	130	114	40	150	22X22
JMO-060	268	255	164	Ø 125	4-M12	Ø102	4-M10	140	130	114	40	150	22X22
JMO-080	268	255	164	Ø125	4-M12	Ø102	4-M10	140	130	114	40	150	27X27
JMO-100	268	255	164	Ø125	4-M12	Ø102	4-M10	140	130	114	40	150	27X27





Specializing:

We are specializing in manufacturing pneumatic actuator, electric actuator, pneumatic actuated butterfly and ball valve, electric actuated butterfly and ball valve, Limited Switch box and other Accessories.........



Advantage:

1.Price:  As we are the professional manufacture in valve actuators and accessories, we ensure that the price offered must be very competitive compare with others.

2. Raw material inspection: All material test high quality, and keep in warehouse.

3. Workers: All workers training 3 monthes, skilled workers on production line.



Sample Order:

We will charge express fee only for old customers in generally, and for new customers we will charge 50% of the units cost and express fee mostly. (It can be discussed, we keep options always.)



Delivery Time:

We usually take 20days for official orders after received the prepayment, And Sample orders will be ready within 7days.



Quality Control:

 We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.



Warranty Period:

18 months from the date we signed the contract or PI. Technical support for the whole life.



Payment Terms And Conditions:

1. TT Terms: The payment will be 30% of prepayment by direct bank remittance (T/T),remaining 70% before Shipment or the copy of BL send by us Via Fax or Email.

2. L/C Terms: Payment by L/C at sight and Unrestricted. (L/C must allow 30days minimum from the shipment date of presentation of documents for negotiation, all the clauses within L/C must be clear, concise and acceptable. Do not allow special clauses, terms and conditions.)



Competitive Price:

We provide competitive price, good quality and best service to reach the win-win goal.



Customization:

custom-made is acceptable.
