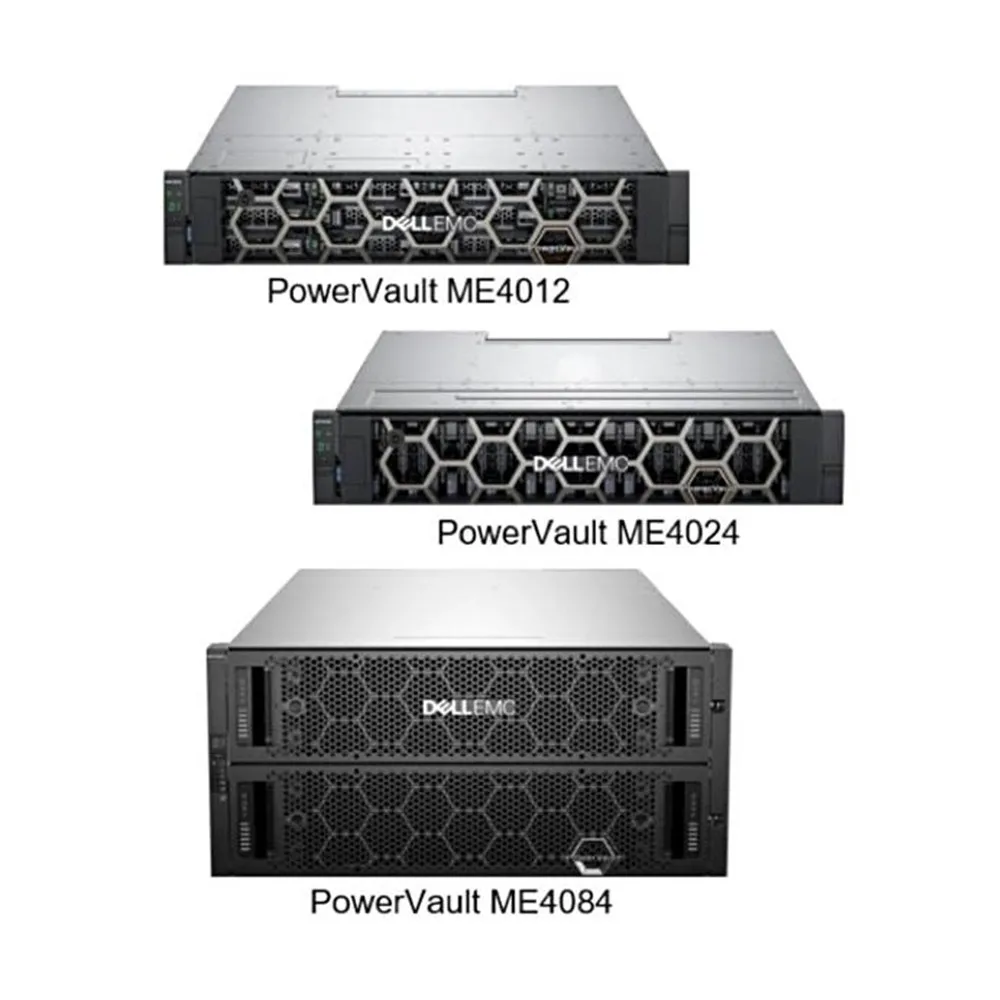

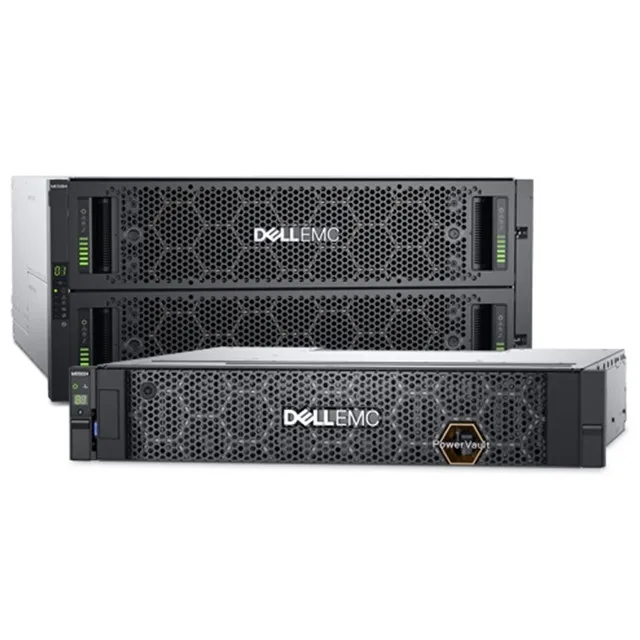

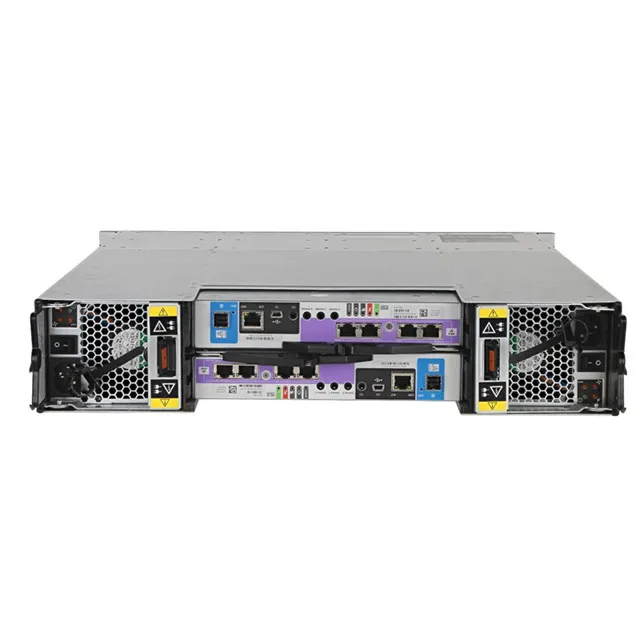

PowerVault ME4 Series
|

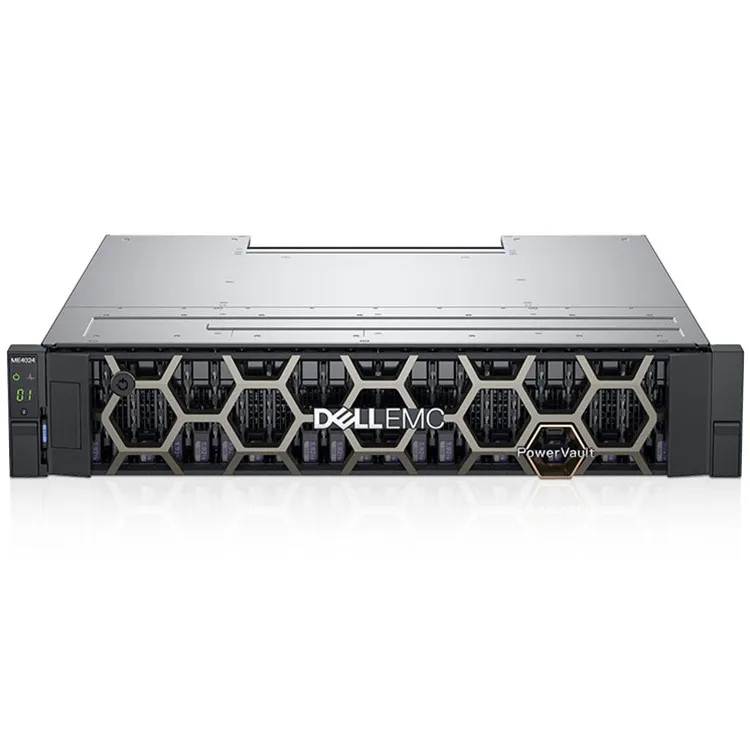

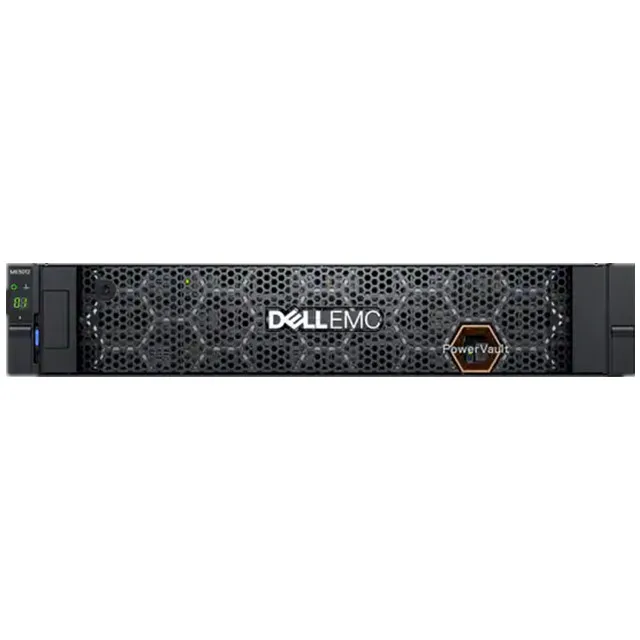

ME4024
|
Chassis Overview
|
Chassis format
|
All-in-one (single/dual controllers, internal drive bays, networking) with expansion options
|
Rack size
|
2U
|

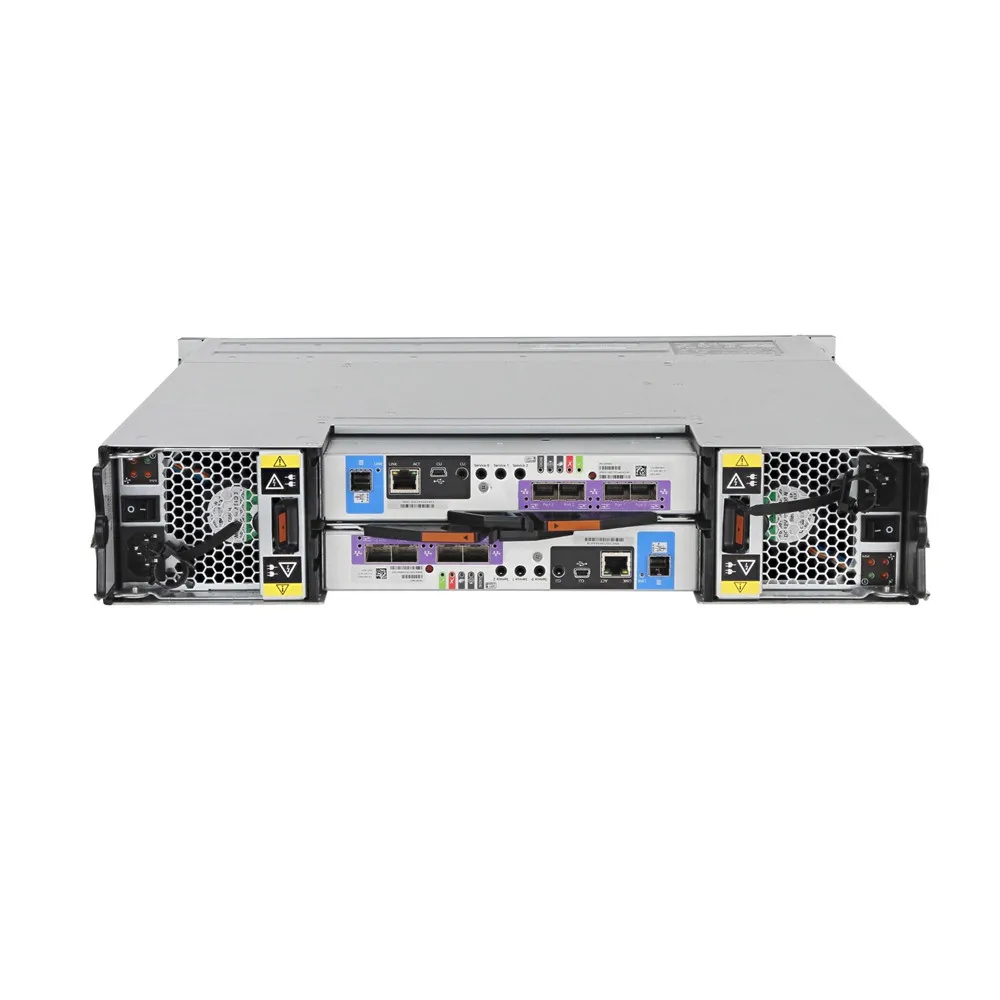

Controllers
|
2 hot-swappable per chassis (dual active)
Single/dual controller support for 2U
|
Processors
|
Intel 2-core, 2.2GHz
|
System memory
|
8GB per controller
|
Expansion Capacity
|
Min/Max drive count
|
2/264
|
Max raw capacity
|
3.1PB (with ME484 expansion)
|
NAS Support
|
Supported with NX Series Windows NAS appliance
|
Storage media
|
SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
NLSAS (7.2K 3.5"): 4TB, 8TB, 10TB, 12TB, 12TB SED
NLSAS (7.2K 2.5"): 2TB, 2TB SED
SAS (10K 2.5"): 1.2TB, 1.8TB, 2.4TB, 2.4TB SED
SAS (15K 2.5"): 900GB, 900GB SED
SSD: 480GB, 960GB, 1.92TB, 1.92TB SED
SDD and HDD: FIPS-certified SEDs
|

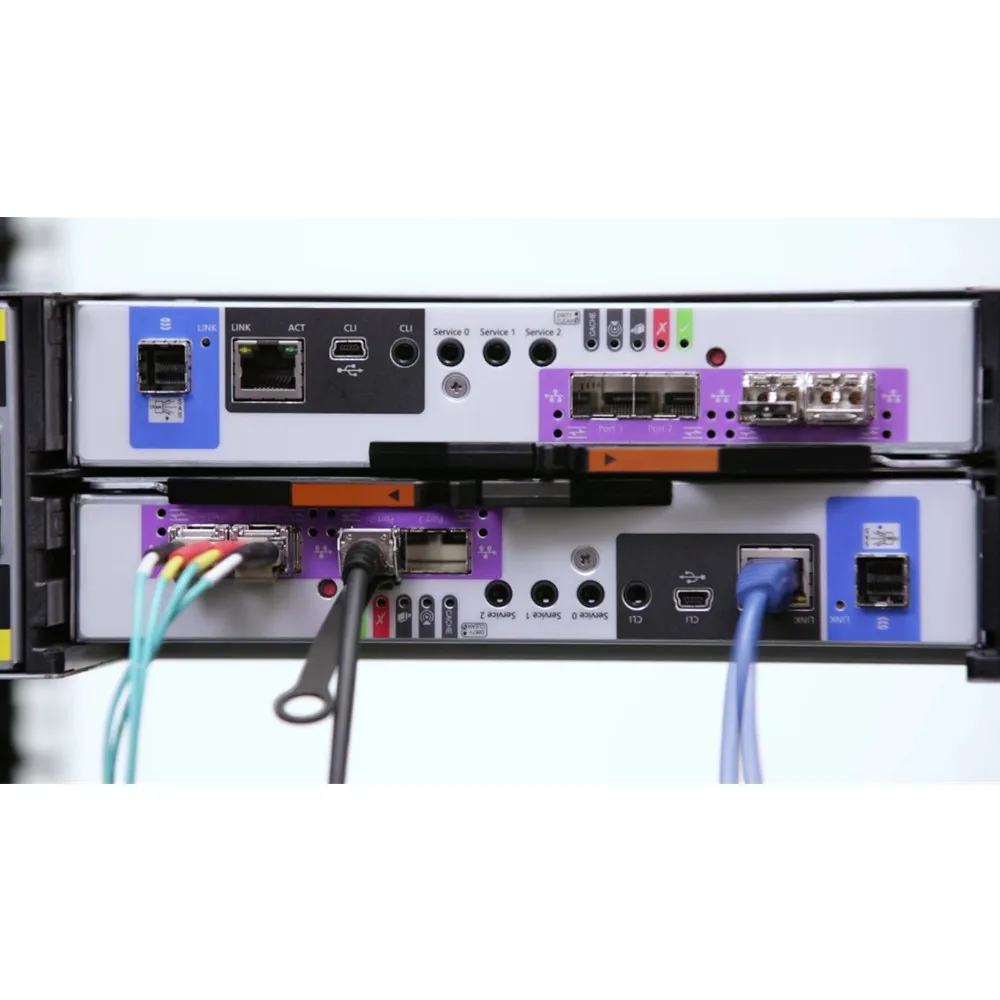

Network and Expansion I/O
|
Host interface
|
FC, iSCSI, SAS (supports simultaneous multiprotocol FC/iSCSI)
|
Max 16Gb FC ports
|
8 per array (support auto-negotiate to 8Gb)
|
Max 10Gb iSCSI ports
|
8 SFP+ or BaseT ports per array (BaseT only support auto negotiate to 1Gb)
|
Max 12Gb SAS ports
|
8 12Gb SAS ports
|
Max multi-protocol ports
|
4 ports 16Gb FC SFP+
4 ports 10Gb iSCSI SFP+
|
Max management ports
|
2 per array (1Gb BASE-T)
|
Disk expansion protocol
|
12Gb SAS
|
Disk interface expansion ports
|
2 12Gb SAS (wide-Port) per array (1 port per controller)
Up to 9 2U expansion enclosures per 2U base array

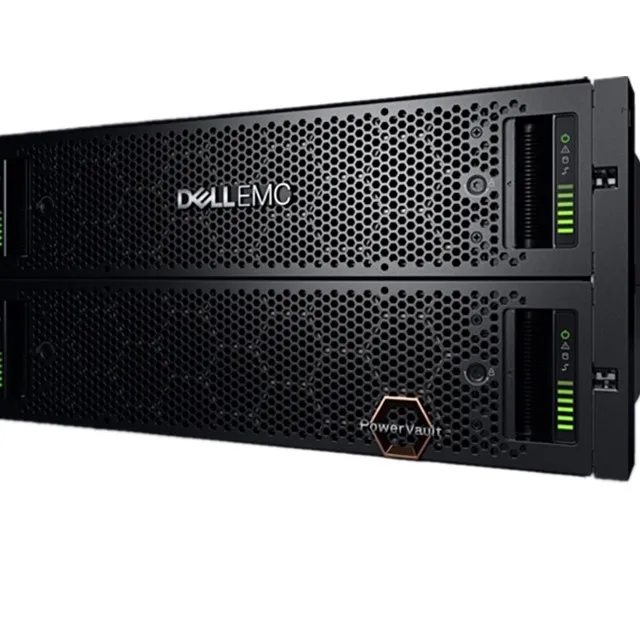

Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
|
Functional
|
|
Array configurations
|
All-flash, hybrid or all HDD arrays
|
Storage format
|
Data Optimization
|
|
Auto-tiering
|
Up to 3 primary (media-based) tiers (2 level tiering supported)
|
RAID support
|
RAID 0, 1, 5, 6, 10, 50 or Adapt; any combination of RAID levels can exist in single array
|
Adapt
|
Distributed erasure coding that reduces rebuild times when drive failures occur
|
Thin provisioning
|
Active by default on all volumes, operates at full performance across all features
|
Snapshots
|
1024 maximum snapshots per array
|
Data Protection, Disaster Recovery, Security
|
