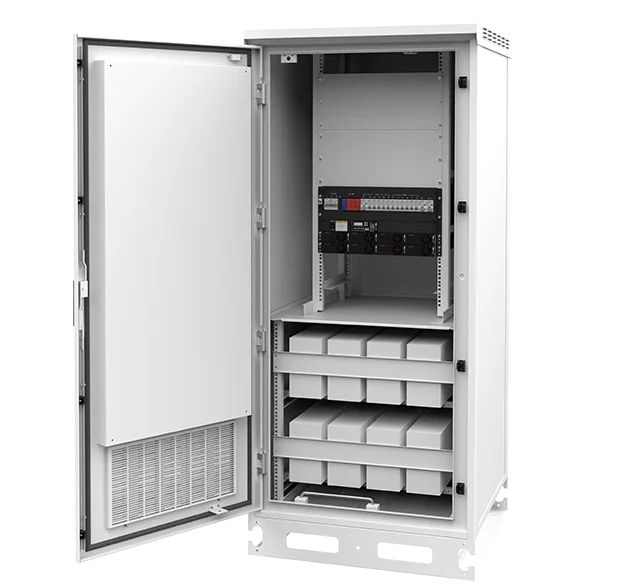

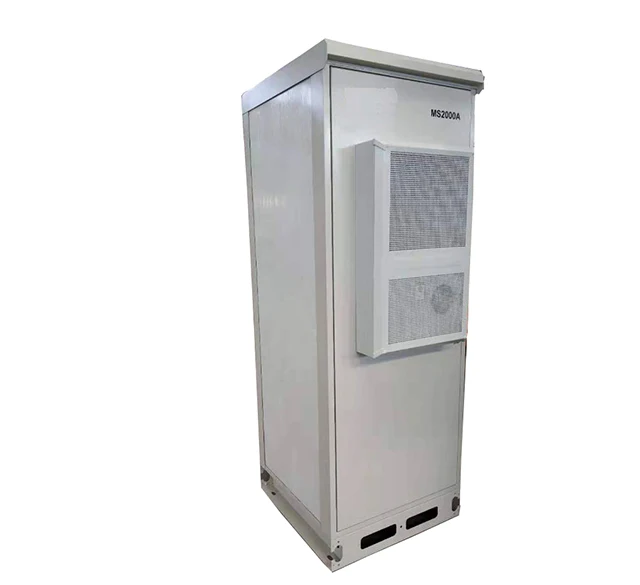

Уличный шкаф для телекоммуникации MS2000, 48 В постоянного тока, выпрямительная система 400 А, система выпрямления, инвертор, шкаф для телекоммуникации
- Category: Network Cabinets >>>
- Supplier: Shenzhen Impower Technology Co. Ltd.
Share on (1600488456813):
Product Overview
Description
Product Details
System | Dimension | 440mm(W)×344mm(D)×309(H) | ||
Weight | ≤24kg (without rectifiers) | |||
Cooling mode | Natural cooling | |||
Installation mode | Installed on 19-inch rack or inside the cabinet | |||
Cabling mode | Top inlet and top outlet | |||
Maintenance mode | Front maintenance, support module grade change | |||
Protection level | IP20 | |||
AC Distribution | Input mode | 220/380VAC three phase or 220VAC single phase | ||
Input capacity | 1×100A/3P | |||
Output capacity | NA | |||
Input frequency | 45~66Hz, rated value: 50Hz/60Hz | |||
SPD | 20kA/40kA, 8/20μs | |||
DC Distribution | Output voltage | -42~-58VDC, rated value: -53.5VDC | ||
Maximum capacity | 36000W | |||
Battery breakers | 2×125A/1P | |||
Load Breakers | LLVD 4×125A/1P, 1×63A/1P BLVD 1×125A/1P, 2×63A/1P, 1×32A/1P | |||
SPD | 10kA/20kA, 8/20μs | |||
Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC | ||
Efficiency | ＞95% | |||
Rated power | 3000W(176~300VAC) | |||
Working temperature | -40℃~+80℃(full load @ 60℃) | |||
Dimension | 106mm(W)×298mm(D)×42.5mm(H) | |||
Weight | ≤1.9kg | |||
Cooling mode | Forced cooling | |||
Power factor | ≥0.99 | |||
THD | ≤5% | |||
Controller | 1 Battery temp., 1 ambient temp., 1 ambient humidity, temp1, temp2 1 Water,1 smoke, 1 gate, 4 common DI | |||
Alarm output | 4 dry contact | |||
Communication port | RS232/485, Fast Ethernet | |||
Display mode | LCD | |||
Envoriment | Operating temperature | -40℃~+65℃ | ||
Storage temperature | -40℃~+70℃ | |||
Operating humidity | 5%~95%(non-condensing) | |||
Altitude | 0~2000m | |||
Product Introduction
1: High density, high efficiency( >95%), excellent high temperature performance(full load @ 60℃)
2: Standard installation structure design
3:Compact design(only 12U in height), 1U,2U, 3U, 5U,8U 12U available
4:Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface(options)
5:Controller support SNMP,Telecom power supply with SNMP function optional
Application
1. Switching cabinet
2. All mobile telecom base stations
3. Comprehensive access network site
4. Data center
5. Lighting system
6. Power distrubiton system
Product Details Show
SNMP Function Demonstration.
Controller support SNMP, telecom power supply SNMP function optional
MQ48D controller has built-in web and SNMP management capabilities.
You can view system status and set system configuration data either with internet explorer or MIB browser.
Features:
1:Monitor system data and configure system remotely by network
2:Web management with built-in authentication. User name and passwords can be changed by user
3:Support SNMP V1, V2C, V3
4:10M/100M based Ethernet interface
5:Flexible network deployment
Rectifier Curve Graph
Product Series
Item | System capacity | Retifier | Height |
E4840 | -48V/40A | R482000H | 1U |
E4860 | -48V/60A | R482000H | 1U |
E4890 | -48V/90A | R482000H | 2U |
E48120 | -48V/150A | R482000H | 3U |
E48150 | -48V/150A | R482000H | 3U |
E48200 | -48V/200A | R483000H | 5U |
