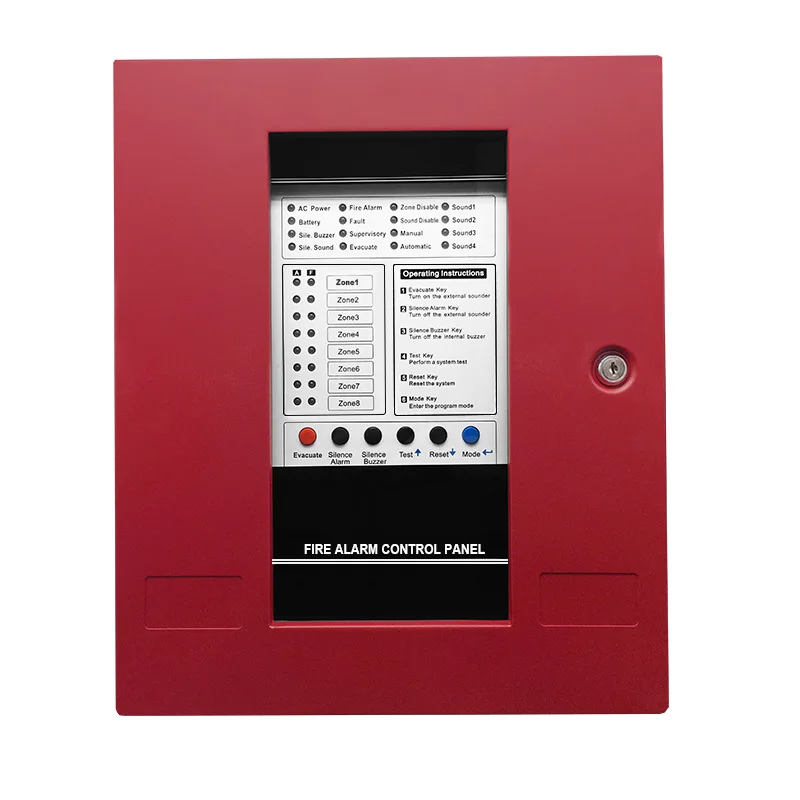

Conventional Fire Alarm System Control Panel 2 Wires Network 24V 8 Zone alarm control panel
Conventional Fire Alarm System Control Panel 2 Wires Network 24V 8 Zone alarm control panel
Conventional Fire Alarm System Control Panel 2 Wires Network 24V 8 Zone alarm control panel
Conventional Fire Alarm System Control Panel 2 Wires Network 24V 8 Zone alarm control panel
Conventional Fire Alarm System Control Panel 2 Wires Network 24V 8 Zone alarm control panel

Conventional Fire Alarm System Control Panel 2 Wires Network 24V 8 Zone alarm control panel

Share on:


Price:$148.00 - $155.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description








Specification




item
value
Brand Name
Huoming
Model Number
HM208
Product name
8 Zones Conventional Fire Alarm Control Panel
Power Supply
90 to 270VAC, 50Hz/60Hz
Work Voltage
24VDC
Power supply rating
3 Amps @ 24VDC
Battery
12V7AH*2
short circuit current
42mA
Standby Detector Current (per zone)
4mA maximum
Maximum Detector Count (per zone)
30 detectors
Fault Relay rating
2A & 30VAC, resistive
Alarm Relay rating
2A & 30VAC, resistive


Packing & Delivery


Pvc Bag and Standard safety export package
