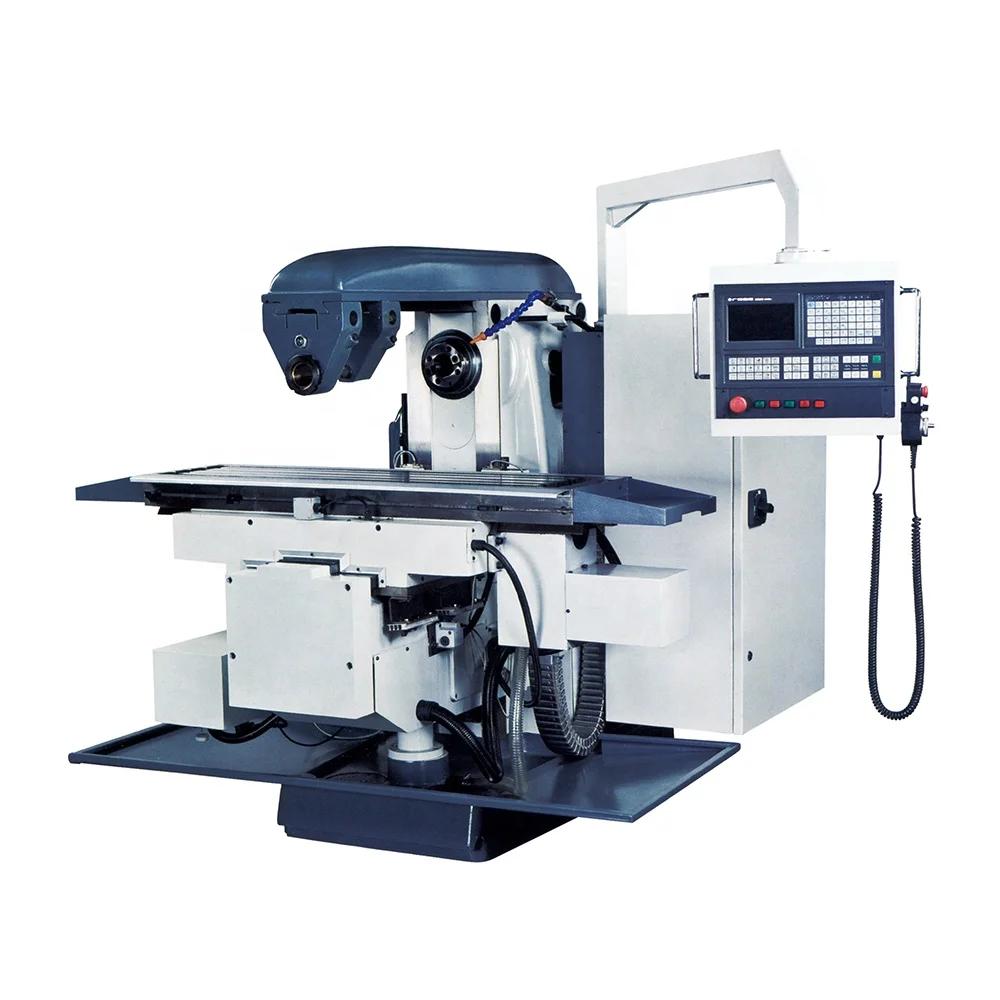

XK6040 cnc knee type horizontal milling machine price 5 axis cnc milling machine
- Category: >>>
- Supplier: Zaozhuang Tok Machinery Co. Ltd.
Share on (1600488558074):
Product Overview
Description
Specifications | Units | XK6032 | XK6040 |
Table size | mm | 1320x320 | 1700x400 |
Table travel on X,Y,Z axes | mm | 800x350x280 | 920x330x350 |
T-type slot(numbers / width /pitch) | mm | 3-18-70 | 3-18-90 |
Max. Loading weight on table | kg | 320 | 500 |
Distance from spindle axis to table | mm | 20-370 | 30-410 |
Distance from column vertical guide way to the center of table | mm | 225-505 | 275-625 |
Rapid feed speed on X,Y,Z axes | mm/min | 6000/3000/6000 | 6000/3000/6000 |
Feed speed on X,Y,Z axes | mm/min | 6-3200/3-1600/6-3200 | 6-3200/3-1600/6-3200 |
Spindle taper | ISO50(7:24) | ISO50(7:24) | |
Spindle speed range | rpm | 30-1500(18 steps) | 30-1500(18 steps) |
Spindle motor power | KW | 7.5 | 11 |
Longitudinal, transverse feed motor torque(X.Y) | N. m | 12 | 12 |
Vertical feed motor torque (Z) | N. m | 22 | 22 |
Max. spindle torque | N. m | 1000 | 1000 |
Overall dimensions（Lx W x H） | mm | 1929x2055x1960 | 2310x2200x2394 |
Machine weight | Kg | 2800 | 3850 |
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
