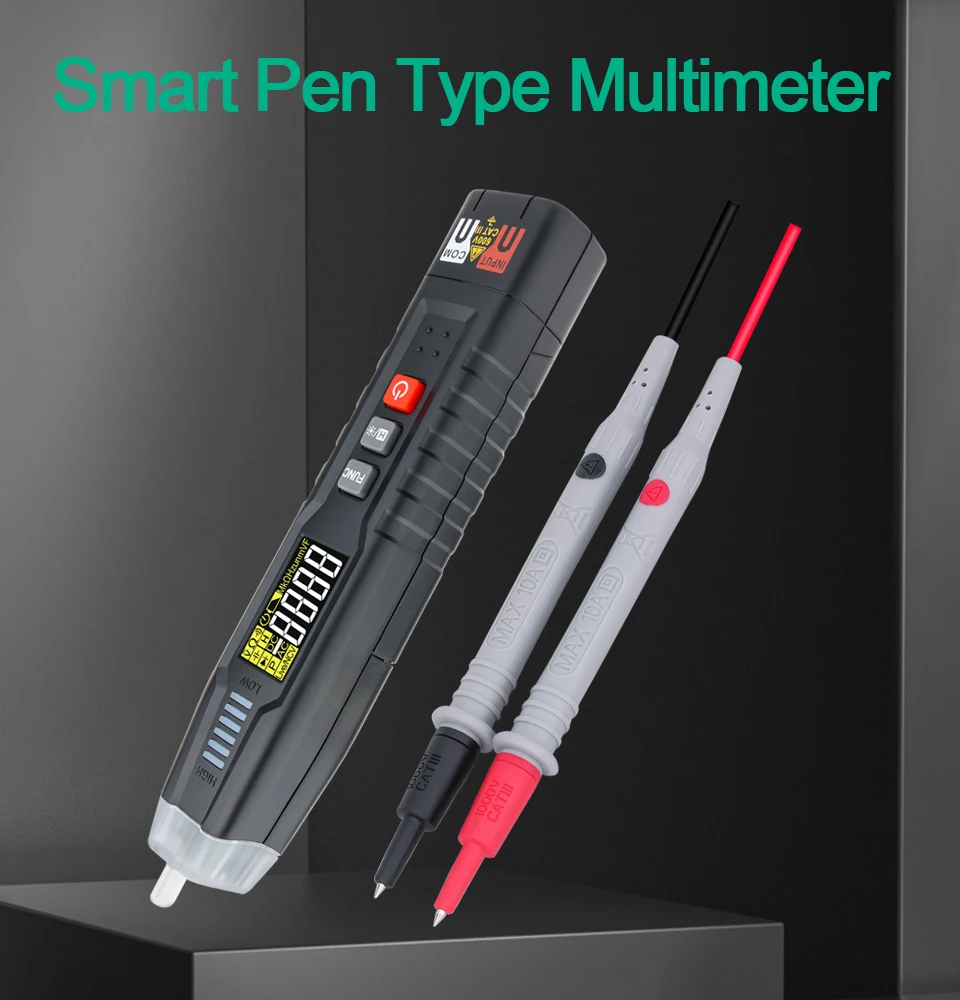

GVDA New Pen type True RMS Smart Multimeter with NCV detection
- Category: >>>
- Supplier: Shenzhen Gvda Technology Limited
Share on (1600488655005):
Product Overview
Description
Product Description
GVDA Digital Pen Type Multimeter Smart DC AC Voltage Tester Voltmeter Auto Range Resistance Capacitance Multimetre True RMS
Multi-meter Non-contact NCV Phase Sequence Multimetro
Multi-meter Non-contact NCV Phase Sequence Multimetro
GVDA digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement.It has LCD clear screen, easy to read the measured values, flashlight available for darkness. It is designed with light weight and easy-to-carry pocket size, comfort to grip.
Product Features
VERSATILE PEN MULTIMETER:

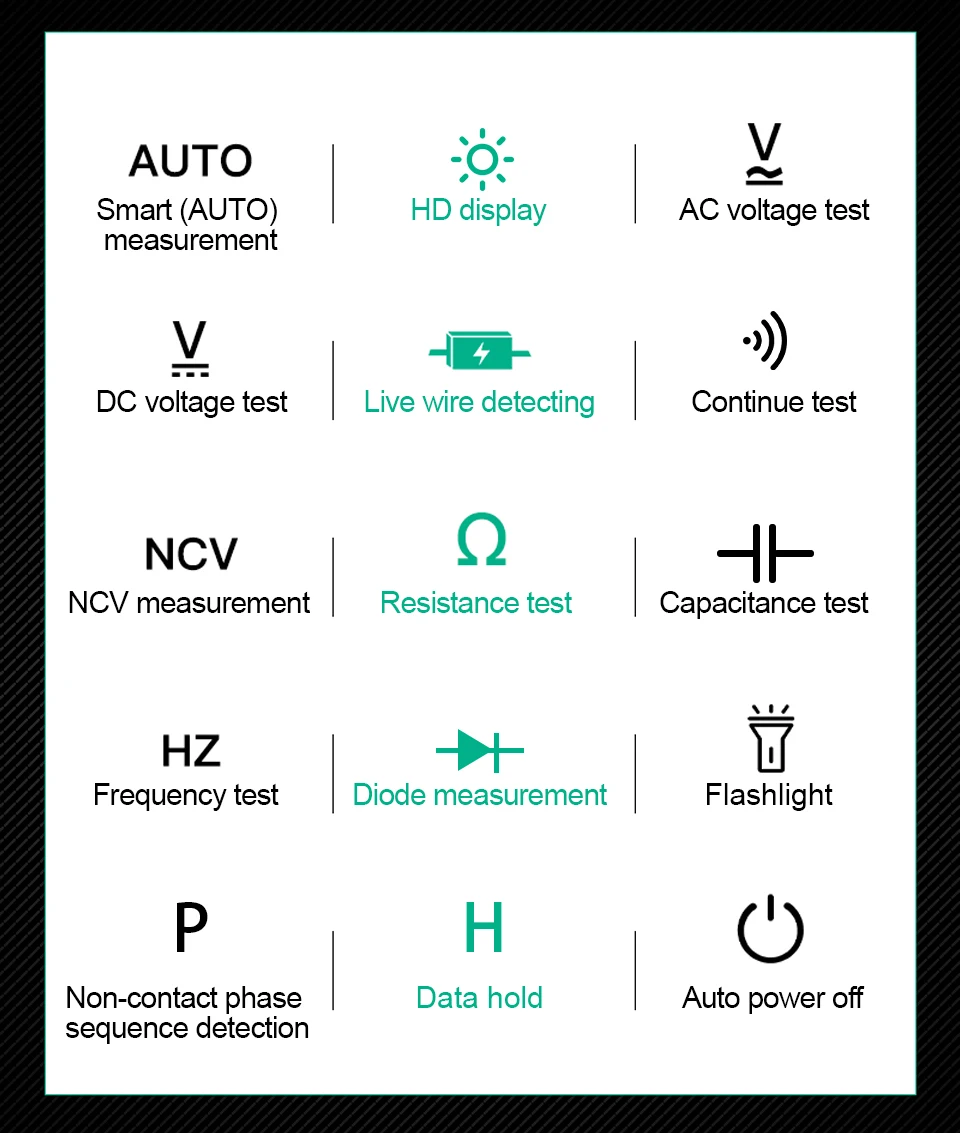

This multimeter features test of voltage / resistance / capacitance / diode / frequency / NCV/ continuity, zero line & non-contact phase sequence detection, etc.
FAST RESPONSE & HIGH ACCURACY:
GVDA GD109, 4000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement.
EASY OPERATION:

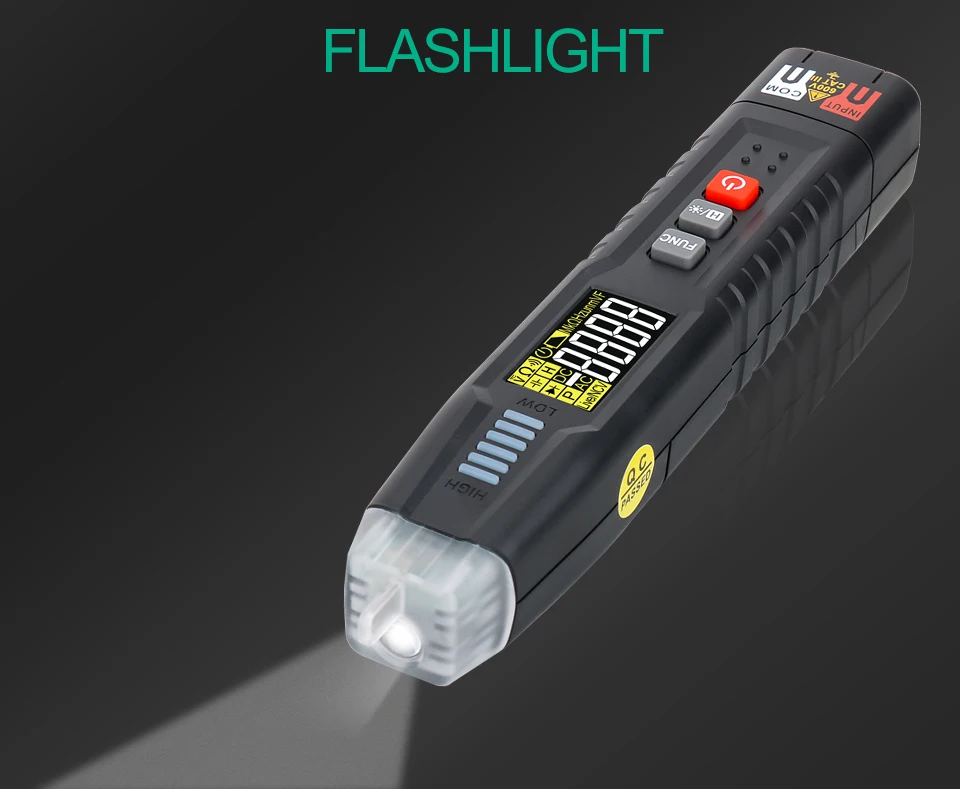

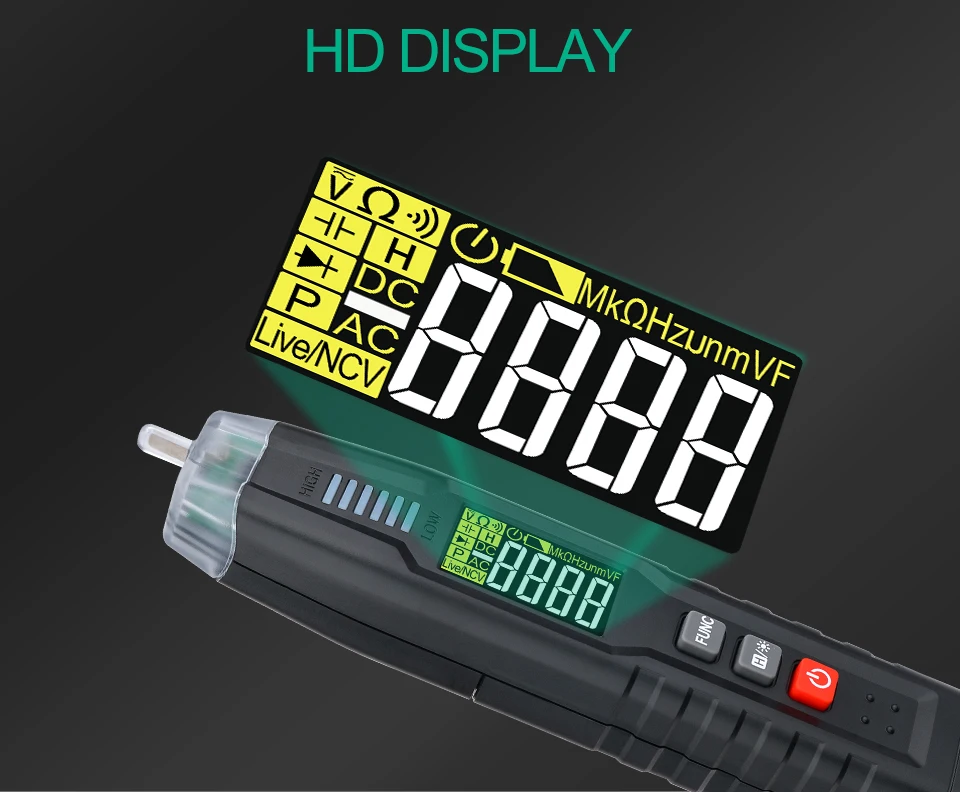

It has Color LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function
convenient to query data, alarm beep when in use.
DURABLE MATERIAL & PORTABLE SIZE:
The meter, made from selected electronic components and sturdy plastic housing, is designed with light weight and easy-to-carry pocket size, comfort to grip.
WIDE APPLICATION:
The digital multimeter--a handy instrument and assistant, for testing, diagnosing and solving a variety of automotive and daily household electrical problems safely and accurately.
Product Specifications
Main Functions | Measuring Range | Accuracy | |
AC Voltage Measurement | 4V/4V/400V/600V | ±(0.8%+3) | |
DC Voltage Measurement | 4V/4V/400V/600V | ±(0.5%+3) | |
Resistance range | 4000Ω/40KΩ/400KΩ/4MΩ | ±(1.0%+5) | |
40MΩ | ±(1.5%+10) | ||
Capacitance range | 40nF/400nF/4uF/40uF/400uF | ±(4.0%+5) | |
4mF | ±(5.0%+5) | ||
Frequency range | 40Hz/400Hz/4KHz/40kHz/400kHz/4MHZ | ±(1.0%+3) | |
Max. Counts | 4000 counts | ||
LCD Screen | VA HD Color LCD Screen | ||
Sampling Rate: | approx.3 times/ one second | ||
Smart Measurement | for AC DC Voltage, resistance and continuity) | ||
Live line detection | Yes (sound and light alarm) | ||
Continuity Test | V | ||
Diode test | V (sound alarm) | ||
Non Contact Phase sequence detection | yes | ||
Gear Selection /Data hold /True RMS | yes | ||
Over range indication: | "OL" | ||
Input polarity indication | display "-" | ||
Low batery indication | yes | ||
Auto power off / Flashlights | yes | ||

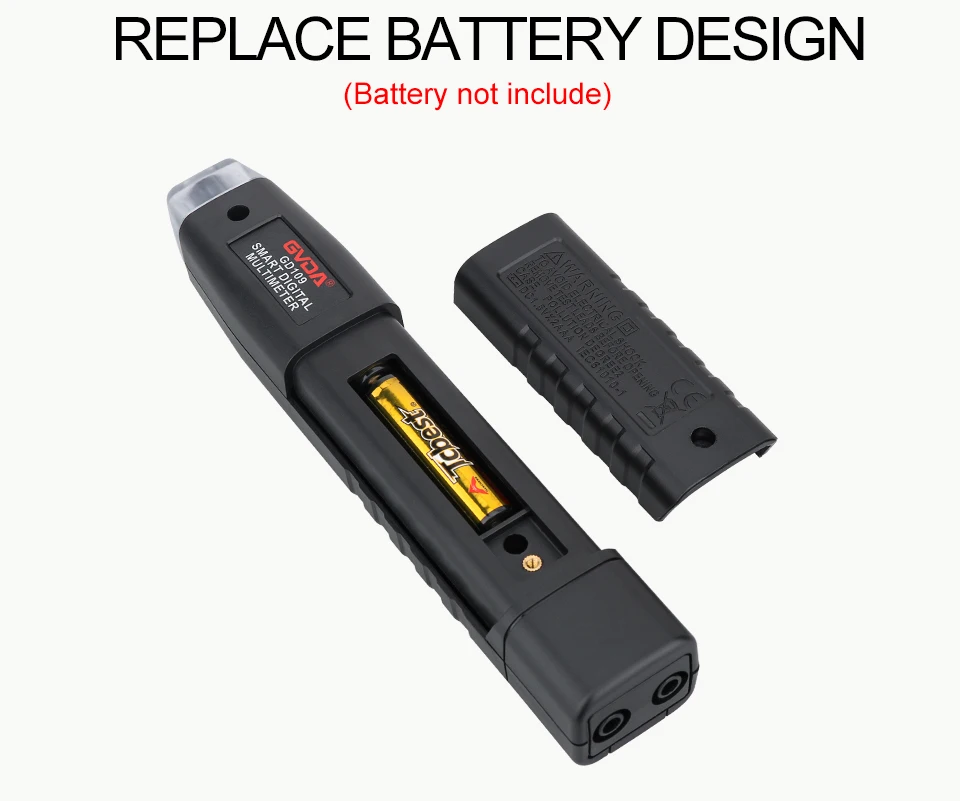

Battery | 2x 1.5V AAA Batteries | ||
Item Weight | about76g | ||
Item size | 172x30x22mm | ||
Gift box dimension | 181x57x51mm | ||
Whole unit Weight | 170g | ||
Working Condition | Temp. : 0~40°C(<80% RH，Humidity: <10°C non condensing) | ||
Storage Condition | Temp. : -10~60°C Humidity: (<70% RH, remove the battery) | ||
Safety rating | CAT. III 600V；Pollution level2, Altitude < 2000m | ||

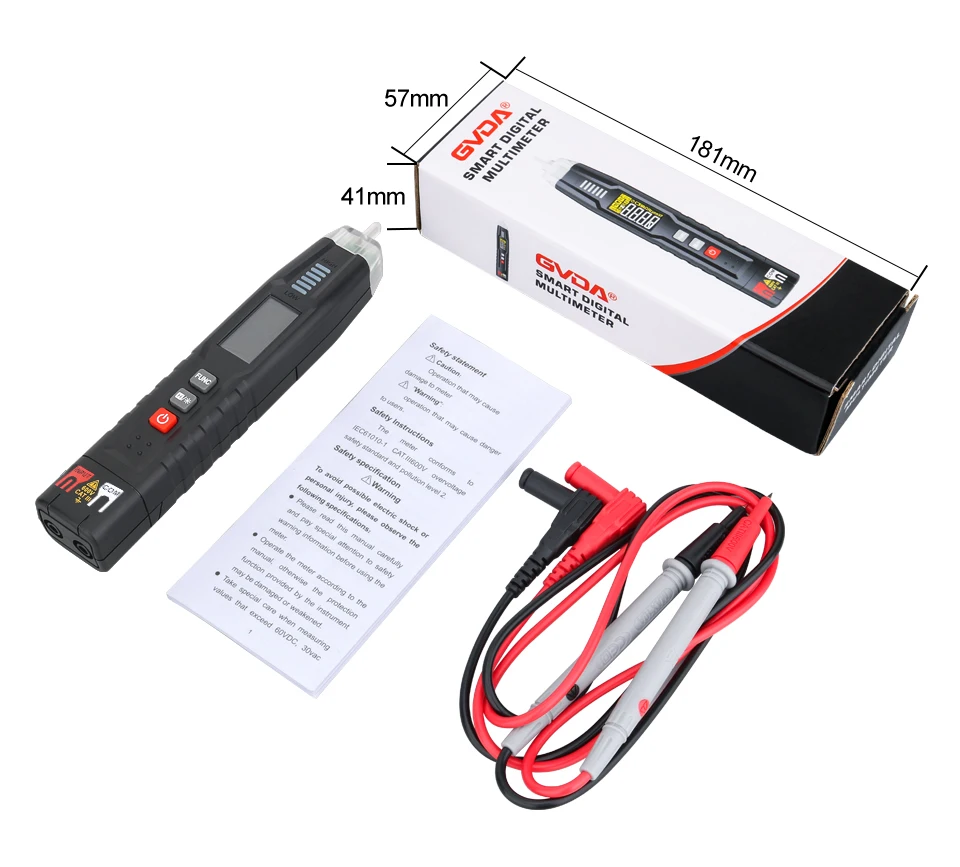

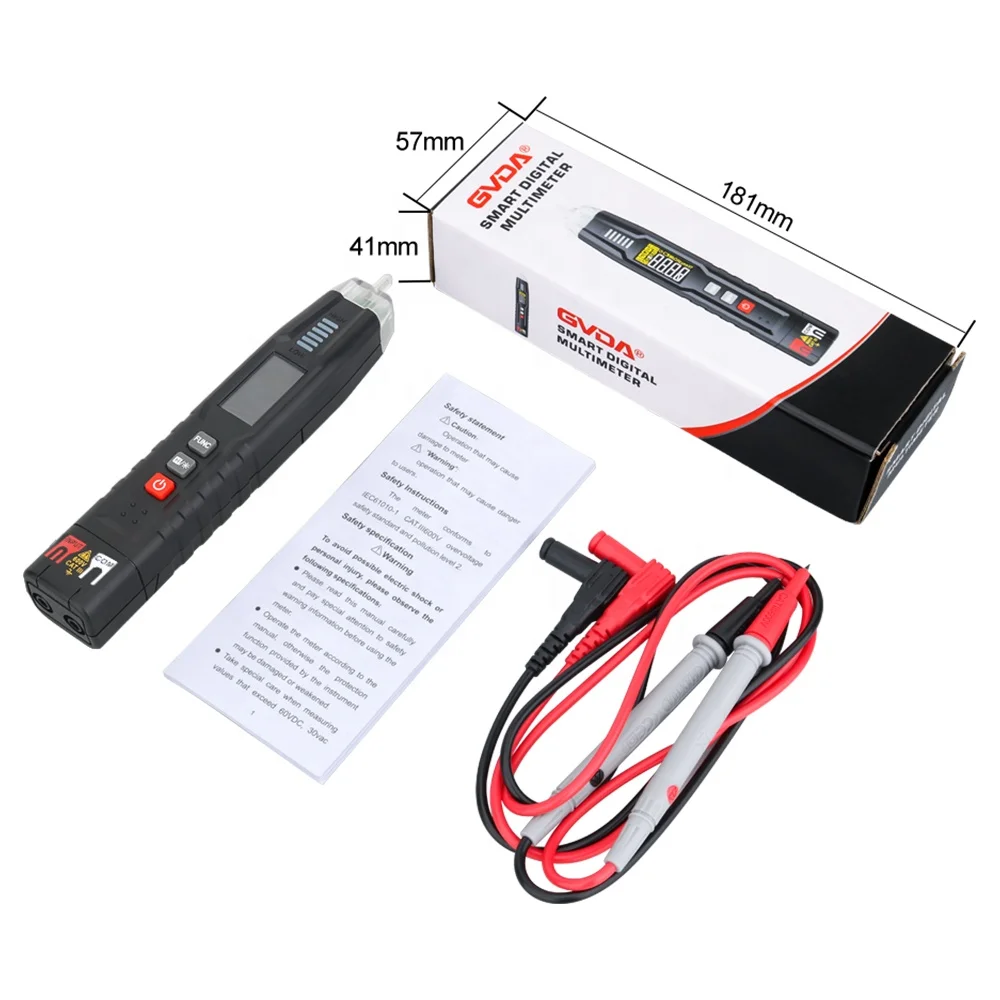

Packing Include | 1pc Multimeter / 1pc tester cable / 1pc english user manual | ||
Package Size | 170x95x50mm | ||
Package Weight | 470g | ||
Safety rating | EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V | ||
Packing Contents | 1pc Multimeter / 1pc pen cable / 1pc cloth bag/ 1pc Thermocouple probe | ||

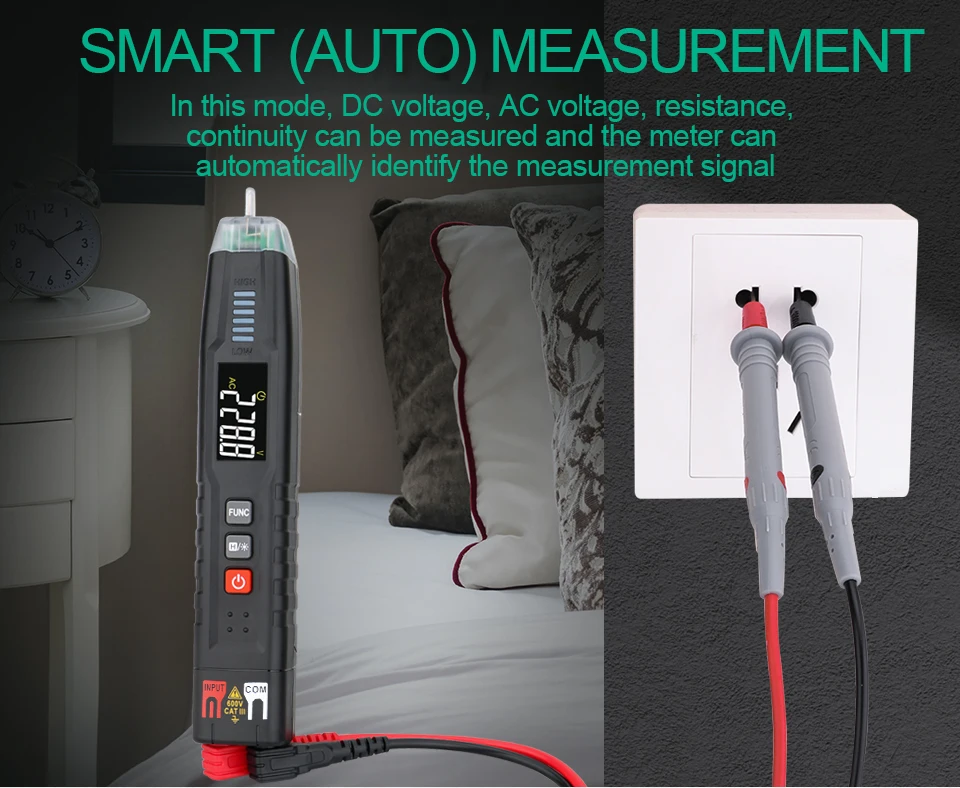

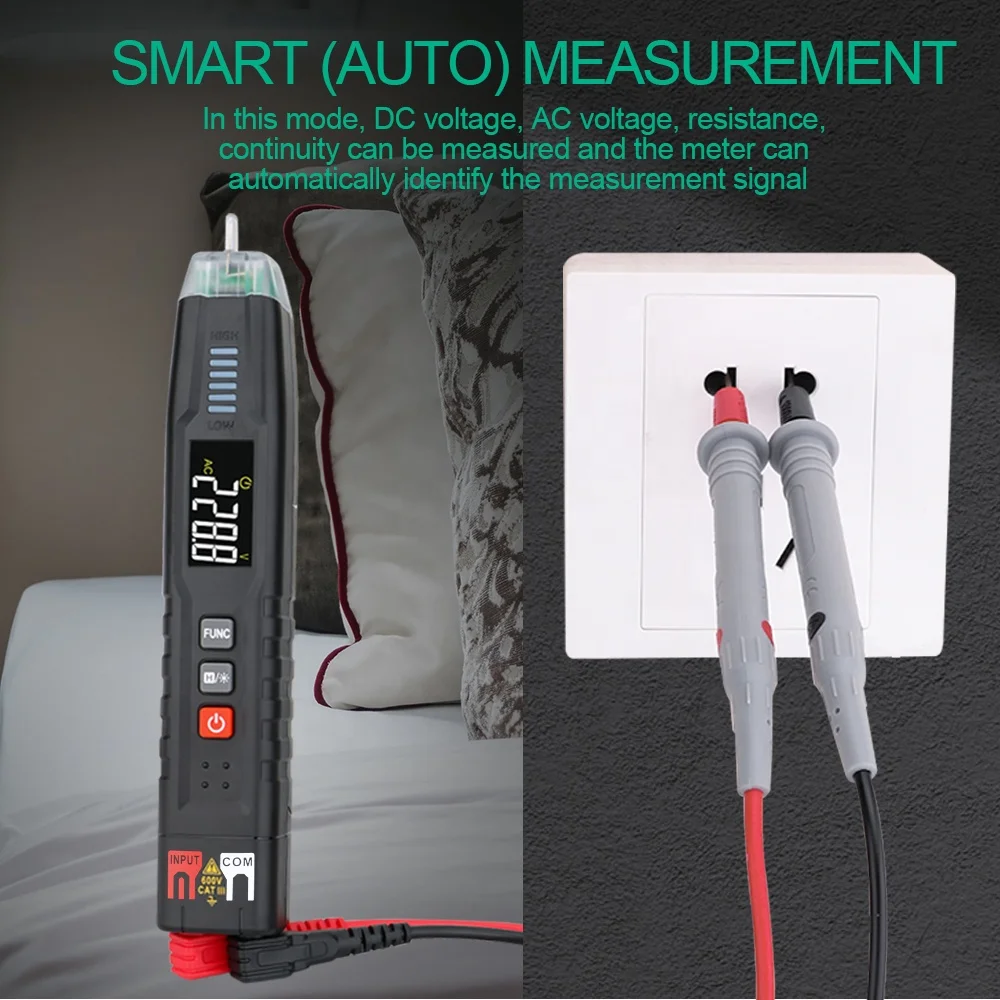

Smart (Auto ) Measurement
Smart Pen-type Multimeter can automatically identify the measurement signal and automatically select the range.Smart Mode is default when power on , In this mode, the meter can automatically measure DC/AC voltage, Resistance, Continuity.

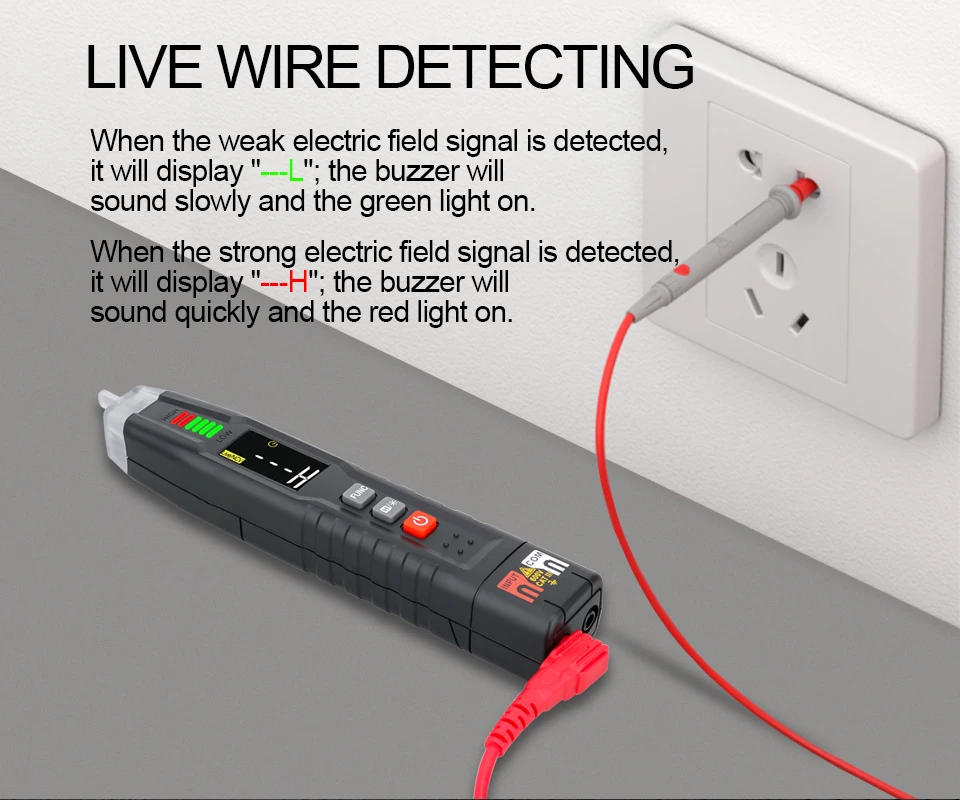

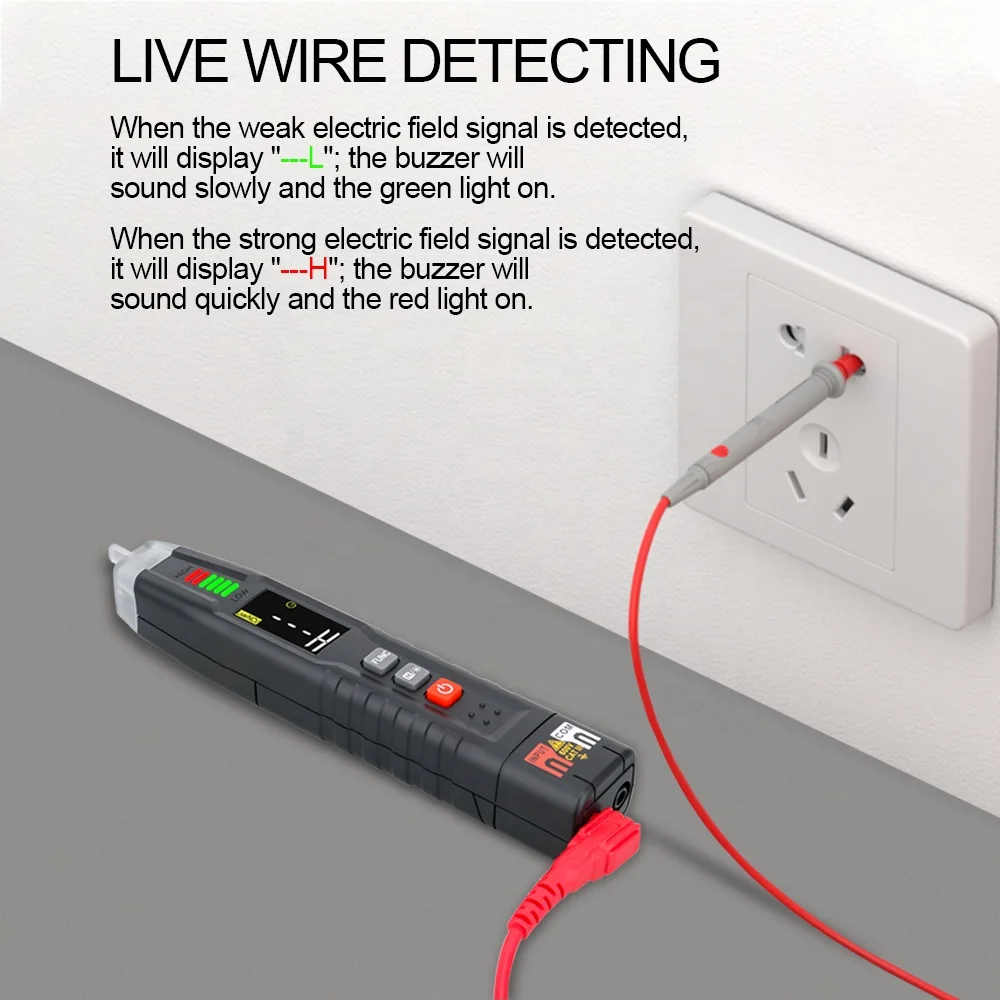

Live Wire Detection
when the weak electric field siginal is detected. it will display "--L", the buzzer will sound slowly and the green light on
when the strong electric field signal is detected, it will display"---H", the buzzer will sound quickly and the red light on

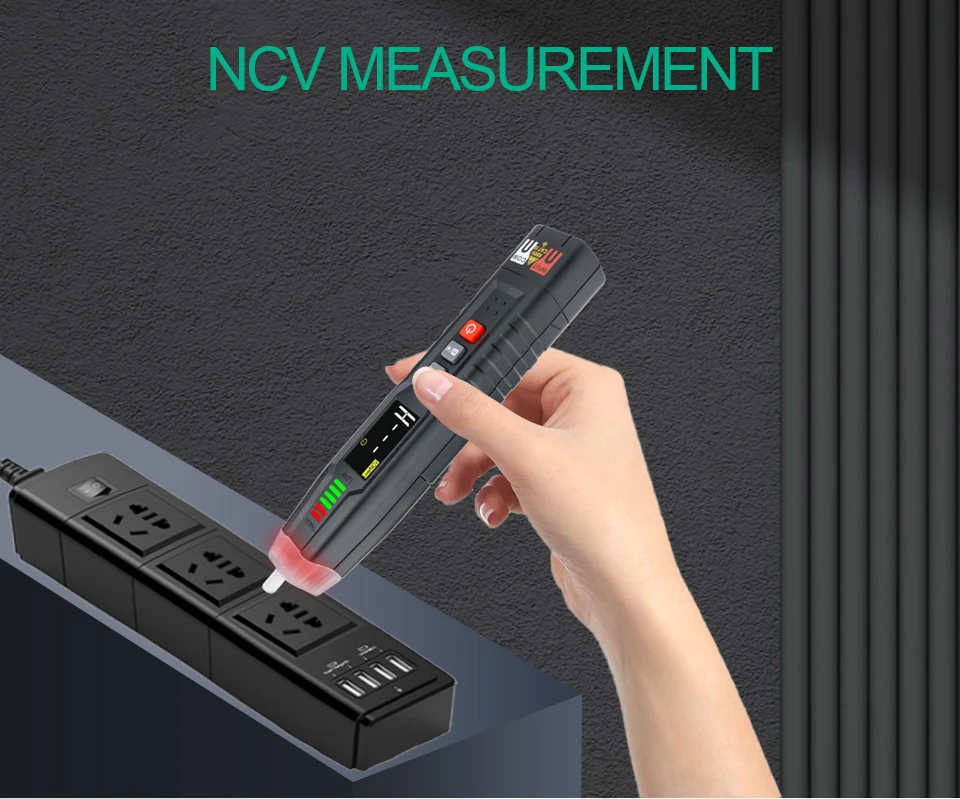

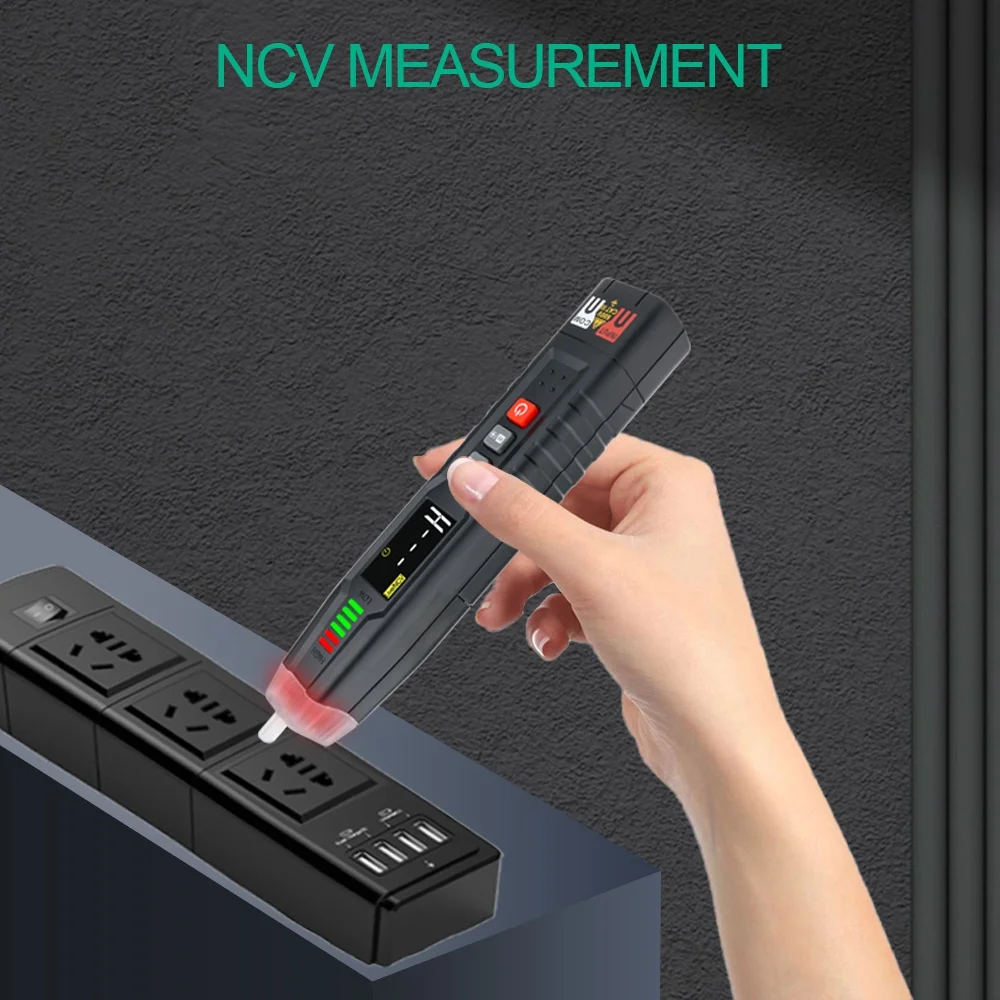

NCV Measurement
1) Press POWER ON key to power on into NCV measurement mode by default
2) Gradually close the NCV sensing area to the measured conductor
● When the weak electric field signal is detected, it will display "---L"; the buzzer will sound slowly and the green light on.
●When the strongelectric field signal is detected, it will display "---H"; the buzzer will sound quickly and the red light on.
2) Gradually close the NCV sensing area to the measured conductor
● When the weak electric field signal is detected, it will display "---L"; the buzzer will sound slowly and the green light on.
●When the strongelectric field signal is detected, it will display "---H"; the buzzer will sound quickly and the red light on.

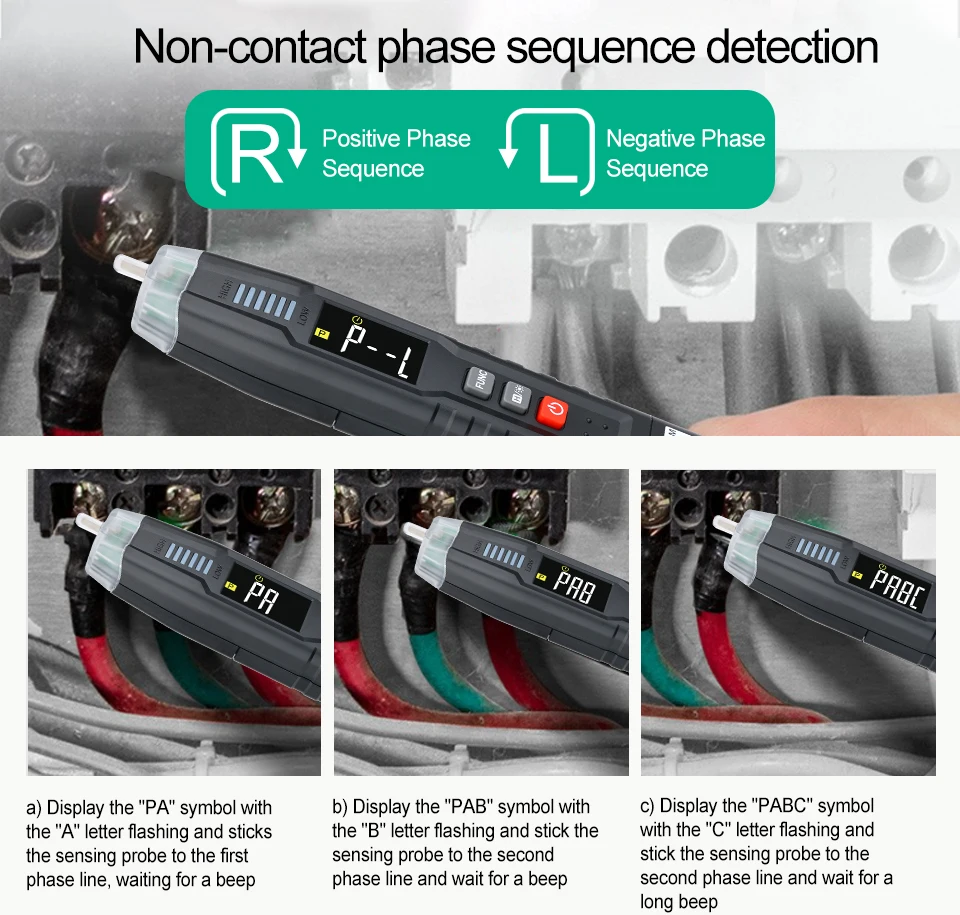

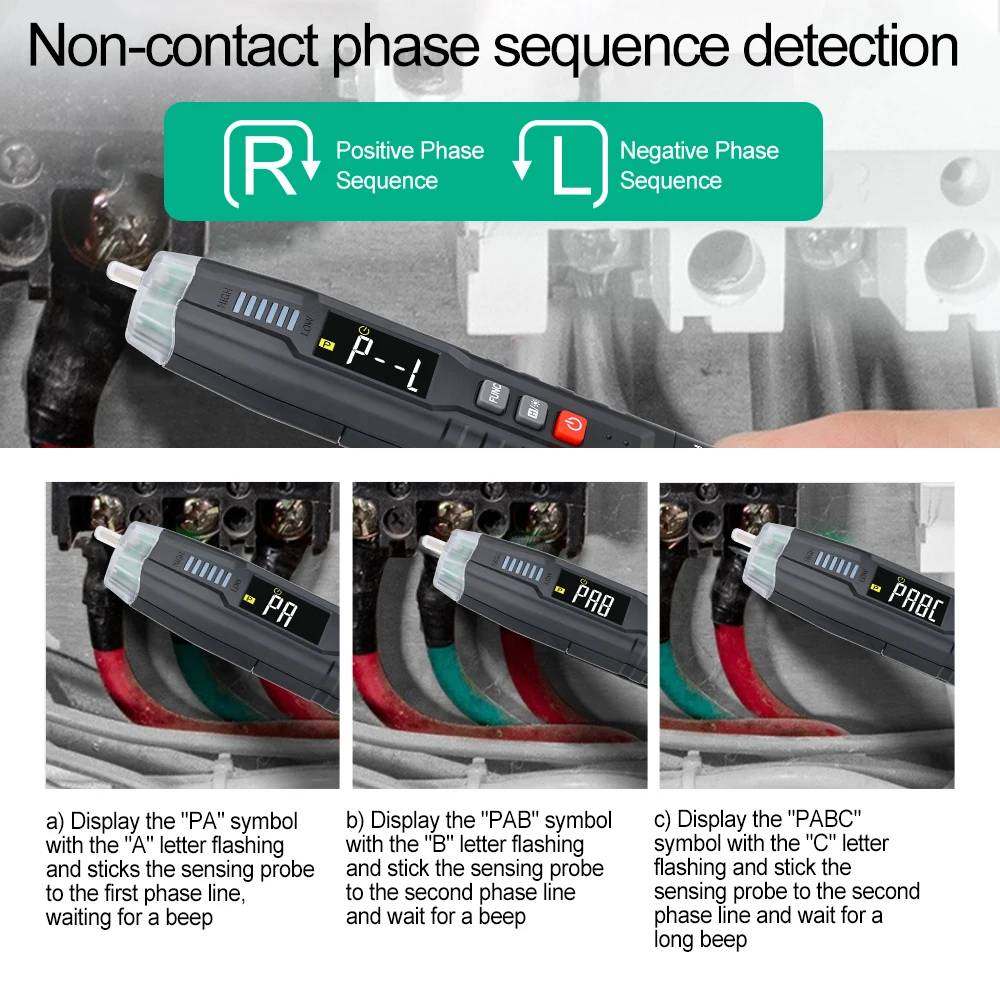

Non Contact Phase Sequence Detection
1) Press POWER ON key to power on,
2) Press "FUNC" key to select "Phase"gear to enter the phase sequence detection state
a) Displaythe "PA" symbol with the "A" letter flashing and sticks the sensing probe to the first phase line, waiting for a beep
b) Displaythe "PAB" symbol with "B" letter flashingand stick the sensing probe to the second phase line and wait for a beep
c) Displaythe "PABC" symbol with the "C" letter flashingand stick the sensing probe to the second phase line and wait for a long beep
d) At the end of the test, the display will display the measurement results on the display
◆"P --- L" symbol displayed on the screen indicates left-handed phase sequence ◆"P --- R" symbol displayed on the screen indicates right -handed phase sequence
2) Press "FUNC" key to select "Phase"gear to enter the phase sequence detection state
a) Displaythe "PA" symbol with the "A" letter flashing and sticks the sensing probe to the first phase line, waiting for a beep
b) Displaythe "PAB" symbol with "B" letter flashingand stick the sensing probe to the second phase line and wait for a beep
c) Displaythe "PABC" symbol with the "C" letter flashingand stick the sensing probe to the second phase line and wait for a long beep
d) At the end of the test, the display will display the measurement results on the display
◆"P --- L" symbol displayed on the screen indicates left-handed phase sequence ◆"P --- R" symbol displayed on the screen indicates right -handed phase sequence
