High Quality Pressure Temperature Humidity O2 Gas Monitor Wireless Oxygen Sensor
- Category: >>>
- Supplier: Shenzhen Thingsend Communication Tech Co. Ltd.
Share on (1600488668175):
Product Overview
Description
Product Description
Product Introduction

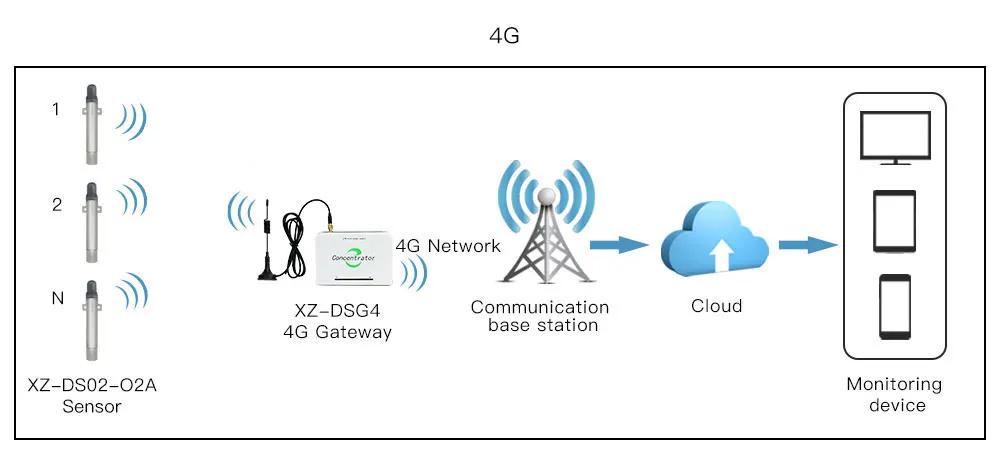

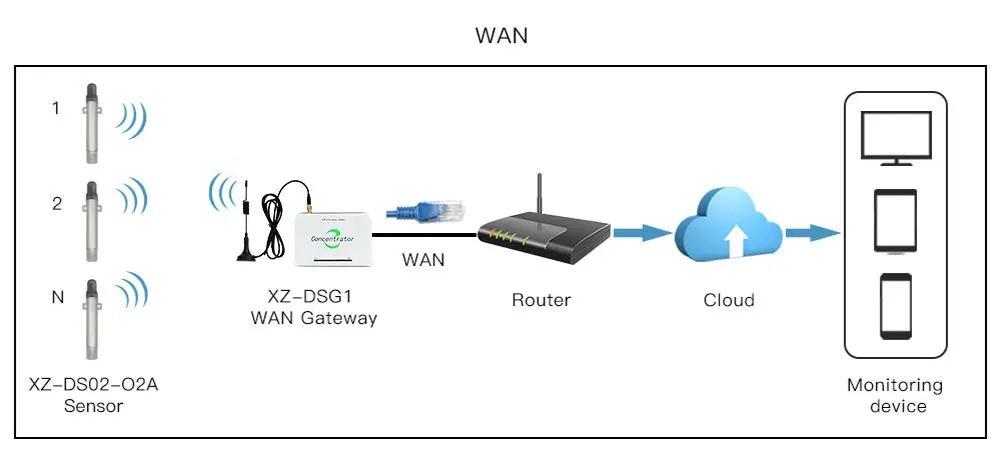

O2A lora wireless oxygen sensor is a high quality wireless O2 measuring instrument.It consists of O2 sensor, signal processing circuit, lora communication module and battery.Working with our lora wireless gateway can realize remote temperature and humidity data acquisition. Lora wireless gateway sends data to a third party data acquisition equipment by using USB serial/Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors.
Product Features
♦ Wireless transmission free wiring
♦ High quality and excellent design

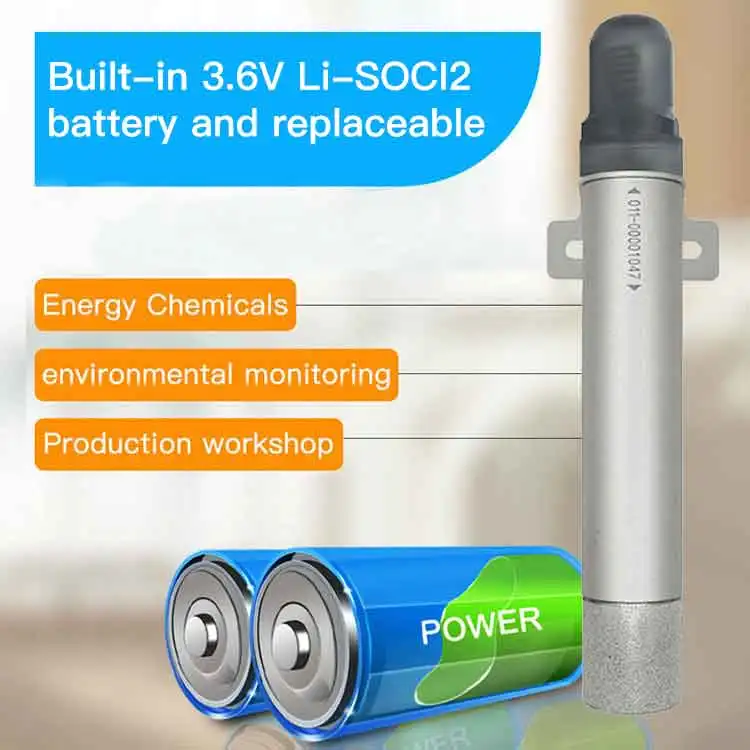

♦ Built-in replaceable Li-SOCI2 battery
♦ High quality and excellent design
♦ Built-in replaceable Li-SOCI2 battery
♦Long distance lora wireless transmission
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
♦ Easy to install and easy to use
♦ Superior performance and long-term stability

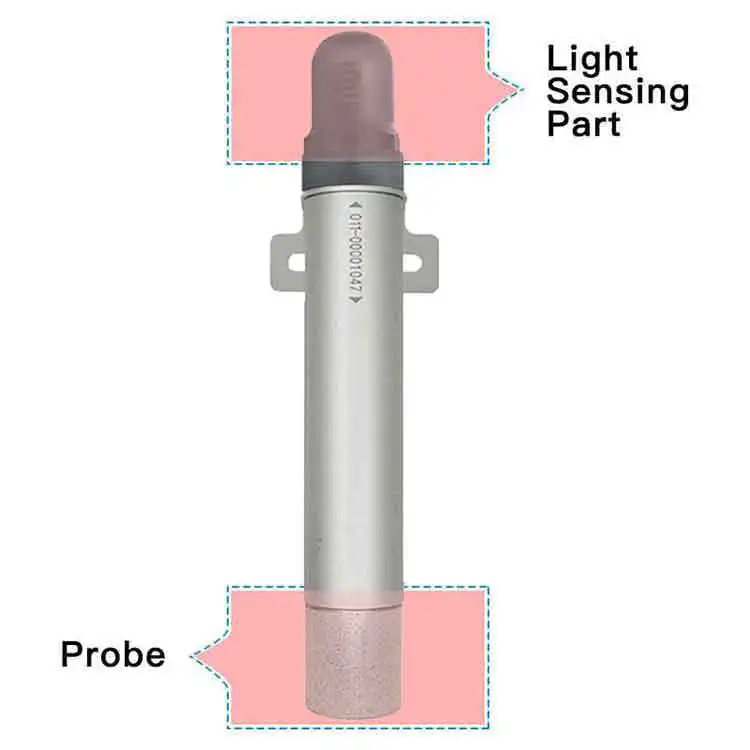

Sensor Activating Way
Light sensing triggering:Trigger 3 times continuously within 10S，after triggering successfully at the 3rd time
Red light fast blinks 3 times, start successfully.

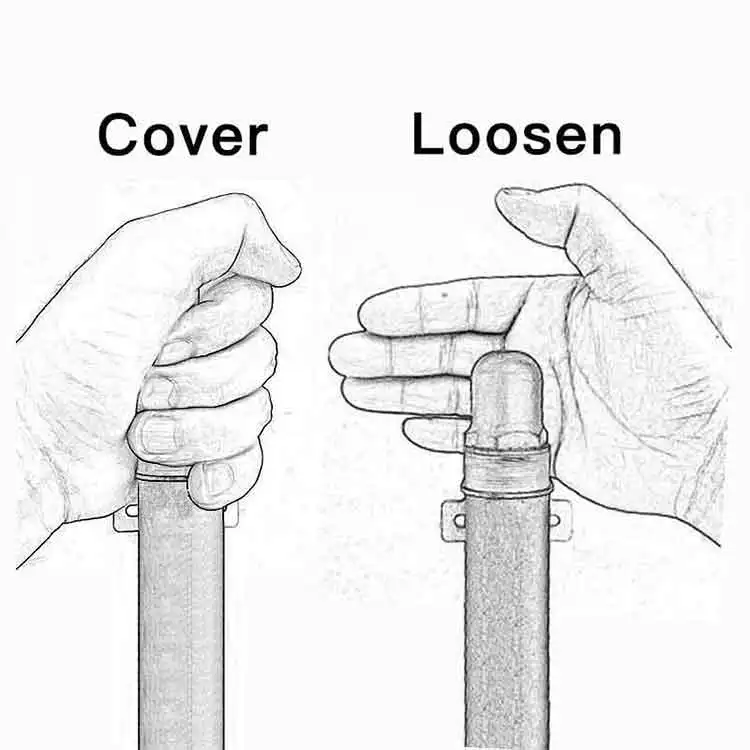

（Triggering way: hand covers light-sensing part 1～2S，loosen and red light blinks once）
Red light fast blinks 3 times, start successfully.
（Triggering way: hand covers light-sensing part 1～2S，loosen and red light blinks once）
Product Parameters
General Parameters | ||
Transmitting Power:<17dBm | Receiving Current:< 20mA | |
Sensitivity:< -136dBm | Average power consumption:< 15uA | |
Transmitting Current :<120mA | Battery Life:1 year@2700mAH | |

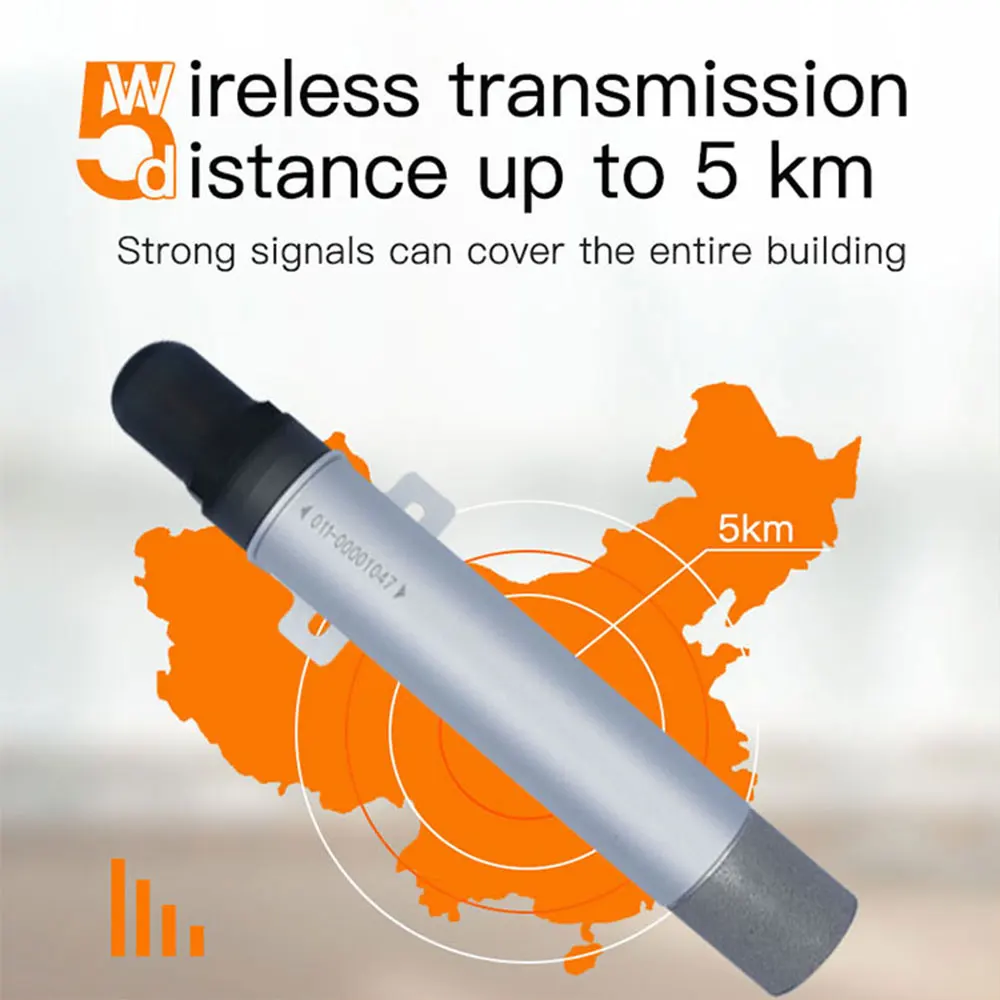

Transmission Distance: >2KM(LOS) | Power supply:1pc ER14505 3.6V (Li- -SOCI2) battery (replaceable and included) | |
Operating Temperature:-20°C~60°C | Working Frequency:476.505 & 488.505MHz (frequency can be customized) | |
Sensor Parameters | ||

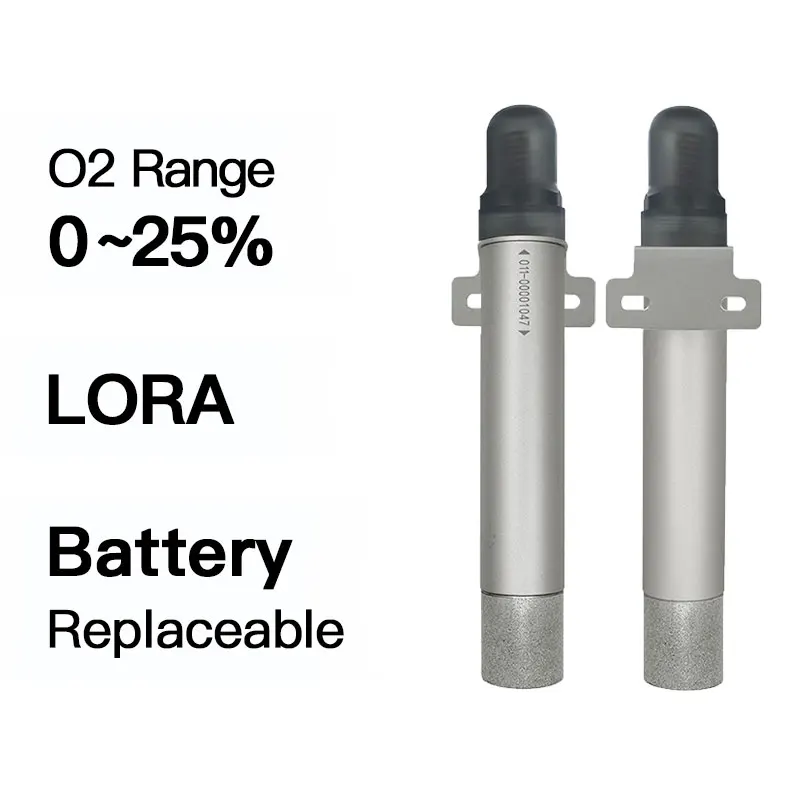

O2 Measurement Range:0-25% | O2 Accuracy<2% | |
Temperature Range:-20℃～60℃ | Temperature Accuracy:<±0.3℃（0℃～60℃)&<±1℃（-20℃～0℃） | |
Humidity Range:0-100% | Humidity Accuracy:< ±3% | |
Pressure Range:500-1200mbar | Transmission Interval:30mins default, 1 ~ 240mins settable by user | |
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.

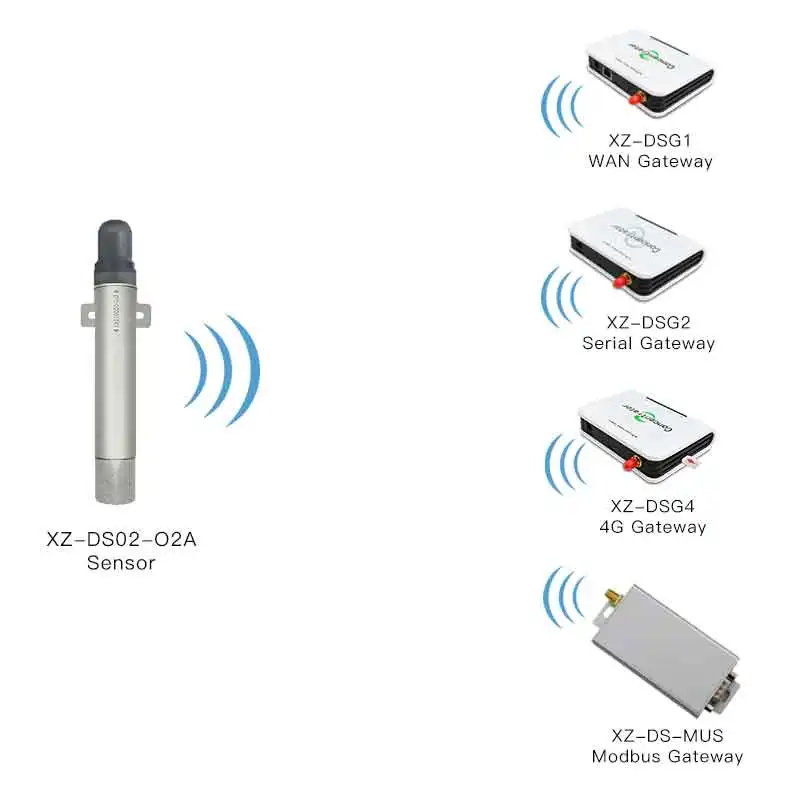

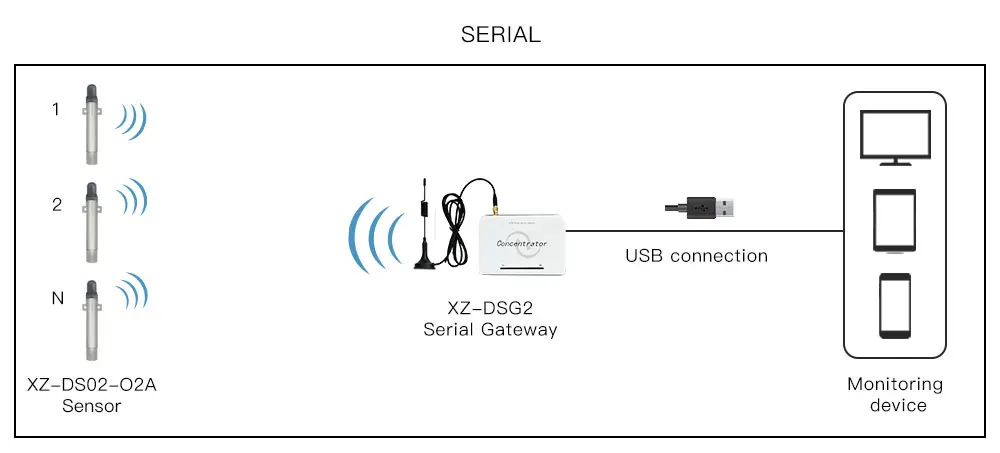

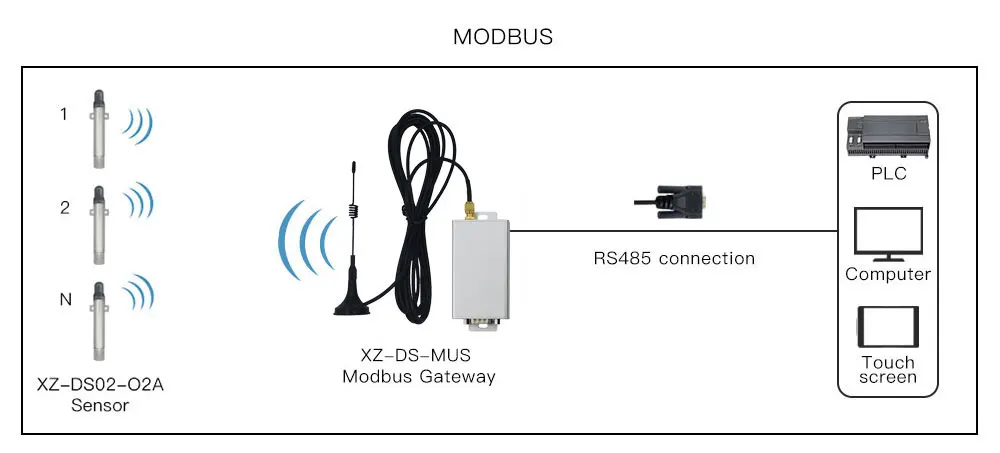

Gateway Choice
Our lora sensors can only work with our lora gateway,please click following pictures to learn more information about our lora gateway.
Recommend Products
Company Profile
OUR ADVANTAGES
Packing
FAQ
Q1. Is Thingsend manufacturer or a trading company?
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
Q3. What's the delivery time?
A:For prototype, it will be sent within 5 working days after you have paid. For bulk orders, it depends on your order quantity.
Q4: What is the payment terms?
A: PayPal, Western Union and T/T are preferred.
