CK6140 CNC lathe machine price torno cnc lathe ck6140
- Category: >>>
- Supplier: Shandong,Weili,Heavy,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

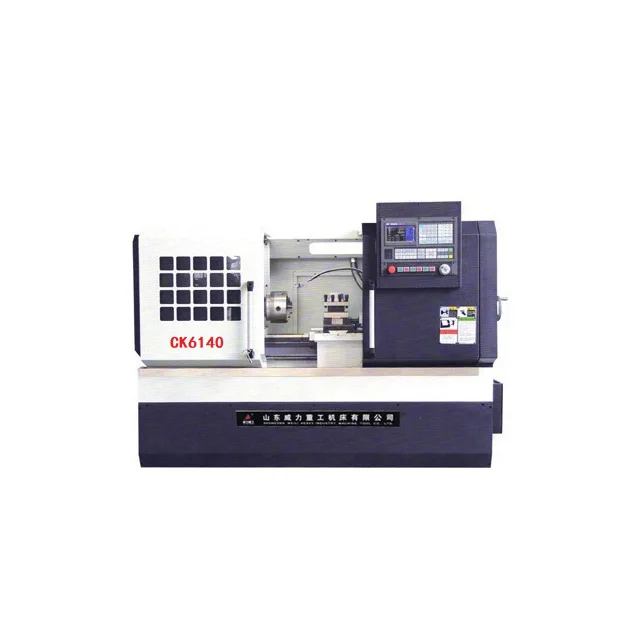

CK6140
STANDARD CONFIGURATION
GSK 980TDC CNC SYSTEM
200MANUAL CHUCK
RESIN SAND CASTING
THE GUIDE IS HARD GRINDING SURFACE QUENCHING
DOMESTIC ELECTRIC LUBRICATION SYSTEM
(INCLUDING AUTOMATIC LUBRICATION PUMP)
DOMESTIC AIR COOLING PIPE
(NO AIR COMPRESSOR OIL WATER SEPARATOR)
MAIN MOTOR PULLEY AND BELT
Manufacturing Technique
Specifications | CK6140 |
Max .Swing over bed | 400mm |
Max. Work piece Length | 750/1000/1500/2000/3000mm |
Spindle taper | MT6 |
Chuck size | A:C6,B and C:D8 |
Spindle-hole diameter | A:52mm, B:80mm,C:105mm |
Spindle speeds | 100-1600rpm |
Tailstock center sleeve travel | 150mm |
Tailstock center sleeve taper | MT5 |
Positioning accuracy | 0.015mm |
Repositioning accuracy | 0.006mm |
X/Z rapid traverse | 4/6m/min |
Spindle motor | 7.5kw |
Packing dimensions(L×W×H mm)750mm | 2250x1550x1700mm |
Packing dimensions(L×W×H mm)1000mm | 2750x1550x1700mm |
Packing dimensions(L×W×H mm)1500mm | 3250x1550x1700mm |
Packing dimensions(L×W×H mm)2000mm | 3700×1550×1700mm |
Packing dimensions(L×W×H mm)3000mm | 4710×1550×1700mm |
Weight for 750mm | 2800KG |
Weight for 1000mm | 2900KG |
Weight for 1500mm | 3150KG |
Weight for 2000mm | 3300KG |
Weight for 3000mm | 4100KG |

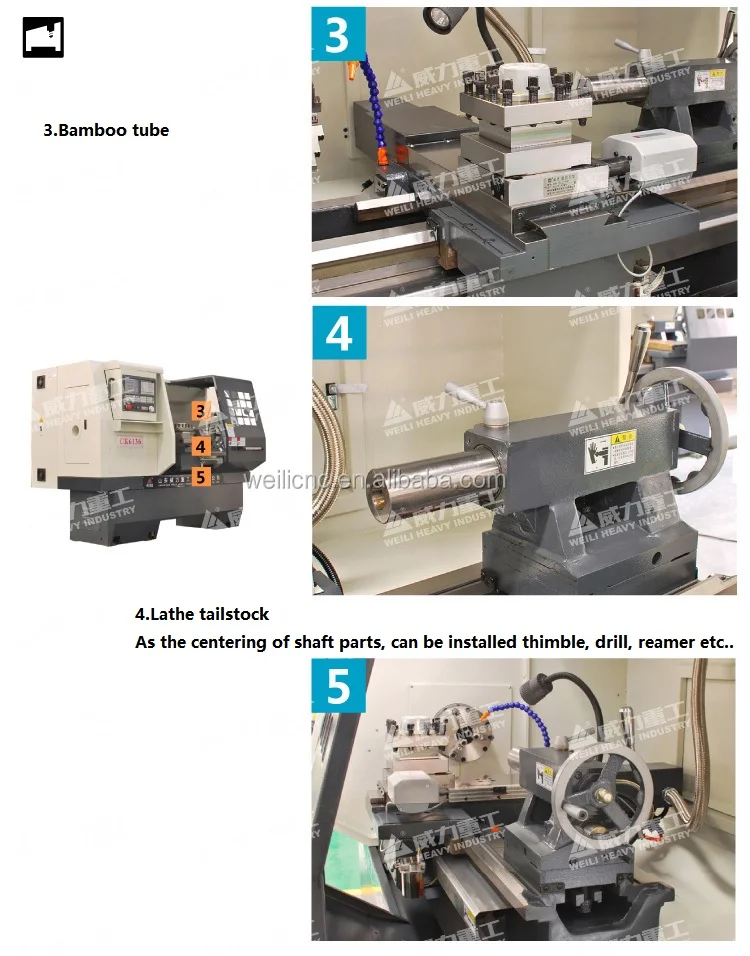

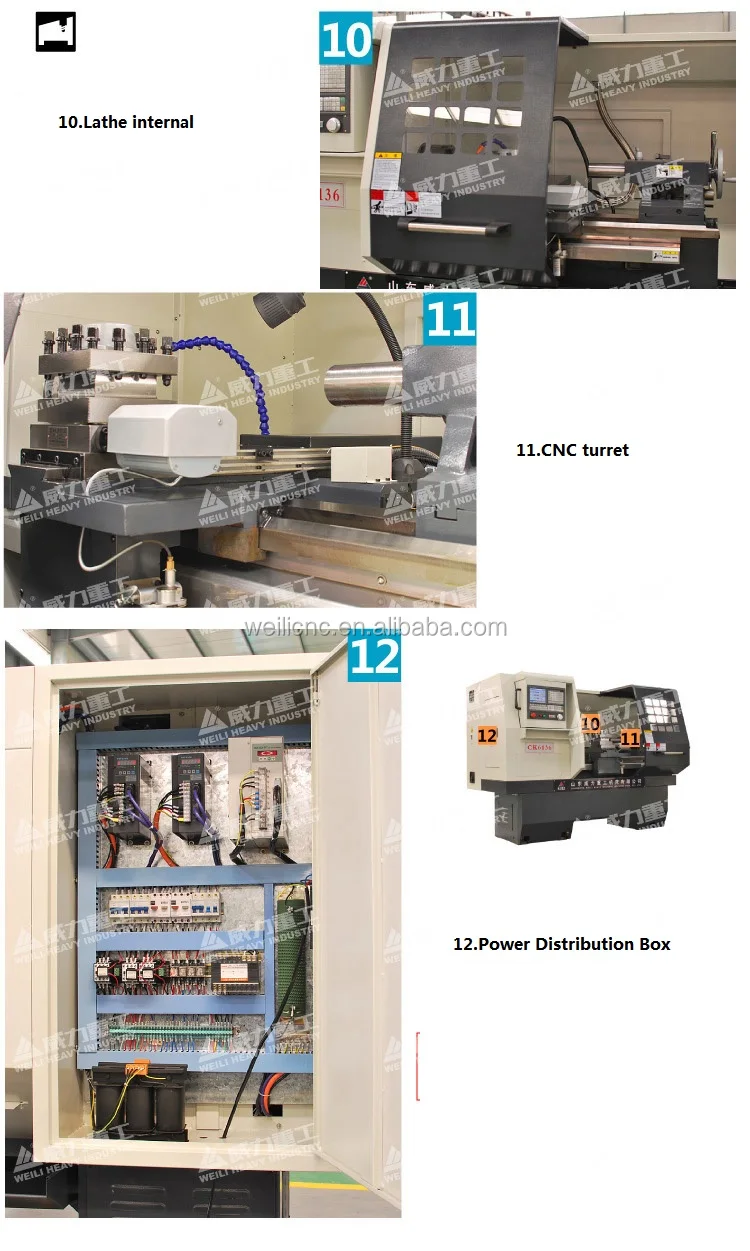

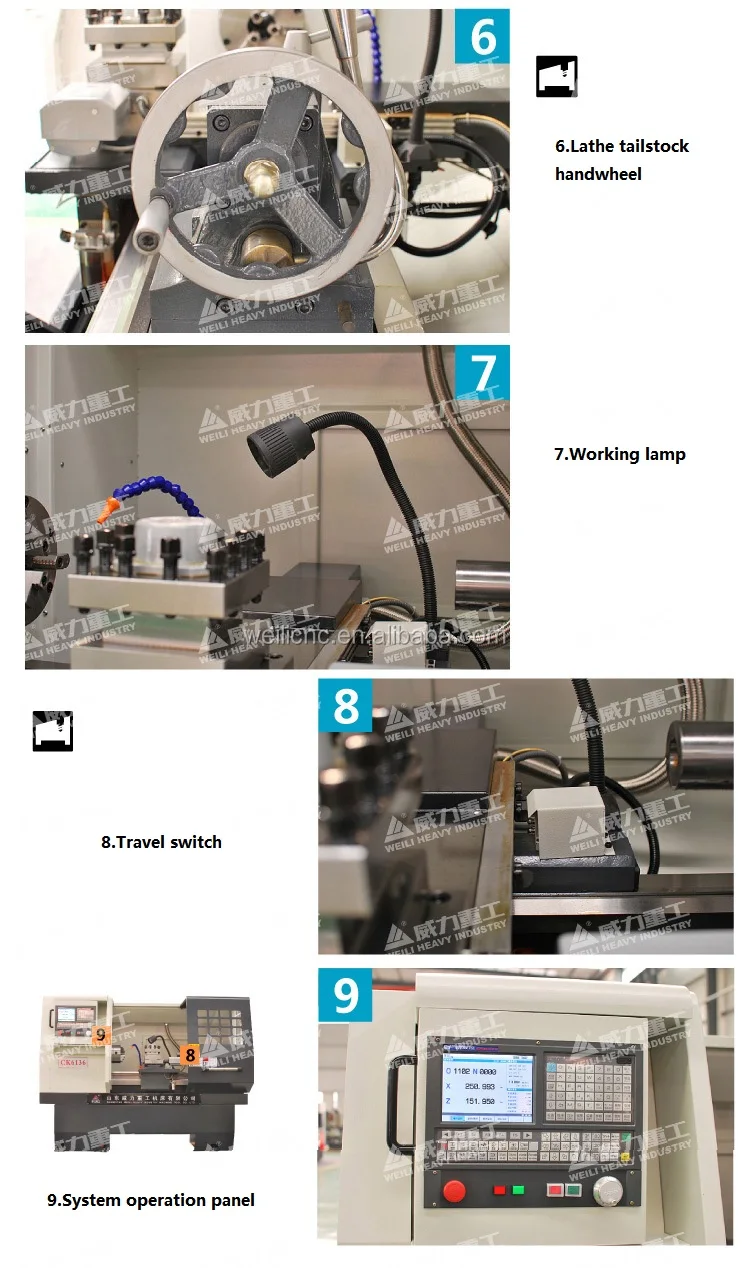

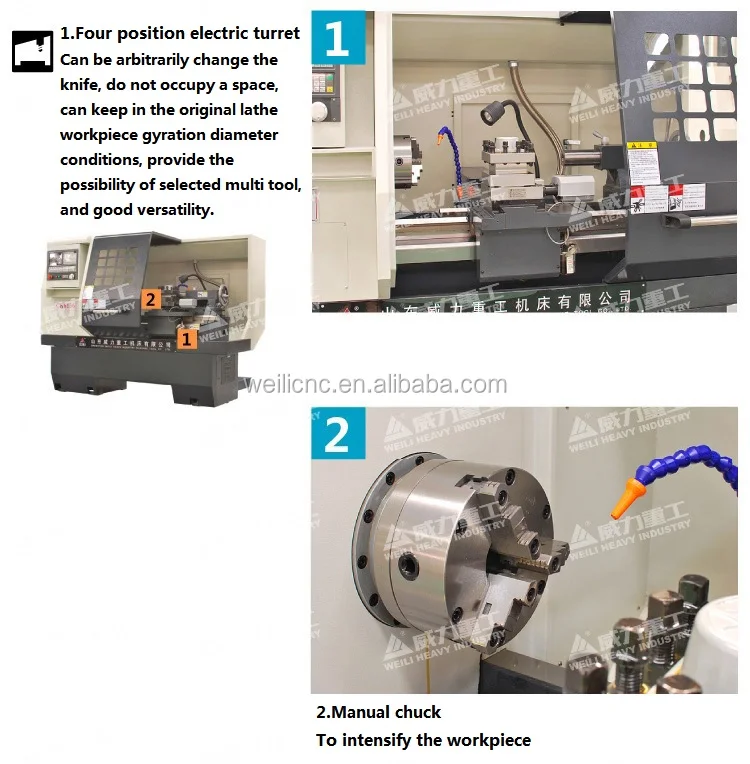

Details Images

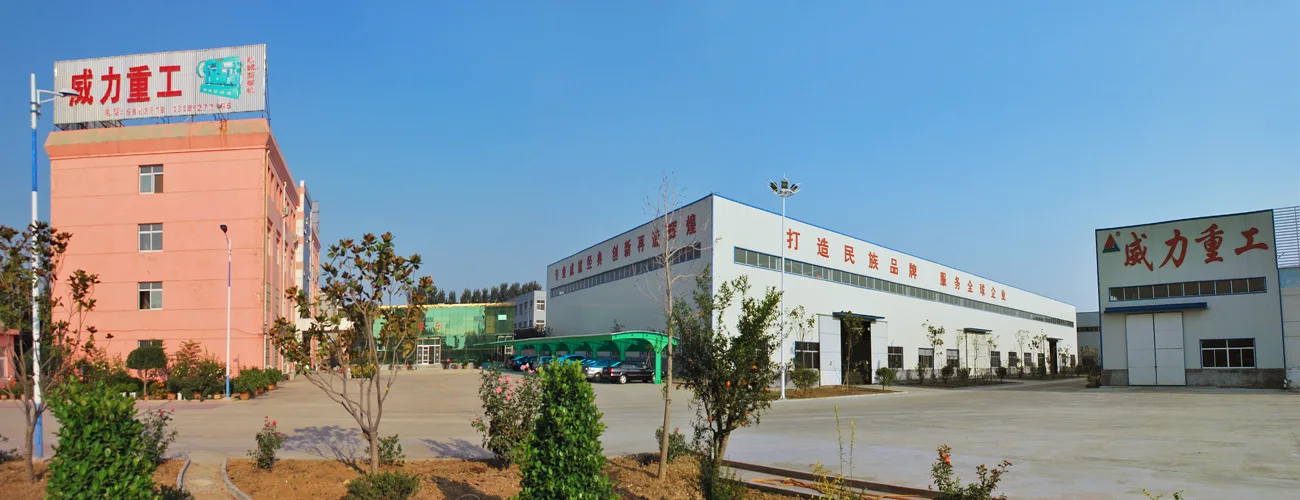

Company Profile

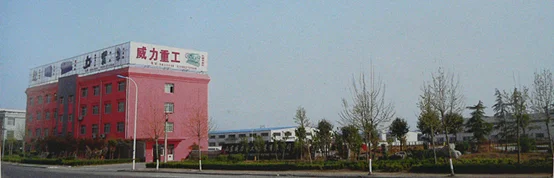

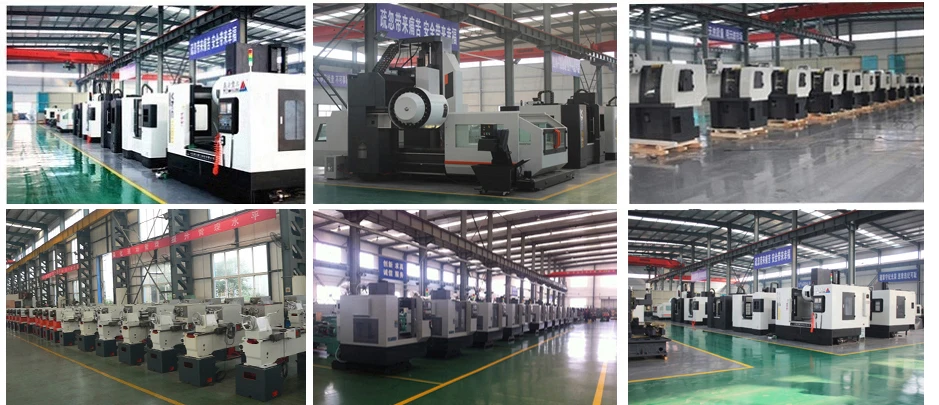

Shandong Weili Heavy Industry Machine Tool Co., Ltd. is a professional machine tool manufacturing company.Located in Tengzhou Economic development zone. Company mainly engaged in CNC vertical machining center, CNC horizontal machining center, CNC gantry-type machining center, CNC lathes, CNC milling machine, general milling, drilling machine, punching machine, hydraulic machine, shearing machine, bending machine and other equipment production. Company now has the fixed asset 95 million yuan, all machine tools in strict accordance with ISO9001 and CE international quality standard system of production.
"Honesty, tolerance, innovation, service" Shandong Weili heavy industry think that honesty is the foundation of all cooperation, tolerance is the premise to solve the problem, innovation is the development of career, service is the fundamental to create value. Companies adhering to the "quality first, prestige supreme" management idea, from parts to manufactured products, one by one, after strict control and inspection, the company always put the quality as the life of the enterprise. Shandong Weili Heavy Industry Machine Tool Co., Ltd. is the power with high morale and pragmatic style of work to a higher goal, is will to work with friends all over the word sincere cooperation and common development.
