fiber laser welder 1000W 1500W 2000W laser rust cleaning machine laser cleaning solution
- Category: >>>
- Supplier: Jinan L-Salt Machinery Co. Ltd.
Share on (1600488953827):
Product Overview
Description
Product Overview

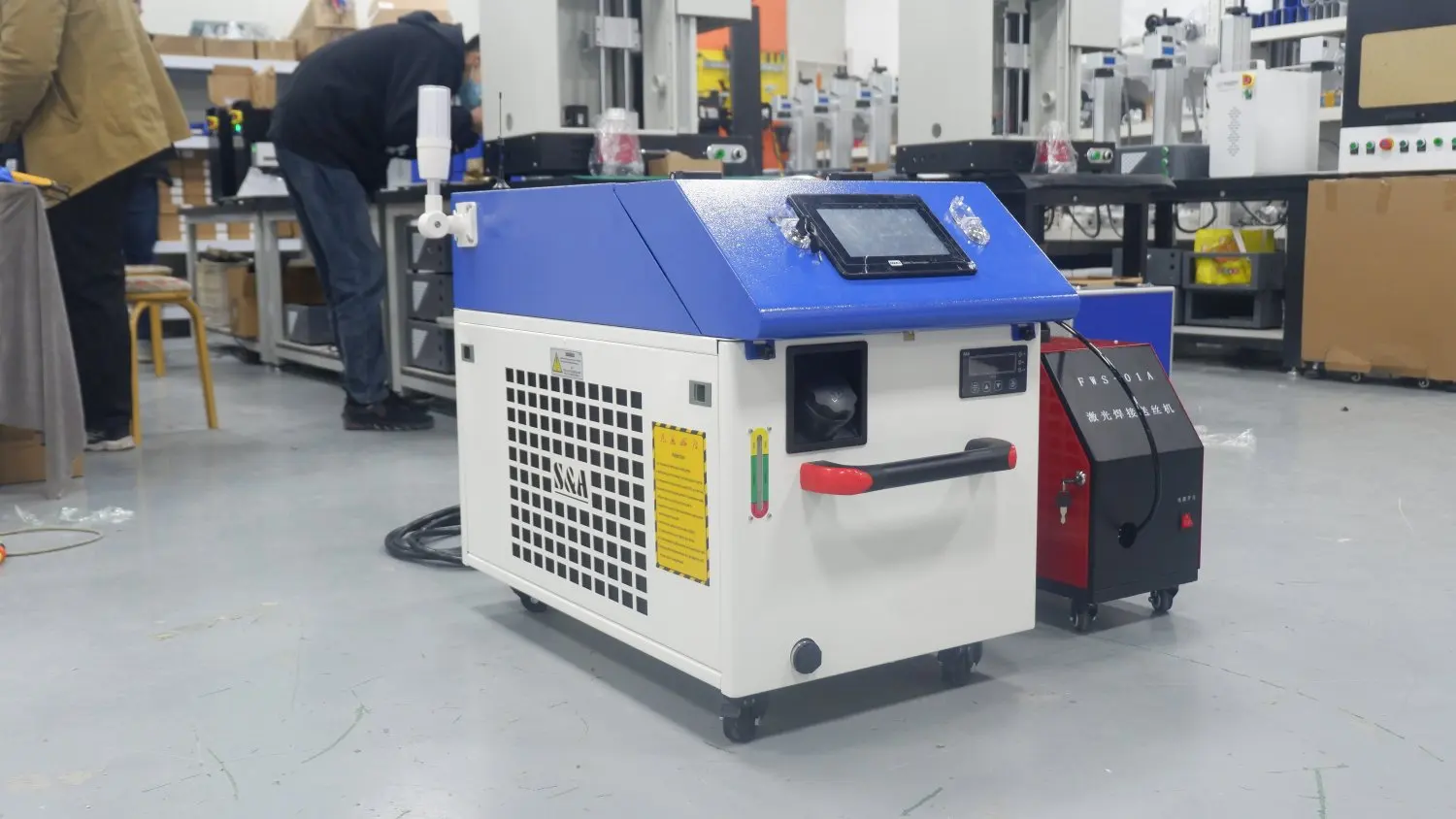

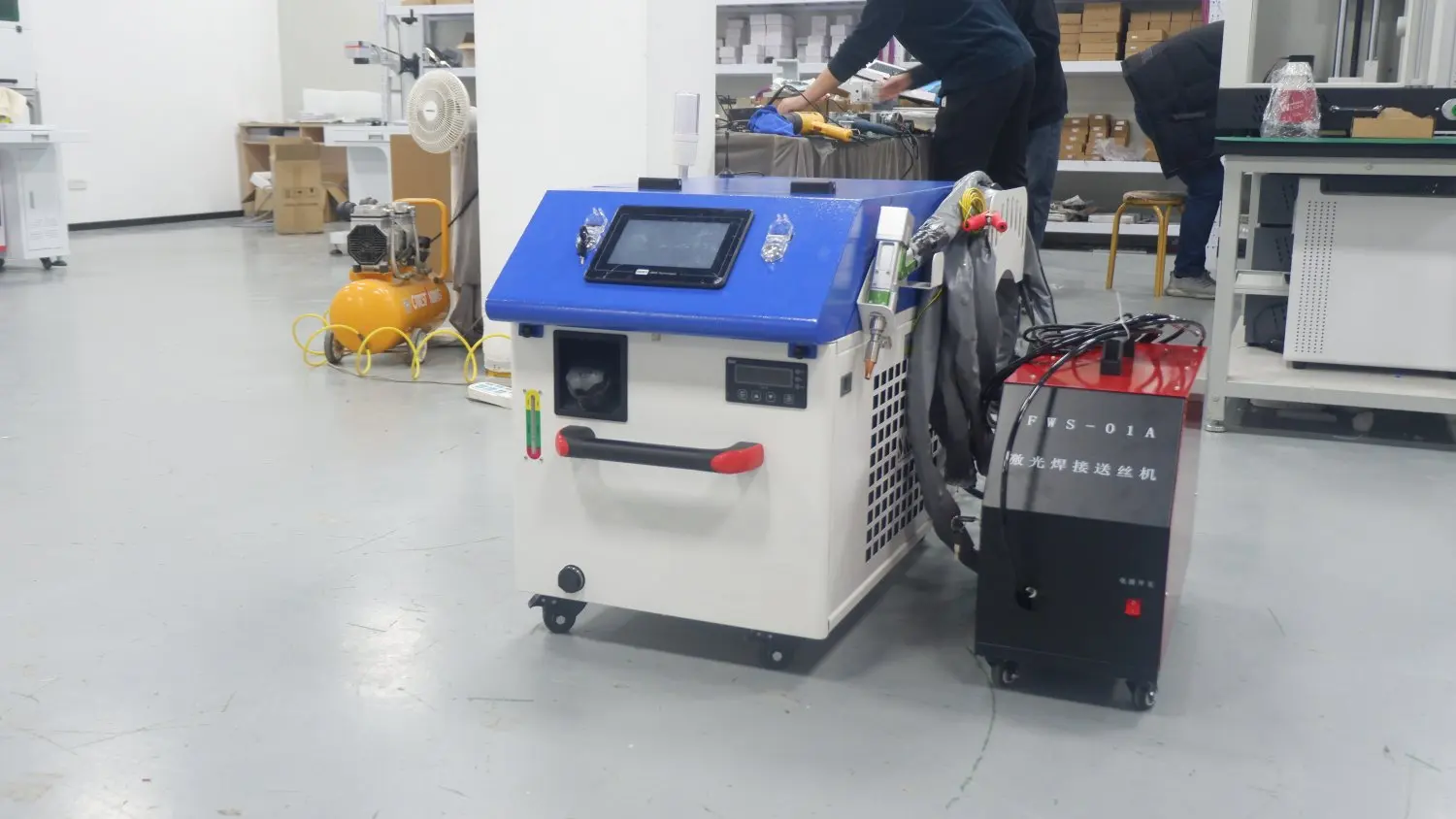

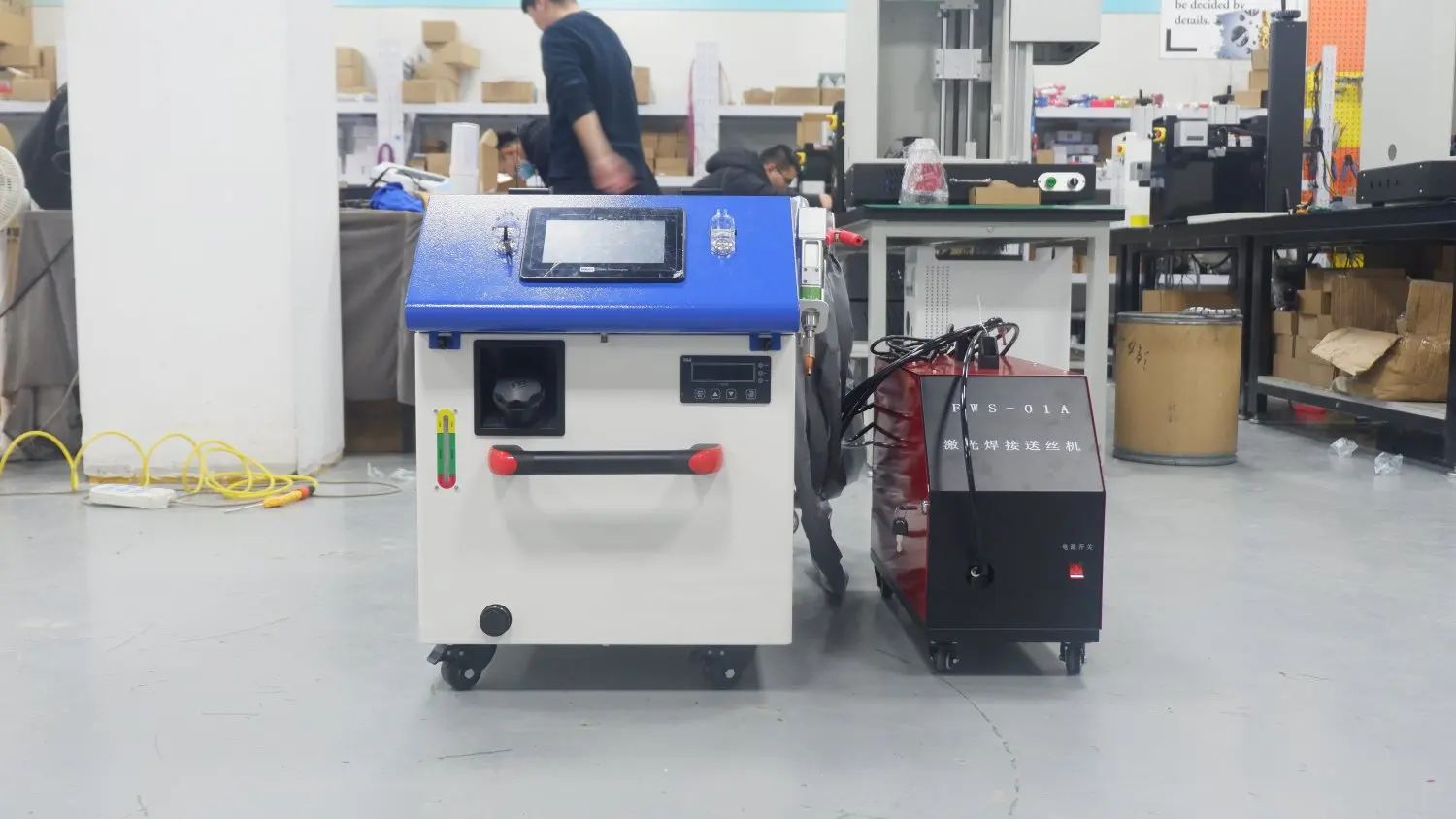

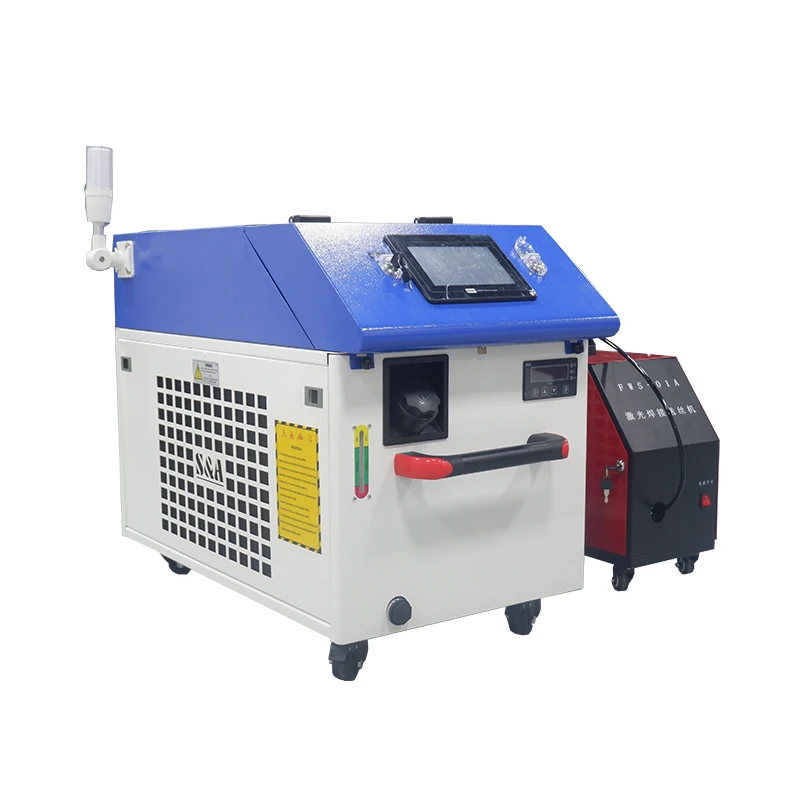

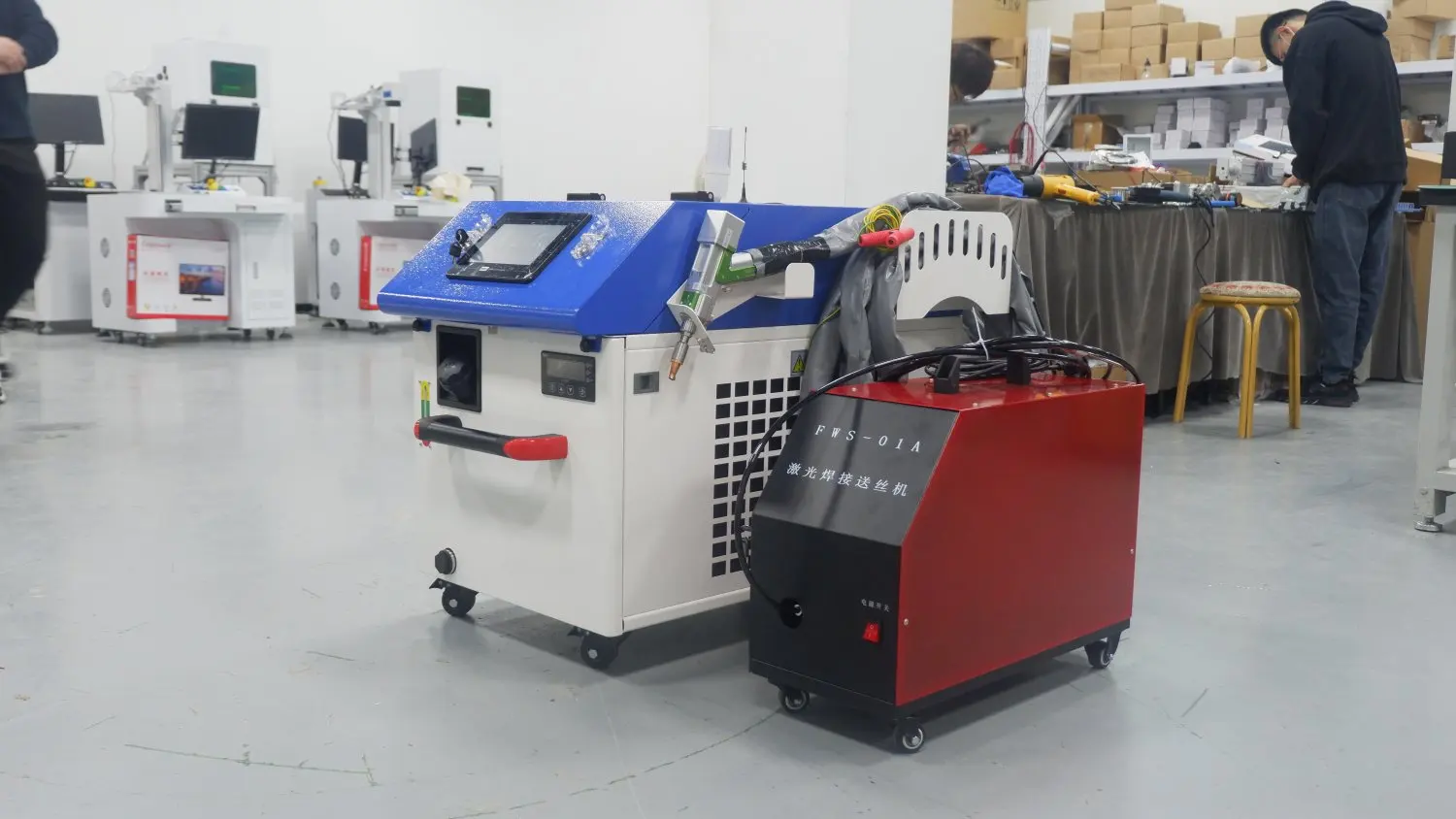

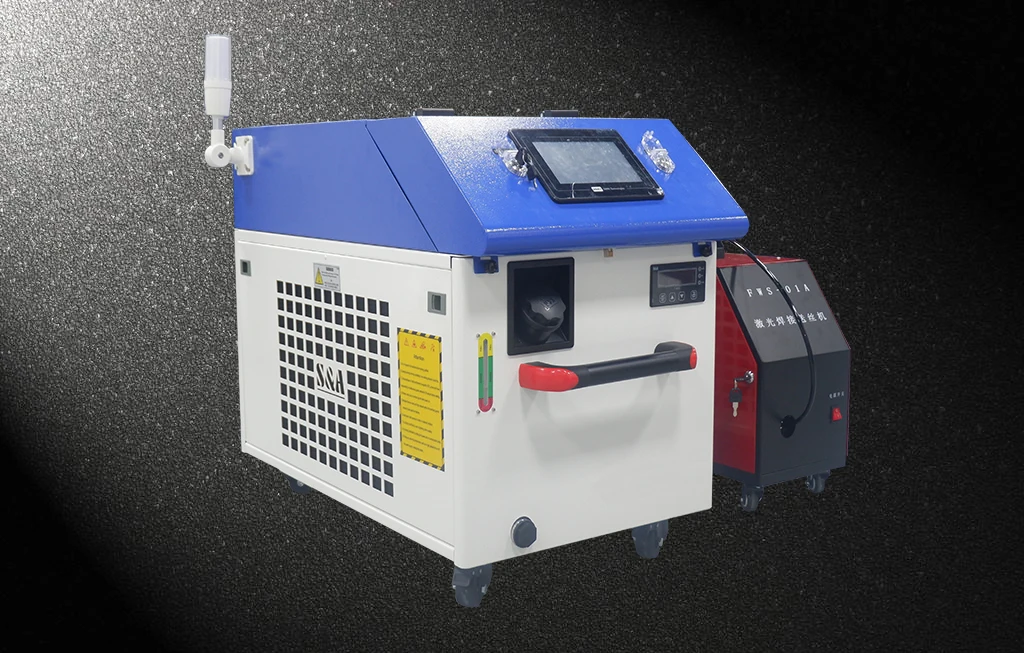

Fiber laser welding machine MAX 1000W 1500W 2000W
My whatsapp: +86 156 2876 7027
FEATURES AT A GLANCE
1. Three working modes, welding, cutting, derusting.
Simple switching, only need to replace the copper nozzle, switch the system
Simple switching, only need to replace the copper nozzle, switch the system
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
3. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.

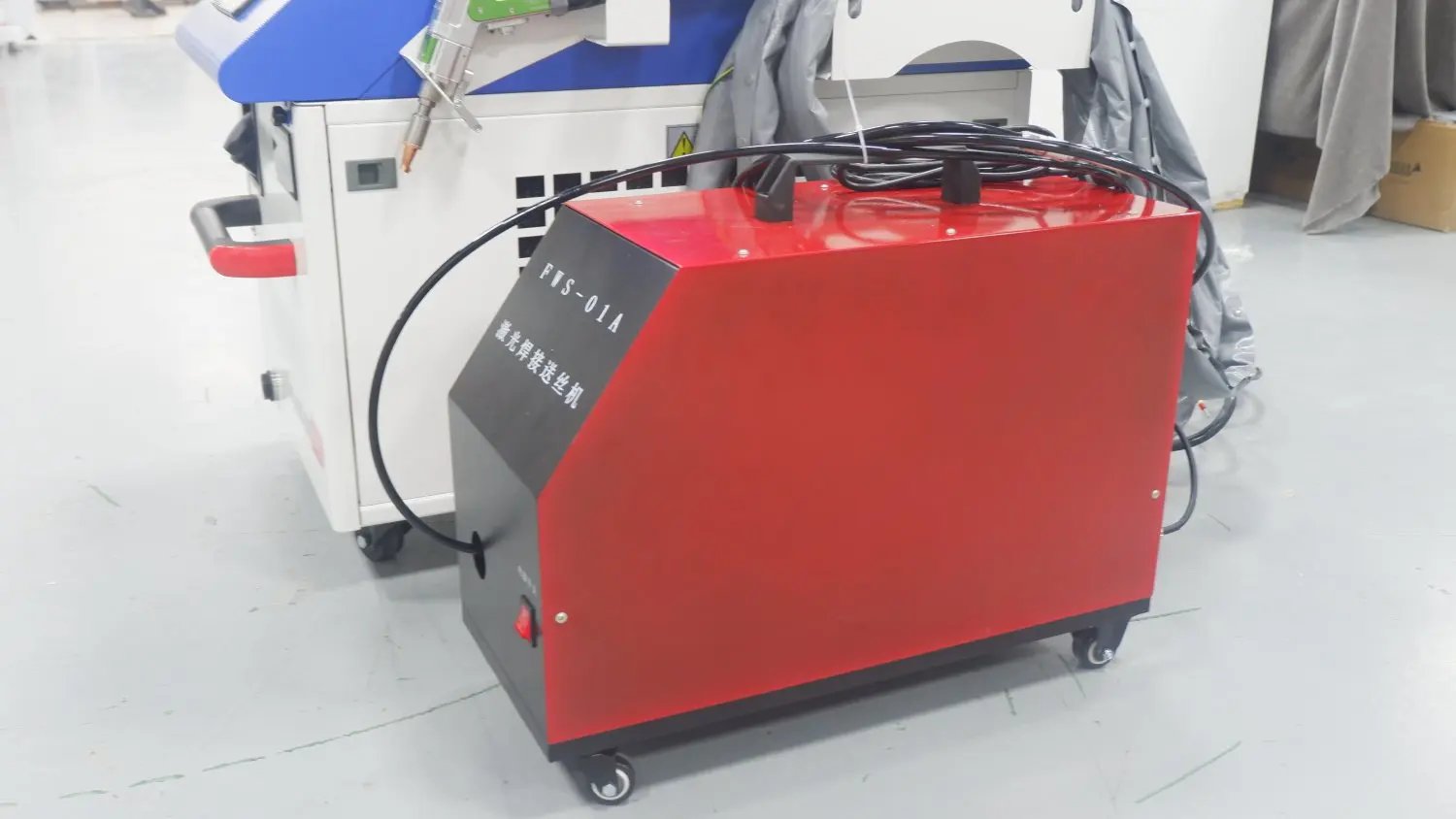

4. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
5. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online
3. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
4. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
5. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Name | Handheld Fiber Laser Welding Machine |
2 | Laser wavelength | 1070-1090NM |
3 | Laser power | MAX 1000W |
4 | Way of working | continuity/ modulate |
5 | Cable length | 10M |
6 | Welder speed range | 400-500mm/s |

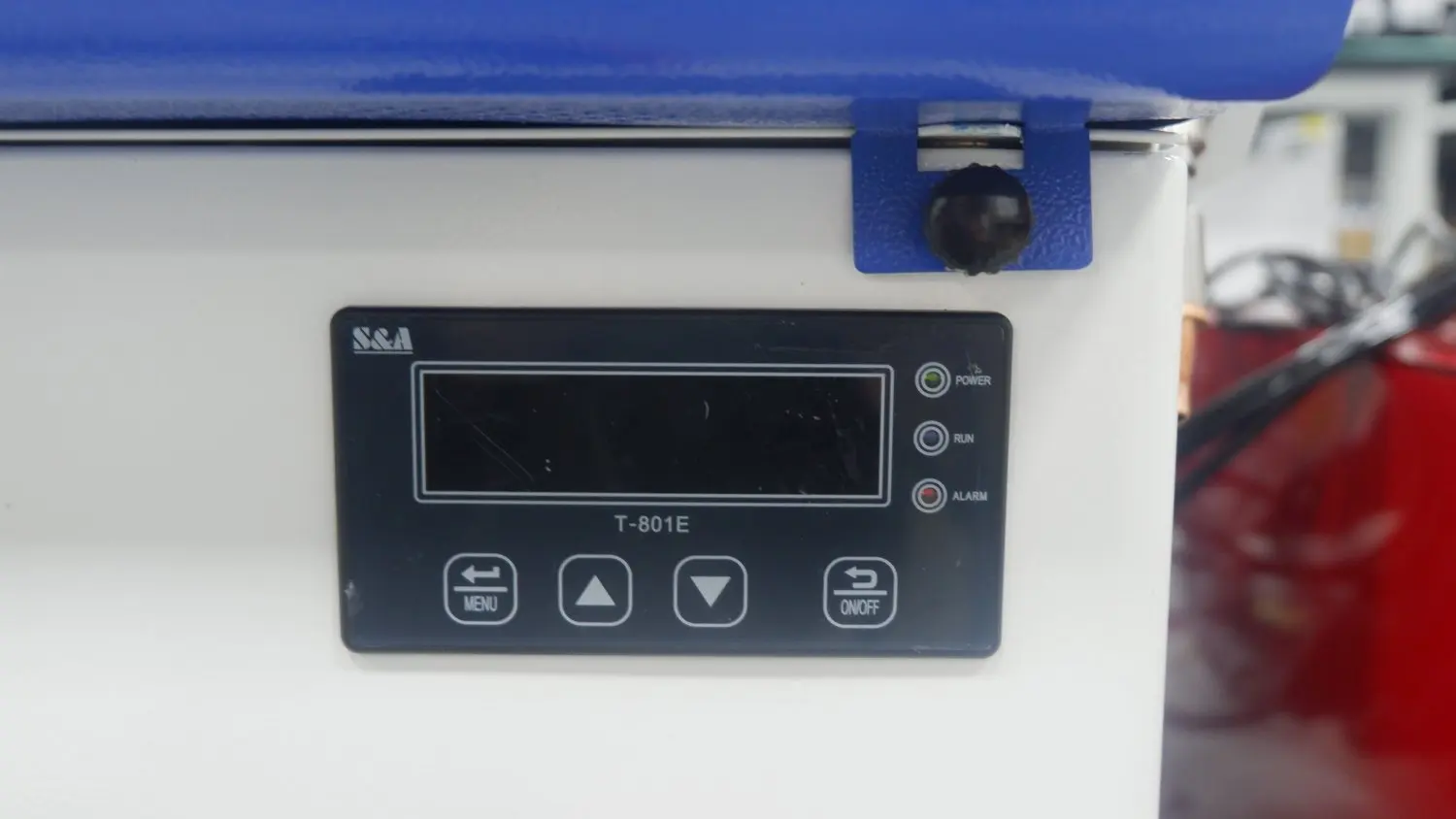

7 | Cooling water machine | Industrial constant temperature water tank, with over temperature, flow, water level and other alarm functions |
8 | Working ambient temperature range | 0~35℃ |
9 | Working environment humidity range | <70%no condensation |
10 | Weld Thickness | 0.3-5mm |
11 | Weld Gap | ≤1.5mm |
12 | Voltage | 220V |

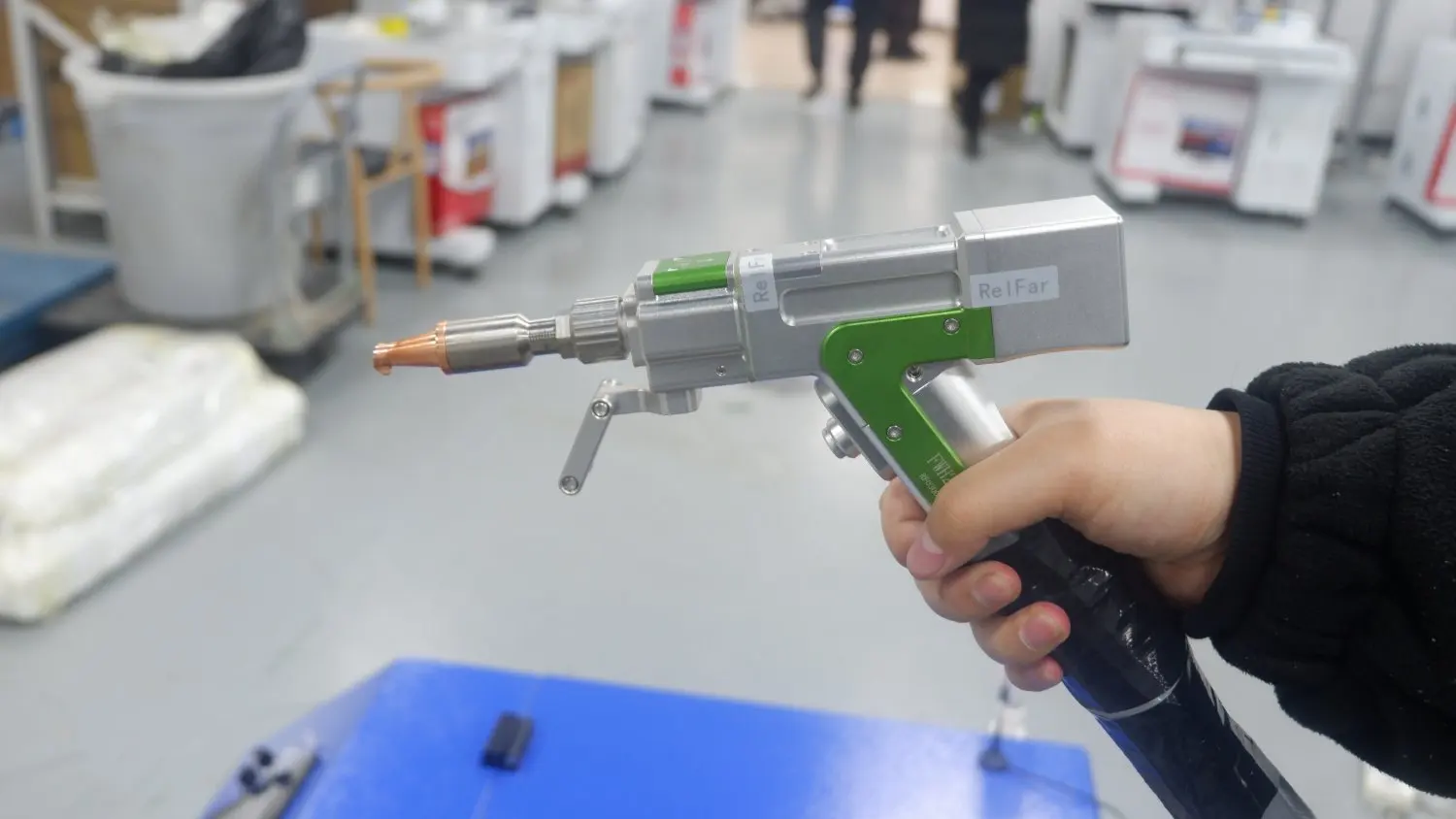

13 | Handheld laser welding head weight | ≤1.4kg |
14 | Laser source life | 100000 hours |
15 | aiming and positioning | Red light pointer |
16 | Self-locking function | Automatic light lock to ensure operator safety |
17 | Spot width adjustable | 0.2-5MM |
18 | Laser welding head type | Shake the dual galvo mirror left and right |
19 | Automatic wire filling function (optional) | Automatic wire feeder with independent control to match the speed of hand-held laser welding: wire diameter specification: 0.8MM,1.0MM,1.2MM,1.6MM |
Main Products
Welding and cutting model
Cleaning model

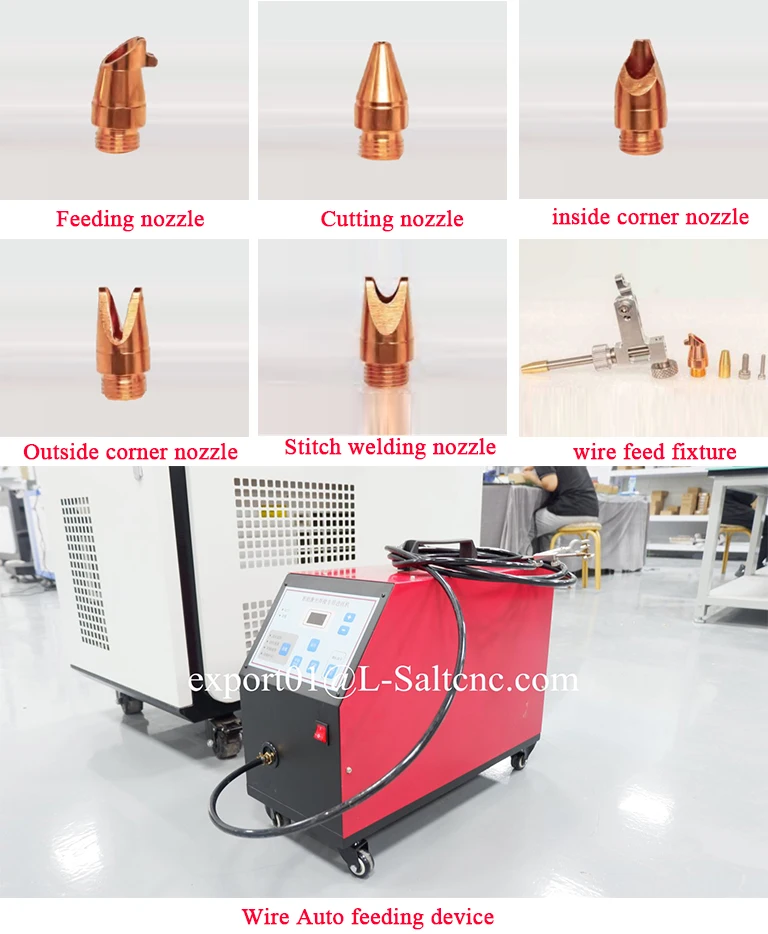

Five different copper nozzles are used for welding in different situations.

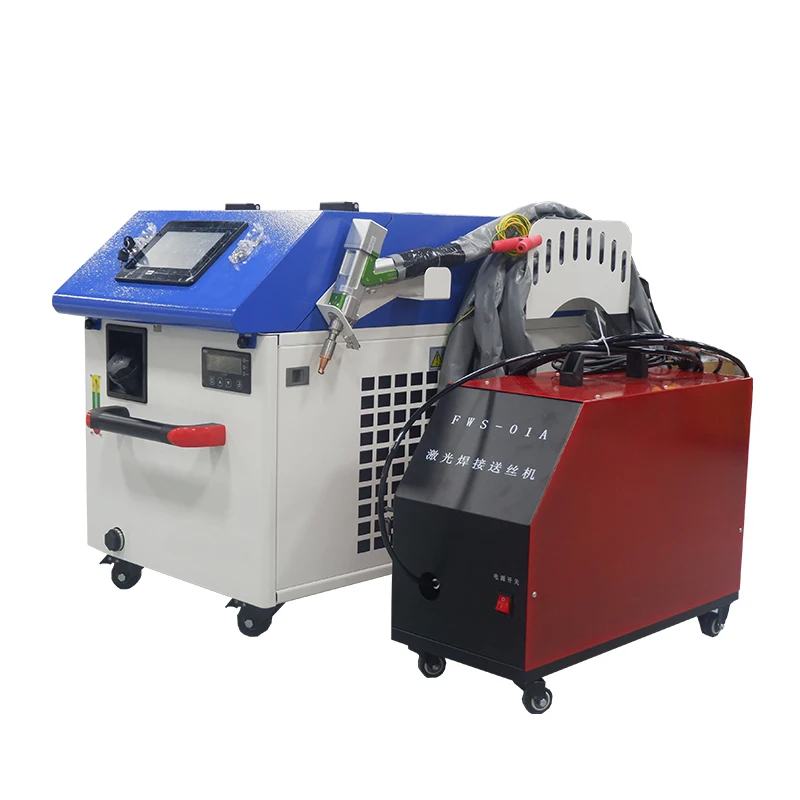

When the welding seam is large, use the wire feeder to match the welding machine
When the welding seam is large, use the wire feeder to match the welding machine

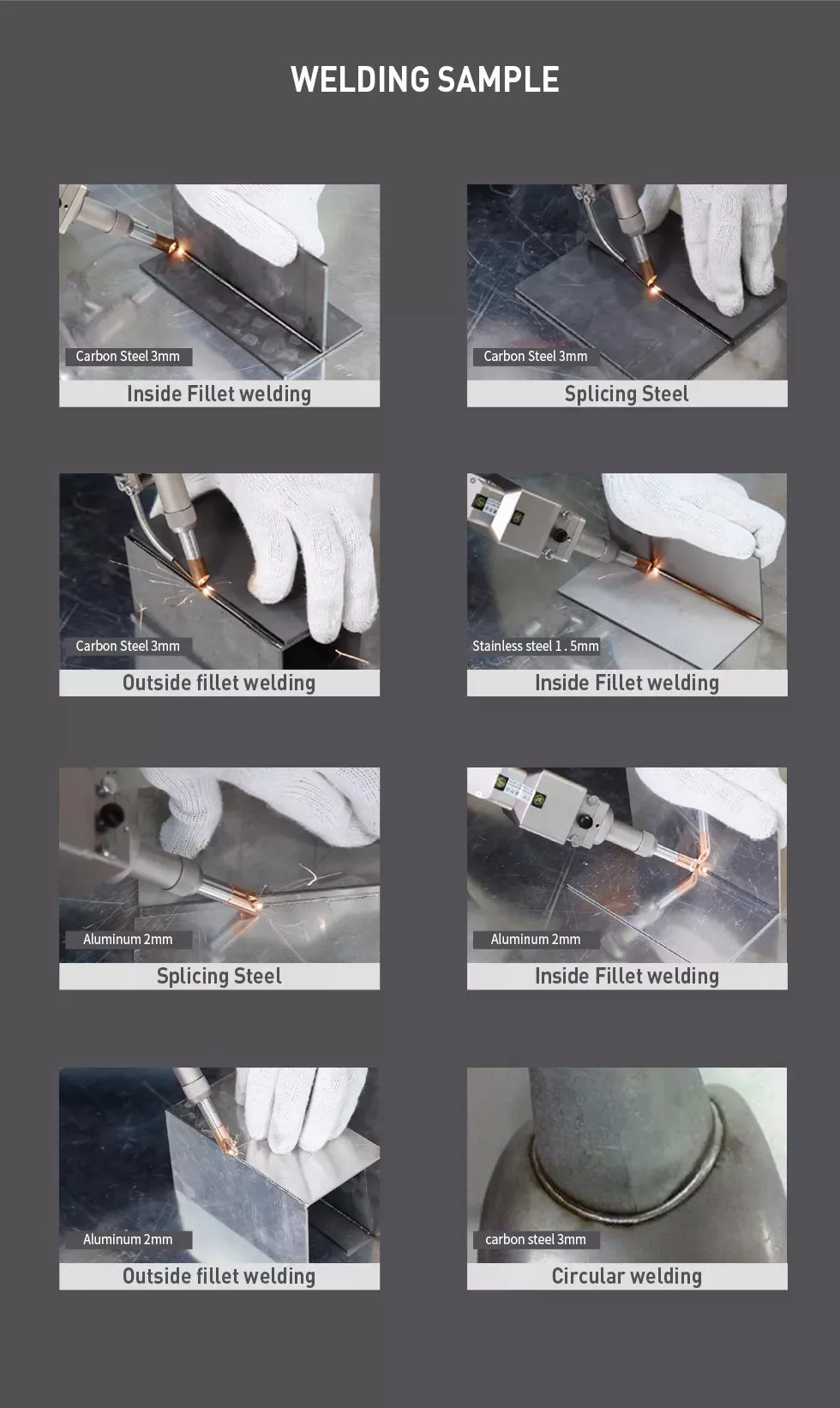

APPLICATIONS

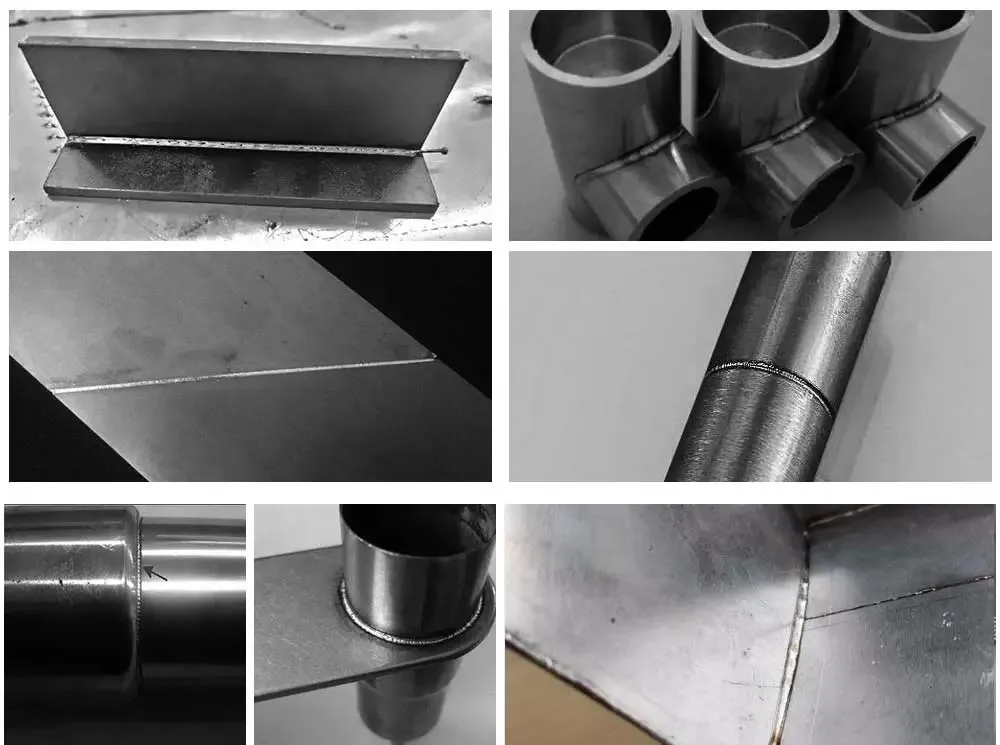

1. The weld seam is smooth and beautiful,The welding workpiece has no deformation, the welding is firm, and no
subsequent grinding process is required, which saves time and cost.
Fast welding speed, 2~10 times faster than traditional welding.
2.Easy operating need no training
Welding seam beautiful smooth and beautiful, don’t need polish, save your time
No deformation or welding scar, firm welding of the workpiece.
3.Easy Maintenance
Laser welding has less consumables and long service life. Safer, more environmentally friendly.
Fast welding speed, 2~10 times faster than traditional welding.
2.Easy operating need no training
Welding seam beautiful smooth and beautiful, don’t need polish, save your time
No deformation or welding scar, firm welding of the workpiece.
3.Easy Maintenance
Laser welding has less consumables and long service life. Safer, more environmentally friendly.
4. Wildly used in cabinet kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window
guardrail, distribution box, stainless steel home.
SERVICE
After-sale service
1. Two-years warranty for machine bed and free software upgrade. Two-year warranty for laser generators.
2. Except man-made factor, L-Salt provide the repairing service during the warranty period.
3. We will establish communication group including technicians, after-sales managers, salesmen and operators
of customers.
Sale service
1. Technicians would offer field installation, debugging and training when they come to the customer's factory.
2. Ensure the equipment is delivered on time.
3. Train customer operators in strict accordance with the equipment operation process to ensure that they are
proficient in the operation, maintenance and safe use of the equipment.
Pre sale service
1. Provide technical guidance, equipment solutions and other information services according to your needs.
2. Welcome you to visit our company and equipment exhibition hall. And our engineers will offer the best explanation
and demonstration.
3. Provide free cutting sample service.
1. Two-years warranty for machine bed and free software upgrade. Two-year warranty for laser generators.
2. Except man-made factor, L-Salt provide the repairing service during the warranty period.
3. We will establish communication group including technicians, after-sales managers, salesmen and operators
of customers.
Sale service
1. Technicians would offer field installation, debugging and training when they come to the customer's factory.
2. Ensure the equipment is delivered on time.
3. Train customer operators in strict accordance with the equipment operation process to ensure that they are
proficient in the operation, maintenance and safe use of the equipment.
Pre sale service
1. Provide technical guidance, equipment solutions and other information services according to your needs.
2. Welcome you to visit our company and equipment exhibition hall. And our engineers will offer the best explanation
and demonstration.
3. Provide free cutting sample service.
PACKAGING
2. We transport by sea, train, bus, or by air, depending on your choise.
FAQ
Q1: How can I get the best laser welding machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine
can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of laser welding machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still
can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone,
email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine
can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of laser welding machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still
can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone,
email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
