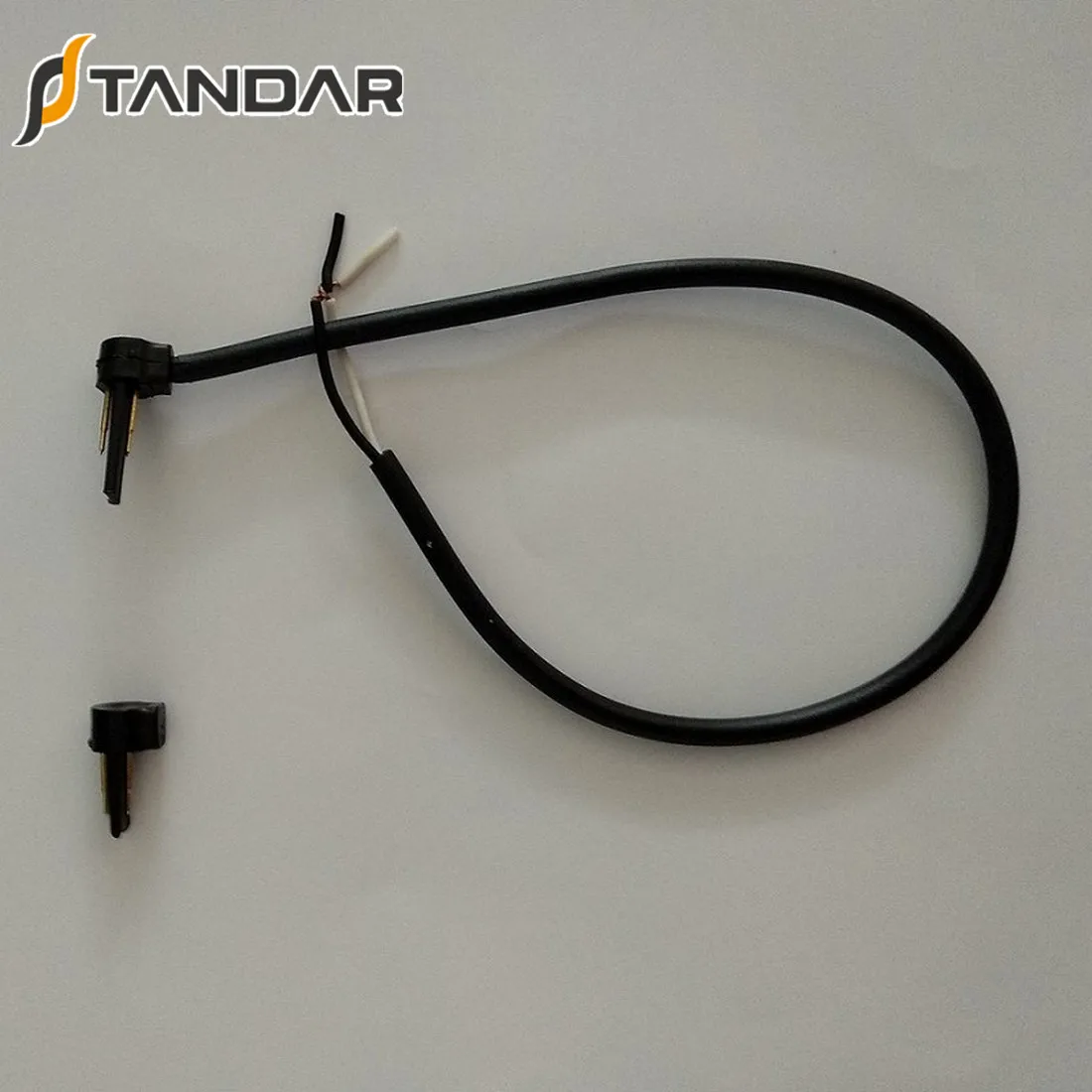

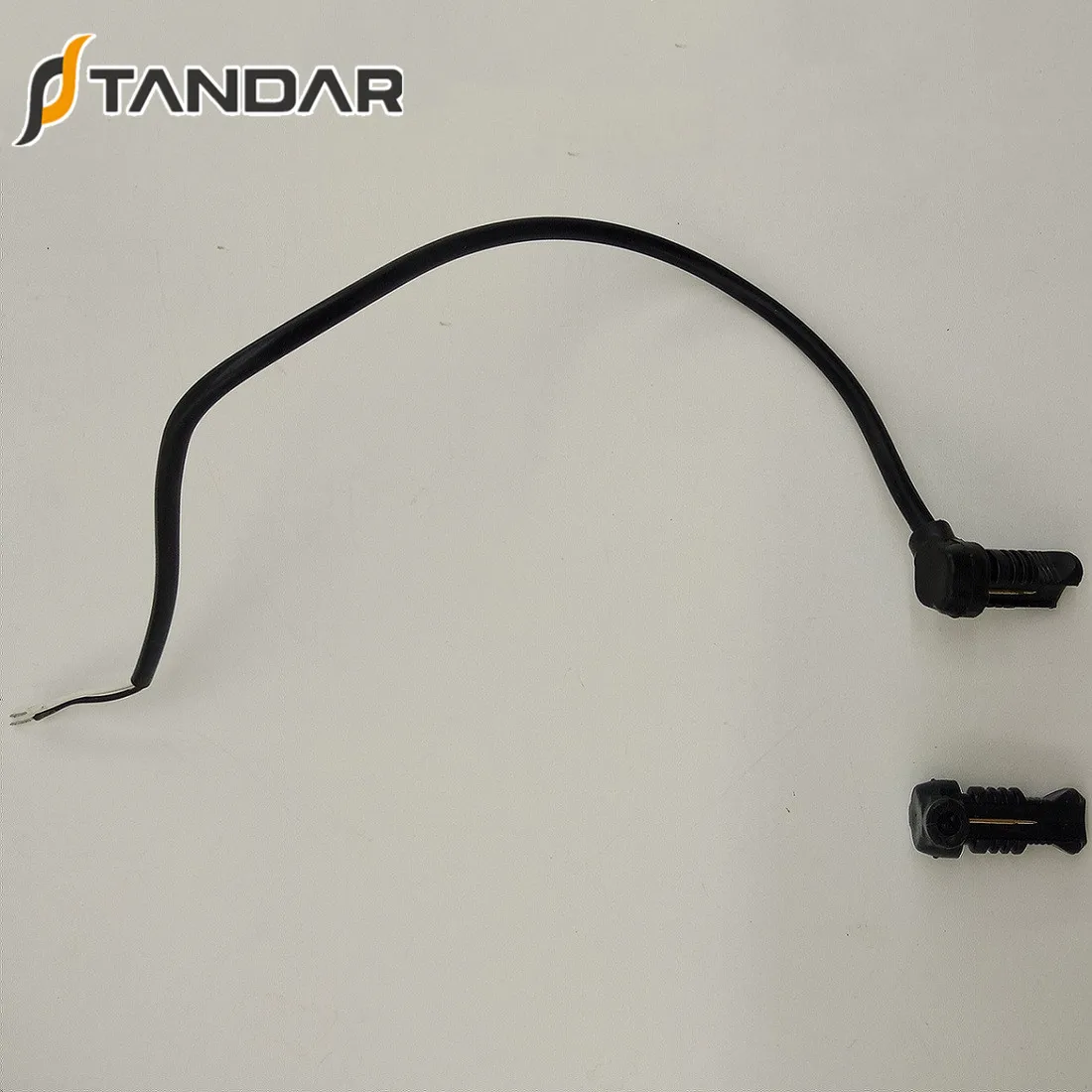

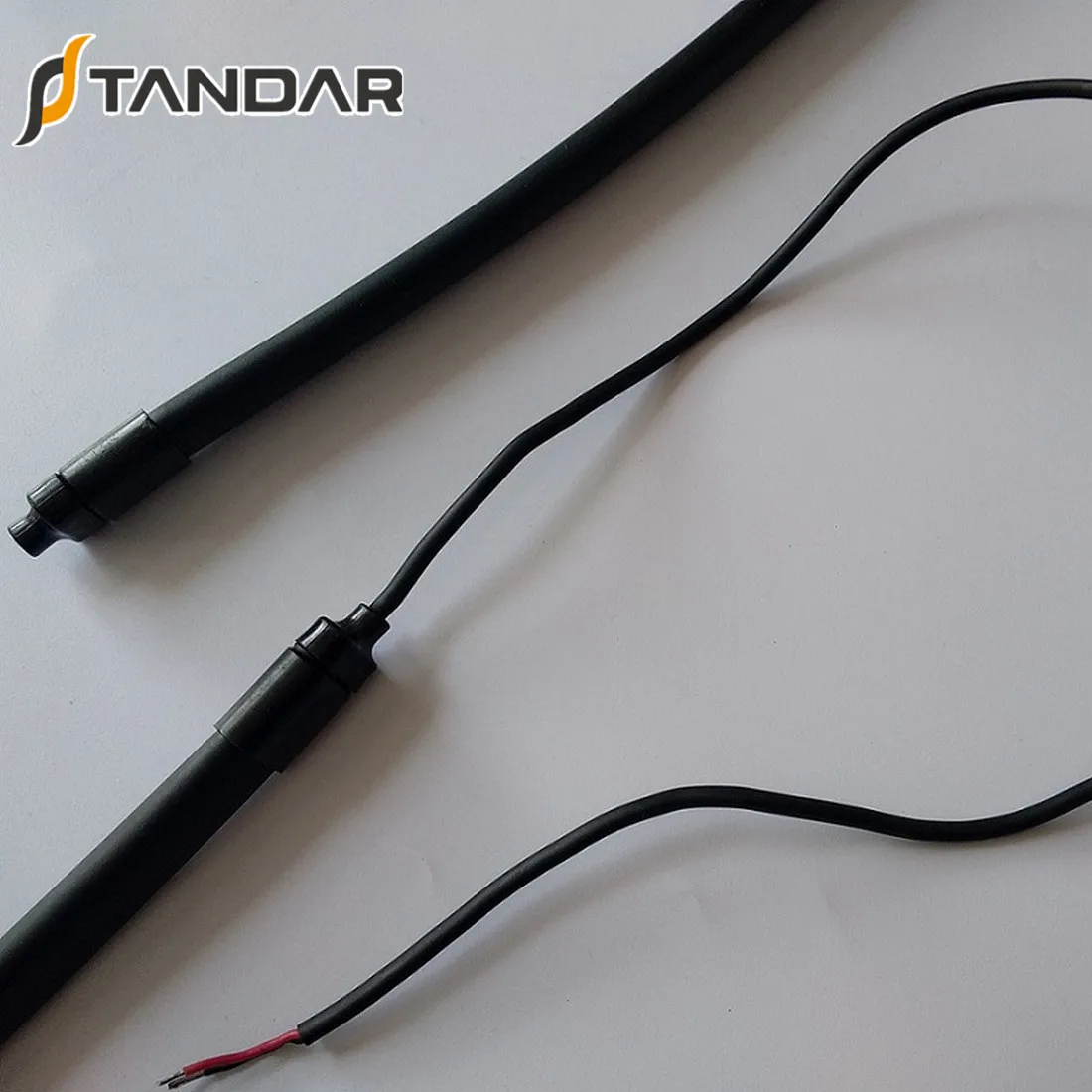

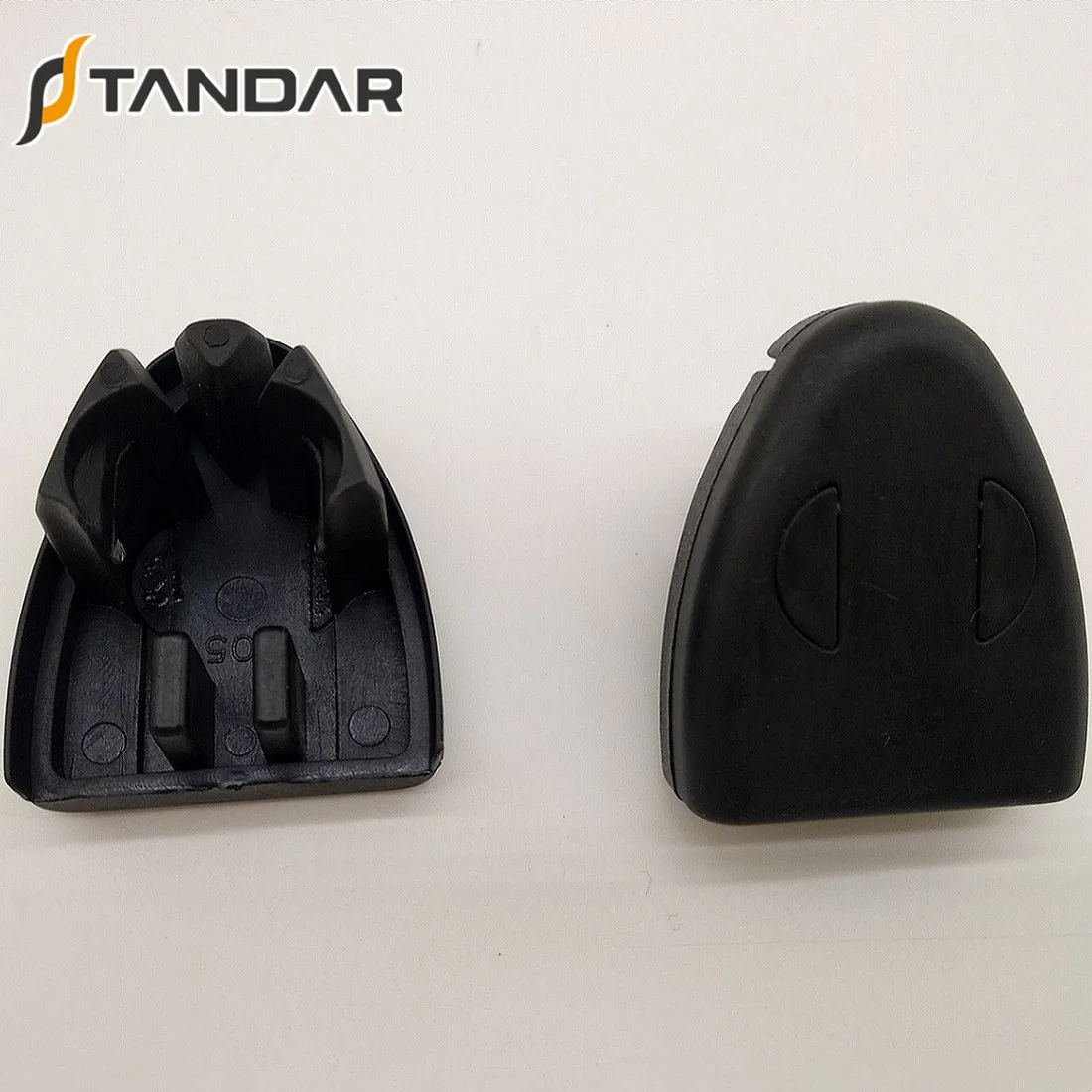

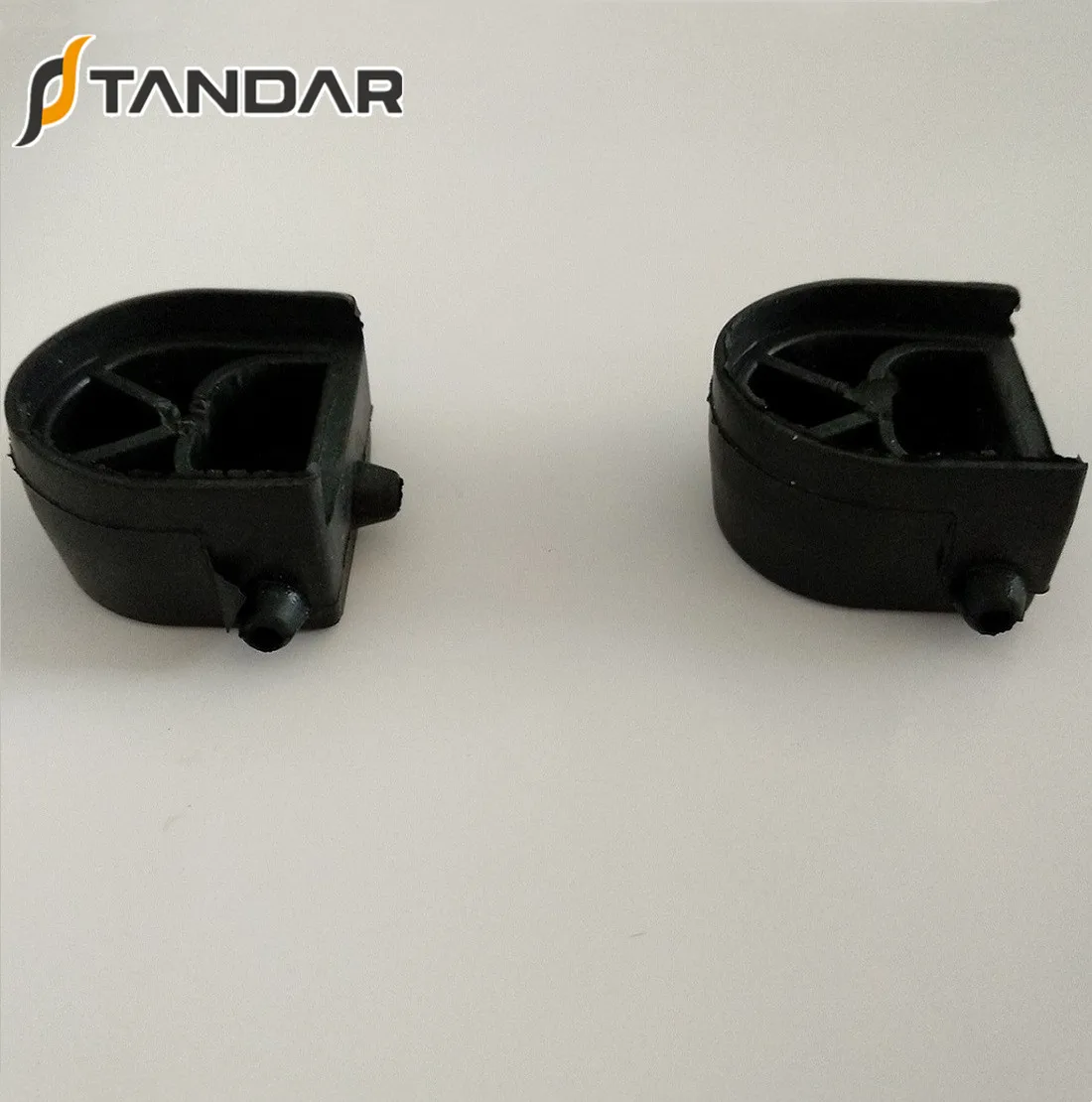

Rubber Safety Edge Sensor Used For Revolving Door And Roller Shutter Door

Product Overview

Description





 PRODUCT TYPE



DATA

Application temperature	-25℃ to +60℃
Resistance	<150-500Ω
Launch distance	up to the product specification
Bending angle	up to 15 degrees
Scleroscope hardness	A60-65 degree



APPLICATION

Safety Edge is mainly used for protecting crushing and shearing points on revolving door, sliding door, AGV, garage door, industrial doors, automatic production lines, buses, road barriers, electric shutters, public transportations, etc.

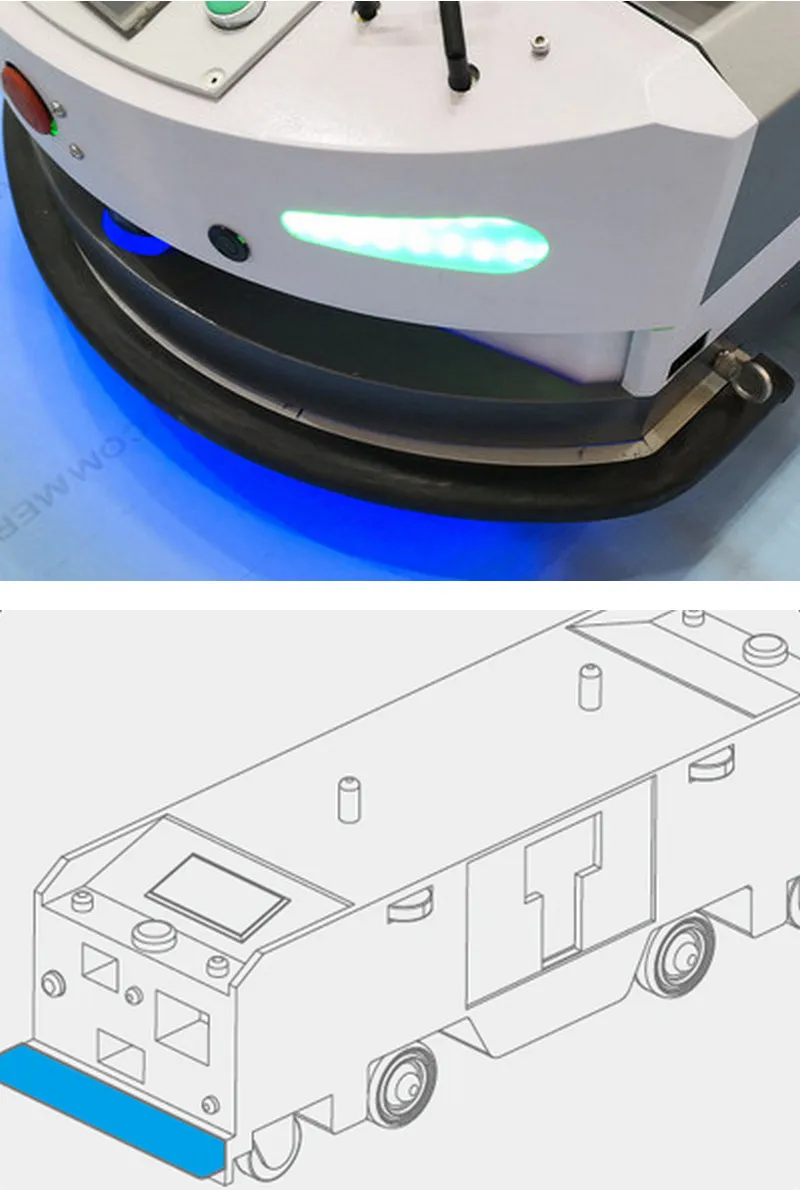

1. AGV

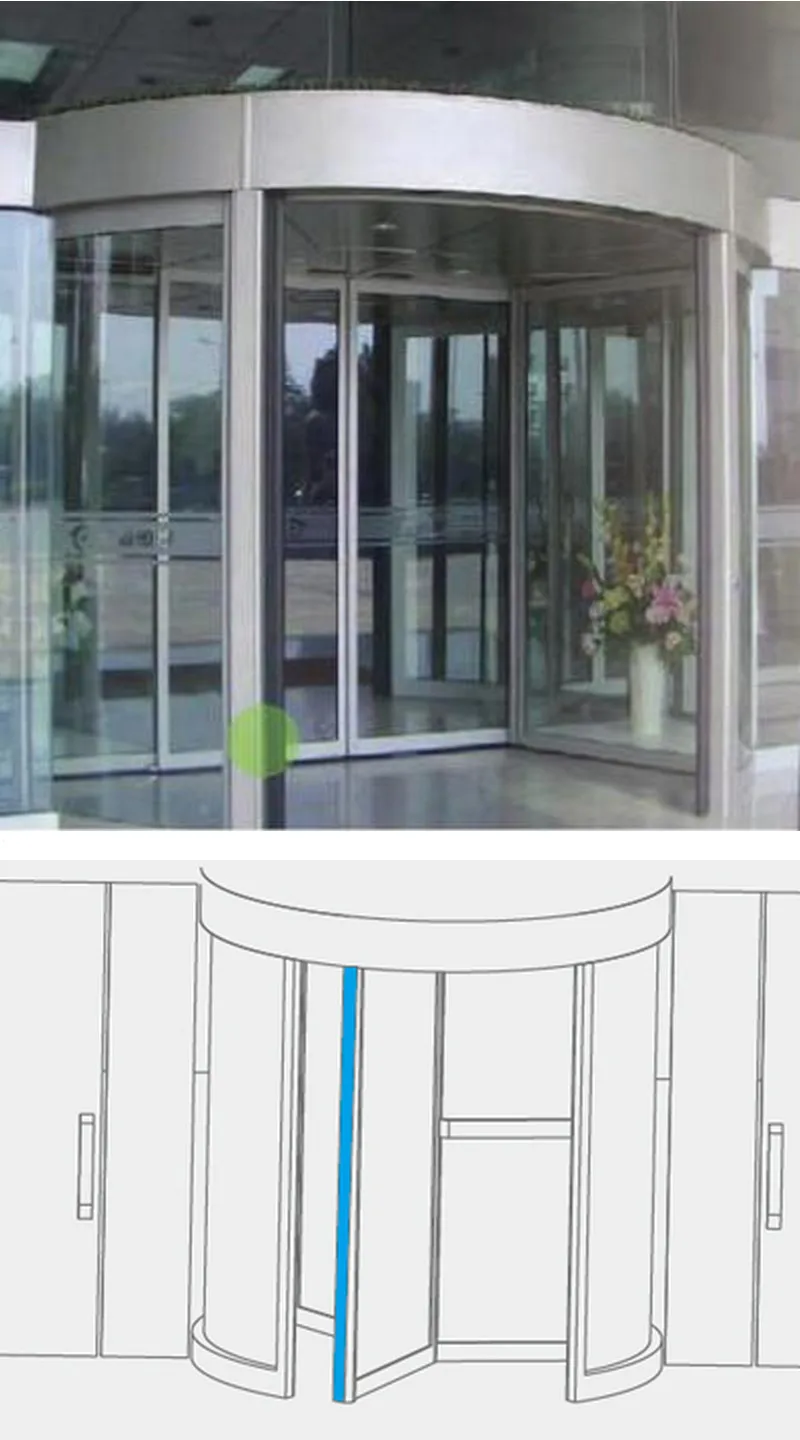

2.REVOLVING DOOR

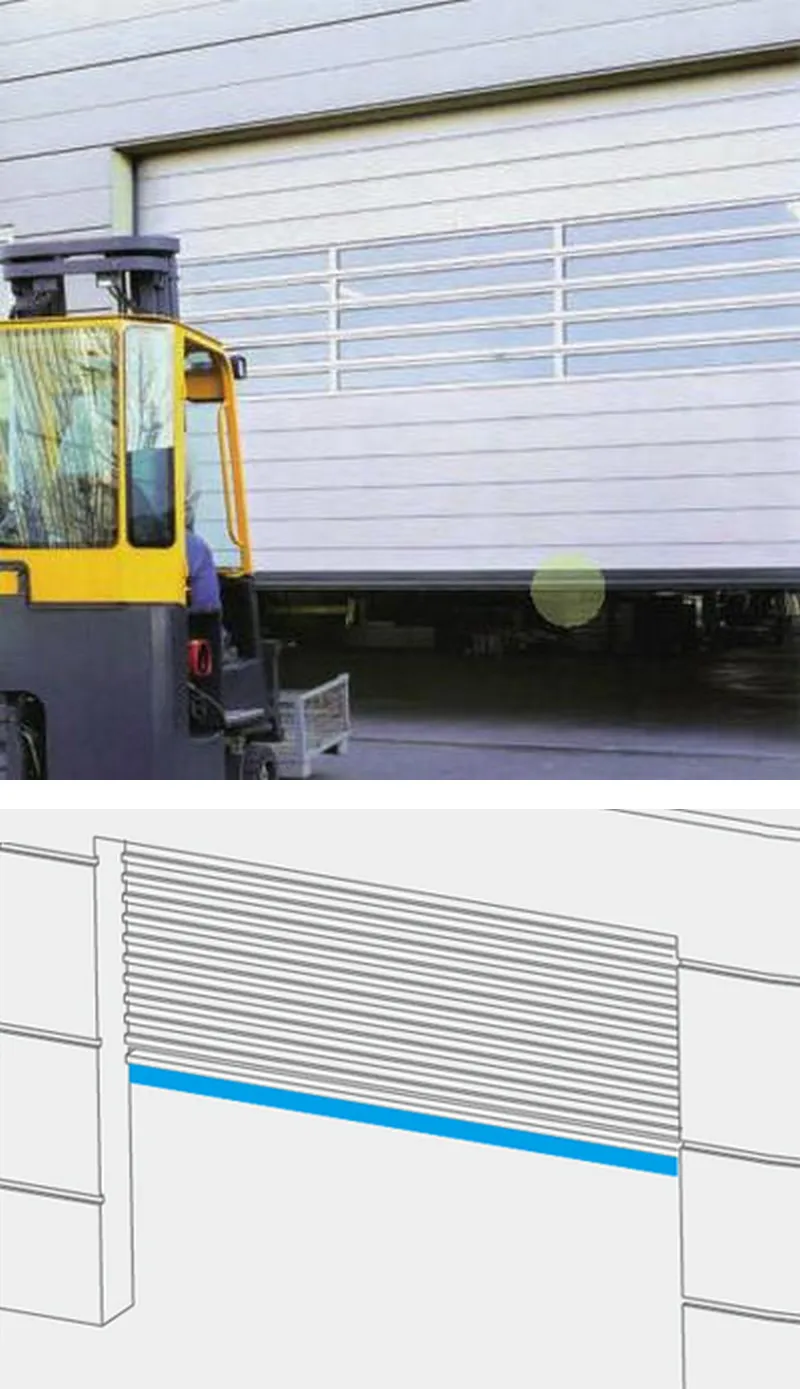

3.ROLLER SHUTTER DOOR

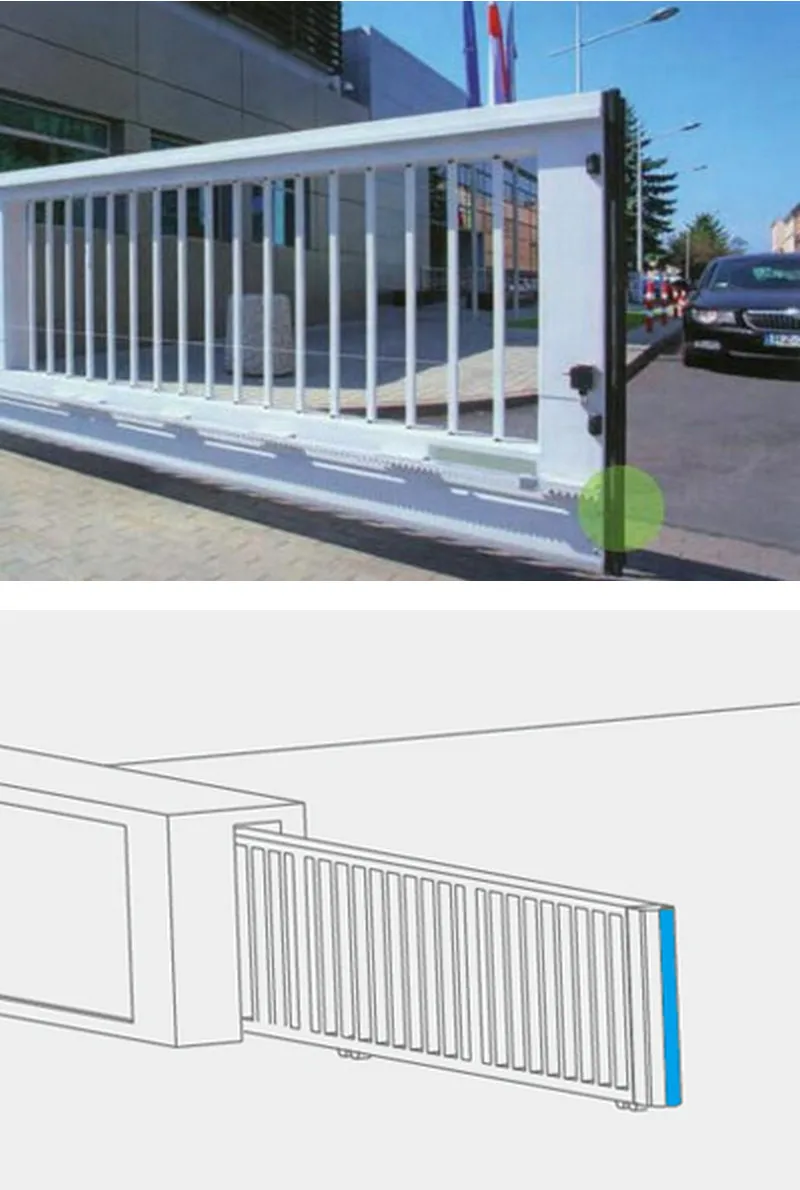

4. SLIDING DOOR





WORKING THEORY

The safety edge is made of conductive compound copper wires of upper and lower two parts. They separate at a certain distance when not squeezed.

The two parts connect with the end pieces and the sensor processor in a series, when the safety edge is squeezed, the two parts of upper and lower contact, which lead to a circuit cycle, the resistance, and current change, the sensor processor received this detect this change and pass the signal to the controllers, The controllers will achieve the settled functions such as:

1)door or windows stop immediately

2)run back till the upper limit

3)run back for settled seconds before the stop
