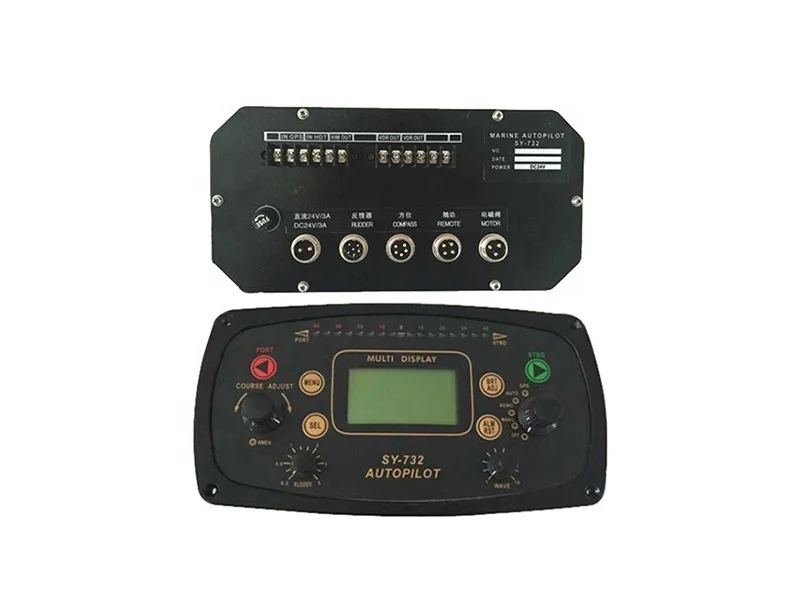

SY 732 B Marine Autopilot System for Vessels, yacht

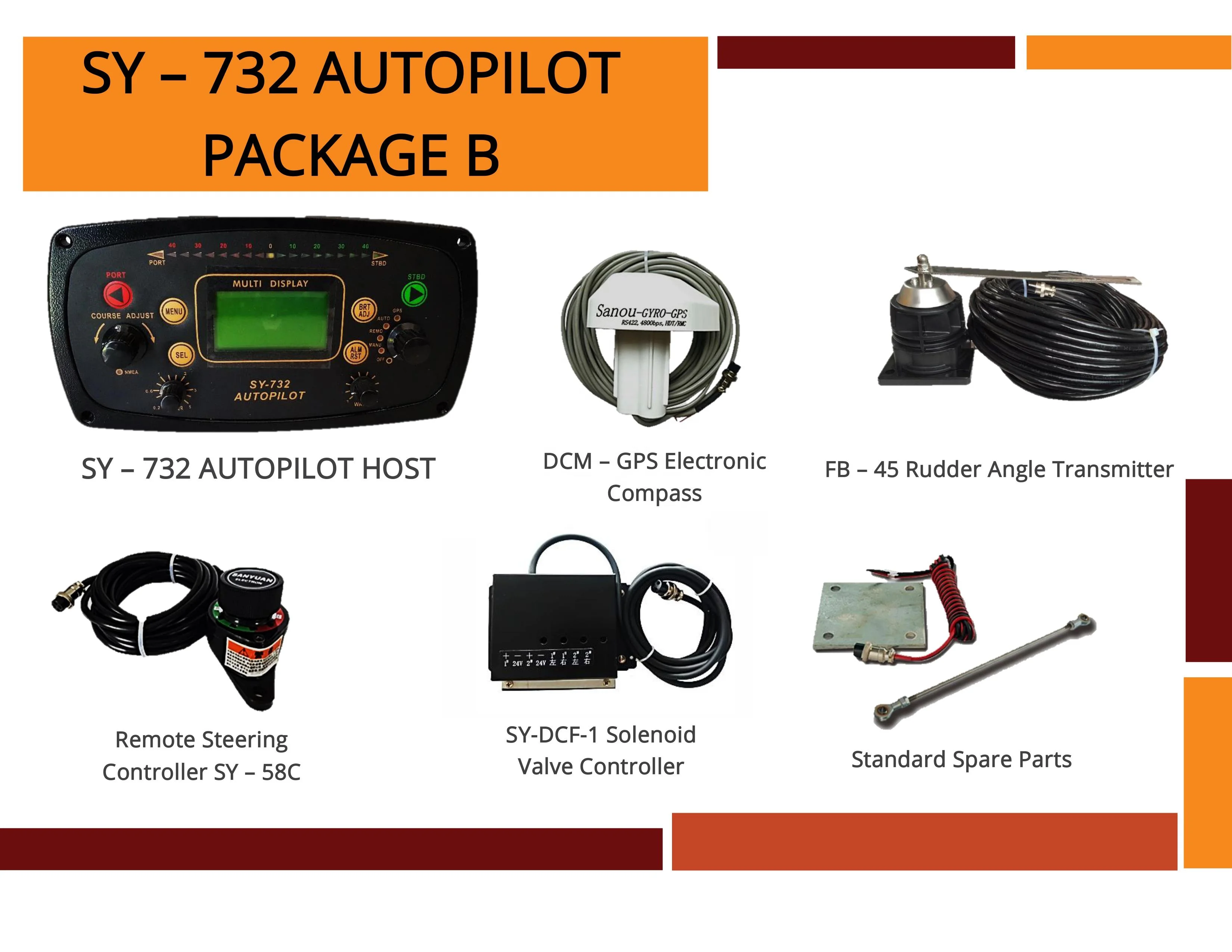

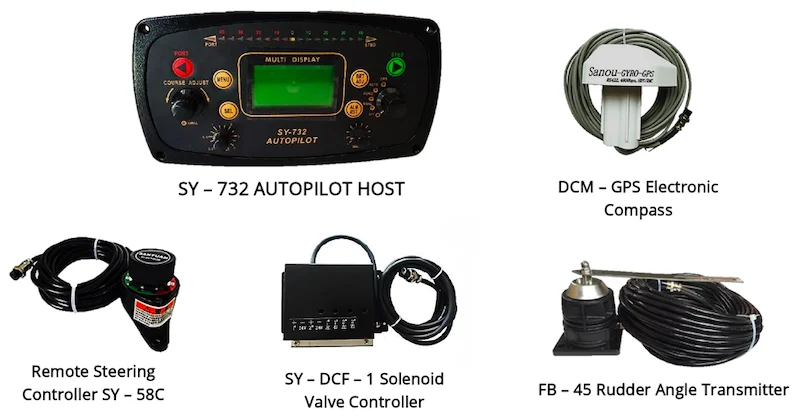

Model No.:SY-732 PACKAGE B
Screen:LCD display

Description:
(1)This product adopts precise military potentiometers as components for transmission and feedback;
(2)The output control is contactless SSR solid-state relay, and use precise integrated circuit control, have the advantage of high control accuracy, low noise, long service life, applicable to all kinds of ships for accurate control of hydraulic steering gear.

Application: 200 to 100,000 tons ships.

1.Power supply:DC24V,
2.Steering rate:2.5deg~5deg/second;
3.Remote Sensitivity:<1.0deg, ,(adjustable)
4.Solenoid valve power: DC24V, 5A
5.Operating mode:manual,remote,auto,GPS;

Four Modes

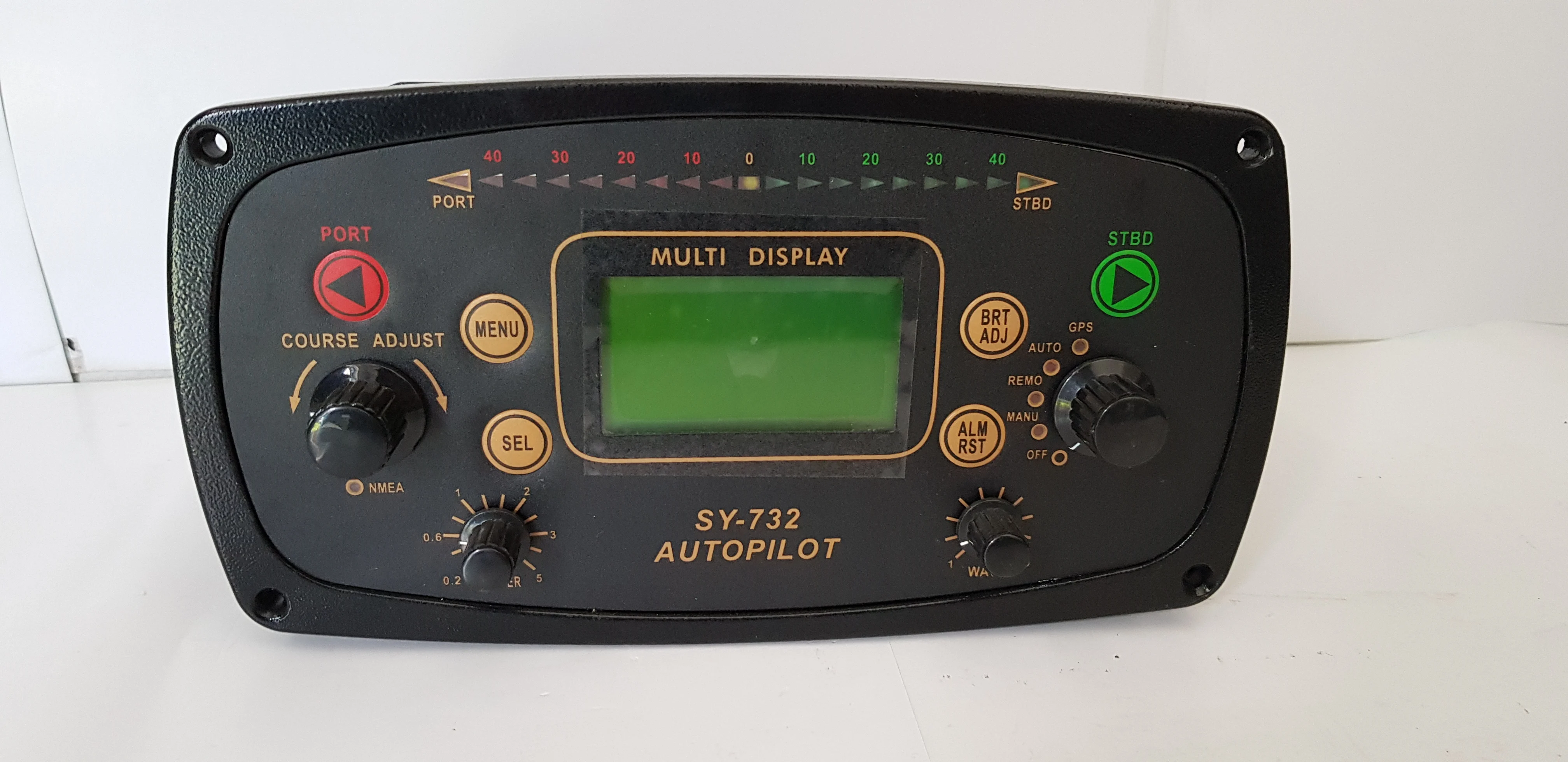

1)Manual (Press the button of Left[Red] or Right[Green] on the panel to operate and to get the wanted rudder Angle value)
2)Remote (Through the manual remote-control unit called "manual follow-up"connected to the host to operate the ship' rudder at Different positions of the room )
3)Auto (Set the heading orientation of the ship, then automatically operate ship at the setted orientation;1) when press the button of Left[Red] or Right[Green] on the panel , the mode automatically enter into Manual mode,and it’ll back to Auto mode for a few seconds after loosing the buttons; 2)and when rotating the manul follow-up’s angle is more than 5°, the mode’ll enter into Remote mode, and it’ll back to Auto mode for a few seconds after rotating the follow- up back to the middle position )

4)GPS (under this mode, when the host connected to navigation device, it can fix the deviationcaused by the wave or tide and keep the ship at the right setted destination)
