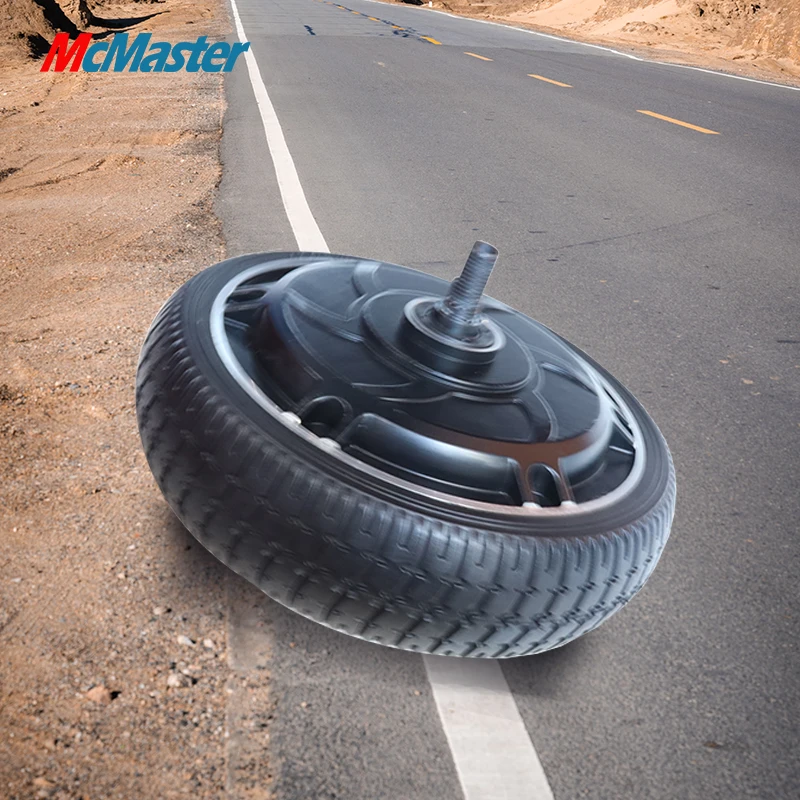

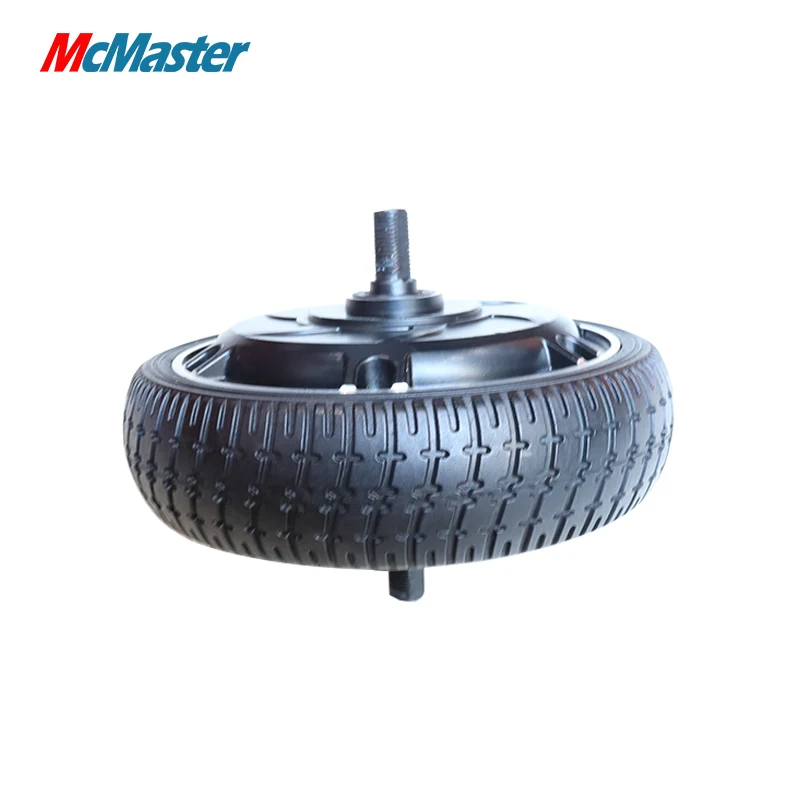

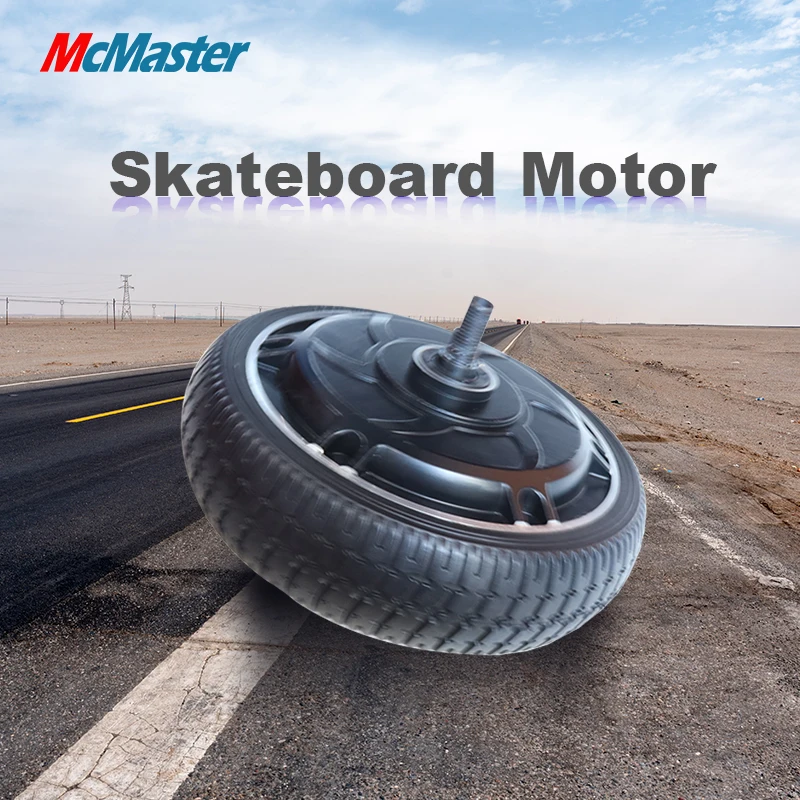

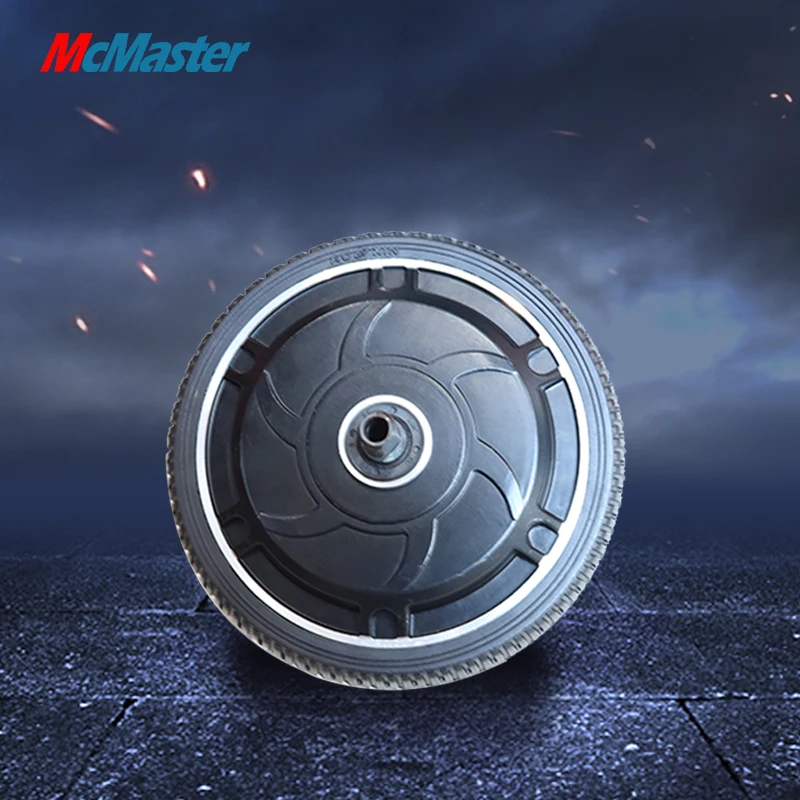

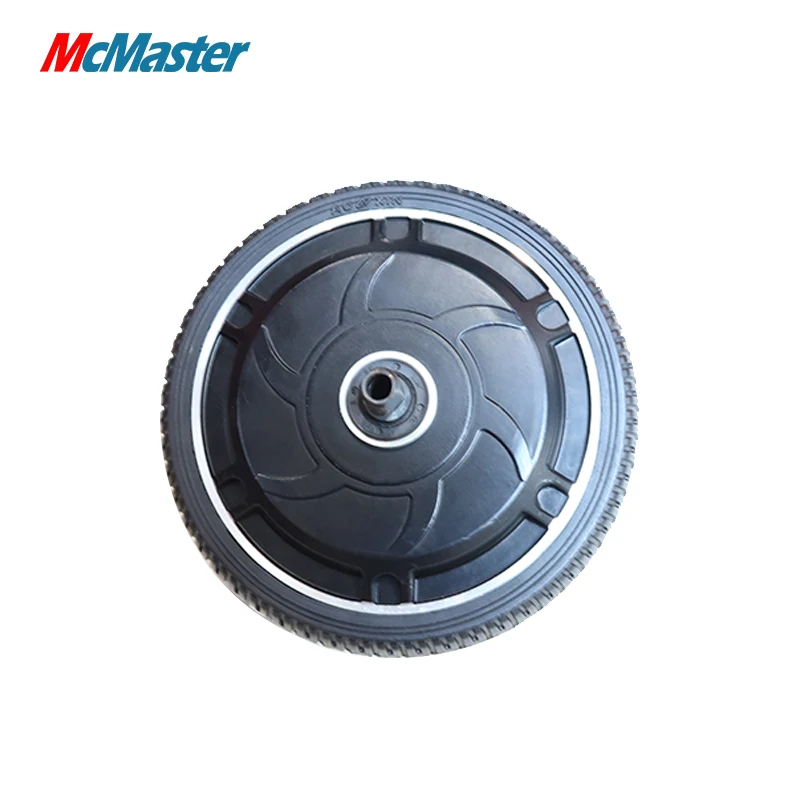

All Size AGV250 6.5 Inch Hub Motor DC 48V 250W 350W Electric Robot Wheel Hub Motor for AGV Robot
- Category: >>>
- Supplier: Changzhou Mcmaster Electrics Co. Ltd.
Share on (1600489015002):
Product Overview
Description
Products Description
Model: AGV250 | ||
Number of poles: | 15 pairs of poles | |
Size of magnetic steel: | 30x10.5x2.5mm | |
Size of enamelled wire: | Polyester MW 5-C155 | |
Size of stator core: | 99*30H | |
Number of solts: | 27 | |
Degree of phases: | 120° | |
Rated voltage: | 48V | |
Rated current: | 9A±0.5A | |
Rated rotating speed: | 280±10rpm | |
Rated power: | 350W | |
Max torque: | ≥18Nm(15A) | |
No-load current: | ≤0.6A | |
Stater resistance: | 0.27±0.01Ω | |
Resistance balance degree of three phases: | ≤3% | |
Max efficiency point: | ≥80% | |
Size of lead wire: | 3x16AWG-6x24AWG | |
Size of connectors: | 6.5 Insert spring+YST200- 6P+YST200 | |
Withstand voltage degree: | 0.62KV ≤10mA | |
Insulation degree: | ≥200MΩ | |
Coil winding: | 3(wires)x23(circle) | |
Insulation varnish: | QH130-1 130(B) | |
6.5" PWB: | FR-4.0 | |
Insulation paper: | 0.100-0.250 VTM-2 | |
Cable ties: | 3.6x200mm | |
Shaft hole glue: | HY-708 | |
Tin wire: | φ1.5mm | |
Nylon sticks: | 32x4x2 | |
Application

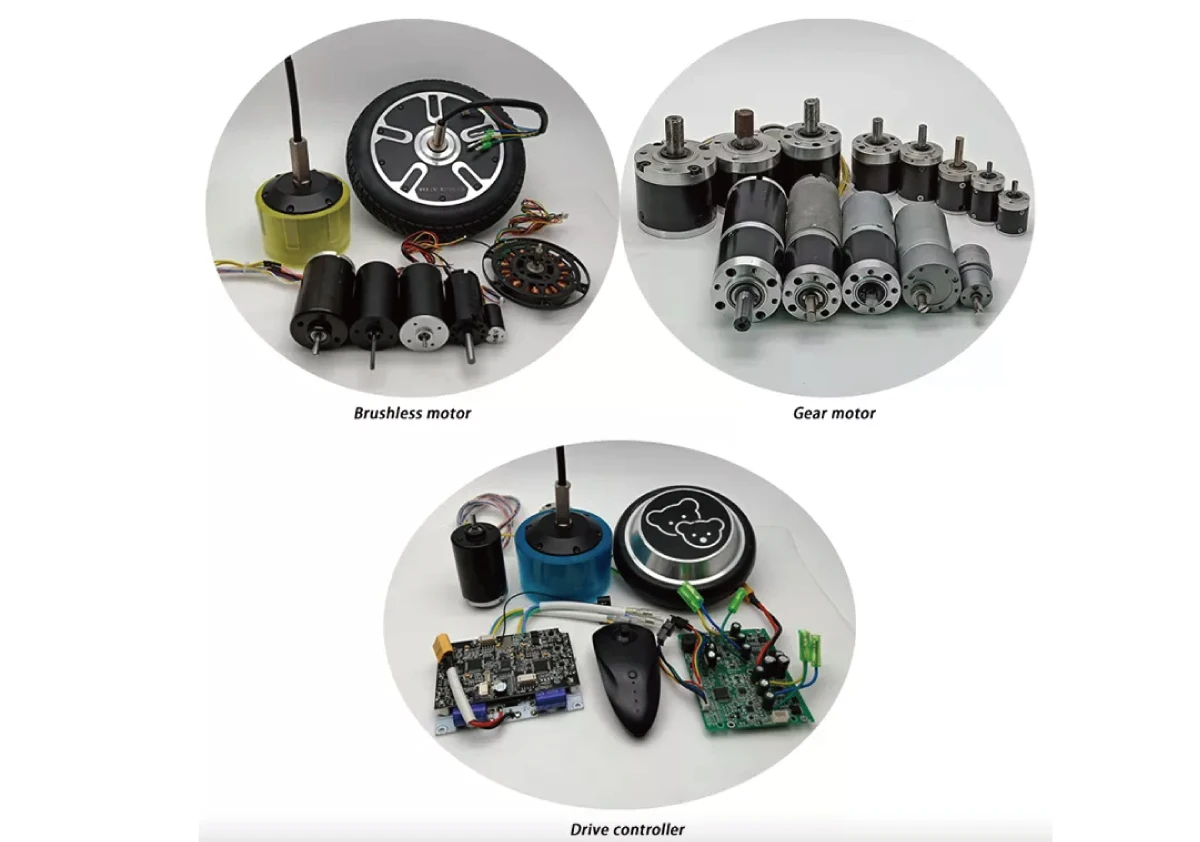

Recommend Products

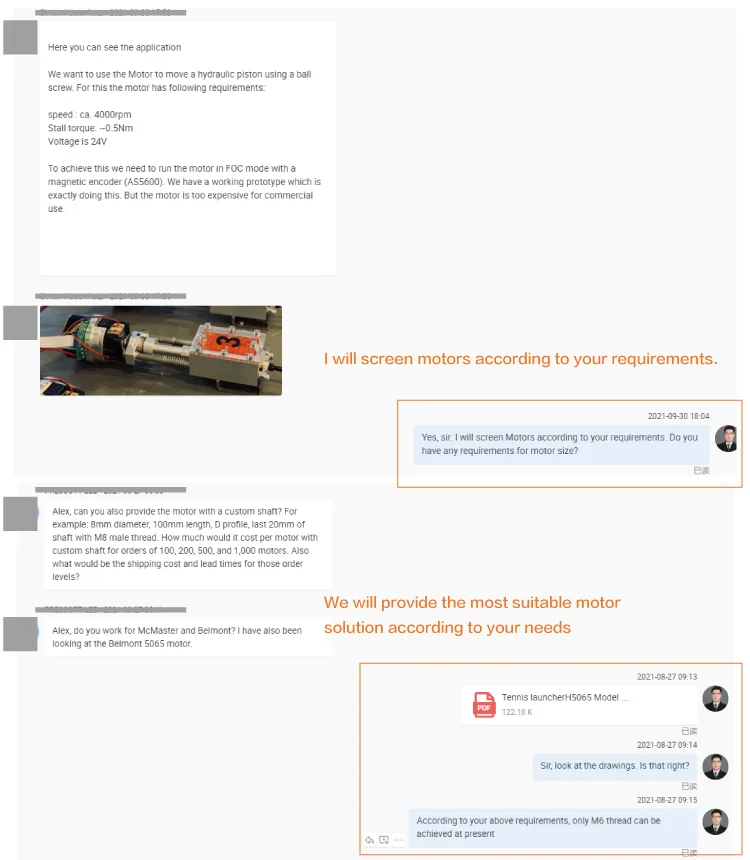

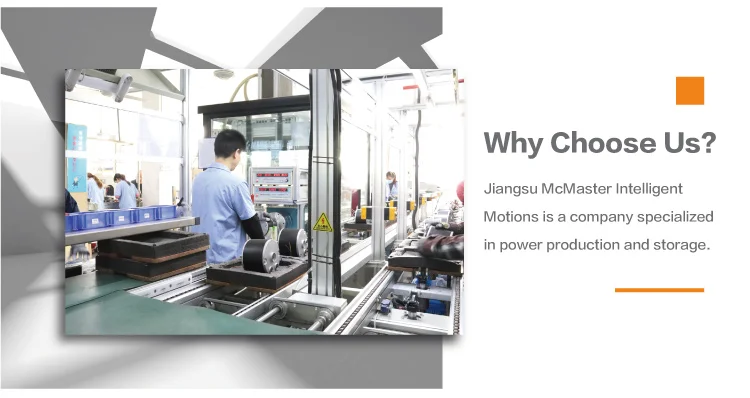

Why Choose Us

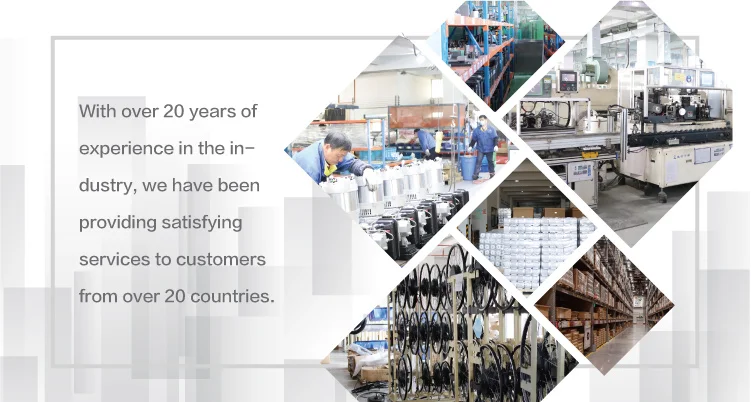

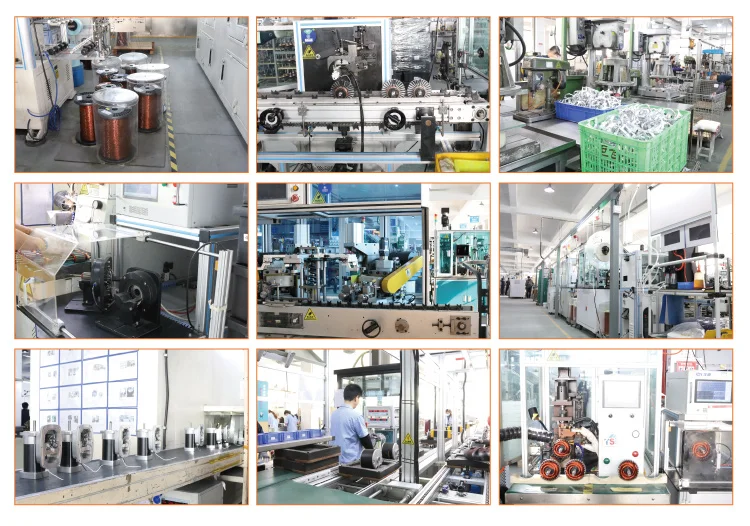

Company Profile

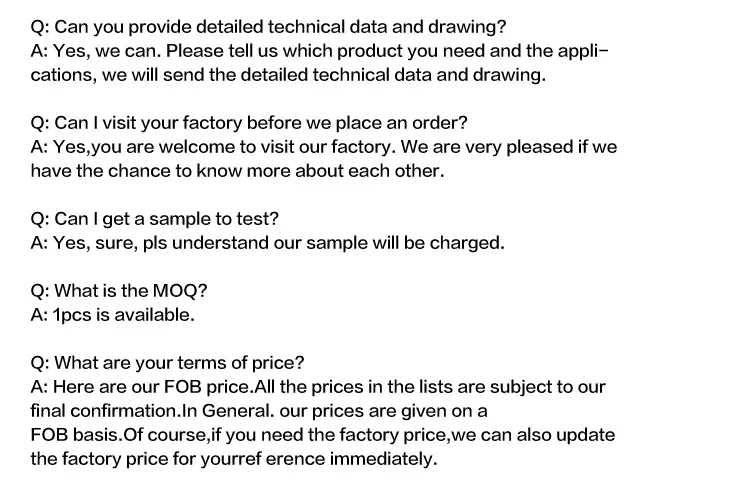

FAQ
