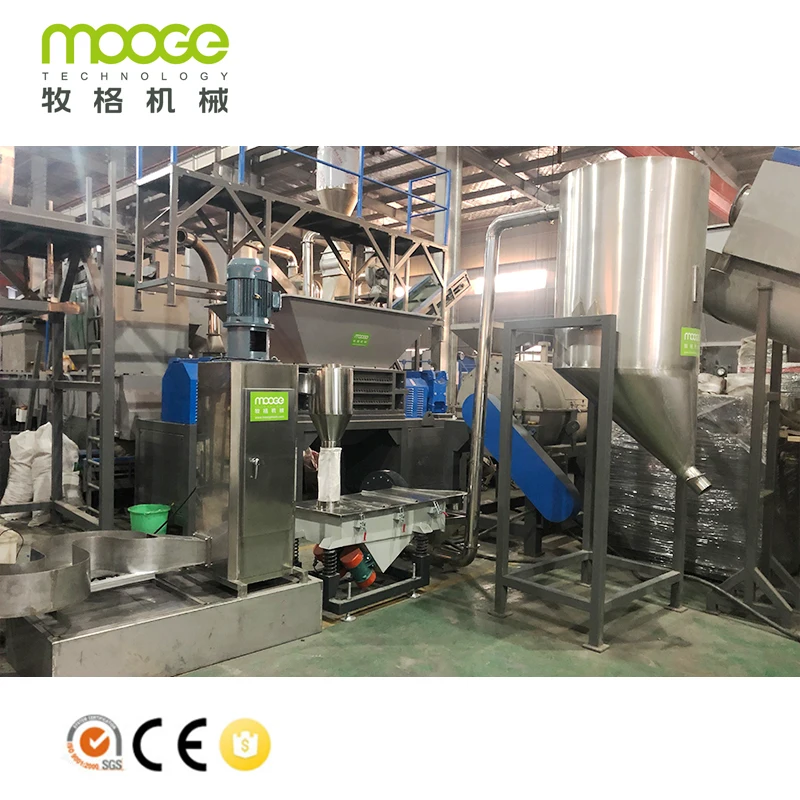

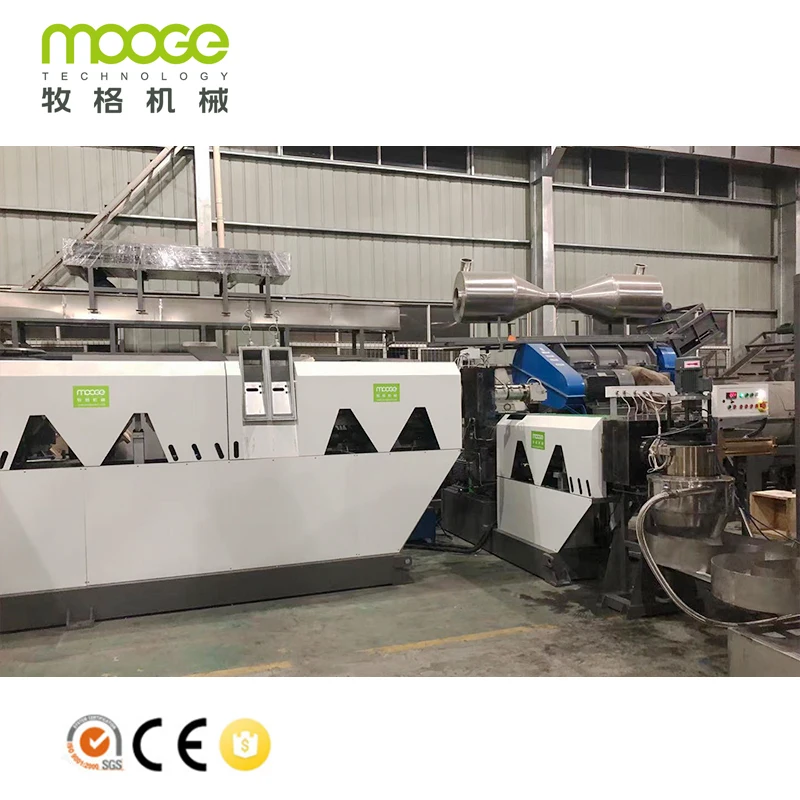

Plastic Granulator Manufacturing Plant / Granulating Production Line / Plastic Machine Recycling Pelletizing
- Category: >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd.
Share on (1600489079252):
Product Overview
Description
Product Overview

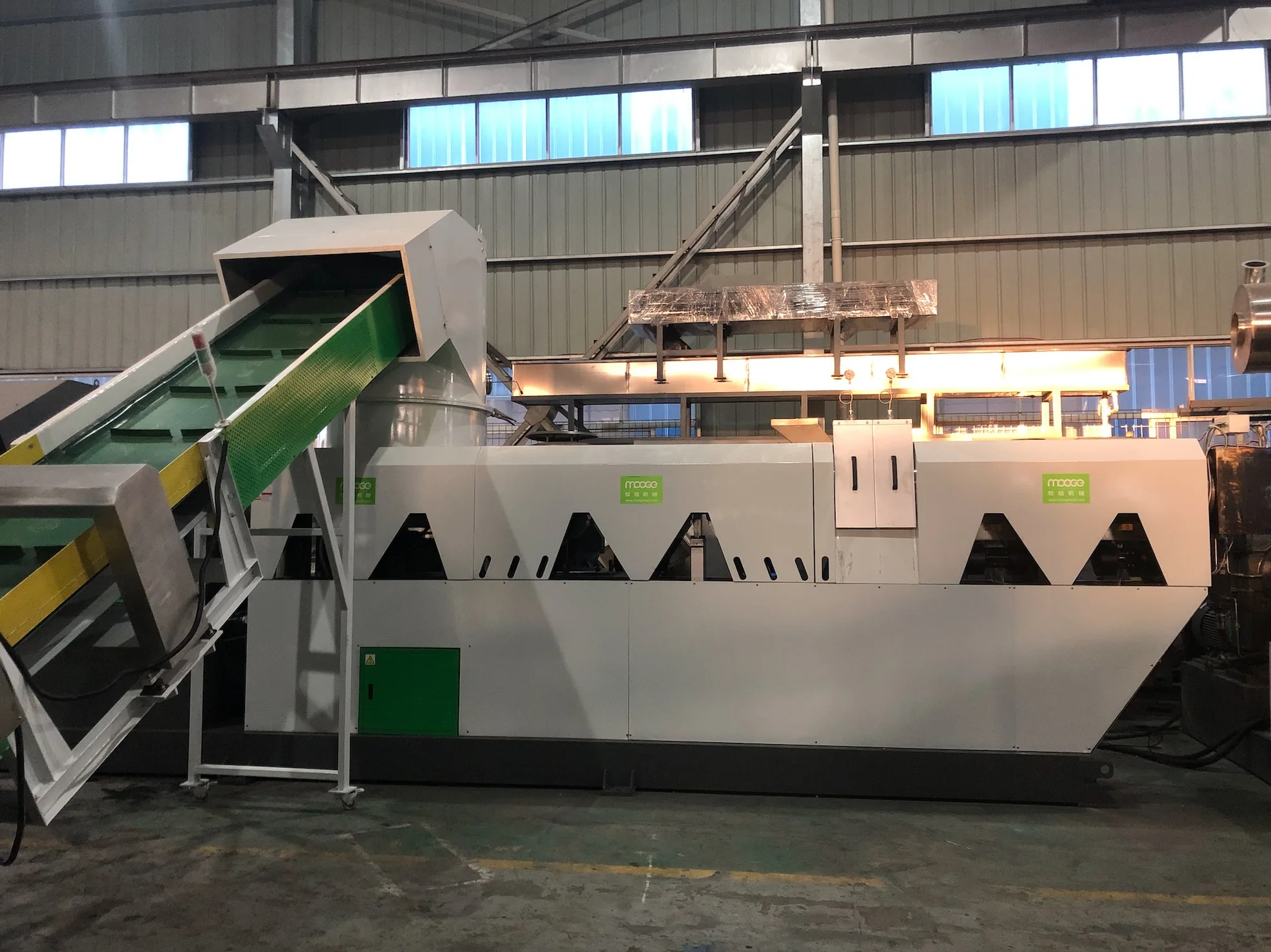

BOPP LLDPE HDPE LDPE PE PP recycling granulating machine is special equipment for the plastic film/bags recycling granulating, it equipped with compacting machine which pre-compact the film into smaller granules, then easily feed into screw barrel extruder, high efficiency improve production capacity
it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material,hence the final granule quality will be very perfect.
end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt.
the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.
it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material,hence the final granule quality will be very perfect.
end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt.
the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.
Product Specification
Model | Screw Diameter:mm | Screw L/D | Main Power:KW | Capacity:Kg/h |
RDS-SJ 85 | 85 | 28-33:1 | 55 | 150-200 |
RDS-SJ 100 | 100 | 28-33:1 | 75 | 200-300 |
RDS-SJ 130 | 130 | 28-33:1 | 90 | 300-400 |
RDS-SJ 150 | 150 | 28-33:1 | 110 | 400-500 |
RDS-SJ 160 | 160 | 28-33:1 | 132 | 500-600 |
RDS-SJ 180 | 180 | 28-33:1 | 160 | 600-800 |
RDS-SJ 200 | 200 | 28-33:1 | 200 | 800-1000 |
RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line (For PE Film, PE Bags, PLA Film)
Model | Screw diameter:mm | Screw L/D | Main Power:KW | Capacity:kg/h |
RSS-SJ 85 | 85 | 28-33:1 | 55 | 150-200 |
RSS-SJ 100 | 100 | 28-33:1 | 75 | 200-300 |
RSS-SJ 130 | 130 | 28-33:1 | 90 | 300-400 |
RSS-SJ 150 | 150 | 28-33:1 | 110 | 400-500 |
RSS-SJ 160 | 160 | 28-33:1 | 132 | 500-600 |
RSS-SJ 180 | 180 | 28-33:1 | 160 | 600-800 |
RSS-SJ 200 | 200 | 28-33:1 | 200 | 800-1000 |
Product Video
Details Images

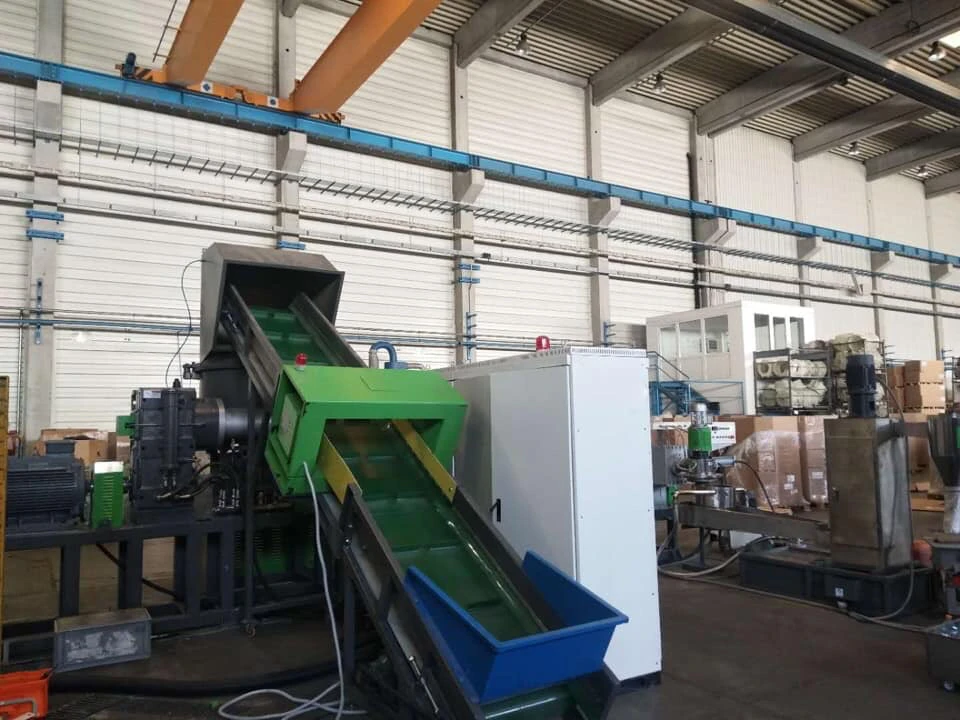

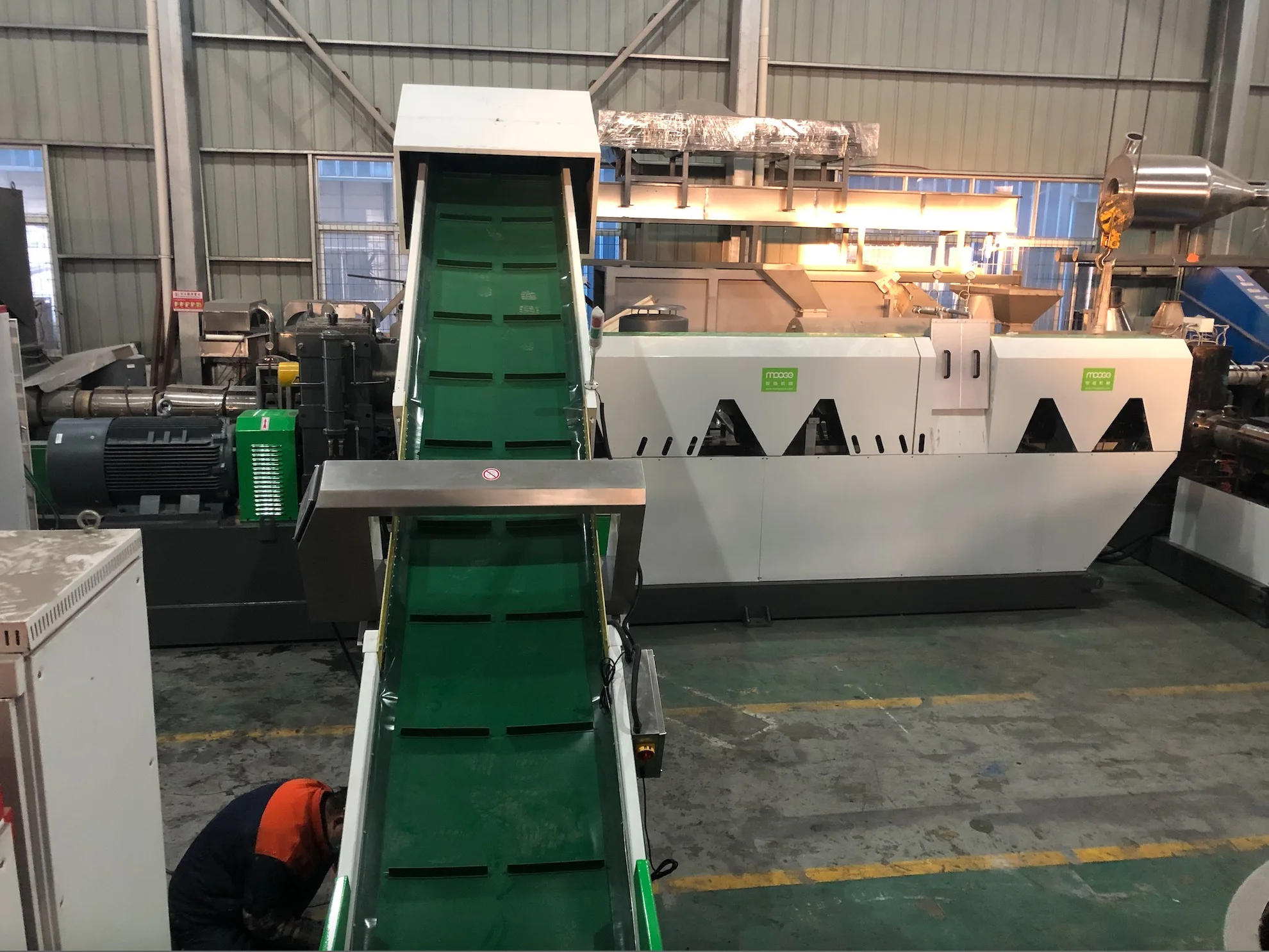

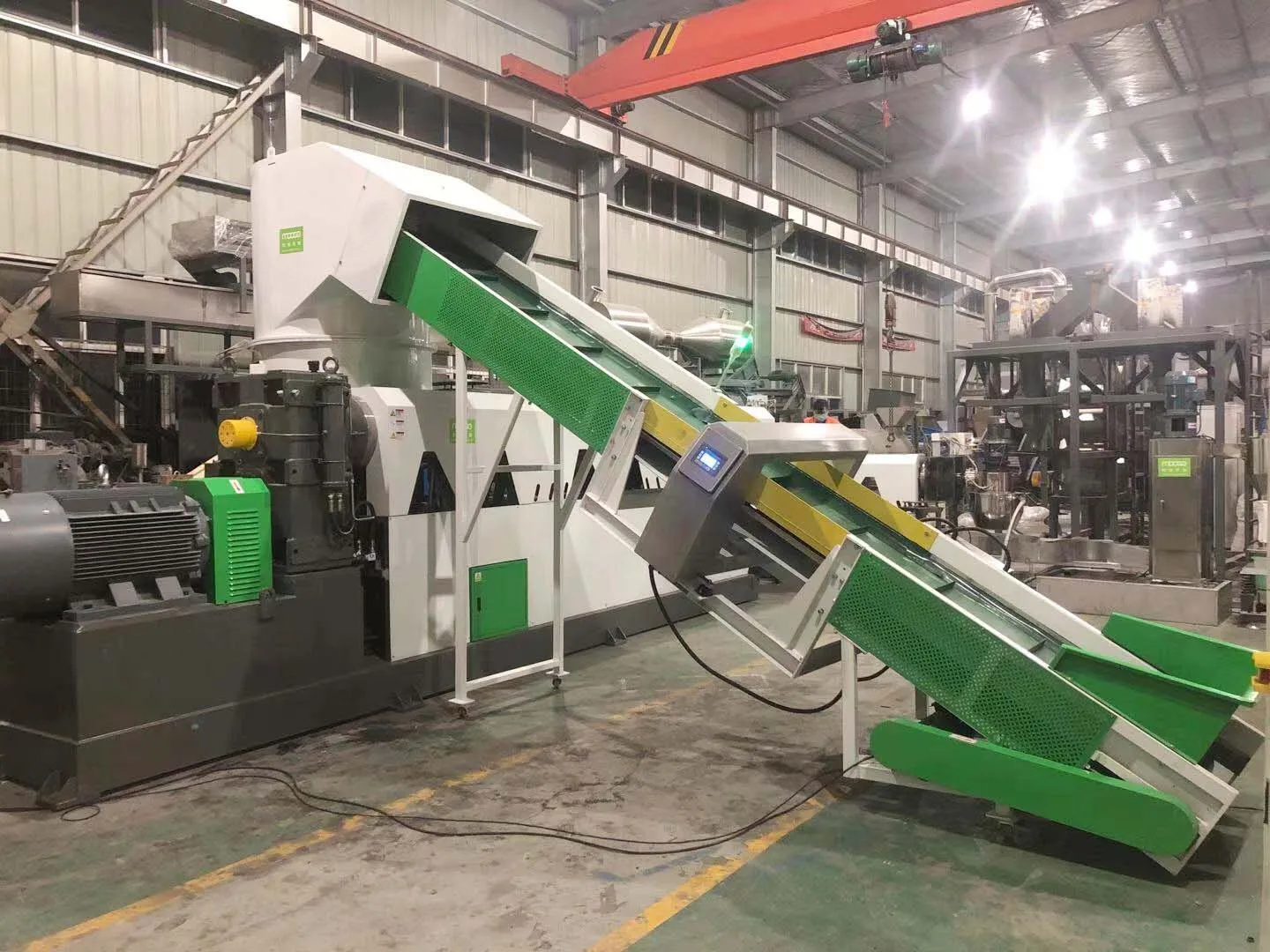

Compacting Force Feeder
Compacting hopper opening by hydraulic system. With glass window and light to check inside working. Barrel base with the water cooling system controlled by magnetic valve by temperature The barrel touched material all made by stainless steel.
Single Screw Extruder
Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running
Use 38CrMoAL made the screw
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
Hydraulic Screen Changer
Double position board model
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Vacuum Degassing die head
remove the waste air,moisture for plastic during go to next step pelletizing

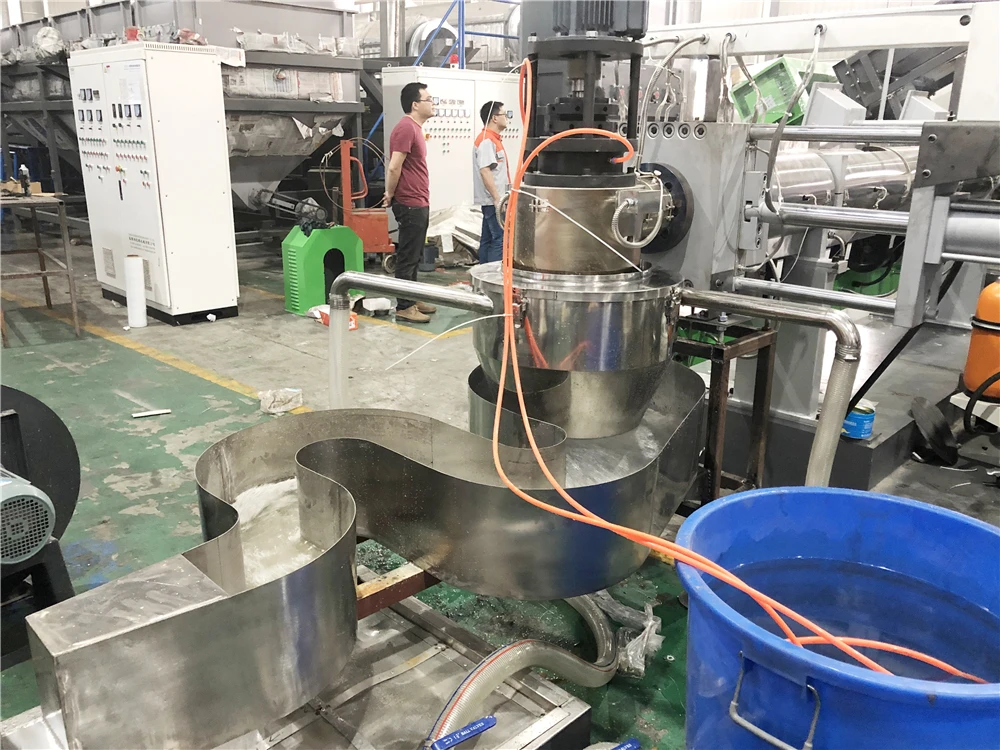

Vertical Die Face Cutting System
Cutting speed adjust by inverter
Inverter brand: DELTA of Taiwan
Blade made by SKD-11 steel
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
Inverter brand: DELTA of Taiwan
Blade made by SKD-11 steel
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
S type Water cooling tank
Made by stainless steel
S type high efficiency cooling the granules

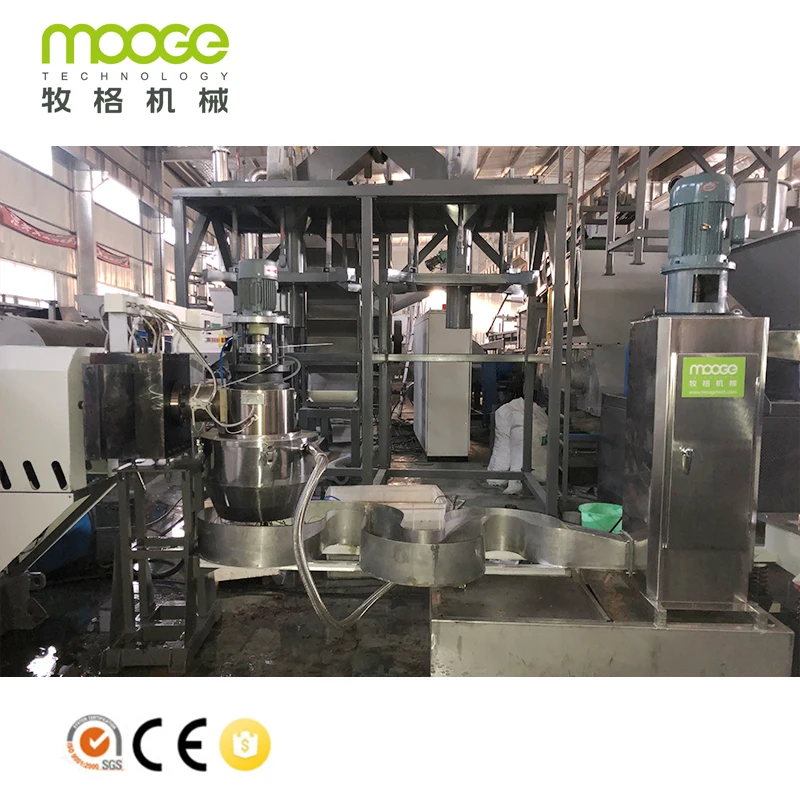

Vertical dewatering machine
made by stainless steel
1500 RPM high speed rotor and dewatering
the water will by pump circulation washing
Vibrator screen machine
by vibrator and screen choose different size granules

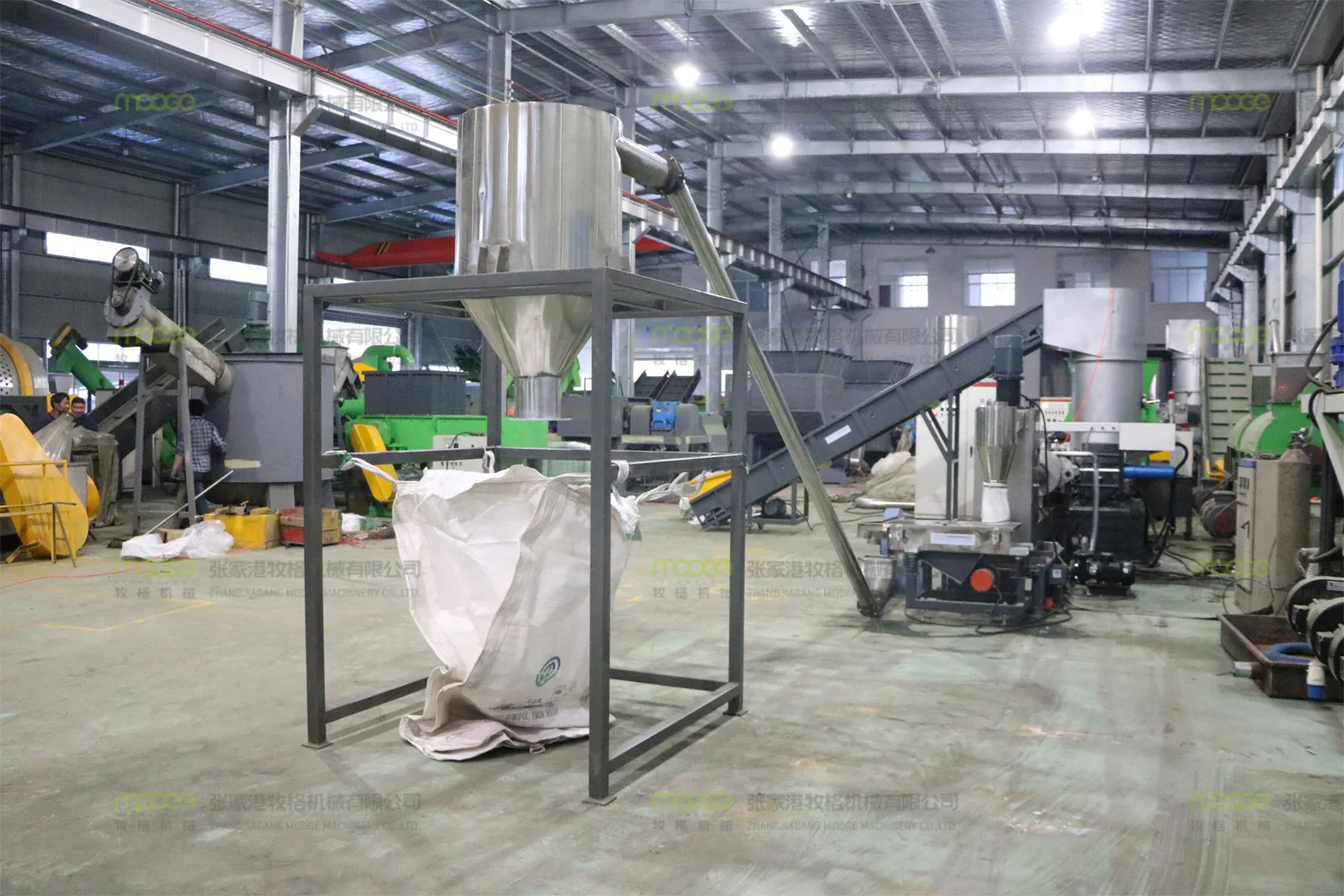

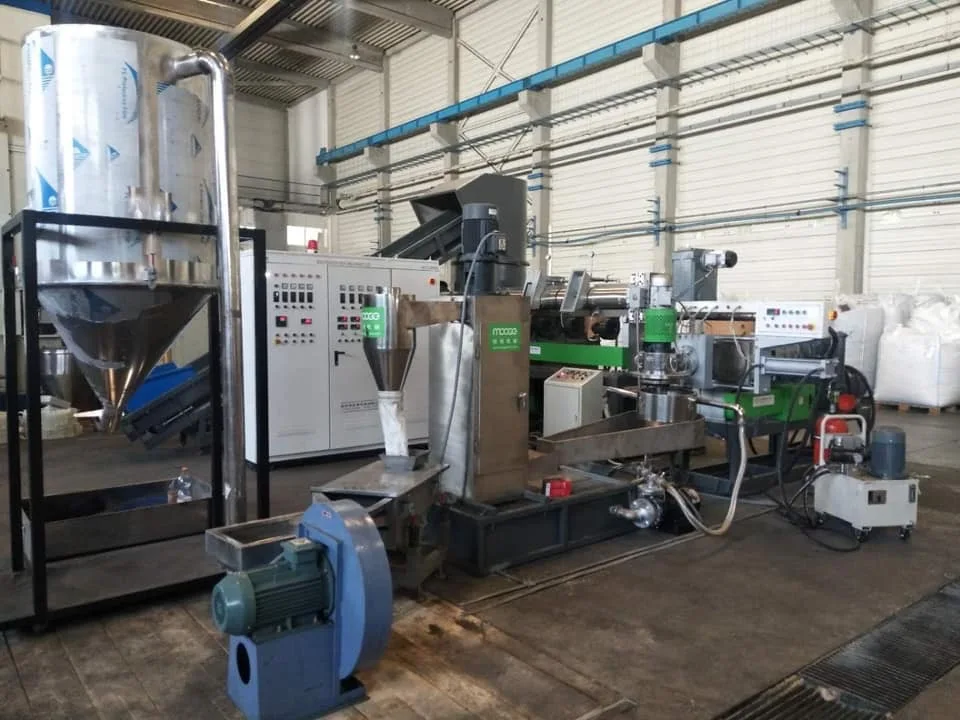

Storage silo
made by stainless steel
with jumbo bags packaging the granules

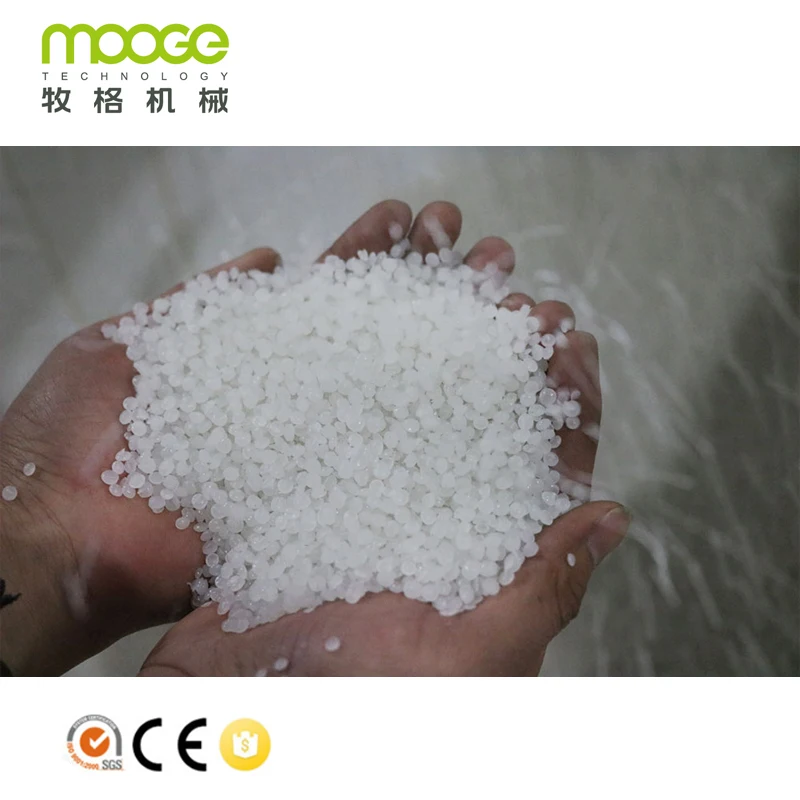

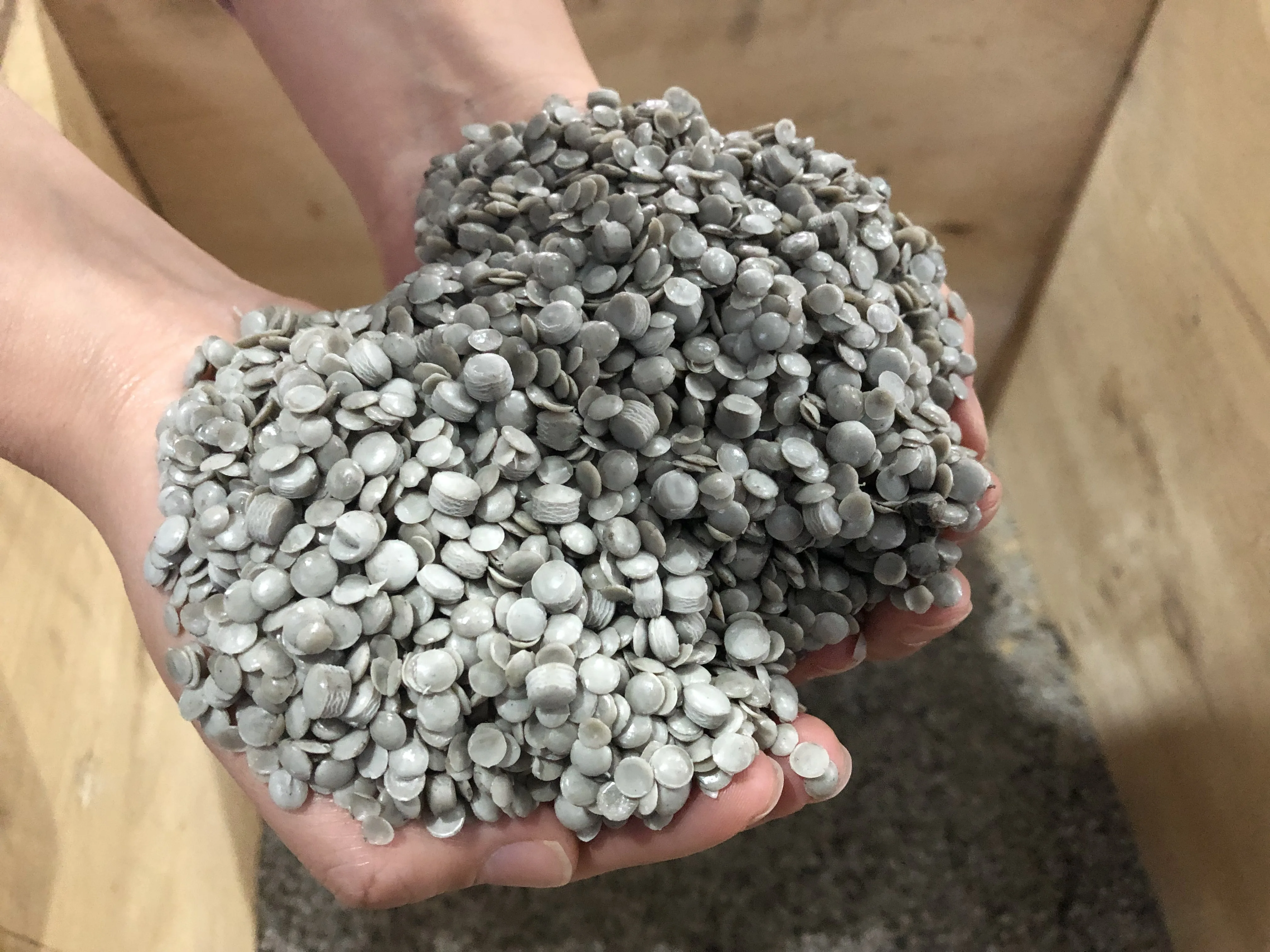

Plastic granules
size: Φ 3X3mm
the size can be adjsut by the dic face cutter speed
Recommend Products
Plastic film/bags washing recycling line
(300-2000kg/h)
Plastic bottle washing recycling line
(300-2000 kg/h )
Customer factory

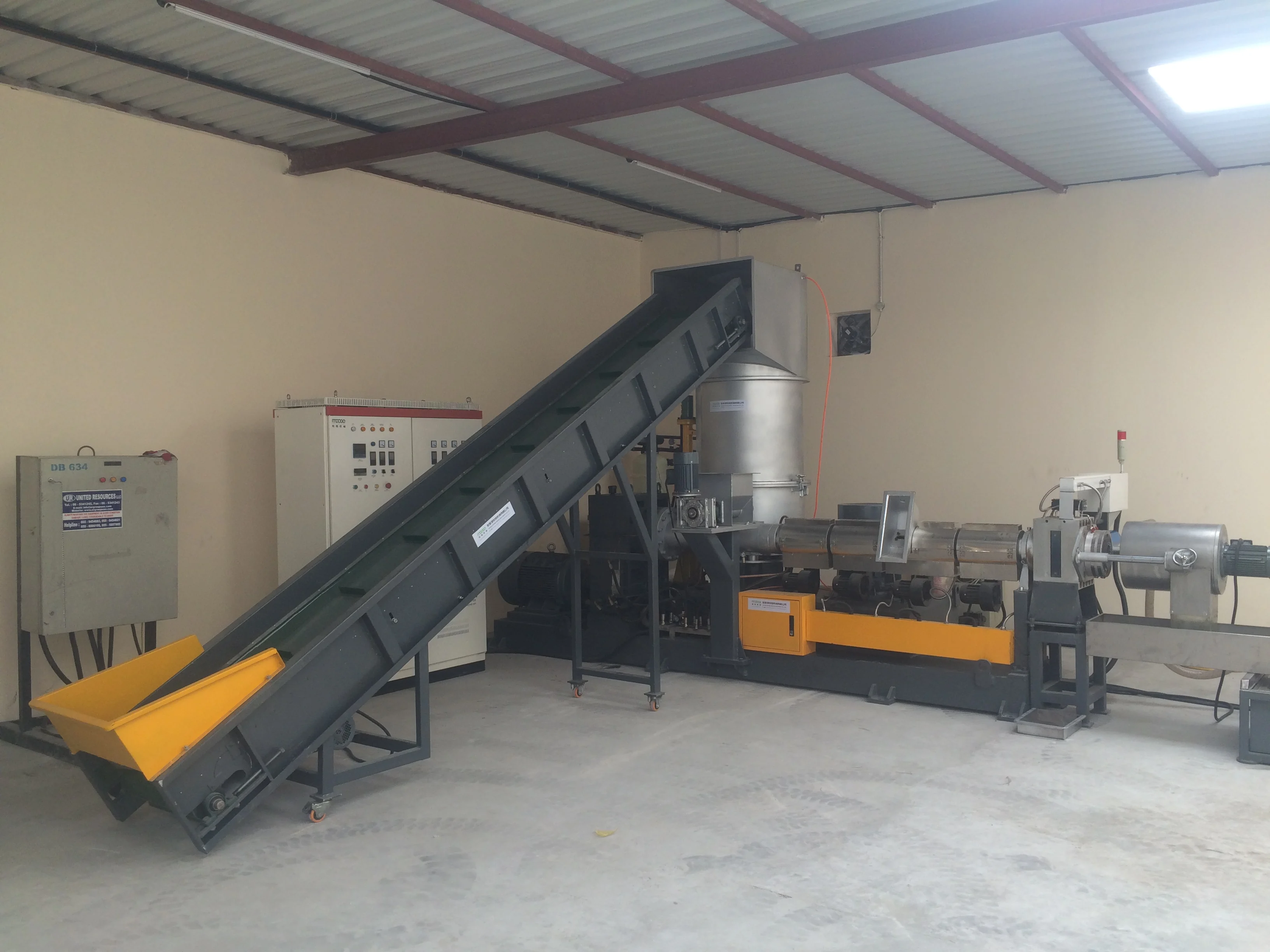

Slovakia 500 kg/h plastic film pelletizing line
Saudi 500 kg/h plastic film pelletizing line
