Cheap 278 2000w V1 48v 72v Electric Wheel Hub Motor For Electric Mini Car
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600489085696):
Product Overview
Description

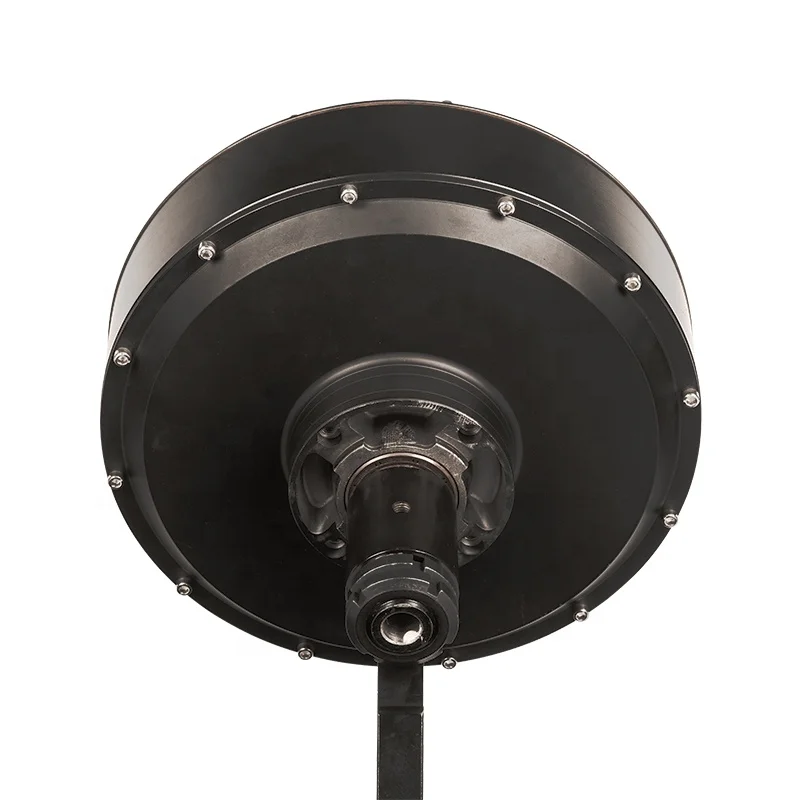

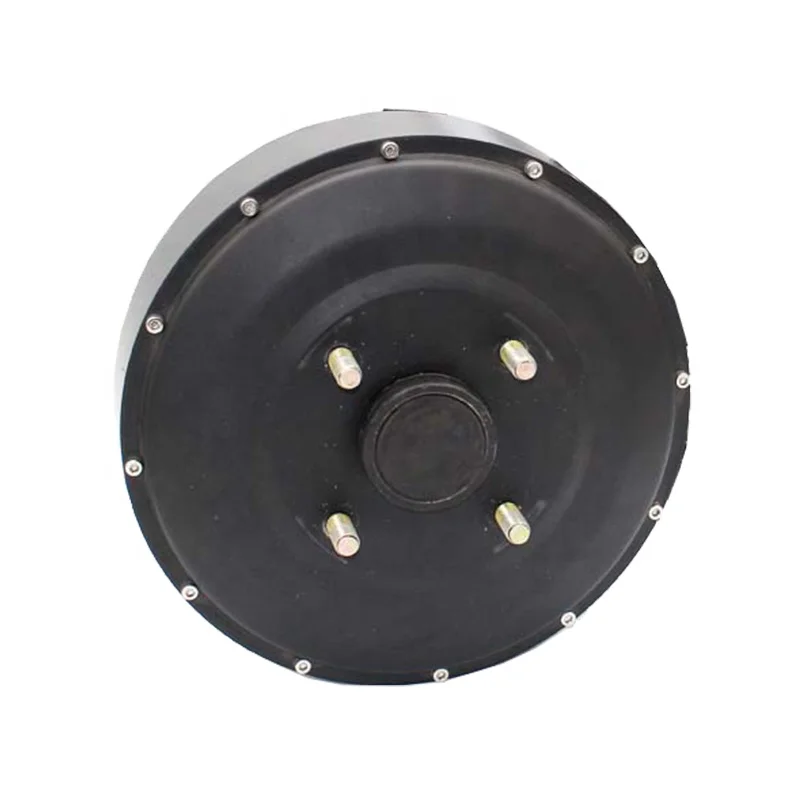

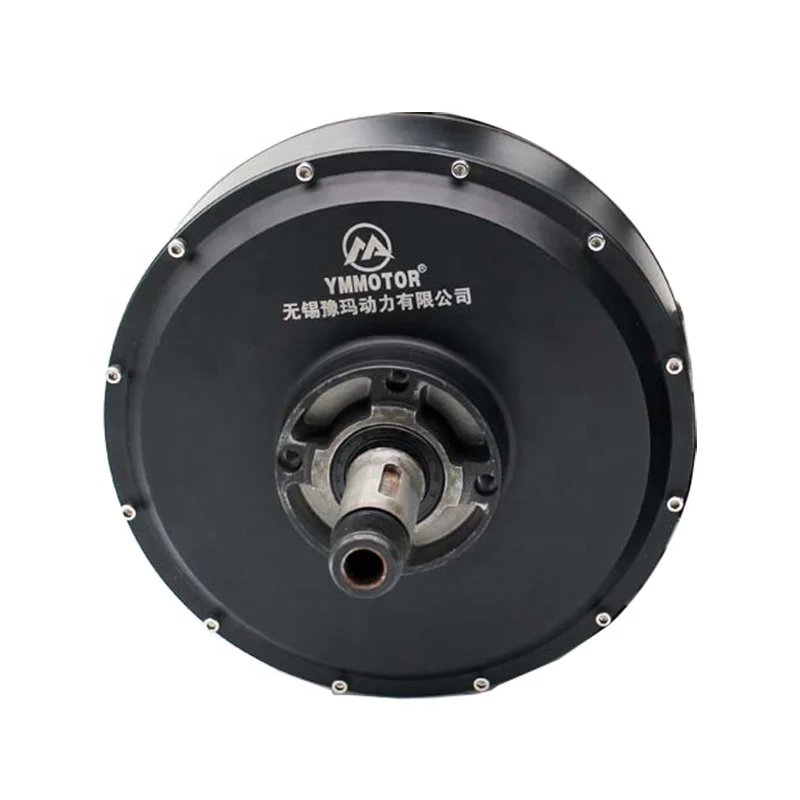

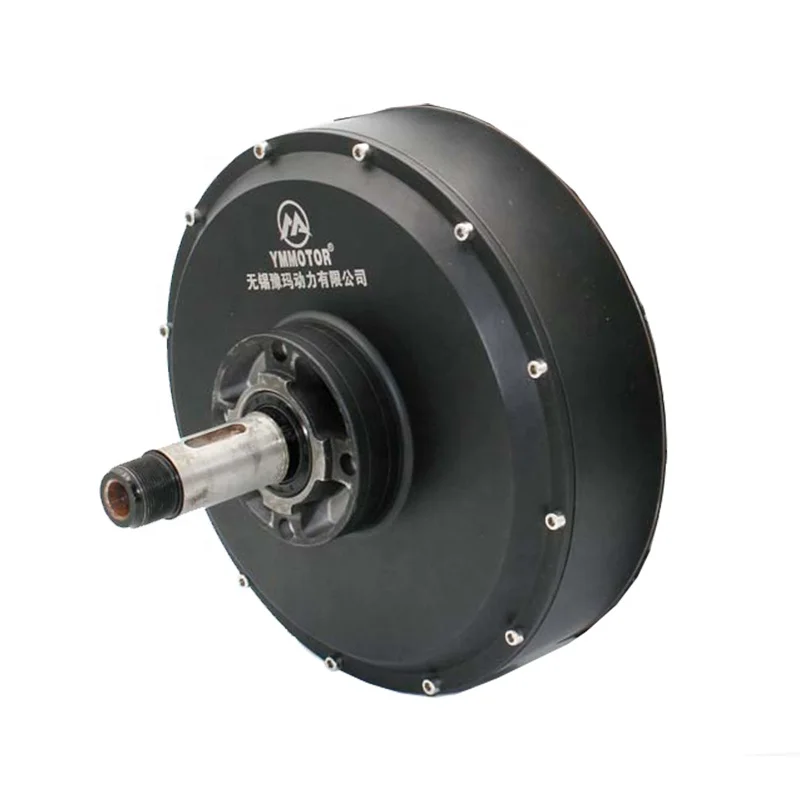

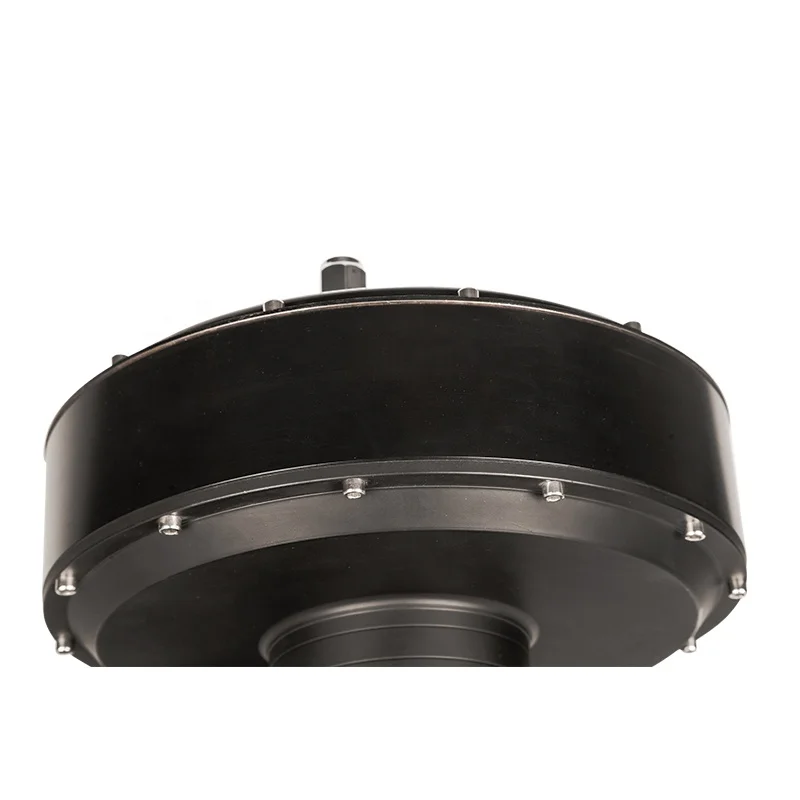

Cheap 278 2000w V1 48v-72v Electric Wheel Hub Motor For Electric Mini Car
Specification
Motor Design | BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor | ||||||
Motor Brand | YUMA Motor, YMMotor | ||||||
Motor Design | 278 Electric Car Hub Motor with Single Shaft | ||||||
Rim Size | Can match with 12inch, 13inch, 14inch, 16inch, 17inch wheel rim | ||||||
Magnet Height | 35mm, 24 pole pairs | ||||||
Stator | Iron Core | ||||||
Rated Power | 2000W | ||||||
Peak Power | 4000W | ||||||
Speed | 25KPH-65KPH, it's customized. | ||||||
Voltage | 72V | ||||||
Peak torque | 90-130N.m per motor | ||||||
Thermic Probe | KTY84-130(as default, optional) | ||||||
Max Efficiency | 90.3% | ||||||
Brake type | Disc brake (as default), PCD4*88mm-M8, CB 68mm | ||||||
CB & PCD | 63cm, 4*114.3mm/5*114.3mm | ||||||
Hall | Dual Halls with waterproof connectors(one for spare) | ||||||
Waterproof Grade | IP65 | ||||||
Color | Black | ||||||

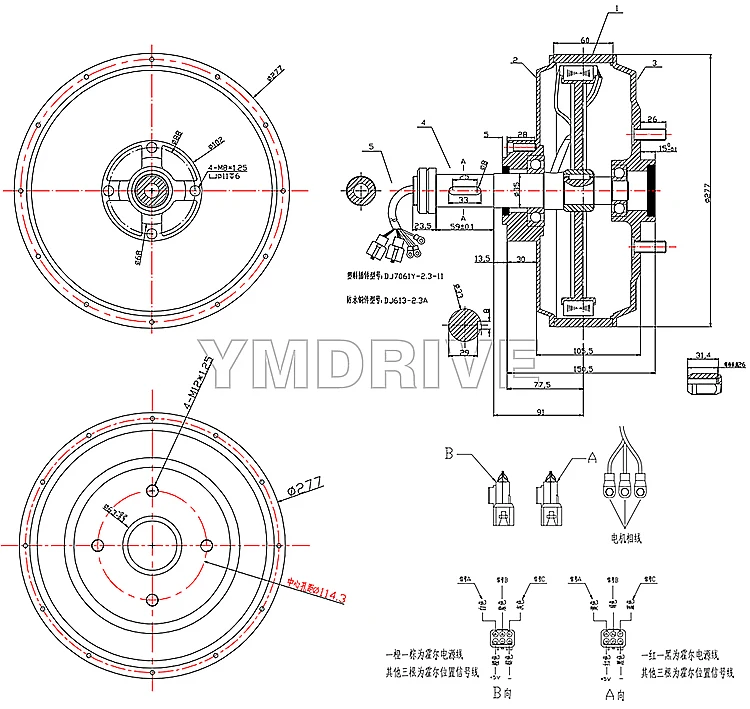

Drawing
Pls. contact with sales for more clear drawing for reference. Some dimensions can be customized.

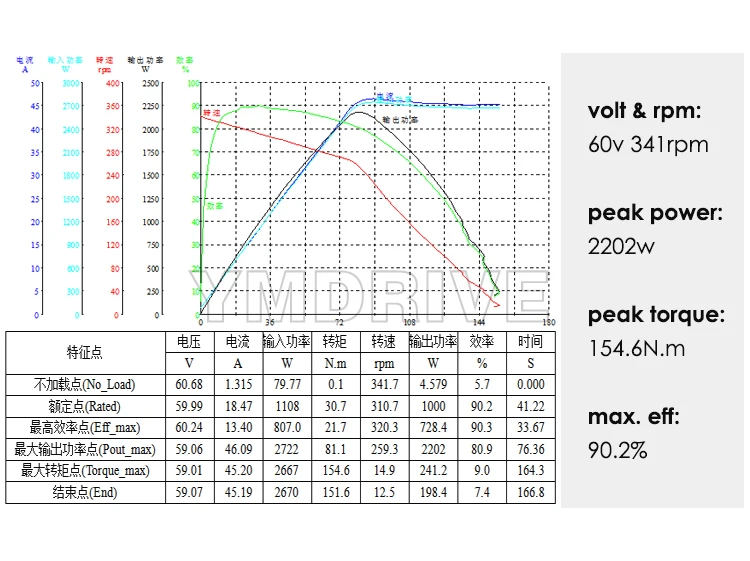

Test Report
This test report based on low rpm and dc input, if you want higher rpm, we can customize it.
Pls. contact with sales for full showing test report for check, if you want to customized voltage & rpm, it's also support even for sample order.
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
