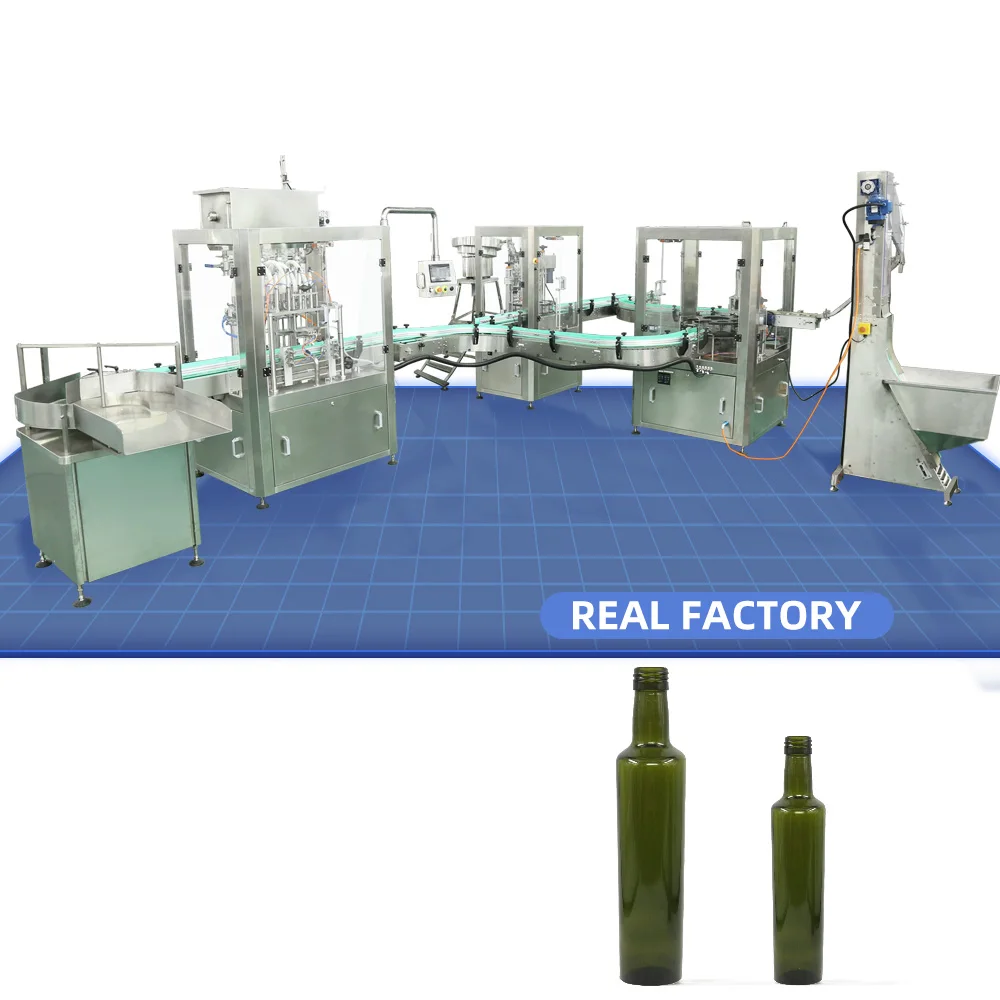

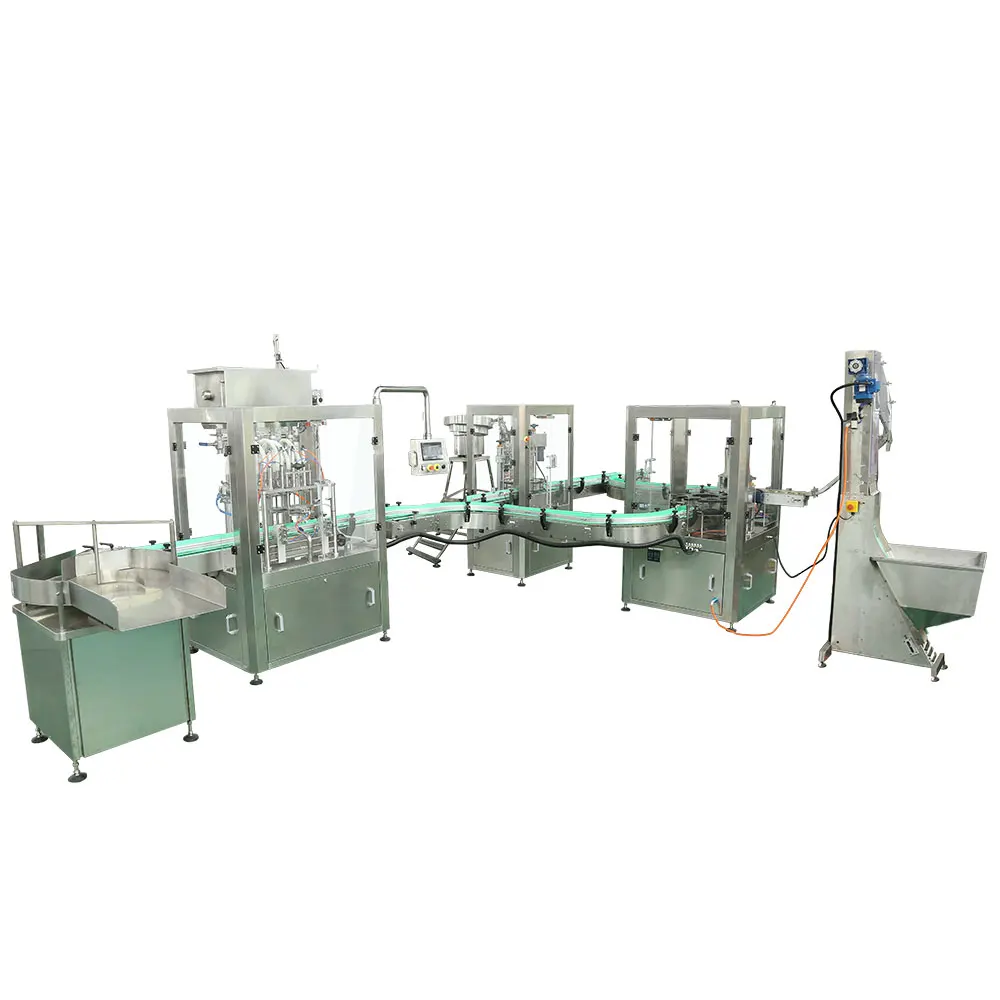

Automatic Round Taquila Blanco Whisky Wine Glass Round Square Bottle Filling Machine Capping Filler
- Category: >>>
- Supplier: Shanghai Paixie Packing Machinery Co. Ltd.
Share on (1600489116243):
Product Overview
Description
Automatic Round Taquila Blanco Whisky Wine Glass Round Square Bottle Filling Machine Capping Filler
Description:
This Shanghai factory popular products alcohol liquid gel sanitizer automatic capping machine bottle filling machines is an automatic liquid filling machine applying to food, pesticide, chemical and other industries. It can also be used for filling products with the particle, such as lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce.
This Shanghai paixie factory popular products alcohol filling line automatic capping machine adopts PLC and touch screen for controlling friendly human-machine interface, accurate of measuring,advanced structure, reliable running, nice appearance, and each filling head can be adjusted Individually. The parts which contact the filling material are made of high quality stainless steel316, meeting GMP standard.
This Shanghai factory popular products alcohol liquid gel sanitizer automatic capping machine bottle filling machines is an automatic liquid filling machine applying to food, pesticide, chemical and other industries. It can also be used for filling products with the particle, such as lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce.
This Shanghai paixie factory popular products alcohol filling line automatic capping machine adopts PLC and touch screen for controlling friendly human-machine interface, accurate of measuring,advanced structure, reliable running, nice appearance, and each filling head can be adjusted Individually. The parts which contact the filling material are made of high quality stainless steel316, meeting GMP standard.
Product | Shanghai paixie factory popular products alcohol filling line automatic capping machine |
Output | 1000-8000bottles/hour(customized) |
Filling Volume | 50-5000ML |
Bottle size | 20-1500MM(customized) |

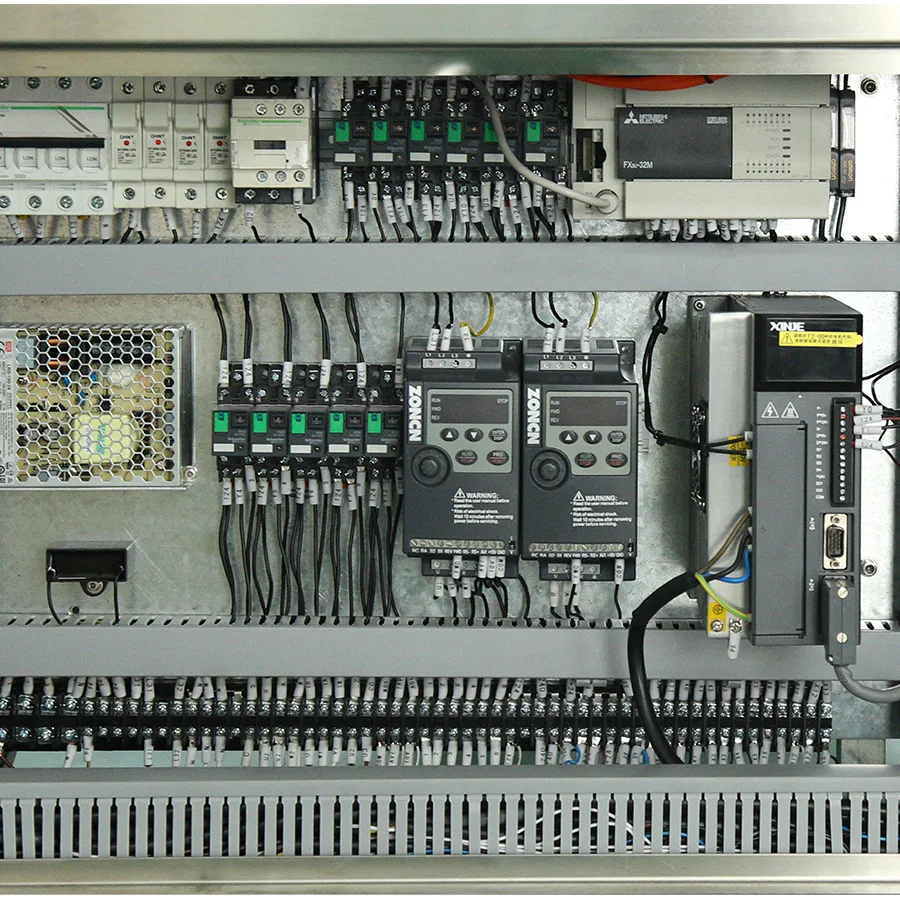

Control | PLC and Touch Screen |
Capping Type | Screwing, Pressing, Crimping and so on |
Bottle Type | Glass, Plastic, Metal |
Driving Motor | Servo Motor |
Power | 1.2KW |
Voltage | 110V220V/380V 50~60Hz(According to customer) |
Machine Frame Material | SS304 |
Qualified rate | ≥99% |
Capping Motor | Magnetic Torque Motor |
Certificate | ISO9001, GMP, CE |
Applied bottle range | Round/Flat/square bottles |
Features:
1.Stronger PLC software support, may realize the ideal filling operation.
2.The touching operation color screen, can display the production state, operation
procedures and filling ways, tableau objective, operation simple and maintenance
convenient.
3.This Shanghai paixie factory popular products alcohol filling line automatic capping machine uses vacuum sucking technology to
ensure no
leakage of filling head during filling production process.
4.Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the
injecting material correct aiming at.
5.This machine suits for the filling of different sizes of vessel, may change the filling
sizes within a few minutes.
6.Optional servo filling system.
1.Stronger PLC software support, may realize the ideal filling operation.
2.The touching operation color screen, can display the production state, operation
procedures and filling ways, tableau objective, operation simple and maintenance
convenient.
3.This Shanghai paixie factory popular products alcohol filling line automatic capping machine uses vacuum sucking technology to
ensure no
leakage of filling head during filling production process.
4.Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the
injecting material correct aiming at.
5.This machine suits for the filling of different sizes of vessel, may change the filling
sizes within a few minutes.
6.Optional servo filling system.
1.Round Bottle Feeding Table
Variable speed rotary bottle feeding table is the basic feeding system of filling line, operator will put empty bottles on the table, with gear motor driving, the bottle will be arranged to smarter filler input interface correctly. With flexible output tunnel, the machine will be able to work with different size bottle.

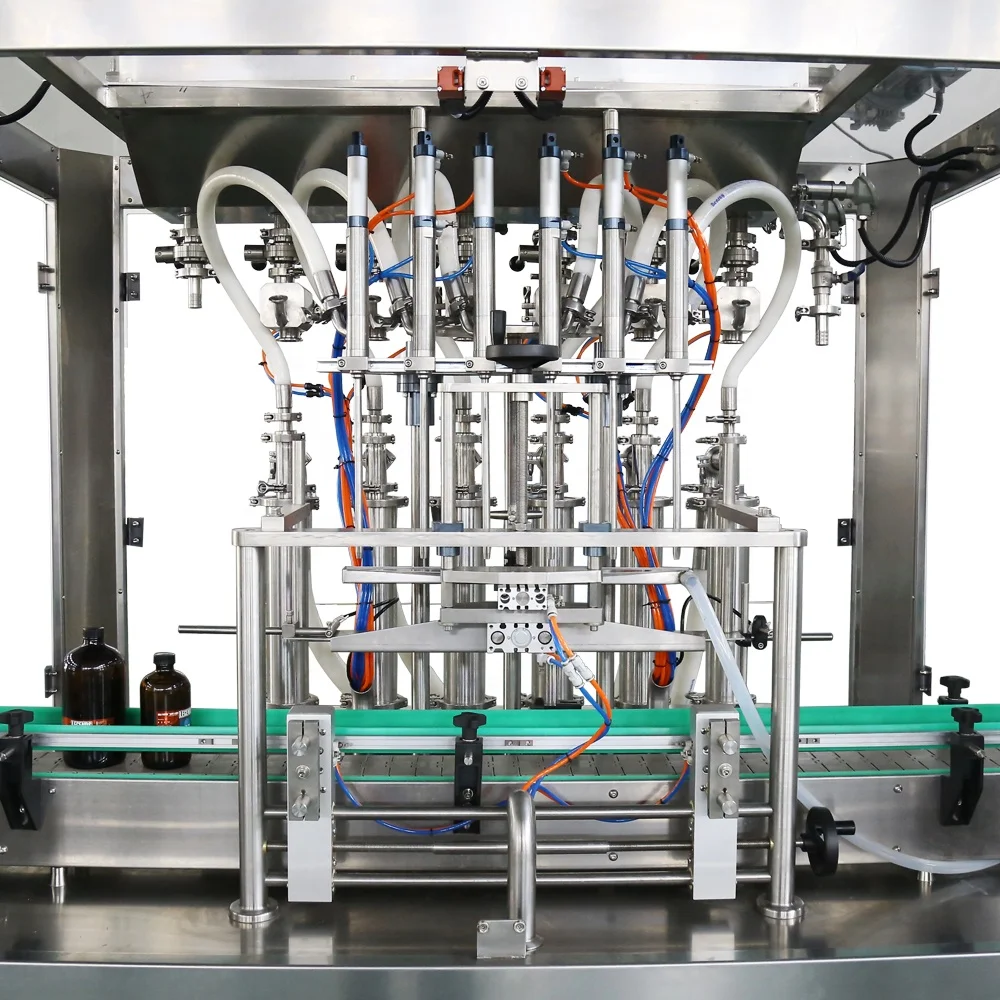

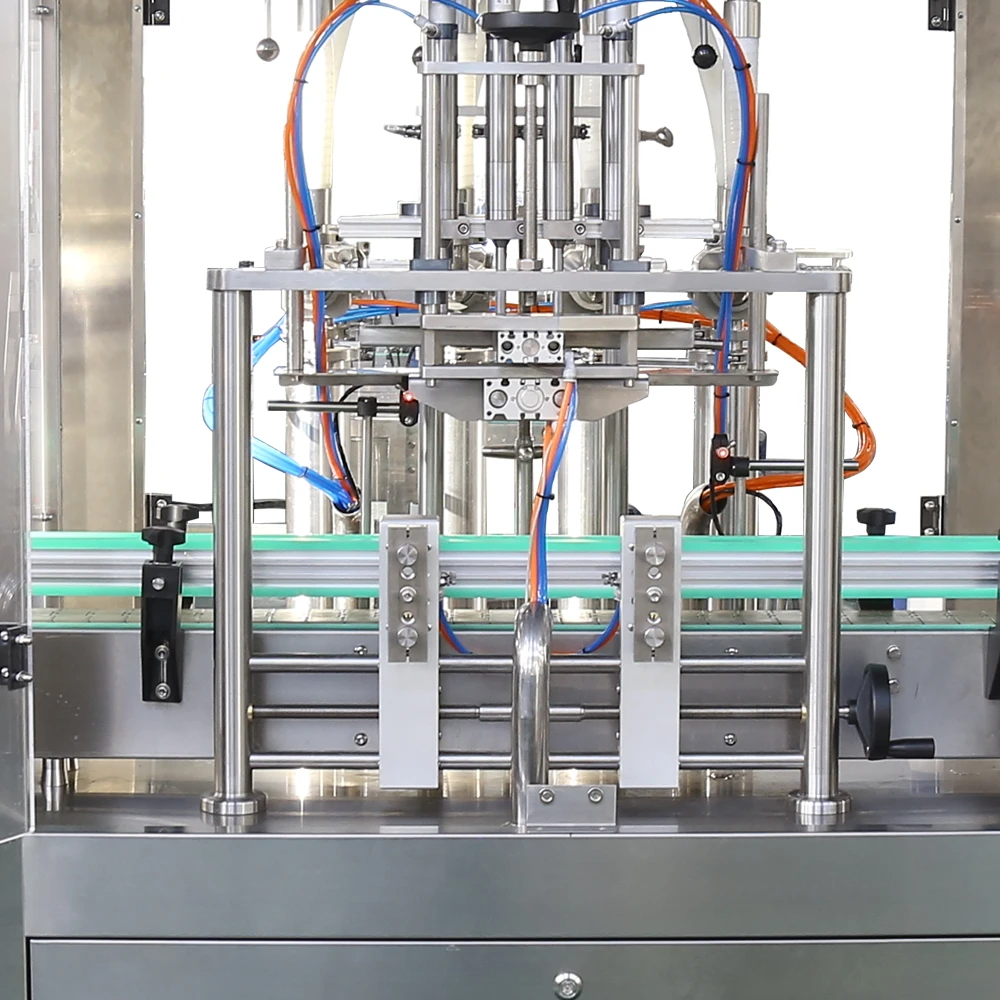

2.Filling Machine
This is wheel type piston pump filling machine which is designed for small bottle and low capacity filling task, driven by servo motor with high precision. The filling nozzles are made of SS316, resist high temperature filling. drip-proof , via photoelectric detection to ensure no bottle no filling.
Servo motor driving
Different from traditional air driving , paixie customize machine by servo motor , it is contributed to precision control and different volume change ,everything will be done by HMI adjustment
Servo filling station construction
1- High precison , we control the servo motor by PLC , the servo contected with the piston pump by screw , the motor running up ,push the screw , then screw push piston at the opposite , so actually the filling volume is equal to motor running distance .

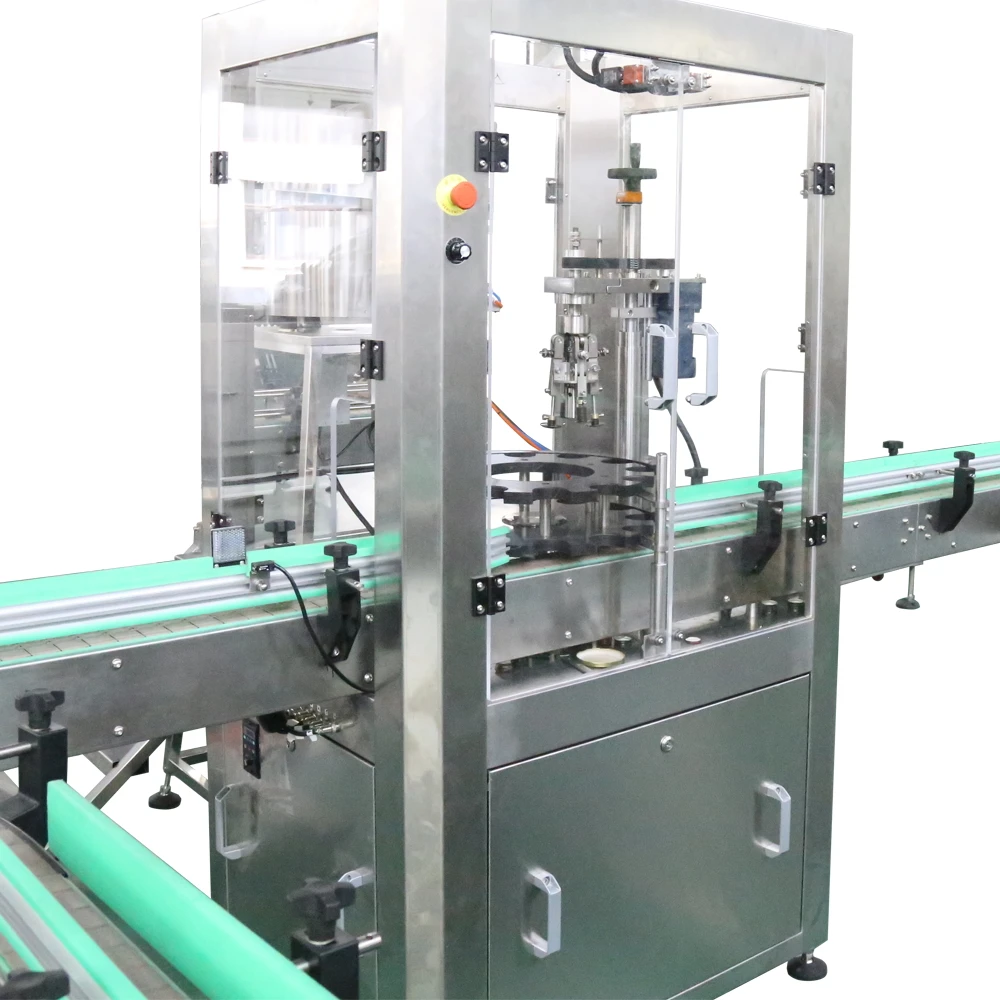

3.Capping Machine
Three-jar capping head application
The three-Jaw capping head is the newest design for different cap size , it is easy adjusted .
Magnetic cap torquing motor
To be different from traditional capping motor , Paixie uses magnetic motor in torquing , you can set all power as the cap need so that we prevent cap from broken or liquid leaking beucase of toure over or few

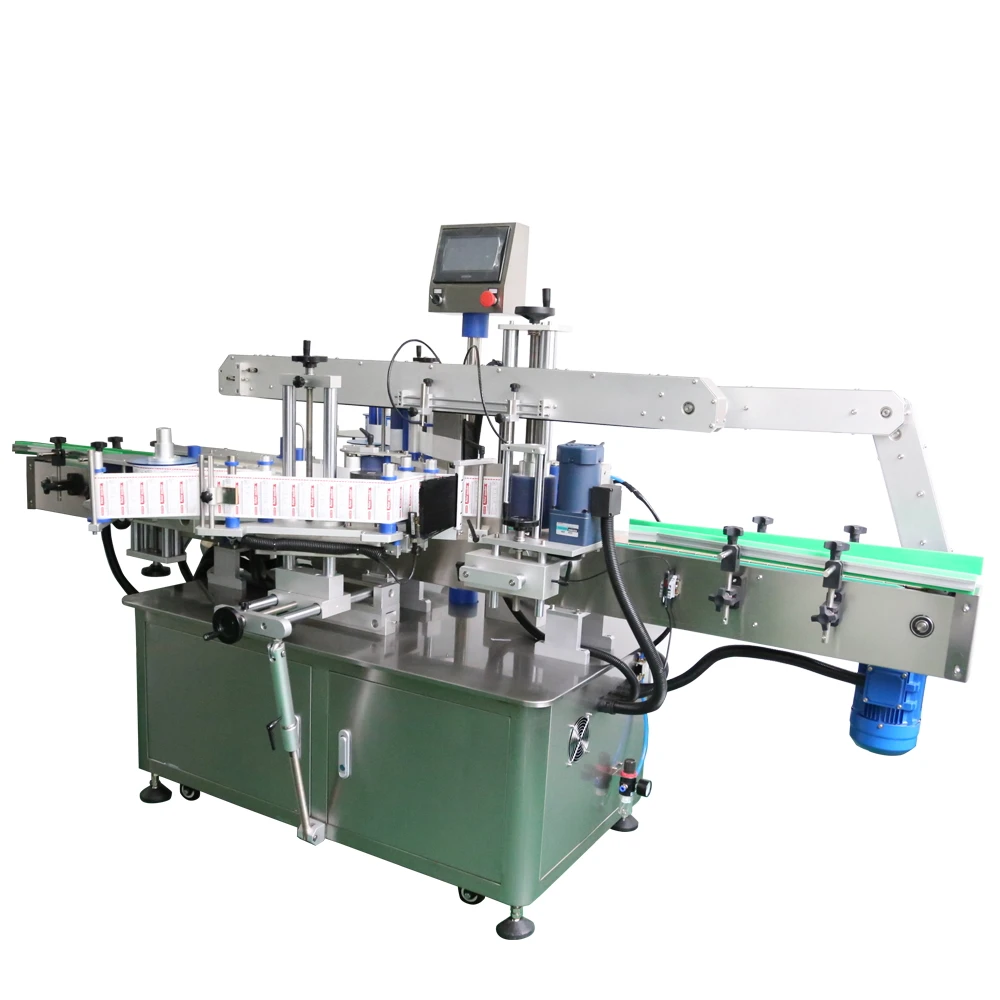

4.Labelling Machine
FEATURES | BENEFITS | |
Flexible label head tilts on x-y axis | Great for round, tapered or shaped containers | |
Manual Adjustments | ||
Adjustable applicator height | Suitable for a wide variety of containers and labels | |
Adjustable conveyor height | Easy to adapt to any existing packaging line | |
Manual position setting | Easy to use adjustments ensure labels are placed accurately on the container | |
Touch Screen Controls | ||
5.5” color LCD touch screen controls | Easier operation of controls | |
Touch screen rotates 360 degrees | Allows the machine to be controlled from any position | |
Stores up to 30 product settings | Faster and more accurate setup | |
Built-in operating instructions | Enables quick setup and easy changeover | |
Easy to follow fault instructions | Enables operator to quickly identify and fix problems | |
Screensaver | Reduces the risk of screen burn | |
Data storage for maintenance and usage | Simplifies scheduling of maintenance activities | |
Built-in printer controls | Allows for ‘plug & play’ future printer upgrades | |
FEATURES | BENEFITS | |
Sensor Features | ||
Production pre-set - stop function | Automatically stops once the pre-set quantity has been met | |
Missing label auto stop system | Ensures all products are labeled | |
Label countdown | Allows operator to monitor run progress | |
Batch counter | Easy to keep track of batches | |
Label counter | Simplifies regulatory tracking of labels | |
Container/production run counter | Provides total production quantity | |
Label position set | Ensures labels are placed correctly on product | |
One touch label sensor | Allows operator to use “one touch” feature on sensor to “teach” the sensor the label characteristics | |
Auto label sensor set | Detects labels and setup machine automatically from touch screen | |
Auto label length set | Detect label lengths and setsup machine automatically from touch screen | |
Design and Construction | ||
Adjustable to 8 speeds | Easily adjusts to line speeds | |
Battery free microprocessor | Maintains default settings and memory even after sitting idle for long periods | |
Slide-out controls and electronics stored in lower cabinet | Enables quick and easy servicing | |
Manufactured with stainless steel and anodized aluminum | Robust, long lasting construction with quick and easy cleanup | |
Manufactured to strict ISO 9001 standards | High quality, consistent manufacturing ensures easy repairs and/or upgrades | |
GMP compliant | Designed to easily surpass standards of compliance auditors | |
Fully synchronized controls | Ensures all components run at the proper speed | |
Stepper driven motor | Fine adjustment allows precise label placement | |
Servo driving system
Servo is always running better than normal , PX-BL120 label drived by servo motor ,make the label to be released more fluently ,without broken or cutting circumstance happening

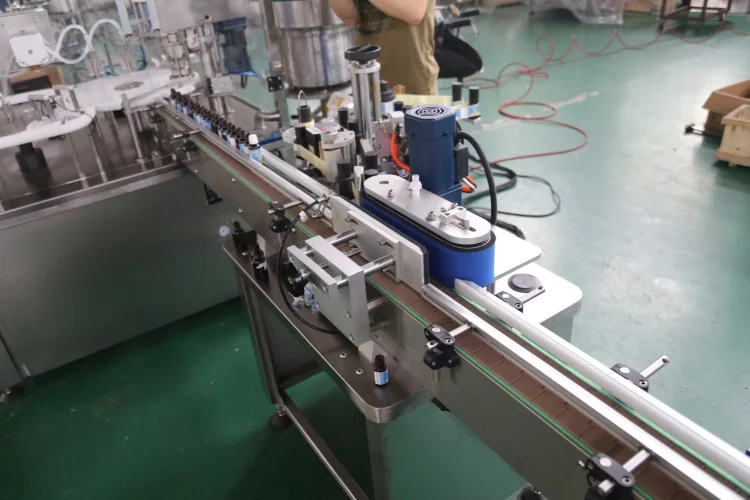

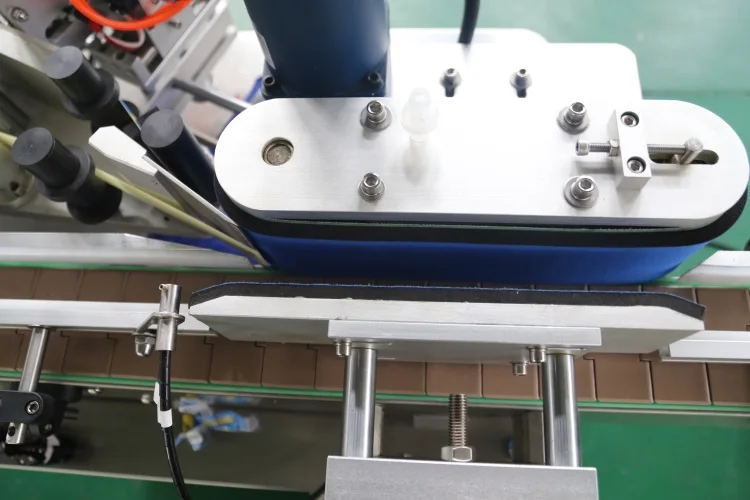

Labeling belt
Wrap round label aplicator ,Positive &negative we use as we use the sponge sponge as compressive belt, sponge has very strong contractility, which means that the label will be tightly squeezed without damage, the same applies to wide bottle caps, small diameter bottle samples, each tag can be perfectly applied the bottle and there will be no crease for extrusion, sponge has very strong contractibility, This means labels are tightly squeezed without breaking. This also applies to samples with wide caps and small bottle diameters, where each label fits perfectly without wrinkling

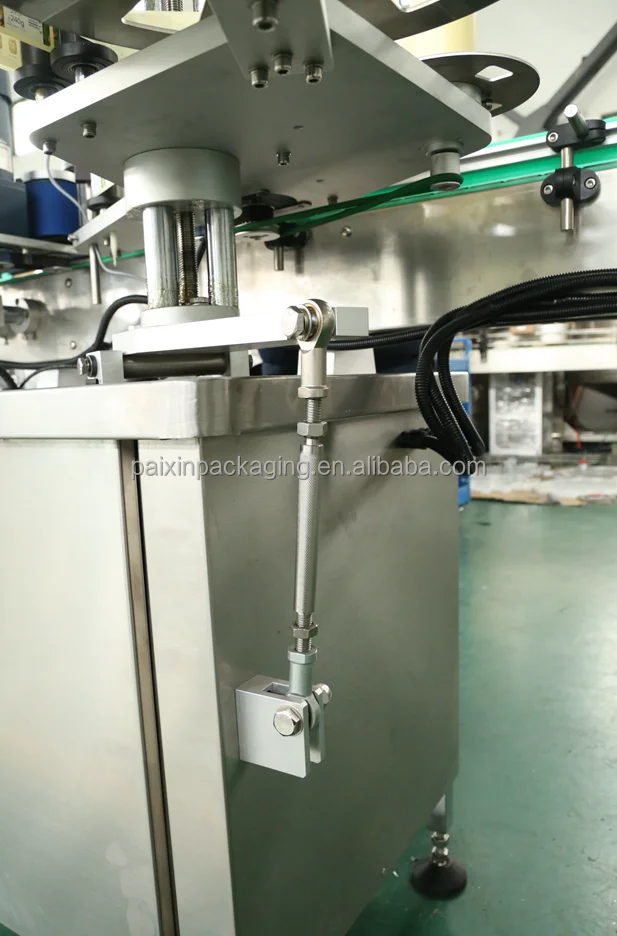

Height -width-Angle adjustment
Any labeling machines are all suitable for different formats ,which means sone kind of adjustments are necessary ,height ,angle , width , these 3 aspects decide how to put label in right way .

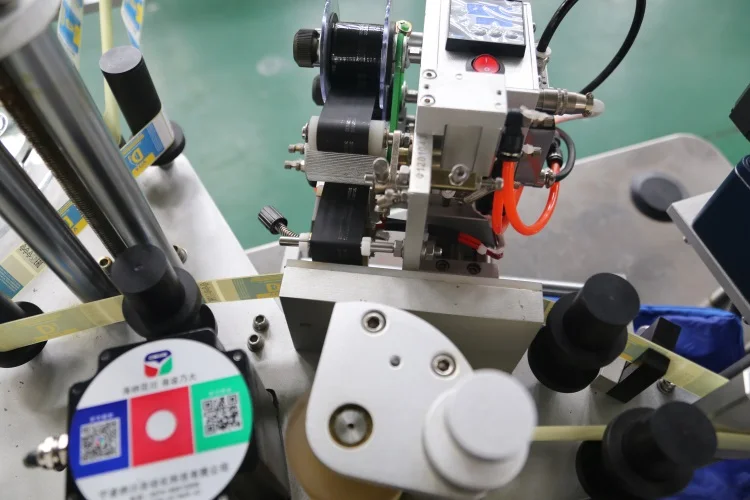

Printing engine
We set thermal printer with the labeler itself , to coding number , production date with the label

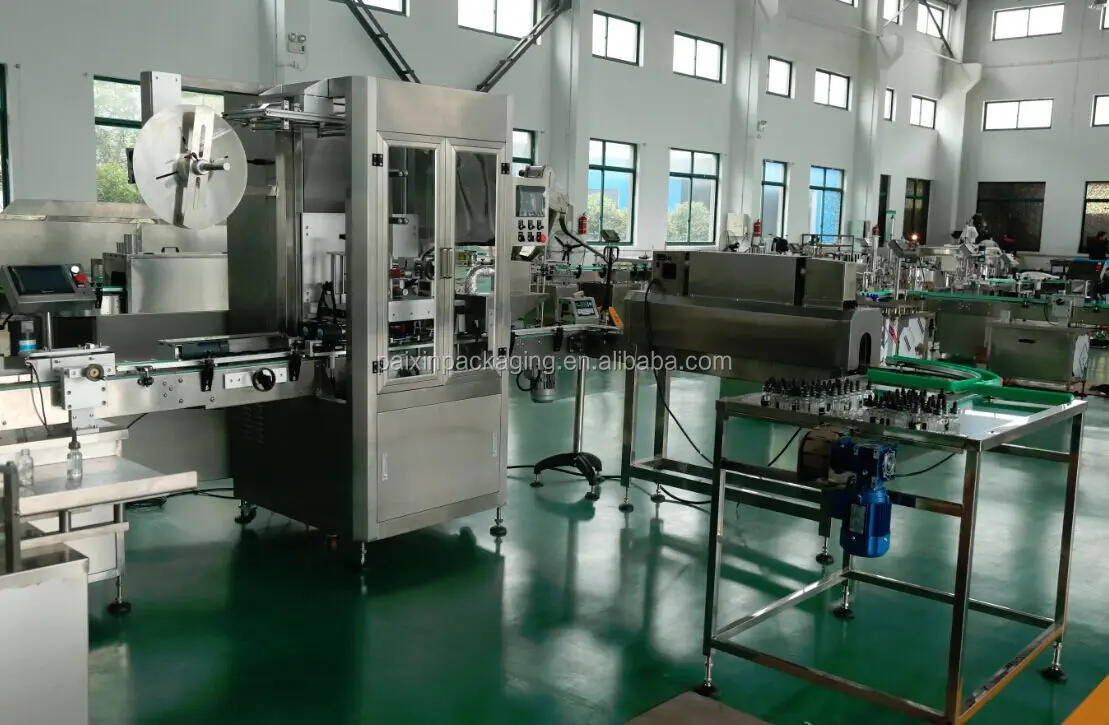

5.Sleeve Shrinking Machine
Shanghai Paixie Packing Machinery Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, chemical industry and etc, lots of successful cases for your reference. The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement. PAIXIE filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)

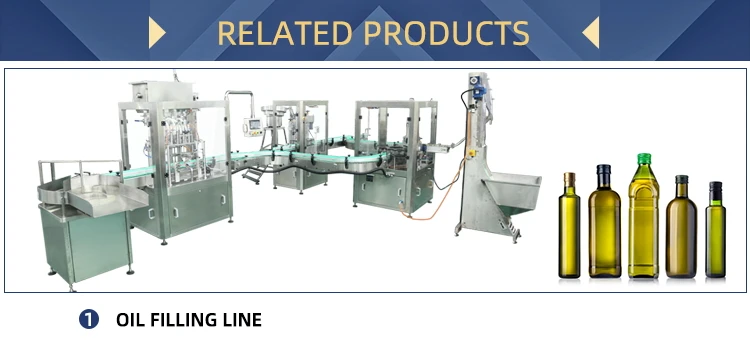

* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )

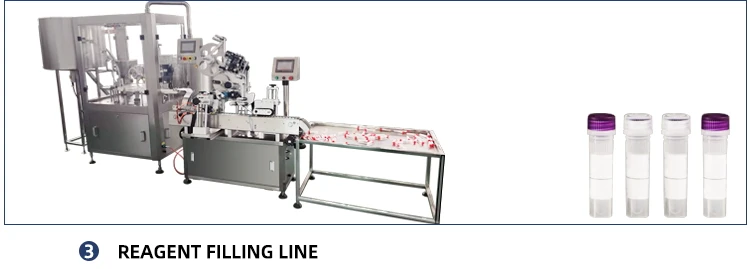

* Chemical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
• Suitable for gallon containers
• More container shapes
• Taller and wider containers
• 360 degree touch screen
• Self teaching sensors
• Enclosed slide out controls
• Over 13% more energy efficient
• Range of label size 6 - 170mm (1/4 - 6.7”) (H) 6 - 300mm (1/4 - 11.8”) (W)
• Range of container width 6.5mm - 165mm (0.26” - 6.5”)
• Range of container height 6.5 - 305mm (0.26 - 12”)
• Conveyor width 152mm (6.5”)
• Power source 110/220 v 50/60 Hz 1 PH
• Power consumption 0.660 kW
• Label dispensing speed 40m/min (131.2’/min)
• Conveyor speed 22m/min (72.2’/min)
• Label spool diameter 356mm (14”)
• Label spool inner core 76mm (3”)
• Drive motor Stepper
• PLC Panasonic
• Dimensions (L-W-H) 2,420 x 1,380 x 1,350mm 95.3” x 54.3” x 53.1”
• Range of container width 6.5mm - 165mm (0.26” - 6.5”)
• Range of container height 6.5 - 305mm (0.26 - 12”)
• Conveyor width 152mm (6.5”)
• Power source 110/220 v 50/60 Hz 1 PH
• Power consumption 0.660 kW
• Label dispensing speed 40m/min (131.2’/min)
• Conveyor speed 22m/min (72.2’/min)
• Label spool diameter 356mm (14”)
• Label spool inner core 76mm (3”)
• Drive motor Stepper
• PLC Panasonic
• Dimensions (L-W-H) 2,420 x 1,380 x 1,350mm 95.3” x 54.3” x 53.1”
