8 inch Mini Metal VASE wall mounted embedded touch panel PC industrial computer monitor with IPS Touch display HMI port
- Category: >>>
- Supplier: Shenzhen,Bolinia,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Features
* All sizes are optional！
* Capacitive Touch/Resistive Touch/Non-Touch optional！
* Many installation methods are available！
* Many interfaces, adapt to different devices！
* Ultra durable PCB board！
* Adapt to ultra-harsh environments！
* More than 30,000 hours of service life！
* Support any type of OEM/ODM service！
* All products have at least 12 months warranty！
* Capacitive Touch/Resistive Touch/Non-Touch optional！
* Many installation methods are available！
* Many interfaces, adapt to different devices！
* Ultra durable PCB board！
* Adapt to ultra-harsh environments！
* More than 30,000 hours of service life！
* Support any type of OEM/ODM service！
* All products have at least 12 months warranty！
Products Description
Specification Sheet
8 inch Mini Metal VASE wall mounted embedded touch panel PC industrial computer monitor with IPS Touch display HMI port | ||
Mould | B8007-QR-ZT,B8009-QR-ZT,B8010-QR-ZT | |
Size | 8" | |
Active Area | 163.6*122.9 mm | |
Panel Type | TFT-LCD/IPS Panel | |
Backlight | LED | |
Backlight Life | 30,000 hrs | |
Resolution | 800*600/1024X768/IPS1024*768 | |
Acpect Ratio | 4:3 | |
Contrast | 300:1 | |
Brightness | 250 cd/m | |
Viewing Angle (H/V) | 140/120 | |
Response Time | 6 ms | |
Display Color | 262K | |
Operating Temperature | 0~50℃ | |
Storage Temperature | -10~60℃ | |
Video Inputs/Outputs | DC+AV+BNC+HDMI+VGA | |
Touch | Resistive touch | |
Audio Inputs/Outputs | Earphone Jack 35mm | |
Installation | VESA mount | |
Power Requirement | DC 12V | |
Dimension (W*H*D) | 207*166*47.5 mm | |
Weight | 0.81 kg | |
Control | OSD Control | |
Certificates | CE/FCC/ROHS/CCC | |
Accessories:VESA wall mount/ stand, VGA cable/HDMI cable/DVI cable, manual book and power adapter. | ||

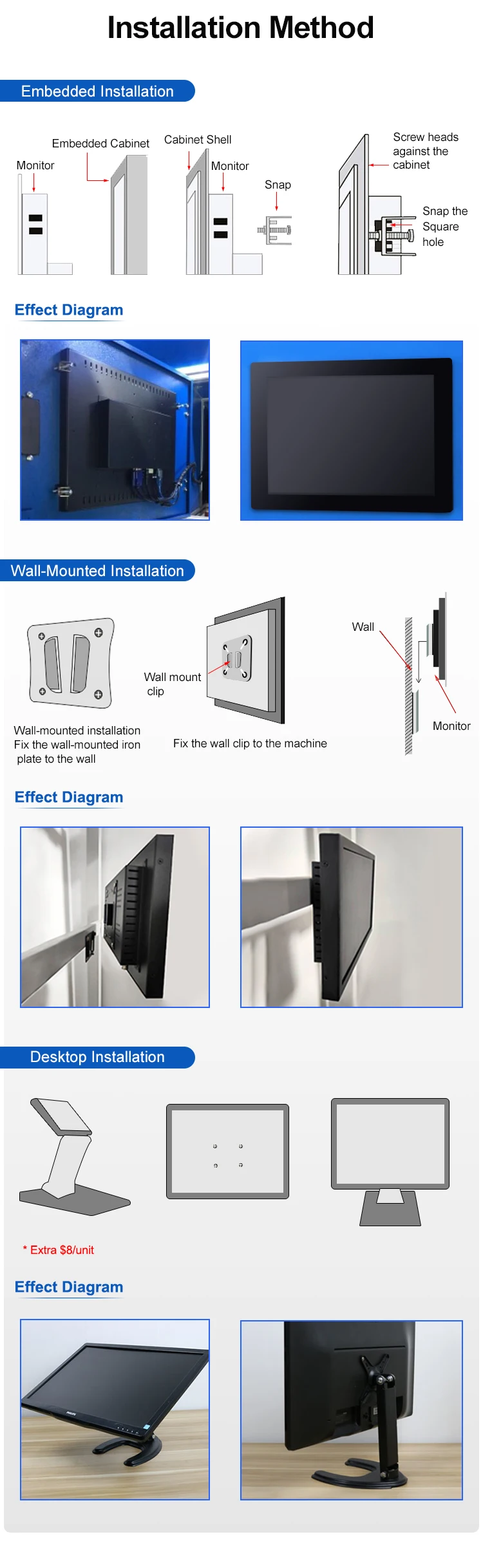

Installation Method

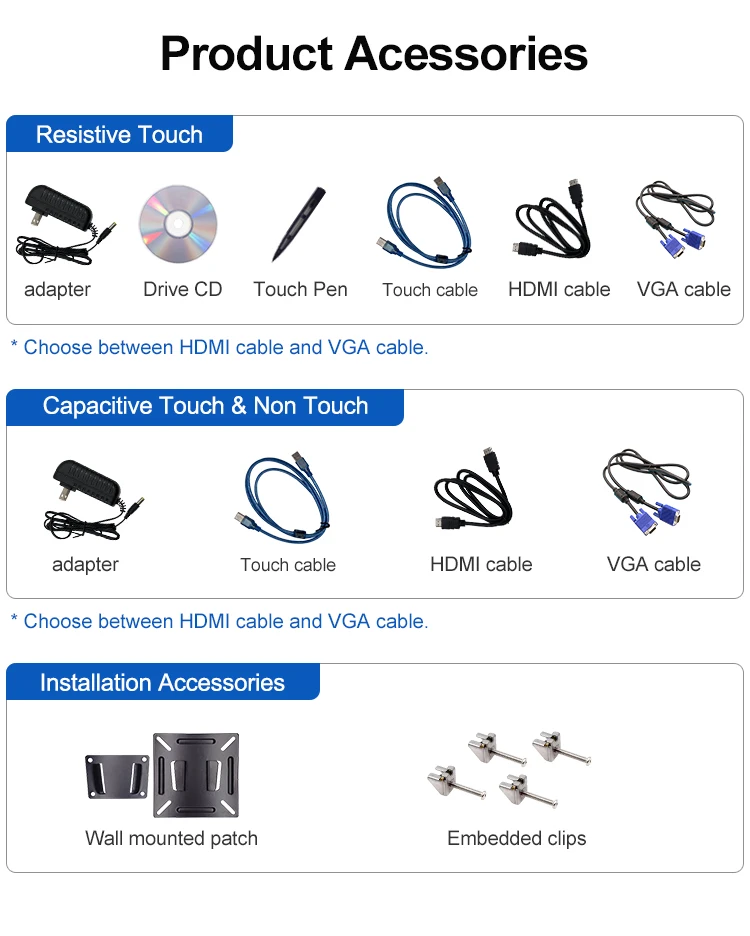

Product Accessories
Product Application
Customization
Company Profile
Certifications
FAQ
Contact us
Product Drawings
