12M Spiral machine Screw Conveyor and Feeder system for fly ash, filler dust, silica fume, cement,dry plasters, sand
- Category: >>>
- Supplier: Titeco Industry Technology Inc.
Share on (1600489206992):
Product Overview
Description
Products Description
Model | Power（kw） | Distance L（m） | Angle α（°） | Capacity (t/h) | D1 | D2 | n-d | B |
LSY168-6 | 4 | 6 | ≤45 | 25 | 330 | 330 | 8-φ14 | 10 |
LSY168-9 | 5.5 | 9 | ≤45 | 25 | 330 | 330 | 8-φ14 | 10 |
LSY168-12 | 7.5 | 12 | ≤45 | 25 | 330 | 330 | 8-φ14 | 10 |
LSY219-6 | 7.5 | 6 | ≤45 | 60 | 330 | 330 | 8-φ14 | 10 |
LSY219-9 | 11 | 9 | ≤45 | 60 | 330 | 330 | 8-φ14 | 10 |
LSY219-12 | 11 | 12 | ≤45 | 60 | 330 | 330 | 8-φ14 | 10 |
LSY219-15 | 15 | 15 | ≤45 | 60 | 330 | 330 | 8-φ14 | 10 |
LSY273-9 | 11 | 9 | ≤45 | 90 | 330 | 330 | 8-φ14 | 10 |
LSY273-12 | 15 | 12 | ≤45 | 90 | 330 | 330 | 8-φ14 | 10 |
LSY273-15 | 15 | 15 | ≤45 | 90 | 330 | 330 | 8-φ14 | 10 |
LSY323-9 | 18.5 | 9 | ≤45 | 110 | 370 | 420 | 8-φ18 | 15 |
LSY323-12 | 22 | 12 | ≤45 | 110 | 370 | 420 | 8-φ18 | 15 |
Screw Conveyor Introduction:
The LSY Screw Conveyor and Feeder system is highly versatile offering a variety of standard solutions for handling of powdery or granular materials. Different models of conveyors or feeders are available in applications such as concrete production (for fly-ash, filler dust, silica fume), premixed building materials (dry plasters, sand, cement, additives), glass processing (calcium carbonate, soda, sand, etc.), foundries (sand, bentonite), and many others. Mostly in concrete and asphalt mixing plant,used for conveying or feeding cement and materials similar to cement mainly in concrete batching plants but also in other building materials processing plants.

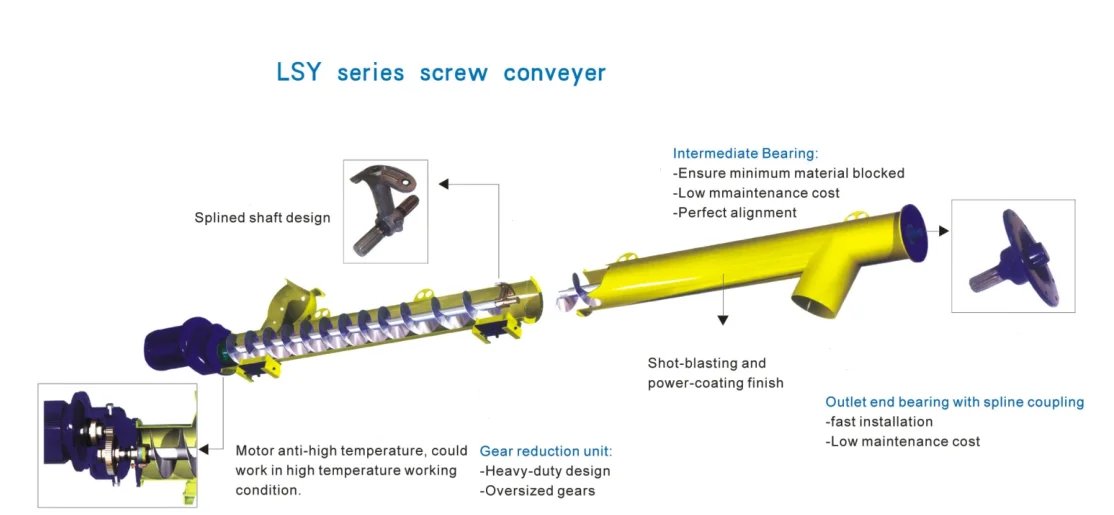

Features:
*Splined shaft design.
*Motor anti-high temperature ensure the contentious working condition.
*Heavy duty design of gear reduction unit.
*Intermediate bearing of perfect alignment and low maintenance cost
*Manufactured from carbon steel with suitable surface finishing and powder coating.
*Compact design and overall dimensions.
*Reduced number of components and spare parts
*Quick installation due to universal inlet and outlet spouts
The LSY Screw Conveyor and Feeder system is highly versatile offering a variety of standard solutions for handling of powdery or granular materials. Different models of conveyors or feeders are available in applications such as concrete production (for fly-ash, filler dust, silica fume), premixed building materials (dry plasters, sand, cement, additives), glass processing (calcium carbonate, soda, sand, etc.), foundries (sand, bentonite), and many others. Mostly in concrete and asphalt mixing plant,used for conveying or feeding cement and materials similar to cement mainly in concrete batching plants but also in other building materials processing plants.
Features:
*Splined shaft design.
*Motor anti-high temperature ensure the contentious working condition.
*Heavy duty design of gear reduction unit.
*Intermediate bearing of perfect alignment and low maintenance cost
*Manufactured from carbon steel with suitable surface finishing and powder coating.
*Compact design and overall dimensions.
*Reduced number of components and spare parts
*Quick installation due to universal inlet and outlet spouts
Production Process
Partner
Company Profile
TITECO is a global producer of construction equipment and vehicles, which is specialist in road building, repair and maintenance machinery equipment and vehicles. We offer our customers technologically first-class quality products, creative design services and sound service for optimum, economic production processes. With over 20 years experience in concrete & asphalt road building and maintenance, TITECO's applied technology service will help you to improve your performance. All our products are synonymous of power and stability, always provide the innovative solutions for complex issues.
Our Advantages
1. More than 20 years of cutting edge innovation and expertise help us to provide you all the best solutions of your projects.
2. With all kinds of our products commissioned for the concrete and asphalt industry projects,we believed that we know the cares and concerns of our customers well.
3. TITECO manufactures all equipment in our own factory under the strick quaility control system, makes the equipment much more reliable.
