Product Overview
Description

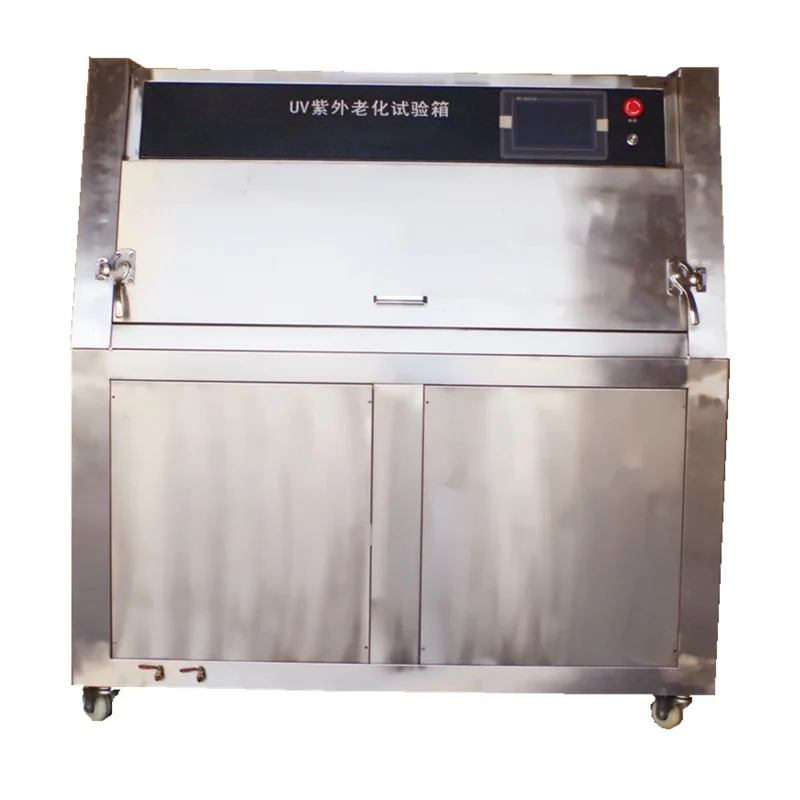

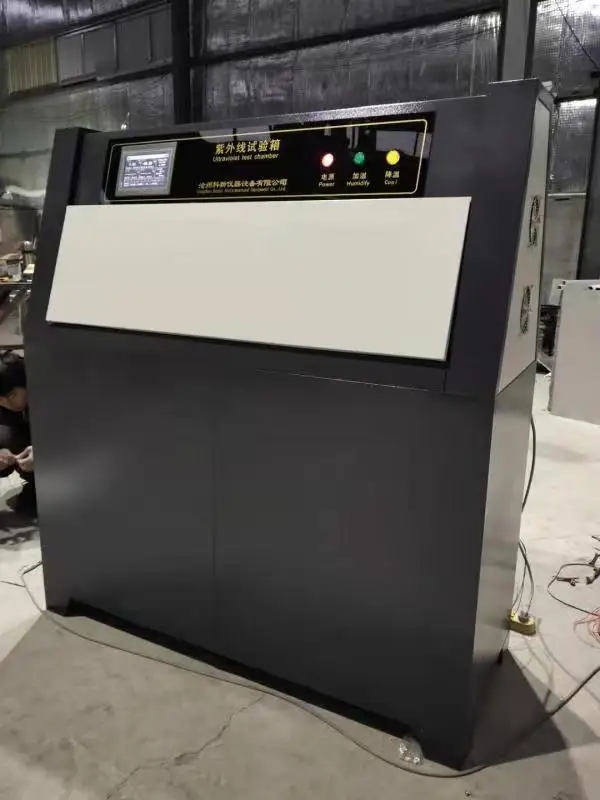

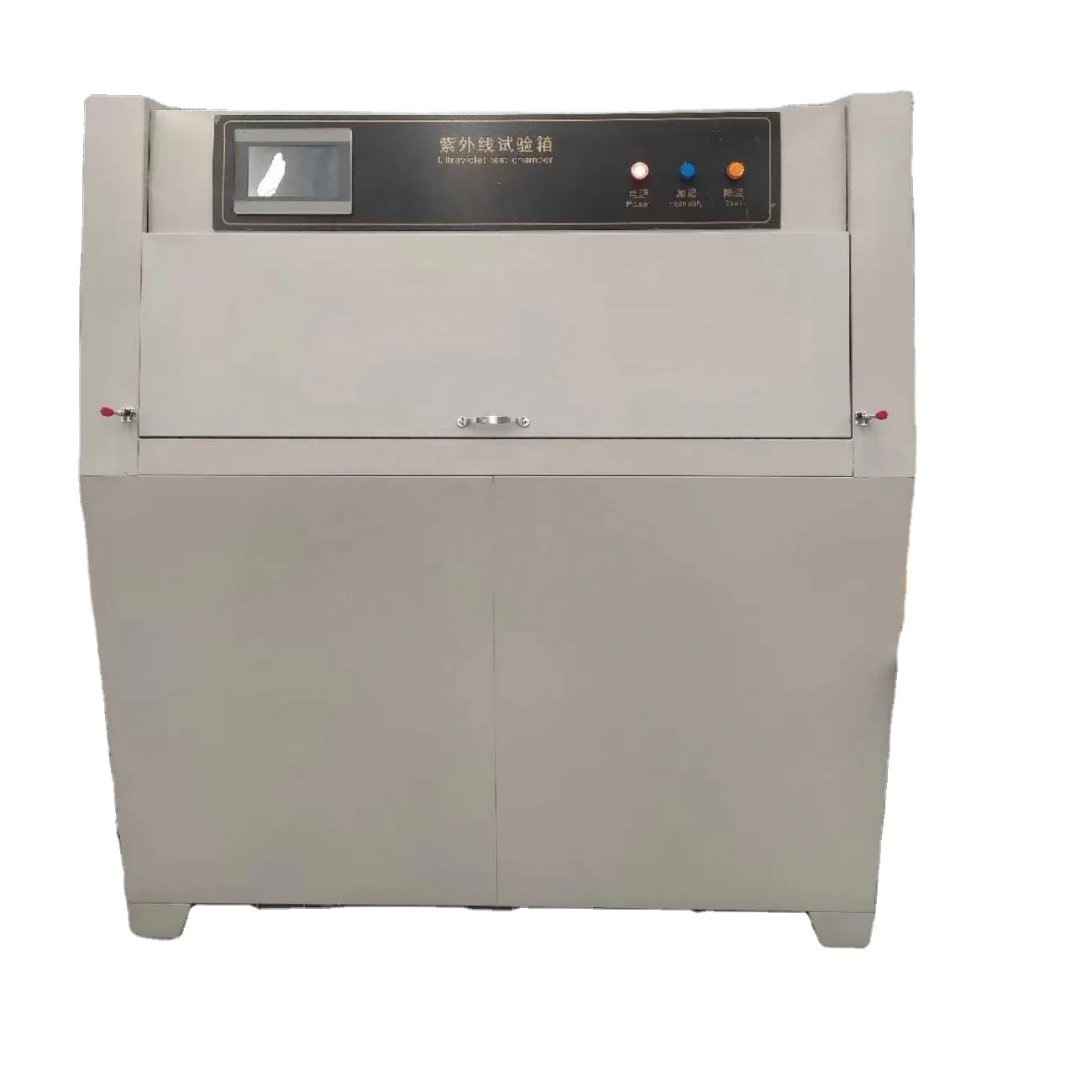

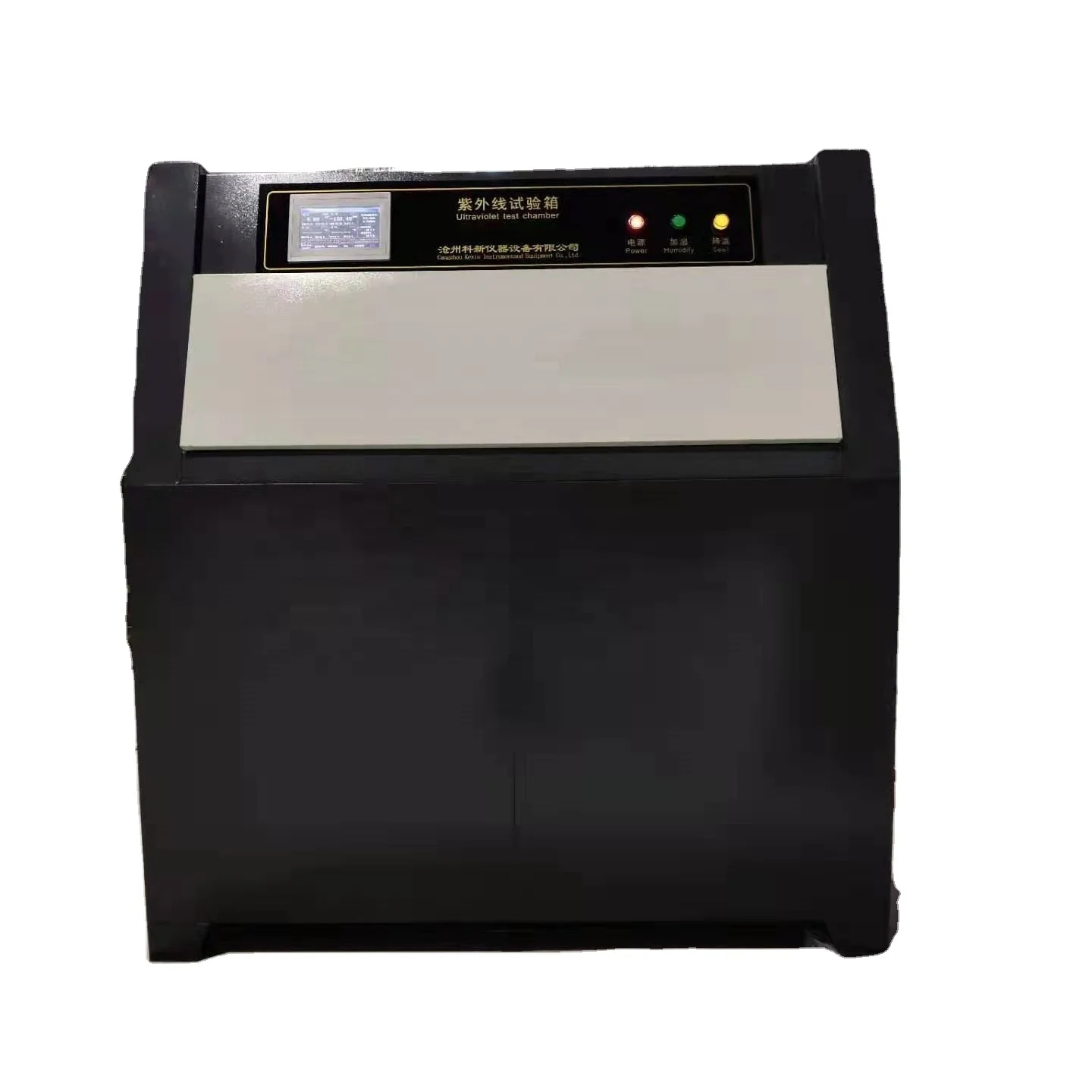

This test equipment simulates the damage caused by the sun's ultraviolet light, and tests the weather resistance of the material by exposing the tested material to light under controlled high temperature. It uses ultraviolet lamps to simulate the radiation effect of sunlight, and simulates dew and rain through condensation and water spray. In just a few days or weeks, the ultraviolet radiation equipment can reproduce what it takes to be outdoors for months or even years. Damages that only occur over time, including fading, color change, tarnishing, chalking, cracking, cracking, wrinkling, blistering, embrittlement, strength reduction, oxidation, etc. The test results can be used to select new materials and improve current performance. There are materials, or changes in material formulations are evaluated.
Tube model | UVA-340 (315~400nm) or UVB-313 (280~315nm) |
Tube brand | imported from Philips |
The center distance of the lamp | 70mm |
The center distance between the test product and the lamp tube: | 50±3mm |
Irradiation intensity | maximum power output |
Temperature range | normal temperature +10～70℃ adjustable |
Humidity range | ≥90%RH |
Temperature fluctuation | ±3℃ |
Temperature resolution | 0.1℃ |

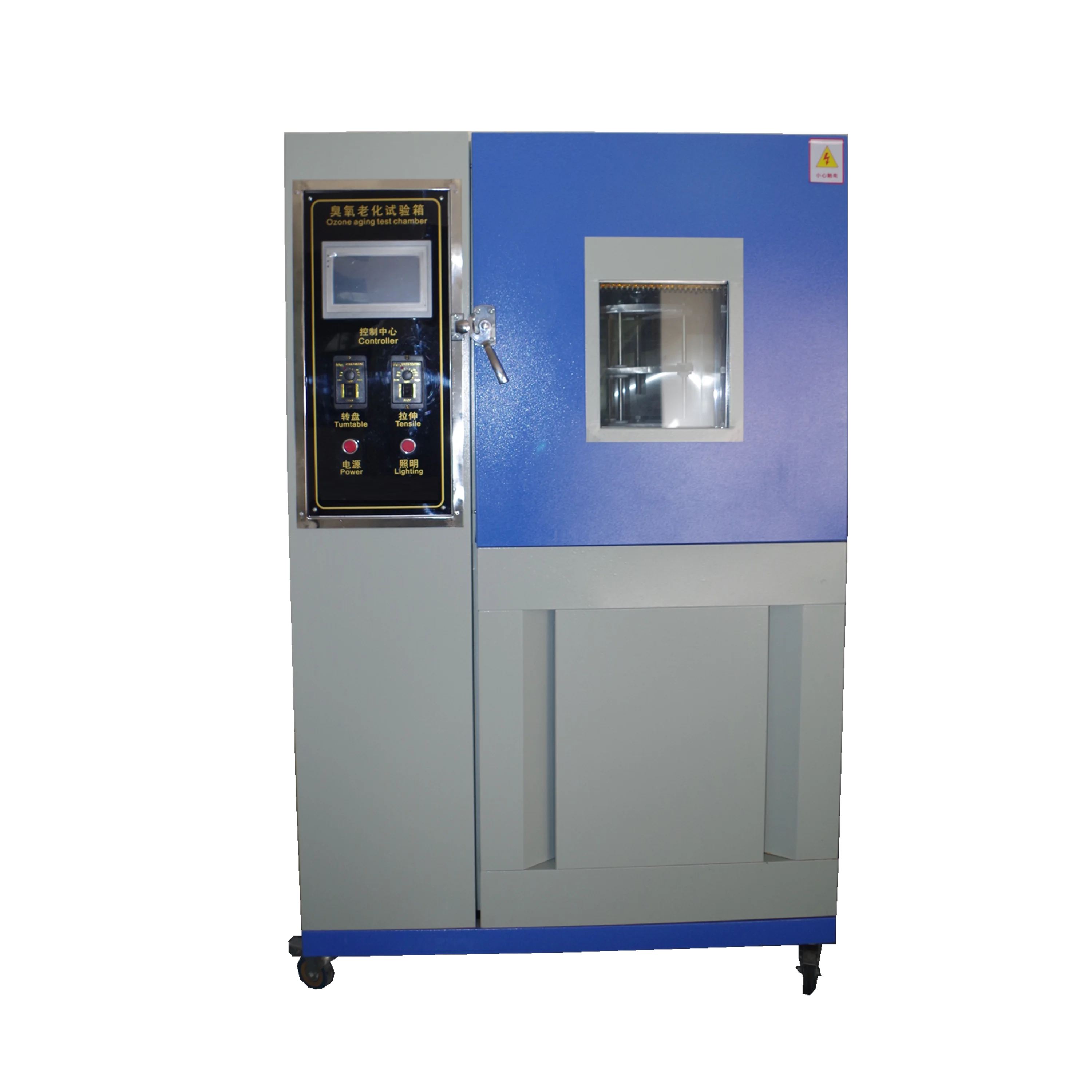

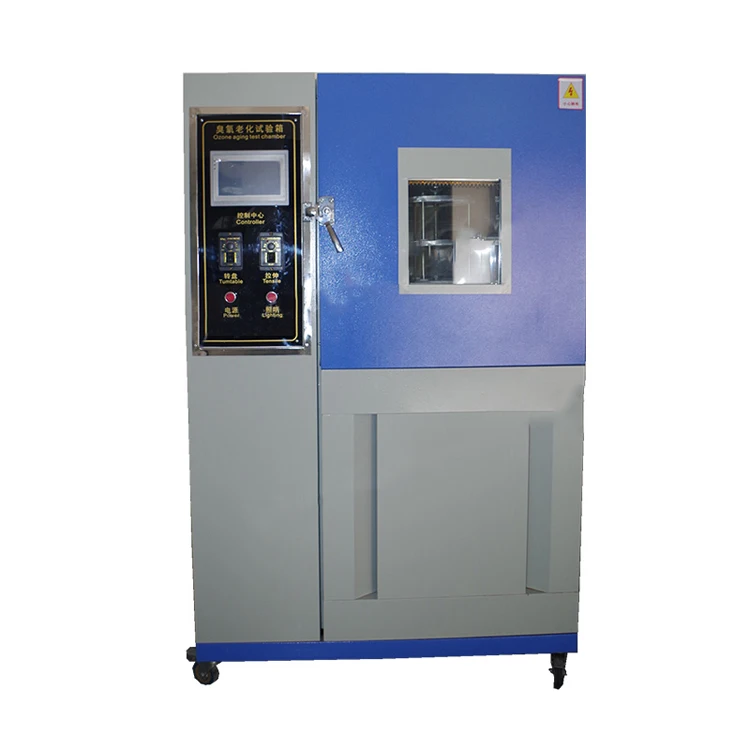

Ozone box：This equipment is mainly suitable for the ozone aging resistance test of polymer materials and their products. The content of ozone in the atmosphere is small but the main factor in the aging of polymer materials and products. The ozone aging box simulates and strengthens the ozone conditions in the atmosphere. , Obtain test results that are similar to actual use or reproducible in a short time, study the effect of ozone on polymer materials and their products (rubber), and quickly identify and evaluate rubber anti-ozone aging performance and anti-ozonant protective efficacy Method, and then take effective anti-aging measures to improve the service life of rubber products.
1.Temperature deviation : ≤±2.0℃,
2.Temperature fluctuation : ≤±2.0℃,
3.Ozone concentration deviation : 10%pphm,
4.Heating time The average heating rate: 2℃～3℃/min,
2.Temperature fluctuation : ≤±2.0℃,
3.Ozone concentration deviation : 10%pphm,
4.Heating time The average heating rate: 2℃～3℃/min,

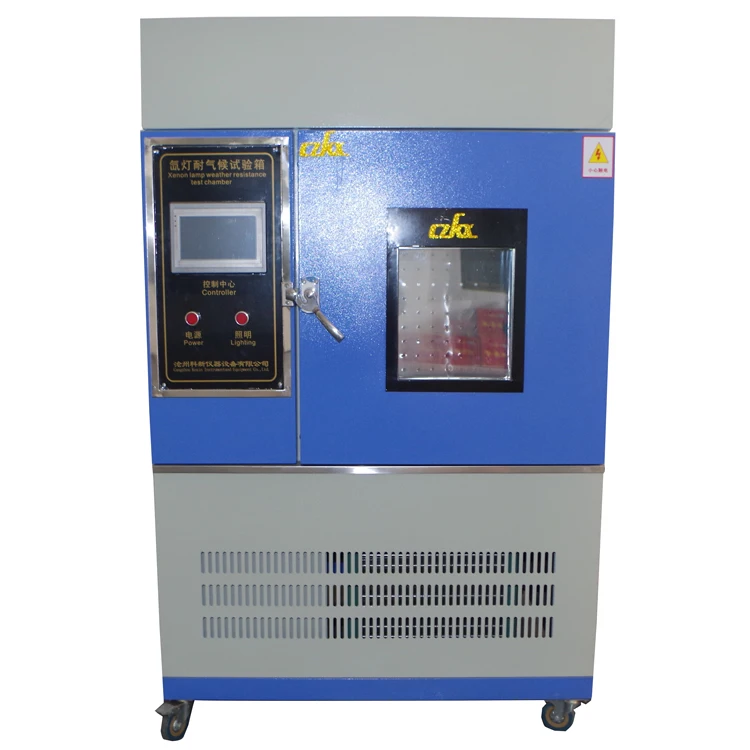

Xenon lamp weathering test chamber：Weather resistance test is an important means of screening formulas and optimizing product composition in the process of scientific research and production. It is also an important content of product quality inspection. Application materials such as coatings, plastics, aluminum-plastic panels, and automotive safety glass all require weather resistance tests.The main factors that cause material aging are sunlight, temperature and humidity. The weather test chamber can simulate the hazards caused by sunlight, rain and dew. The weathering test box uses xenon lamps to simulate the effect of sunlight, and uses condensed moisture to simulate rain and dew. The tested material is placed in a cycle program of alternating light and moisture at a certain temperature for testing. It takes several days or weeks. Reproduce the hazards that have occurred outdoors for months or even years. Artificial accelerated aging test data can help select new materials, modify existing materials, and evaluate how changes in formula affect product durability.
1. Power supply: AC 220V/50Hz, total power 9KW, effective radiation area: 0.63m2,
2. Xenon lamp power: 500W (air-cooled full solar spectrum long arc xenon lamp).,
3. Xenon lamp radiation intensity: (350-850nm) 550W/m2,
(The irradiance setting value is automatically controlled, 340nm and 365nm can be selected as the radiation intensity monitoring point)
4. Trigger power 6KW working voltage AC 220V current 27±3A, trigger time <2S, second trigger interval time <10min. ,
5. Temperature range: (room temperature +65C),
6. Temperature uniformity: ± 2℃,
7. Rotation speed of sample rotating basket: ≥1r/min (stepless speed regulation),
8.Exposure/water spray cycle 60min/12min, 102min/18min optional,
9. Studio size: 500×600×650,
10. Water spray pressure 78～127kpa,
11. Filter 0% below 255nm, above 90% from 400~800nm. ,
2. Xenon lamp power: 500W (air-cooled full solar spectrum long arc xenon lamp).,
3. Xenon lamp radiation intensity: (350-850nm) 550W/m2,
(The irradiance setting value is automatically controlled, 340nm and 365nm can be selected as the radiation intensity monitoring point)
4. Trigger power 6KW working voltage AC 220V current 27±3A, trigger time <2S, second trigger interval time <10min. ,
5. Temperature range: (room temperature +65C),
6. Temperature uniformity: ± 2℃,
7. Rotation speed of sample rotating basket: ≥1r/min (stepless speed regulation),
8.Exposure/water spray cycle 60min/12min, 102min/18min optional,
9. Studio size: 500×600×650,
10. Water spray pressure 78～127kpa,
11. Filter 0% below 255nm, above 90% from 400~800nm. ,

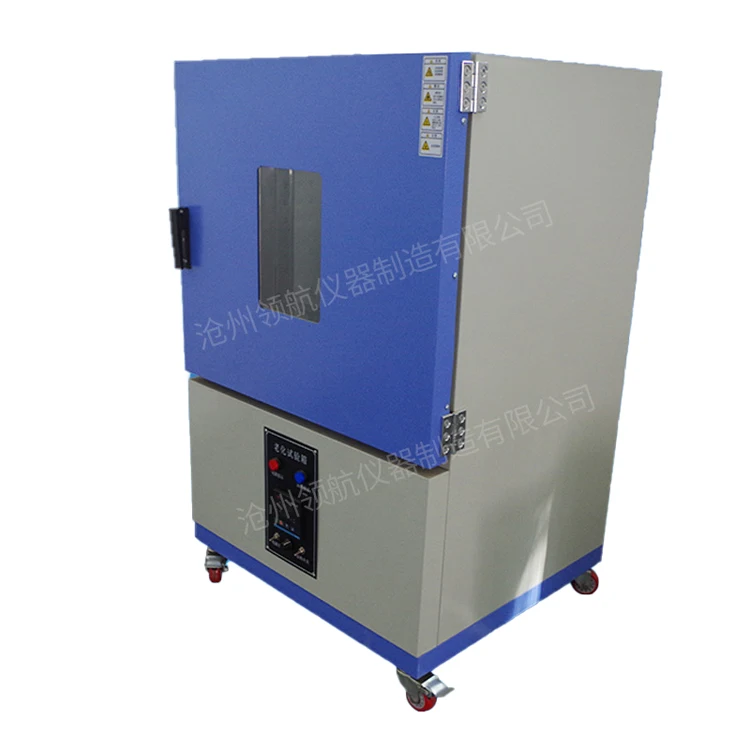

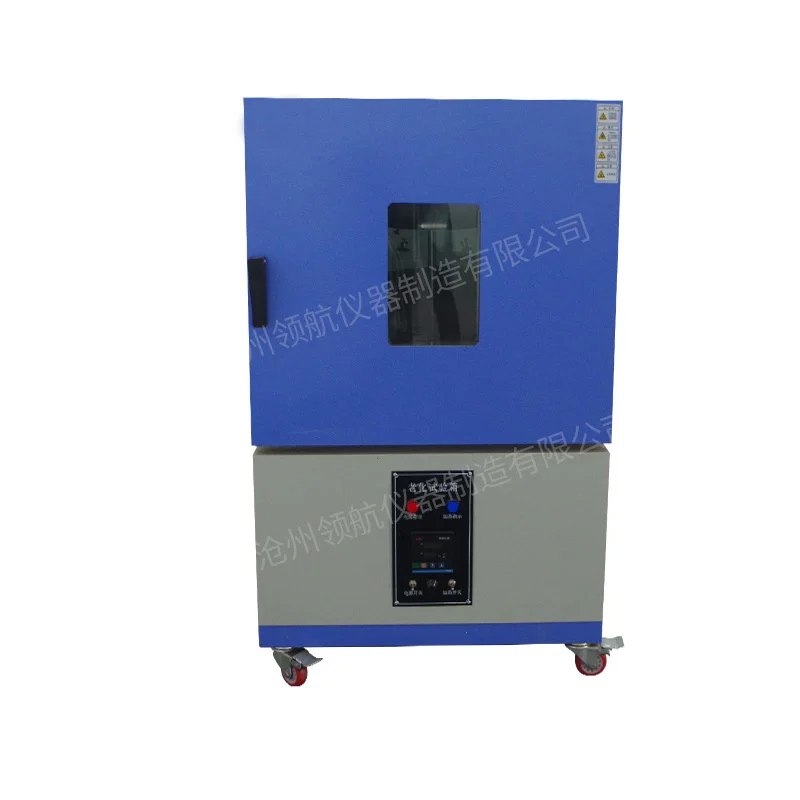

Hot air aging chamber：This aging box is a product designed and produced in accordance with national standards. The product has a series of advantages such as variable size, light weight, and good thermal insulation performance. It has automatic cold junction compensation function, good anti-vibration and anti-interference performance, automatic temperature measurement control, high temperature measurement and temperature control accuracy.
This box provides high temperature use conditions for industrial production and scientific research units, and is mainly suitable for test body aging and other aging applications.
This box provides high temperature use conditions for industrial production and scientific research units, and is mainly suitable for test body aging and other aging applications.
1. Temperature range: room temperature: +10℃～300℃,
2. Temperature deviation: ≤±2.0℃,
3. Temperature fluctuation: ≤±0.5℃,
4. Test timing range: 1～9999(s, m, h),
5. Adjustable temperature rise and fall rate The average heating rate is: 3℃～5℃/min,
6. Ventilation time: 1～99(s, m, h),
7. Adjustable air exchange rate: 3～10 times/hour, 50～100 times/hour, 100～200 times/hour (adjustable according to customer test requirements)
Ventilation method: natural ventilation, natural ventilation through the upper and lower ventilation holes of the box, forced ventilation, forced ventilation by the fan, and control of the air flow by adjusting the speed switch. ,
8. Sample turntable and speed: 5r/min steel turntable sample turntable and tensile static (dynamic) 360° rotation and vertical tensile test sample rack,
9. Circulation mode: fan forced circulation mode,
10. Outer box size: length×width×height 800×580×1300 mm,
11. Total power: 5KW,
2. Temperature deviation: ≤±2.0℃,
3. Temperature fluctuation: ≤±0.5℃,
4. Test timing range: 1～9999(s, m, h),
5. Adjustable temperature rise and fall rate The average heating rate is: 3℃～5℃/min,
6. Ventilation time: 1～99(s, m, h),
7. Adjustable air exchange rate: 3～10 times/hour, 50～100 times/hour, 100～200 times/hour (adjustable according to customer test requirements)
Ventilation method: natural ventilation, natural ventilation through the upper and lower ventilation holes of the box, forced ventilation, forced ventilation by the fan, and control of the air flow by adjusting the speed switch. ,
8. Sample turntable and speed: 5r/min steel turntable sample turntable and tensile static (dynamic) 360° rotation and vertical tensile test sample rack,
9. Circulation mode: fan forced circulation mode,
10. Outer box size: length×width×height 800×580×1300 mm,
11. Total power: 5KW,
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-30 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement,we will do our best to meet your needs.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change.
Q: How to install and use the product?
A: The product is shipped with an operating instructions and video of English version.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-30 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement,we will do our best to meet your needs.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change.
Q: How to install and use the product?
A: The product is shipped with an operating instructions and video of English version.
