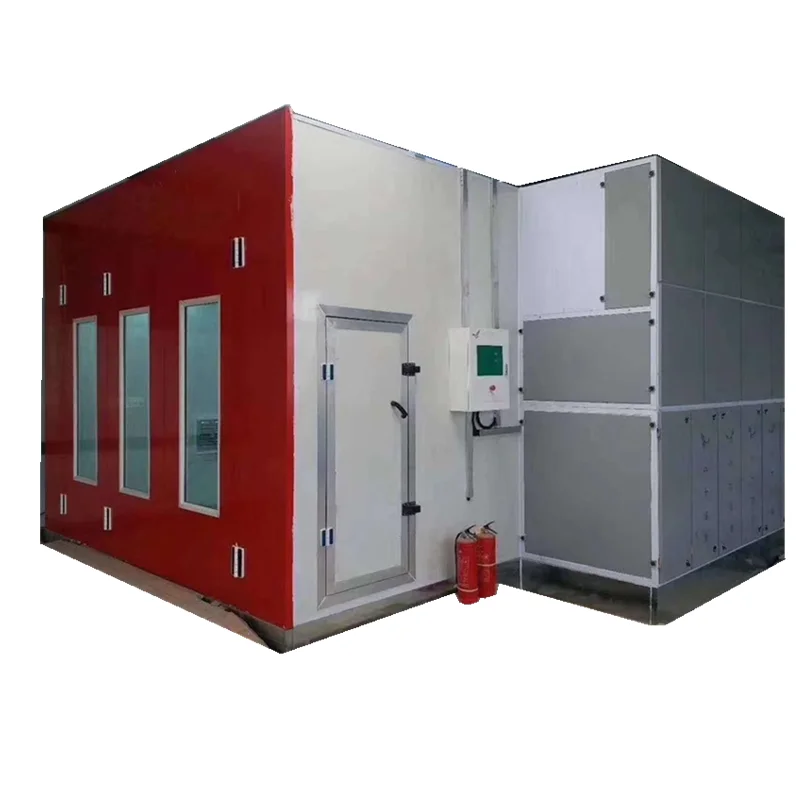

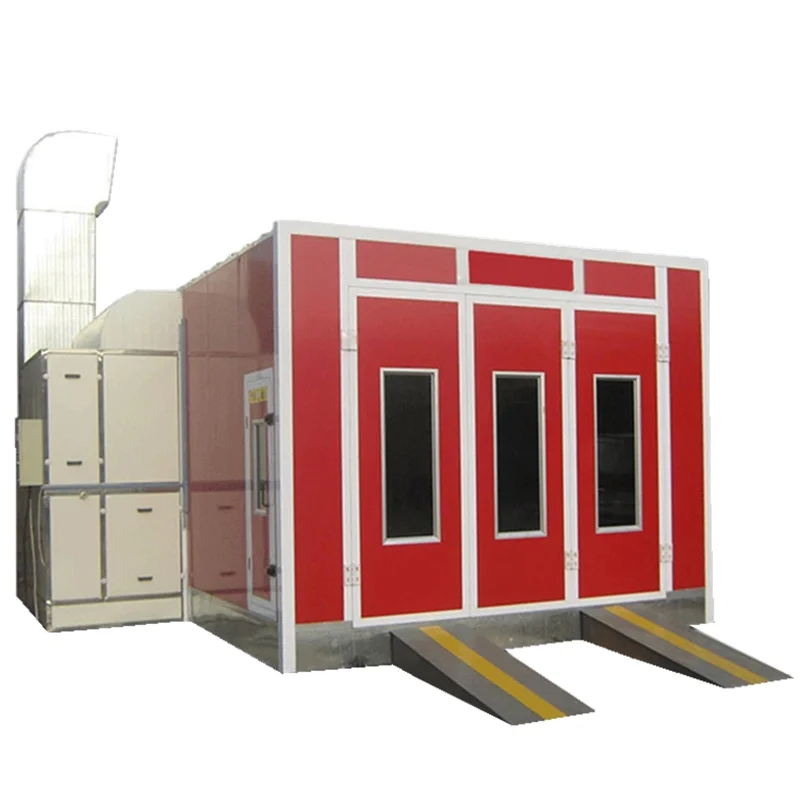

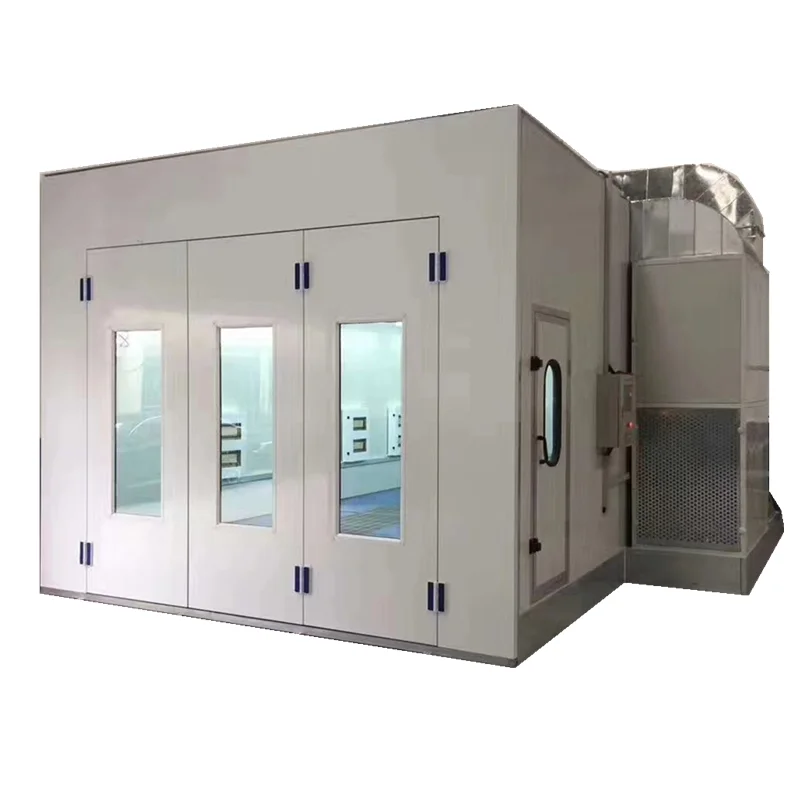

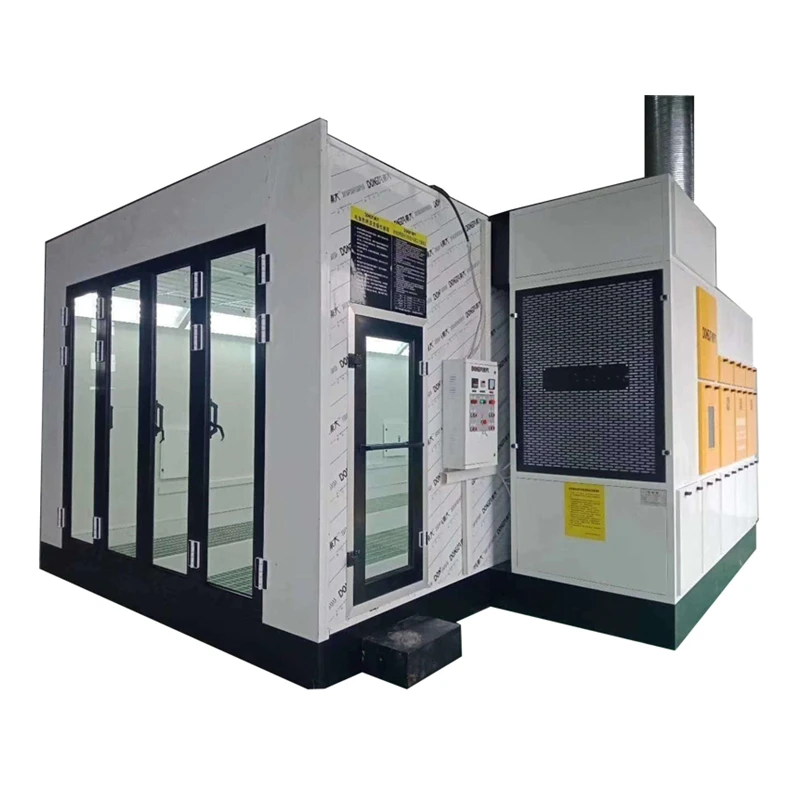

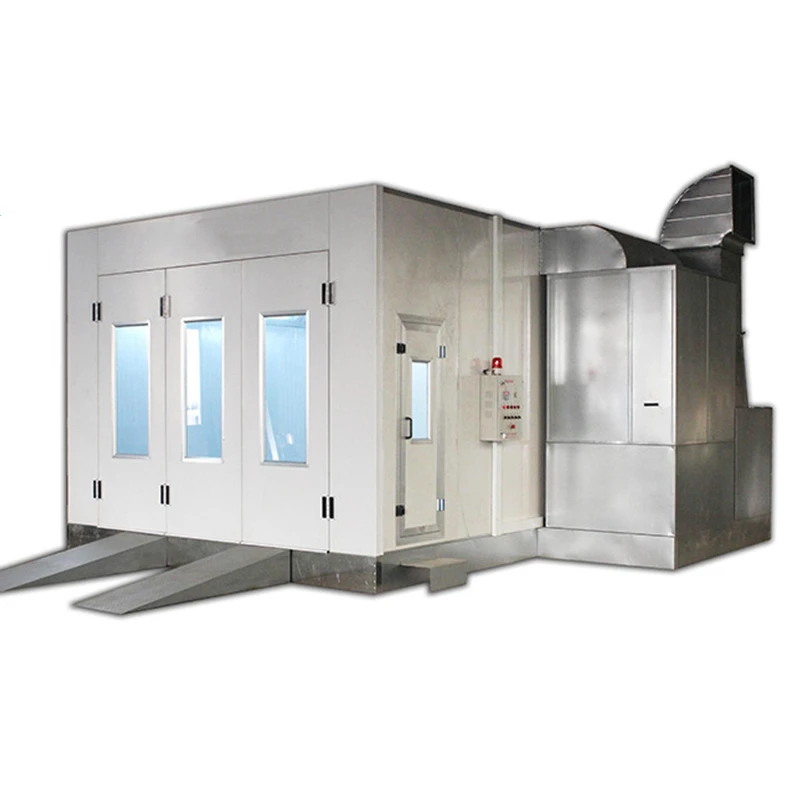

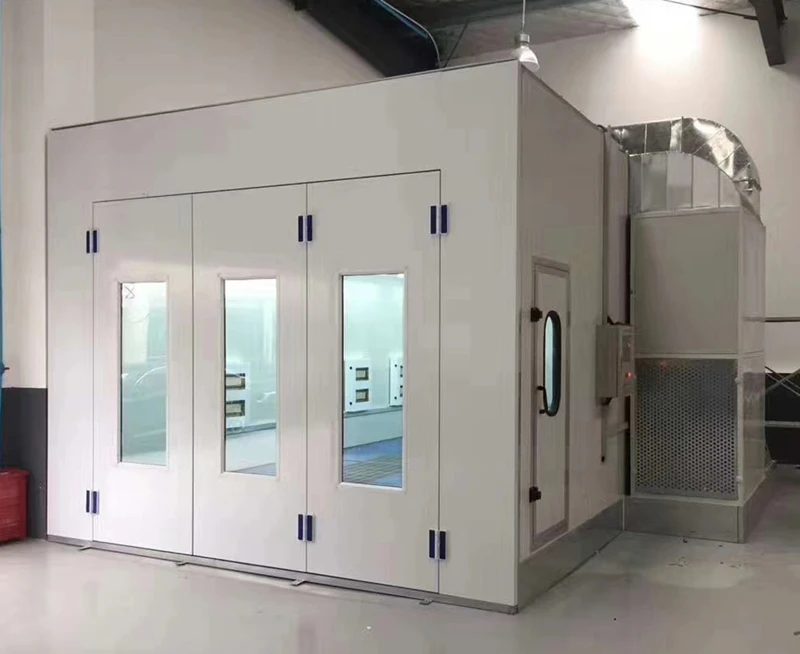

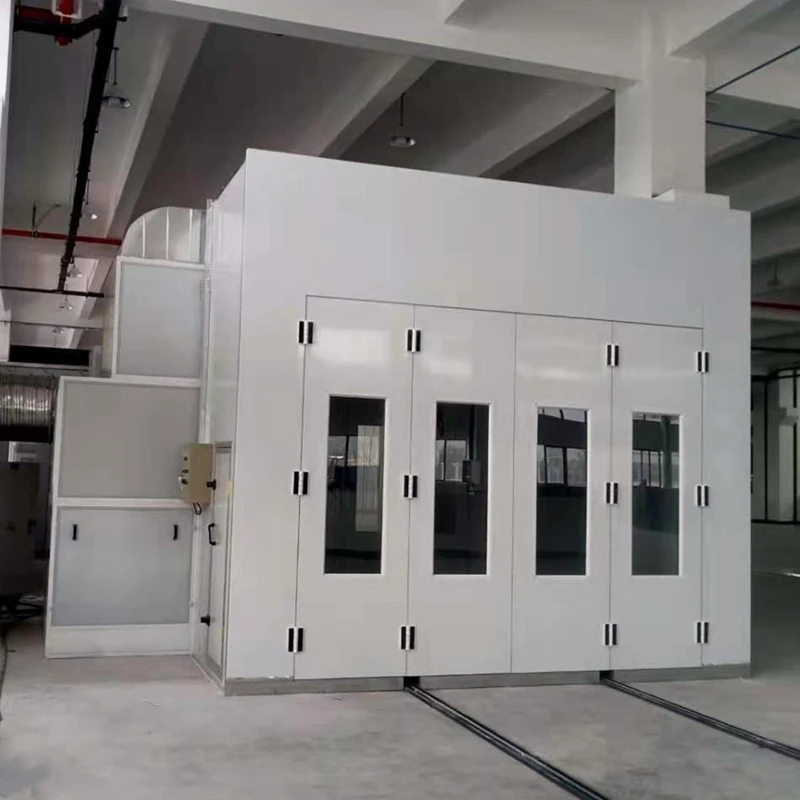

4S Workshop Used Electric Heating Inflatable Spray Paint Booth

      Outside Size:

7000*4000*3300mm

      Inside Size:

6900*3900*2650mm

       Cabin system:

Wallboard:

Antiflaming EPS Plate, 50mm thick,

steel skin is 0.5mm thick, tongue & groove style, anti-flame and heat-insulation, galvanized steel roof panel.

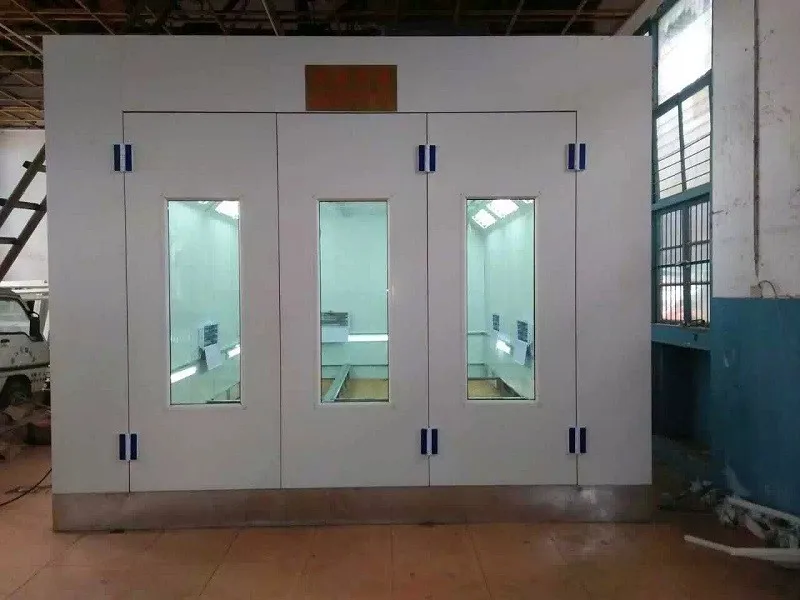

Main door:

3-fold main doors,total 3000*2500mm(W*H),with safety glass,

with handles and high-pressure safety lock.

Side door:

1 unit 700*1800mm(W*H), with safety glass windows,

aluminum alloy frame, with handle and safety lock.

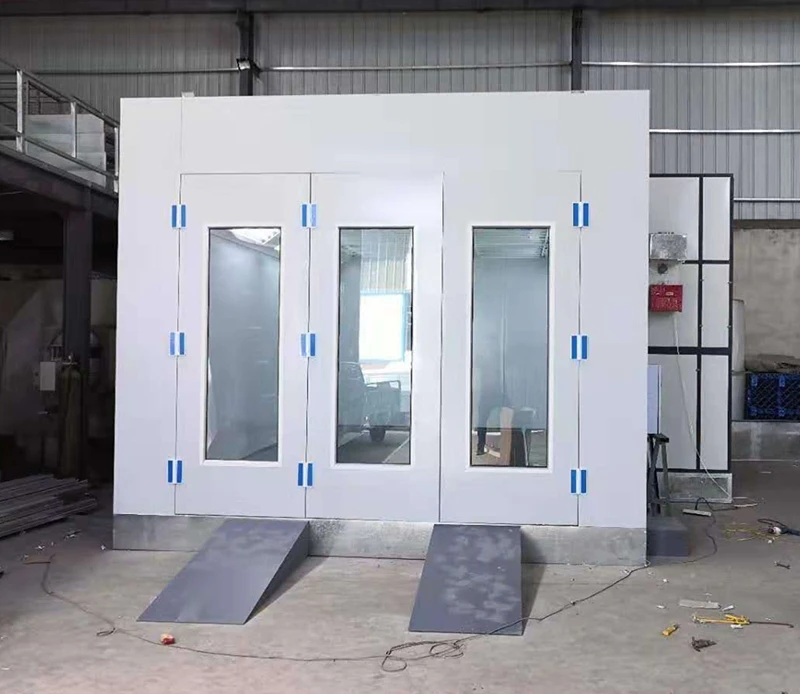

Basement:

280mm height galvanized metal-base.

2 rows of grid plates made by flat bar and round steel, 3 rows of embossed plates.

Two sets of hard strength ramps.

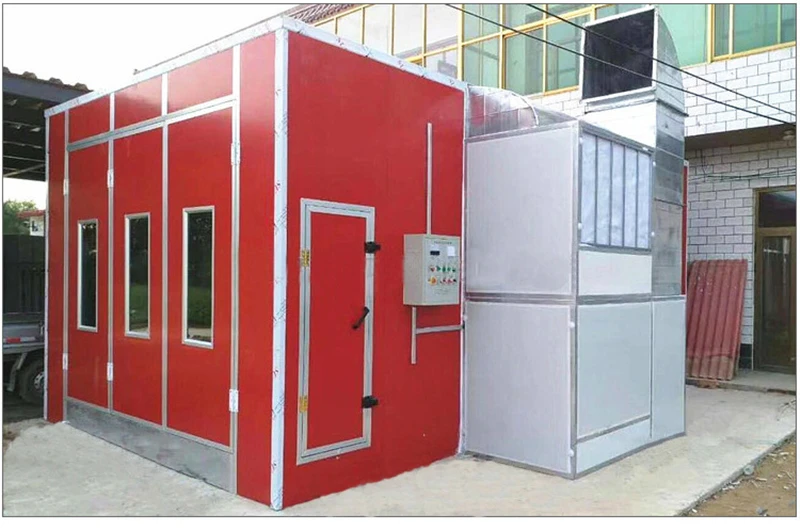

    Air circulation         System:

Intake Fan:

2*4kw;double-inlet centrifugal fans, air capacity:25000m3/h.

Exhaust Fan:

1*7.5kw; double-inlet centrifugal fans, air capacity:22000m3/h.

Cabinet for the fans*1unit,air duct: 0.9m*3,Elbow:90°*1unit

    Filtering system:

Pre-filter, filtering rate>83%,can capture granules larger than 10μm;

Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm

Fiberglass floor filter, filtering rate>70%.

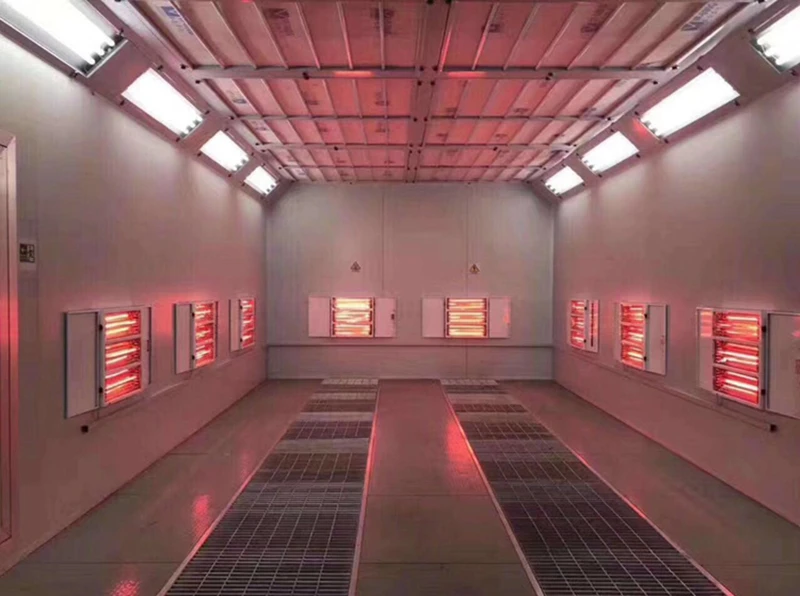

    Heating System:

Electric infrared heating tubes,10sets *3kw, 30kw in total(10 units infrared lamps, for heating, 3lamps per unit,each lamp is 1kw, totally it is 30kw).

Service time about 6000 hours.

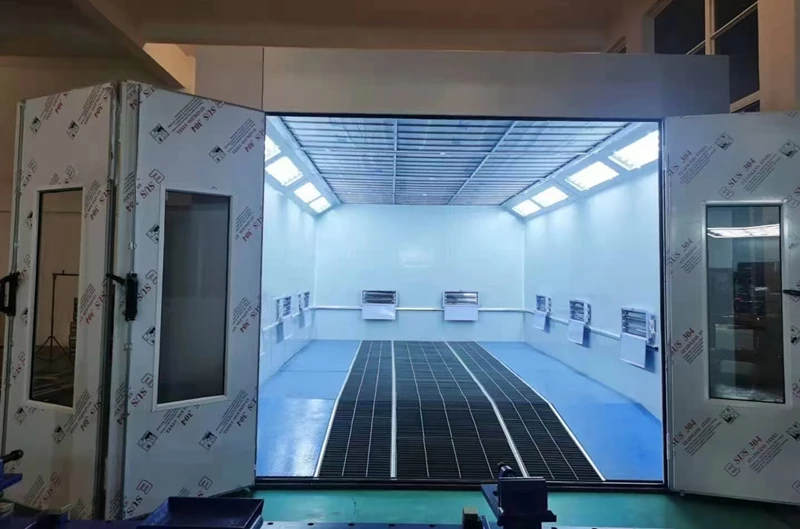

    Lighting system:

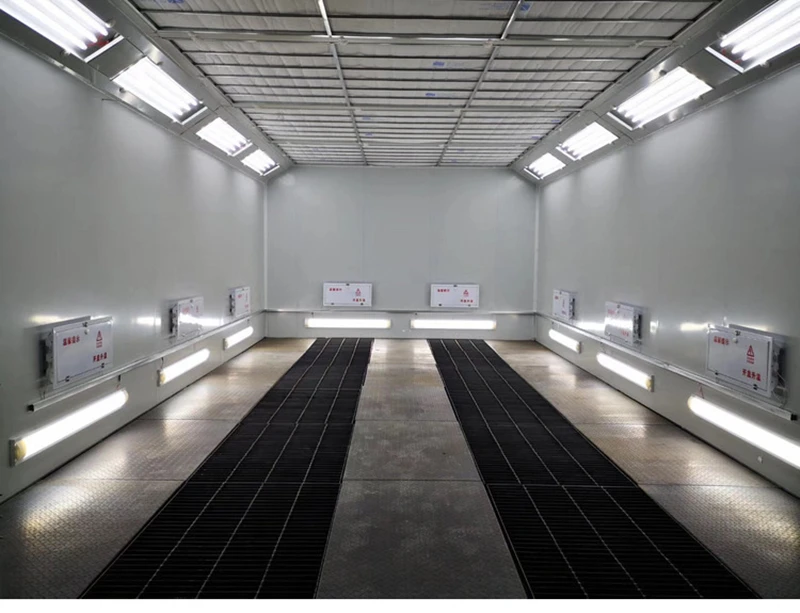

Ceiling lights: 8units*3pcs=24pcs*20w LED lights, powder-coated light box.

Wall lights:8units*2pcs=16pcs *20w LED lights, vertically set,powder-coated light box.

     Controlling              System:

Intelligent control,power switch,spray/baking switch,light switch,emergency stop,breakdown alarm.

      Power total:

About 46KW (380V/3P/50hz)
