JTK10 90A JUITA 360 degree head rotate Industrial Flatbed Sewing Machines High Efficient Automatic Template Sewing Machine
- Category: Sewing Machines >>>
- Supplier: ZHEJIANG JUITA INTELLIGENT TECHNOLOGY CO. LTD
Share on (1600489347944):
Product Overview
Description
Specification
JTK10-90A JUITA Brand 360 Degree machine head rotate automatic template pattern sewing machine
1) Powerful CNC system

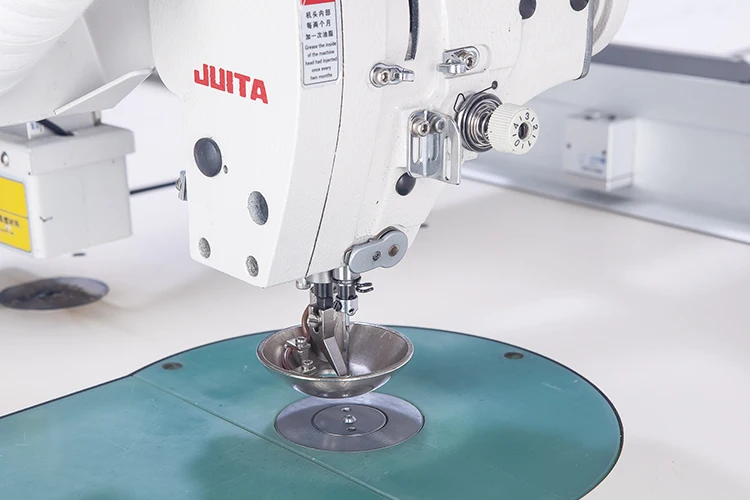

2) Machine head 360°rotate seam, make sure the stitches beautiful and all forward stitches. The base developed by the independent patent makes the machine more scientific, practical and stable.
3) Automatically recognize various CAD file formats of garment factories
4) Template automatic identification system(RFID function)
5) Standard effective sewing range: X-axis 130cm, Y-axis 85cm
6) It can be selected from various working range such as 150x100cm, 150x110cm and so on.
7) Equipped with eight languages

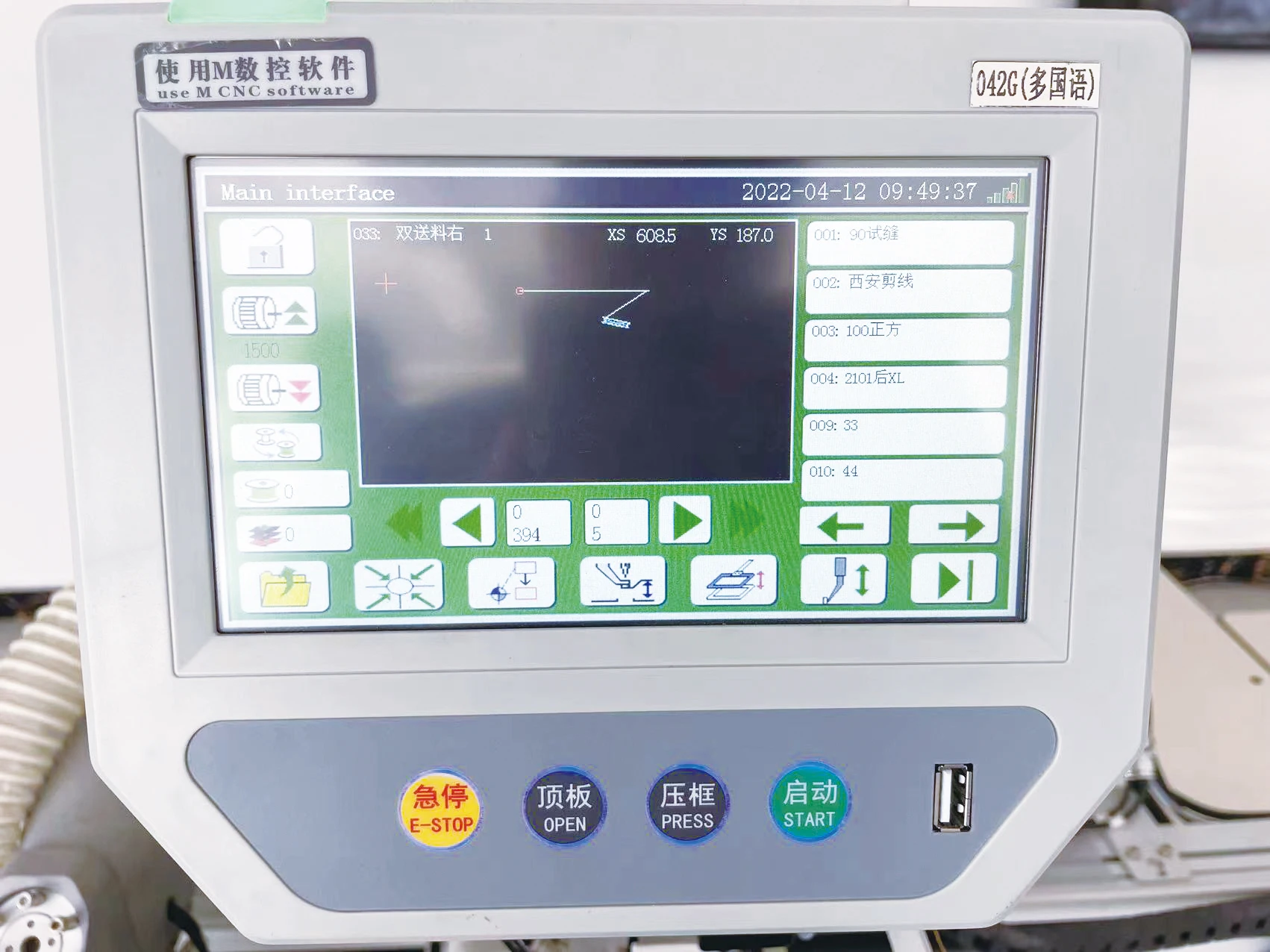

8) Smart touch operation panel
9) loT capabilities required for smart factory(WIFI)

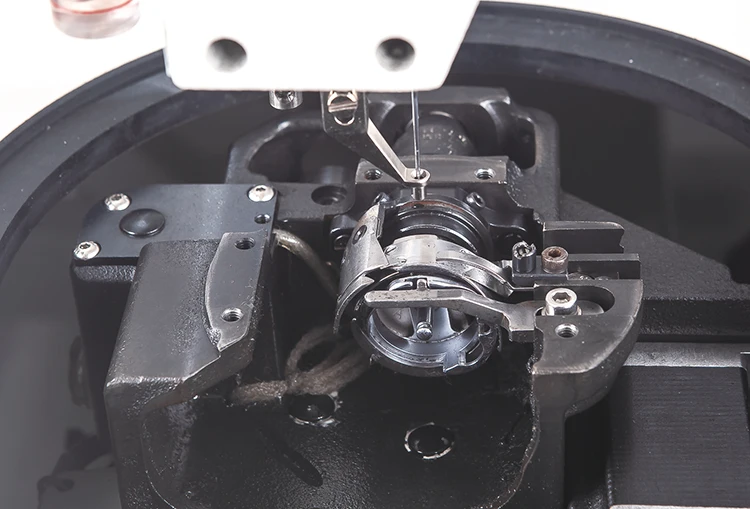

10) Imported twice as large hook, reducing the frequency of bottom thread replacement.
11) Circular knife thread trimming device
12) Bottom line detection, saving line and cloth.
13)With intelligent point and line drawing function
2) Machine head 360°rotate seam, make sure the stitches beautiful and all forward stitches. The base developed by the independent patent makes the machine more scientific, practical and stable.
3) Automatically recognize various CAD file formats of garment factories
4) Template automatic identification system(RFID function)
5) Standard effective sewing range: X-axis 130cm, Y-axis 85cm
6) It can be selected from various working range such as 150x100cm, 150x110cm and so on.
7) Equipped with eight languages
8) Smart touch operation panel
9) loT capabilities required for smart factory(WIFI)
10) Imported twice as large hook, reducing the frequency of bottom thread replacement.
11) Circular knife thread trimming device
12) Bottom line detection, saving line and cloth.
13)With intelligent point and line drawing function
14) Zhejiang Manufacturing certification, We are the main drafting unit of the industry standard and Zhejiang Manufacturing standard for this series product.
15)Optional super function
Laser cutting device,
Automatic shuttle changer,
Left and Right/Single and bilateral automatic auxiliary feeding mechanism,
LoT intelligent robot, automatic manipulator device,
Automatic template change function.
15)Optional super function
Laser cutting device,
Automatic shuttle changer,
Left and Right/Single and bilateral automatic auxiliary feeding mechanism,
LoT intelligent robot, automatic manipulator device,
Automatic template change function.
Products Model No: | JTK10-90A |
Product name | JUITA Brand 360 Degree machine head rotate automatic template pattern sewing machine |
Sewing range | X: 130cm Y: 85cm |
Stitch type | Lockstitch form |
Speed | 200-3500 rpm (depend on the model, gauge, material,suture situation) |
Stitch length | 0.5mm - 12.7mm |
Needle type | DPx5 (#7-#24); DPx17(#11-#24) |
Hook | Imported twice large hook |
Storage of templates/pattern | From the original 999 upgrade to unlimited |
Program input device | PC USB data cable or U disk |
Program memory carrier | EPROM memory |
File format | DXF, PLT, AI, etc. |
Power supply | 220V |
System brand | M |
Gross weight | 750KG |
Volume | 220*132*170cm (LxWxH)- 4.937CBM |
