Whole Set Of Fiber Laser Source 3000W 2000W 1500W 1000W Raycus Fiber Laser Source BM111 Fscut2000 bcs100 Metal Cutting
- Category: >>>
- Supplier: Wuhan Maxwave Laser Technology Co. Ltd.
Share on (1600489376279):
Product Overview
Description
Product Overview
It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation
frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting,
cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate
with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting,
cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate
with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
FEATURES AT A GLANCE
* Precision Cutting
* Metal Welding
* Sheet Metal Piercing
* Metal Carving
* Surface Treatment
* 3D Printing/Rapid Prototyping
* Metal Welding
* Sheet Metal Piercing
* Metal Carving
* Surface Treatment
* 3D Printing/Rapid Prototyping
PRODUCT SPECIFICATIONS
Model | Item | C3000 | Test Conditions | |||
Nominal Output Power (W) | Power | 3000 | ||||
Operation Modes | Bucket capacity | CW/Modulated | ||||
Polarization State | Operating weight | Random | ||||
Output Power Tunability(%) | Max. tractive force | 10~100 | ||||
Emission Wavelength(nm) | Max. breakout force | 1080±5 | Nominal Output Power | |||
Output Power Instability(%) | Tipping load | ±1.5 | Nominal Output Power | |||
Engine displacement | Operation Time：≥5h | |||||
Max. torque | Ambient Temperature: 22±1℃ | |||||
Modulation Frequency(Hz) | 1~5,000 | |||||
Red Guide Laser Power(mW) | 0.5~1 | |||||
Beam Quality(mm×mrad) | 1.5~2 | Nominal Output Power | ||||
Fiber Core Diameter(μm) | 50（with 100、200 options） | |||||
Numerical Aperture | 0.2 | |||||
Delivery Cable Length(m) | 20 | Length customizable | ||||
Power Supply | 380±10% V AC、50/60Hz | |||||
Max. Power Consumption(W) | 10000 | |||||
Control Mode | RS-232/AD/Ethernet | |||||
Dimensions(W×H×D)（mm） | 900×447×250(include. handles)) | |||||
Weight(kg) | <80 | |||||
Operating Ambient Temperature (℃) | 10-40 | |||||
Humidity (%) | 30~70 | |||||
Storage Temperature (℃) | -10~60 | |||||
Cooling Method | Water Cooling | |||||
PRODUCT CONFIGURATION

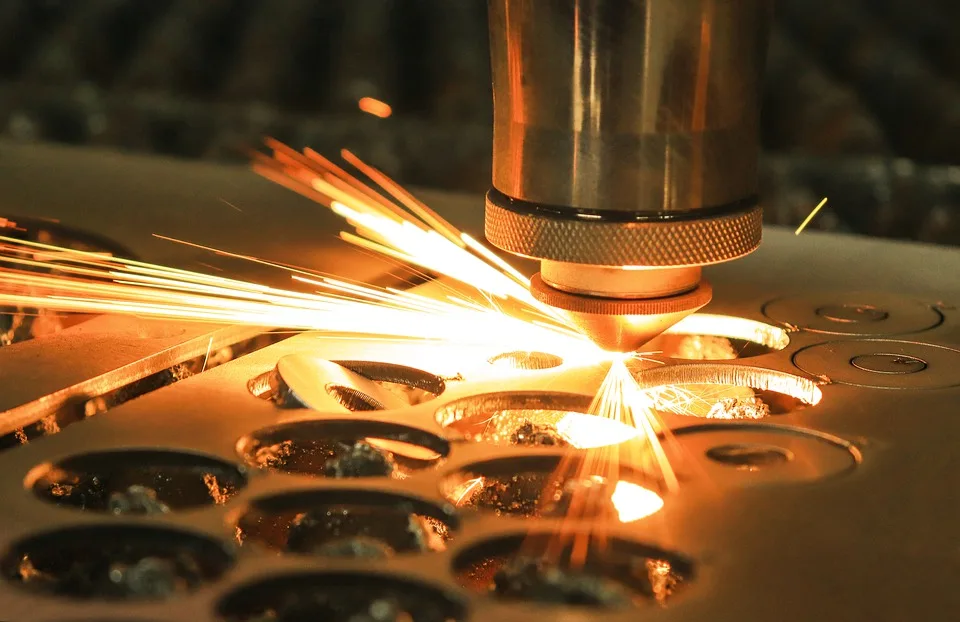

Laser Cutting
Laser Welding
Laser Cleaning
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS

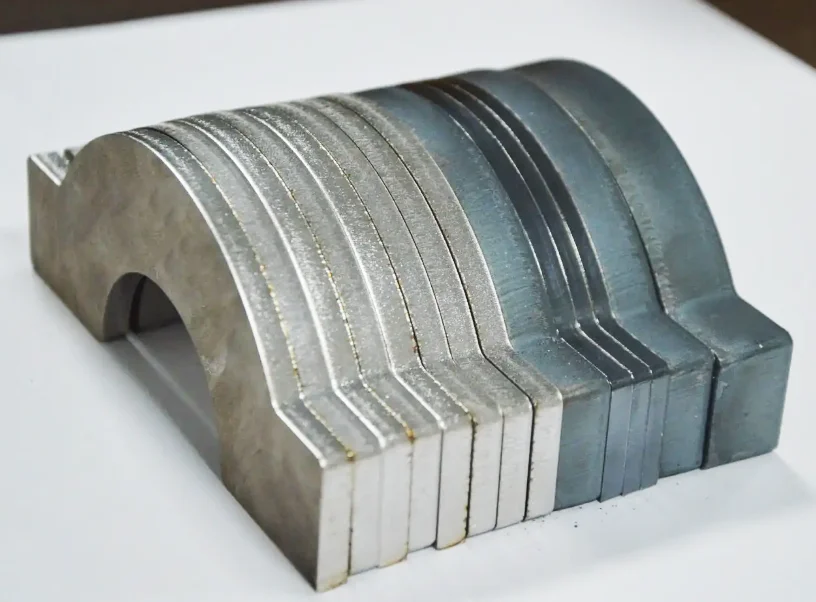

Cutting sample
FCL-3000C has superior cutting cap capacity. Cutting excellent quality and fast speed.
Compared with traditional lasers, Raycus CW fiber laser has higher efficiency electric-optical conversion, lower power consumption
and excellent beam quality. The fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted
into user’s apparatus.
and excellent beam quality. The fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted
into user’s apparatus.
Product packaging
Before packing, we wrap the machine in a soft material to prevent damage in transit. Packed in high-strength, lightweight export packaging for easy and safe transportation.
