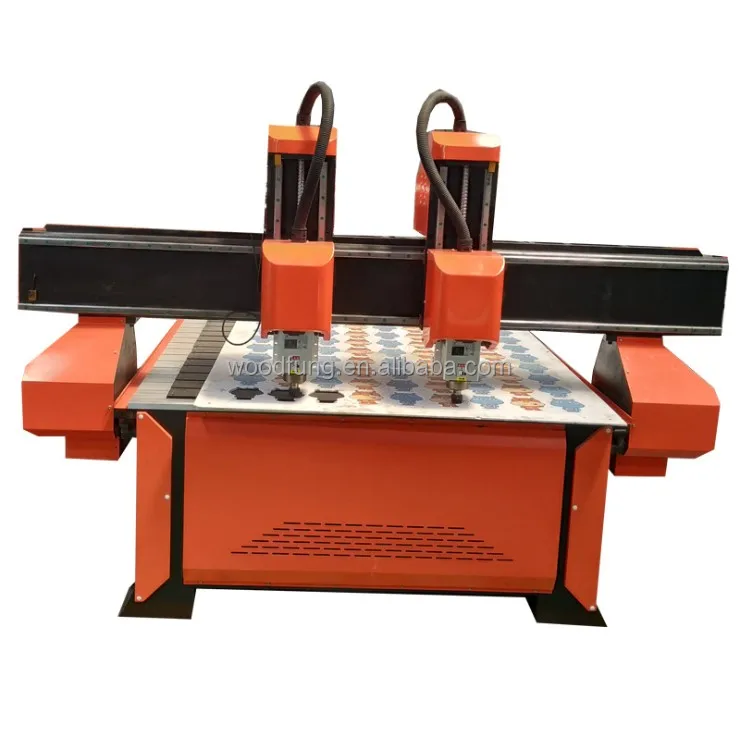

Wood CNC router Machine Woodworking Machinery 1325 CNC Machine for cabinet furniture door cnc cutting router
- Category: >>>
- Supplier: Dongguan,Woodfung,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Wood CNC router Machine Woodworking Machinery 1325 CNC Machine for cabinet furniture door cnc cutting router
1) Aluminum cast wholly frame,double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
2) High power water cooling brudless motor,more forceful cutting capability,wear well.
3) High speed driver and stepper motor could enhance easy maintenance.
4) Advanced in CNC industry,break-point memory for 10pcs,reducing material waste.
5) High compatibility,applicable for CNC soft ware:Type3,Artcam,Castmate,Pore,Wentai,variable CAD/CAM etc.It is easily to process
relief sculpture,shadow carving,three dimension characters in fancy style etc.
1) Aluminum cast wholly frame,double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
2) High power water cooling brudless motor,more forceful cutting capability,wear well.
3) High speed driver and stepper motor could enhance easy maintenance.
4) Advanced in CNC industry,break-point memory for 10pcs,reducing material waste.
5) High compatibility,applicable for CNC soft ware:Type3,Artcam,Castmate,Pore,Wentai,variable CAD/CAM etc.It is easily to process
relief sculpture,shadow carving,three dimension characters in fancy style etc.
Model | 1325 Wood CNC Router two head |
Working Area | 1300*2500*200mm |
Structure,Table Material | Big steel tube structure and heavy duty body |
Spindle Motor | 3.2 KW Water cooling spindle |
Inverter | Best brand Inverter |
Rotating Speed of Spindle | 2,4000RPM |
Drive mechanism | Gear transmission |
Table Surface | T-slot working table |
Repositioning accuracy | ± 0.0254mm |
Max motion Speed | 50,000mm/min |
Max working speed | 30,000mm/min |
Engraving Tools | ER20（Ø3.175mm, Ø6mm） |
Dictate Formate | G code, *uoo, *mmg, *plt |
Operating voltage | 220V/ 50HZ/ single phase |
Motor | 450B Stepper motor and Driver |
Control system | DSP control system |
Interface | USB |
Flash Memory | 128M |
Knife Block | Tool sensor |
Soft ware | Type3, JDPaint, ArtCAM software |
Packing | 3.27*2.15*1.88m |
Net weight | 1000KGS |
Gross weight | 1100KGS |
Product packaging
FAQ
Q1: What is the warranty for the machine?
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
Related items
After Sales service
1. Woodung Provide 15 months warranty for all customers.
2. During warranty, we provide free normal spare parts once machine has probem.
3. Woodung will solve customer's machine problem within 24 hours from the time problem raised.
4. Woodung has enough spare parts for machines.
5. When machine out of warranty, Woodung still provide free technical support and spare parts charged to customers.
ATTENTION:all machines in the website is always improving,if there is a little changed,no care.it is not influence the
usage,better quality for always improvement.
2. During warranty, we provide free normal spare parts once machine has probem.
3. Woodung will solve customer's machine problem within 24 hours from the time problem raised.
4. Woodung has enough spare parts for machines.
5. When machine out of warranty, Woodung still provide free technical support and spare parts charged to customers.
ATTENTION:all machines in the website is always improving,if there is a little changed,no care.it is not influence the
usage,better quality for always improvement.
