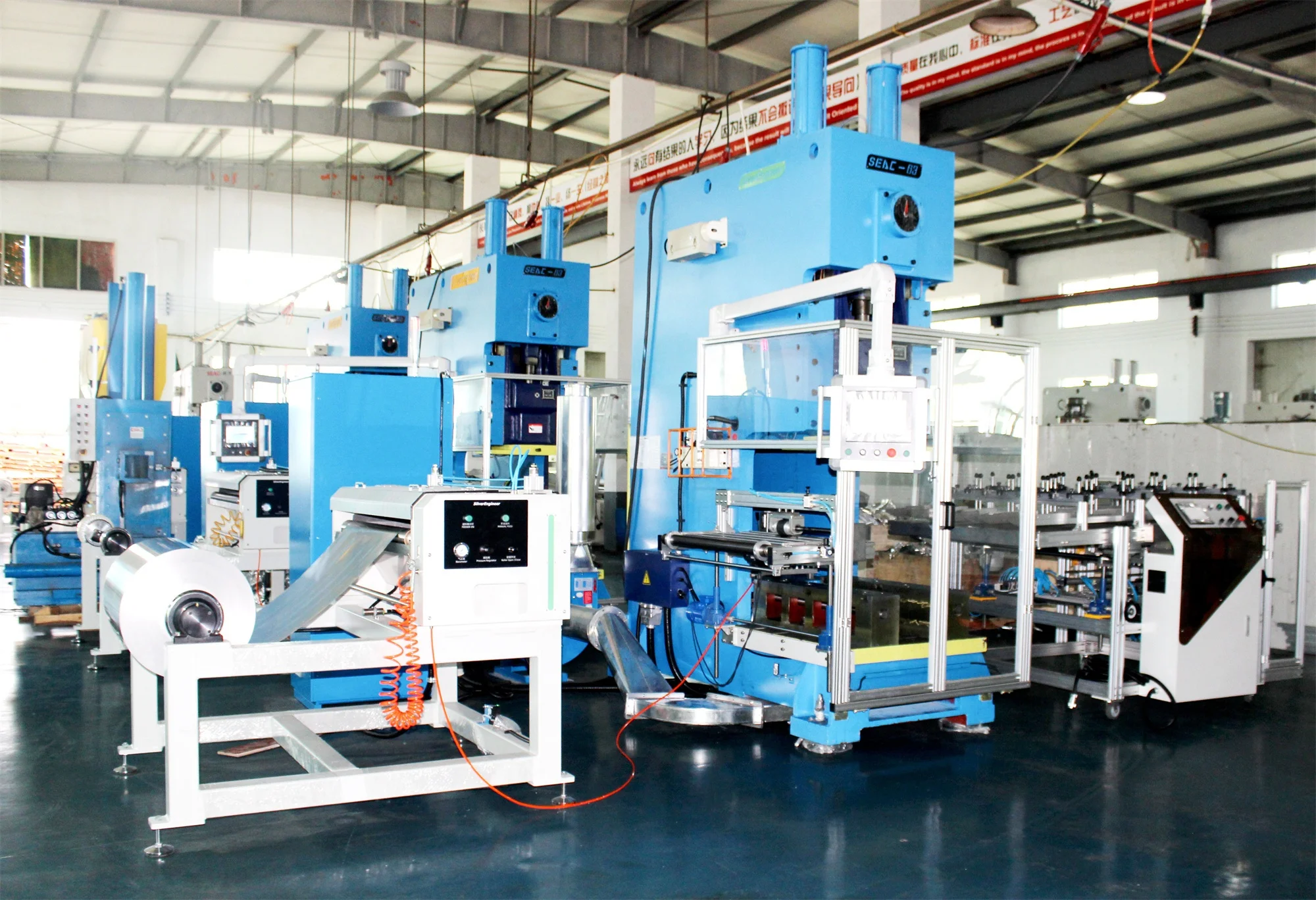

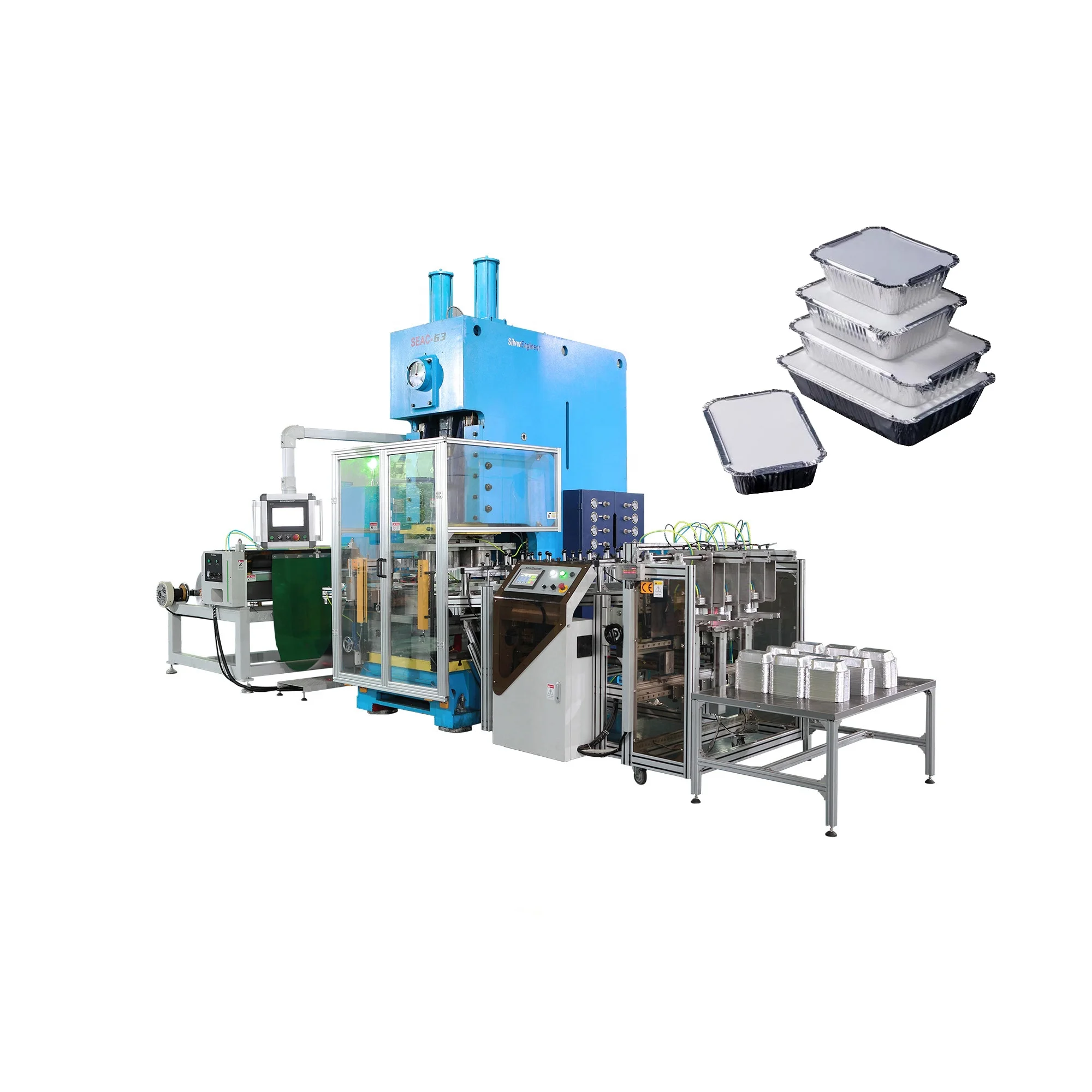

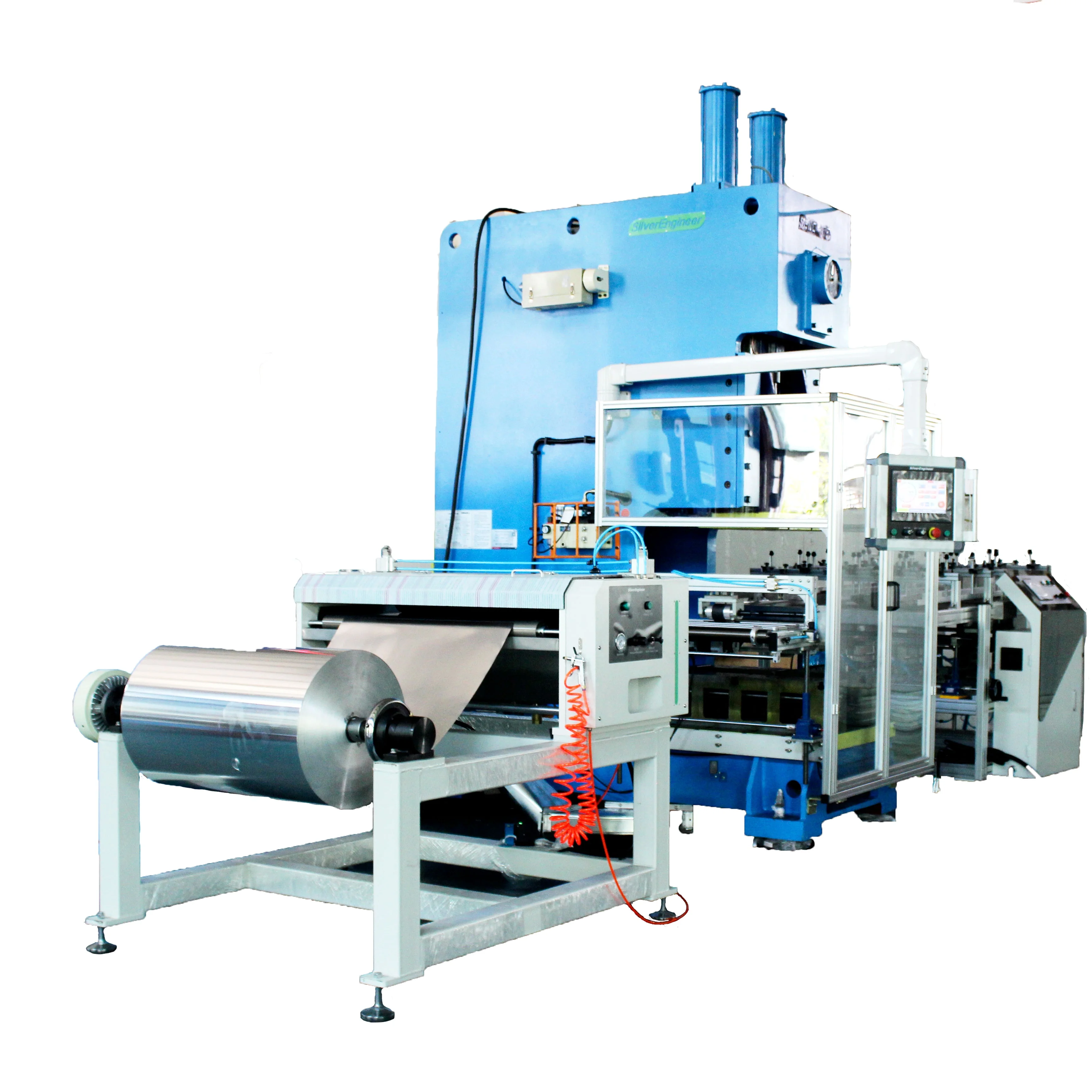

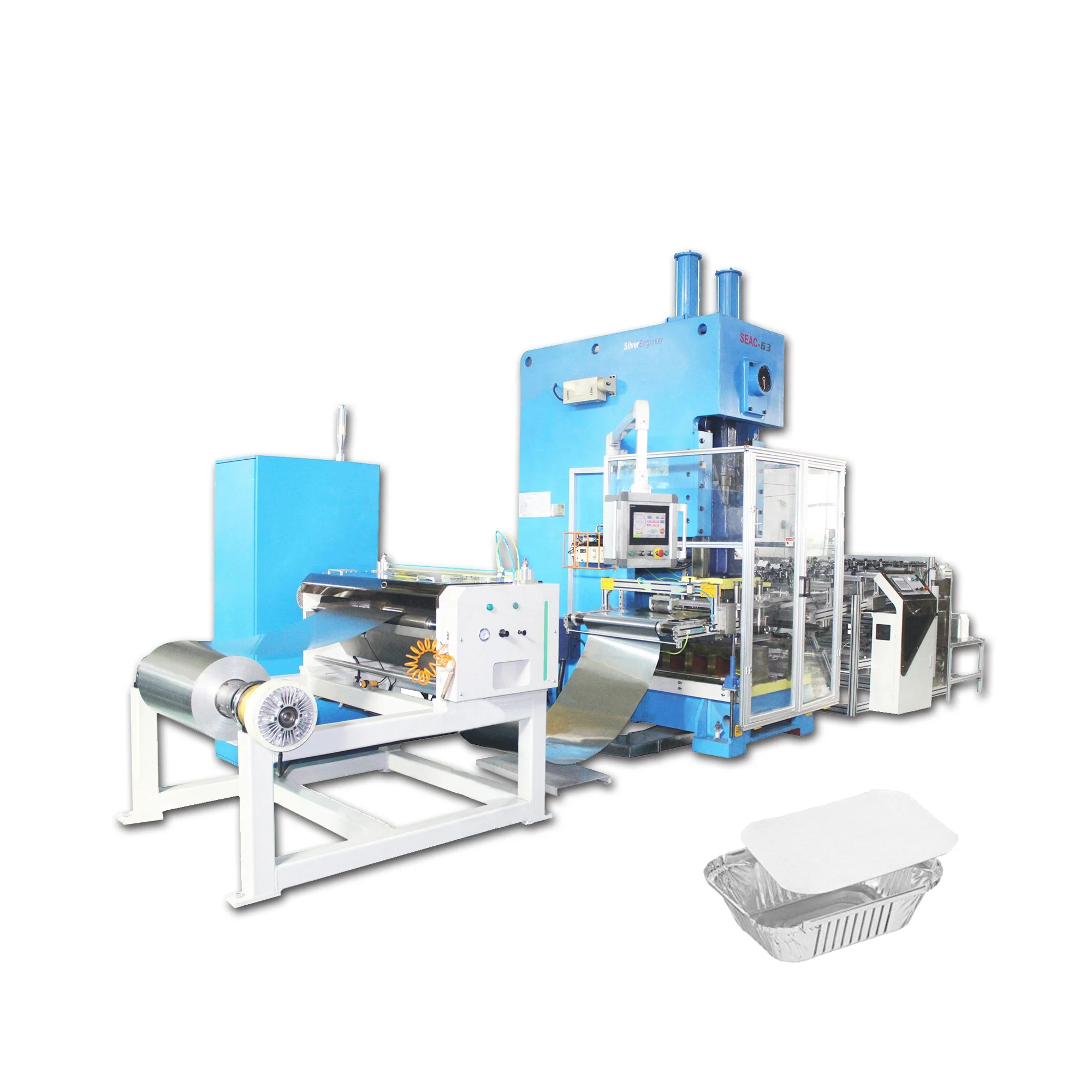

High Precision Mechanical Power Aluminium Box Foil Trays Dishes Container Making Machine With Stacker
- Category: >>>
- Supplier: Shanghai Silver Engineer Industry Co. Ltd.
Share on (1600489503196):
Product Overview
Description
Product pictures
Products Description

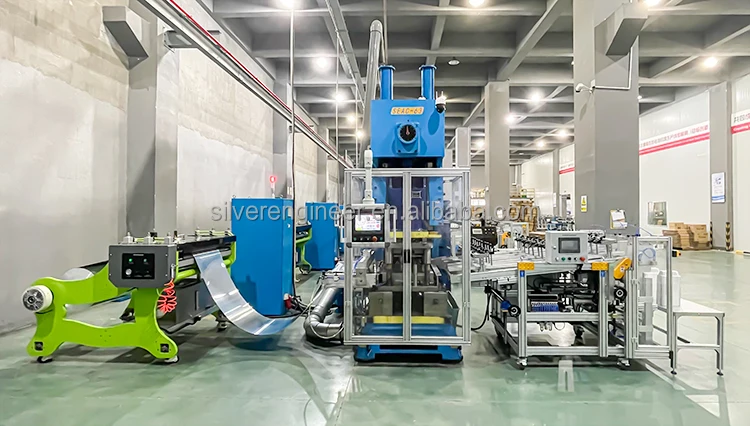

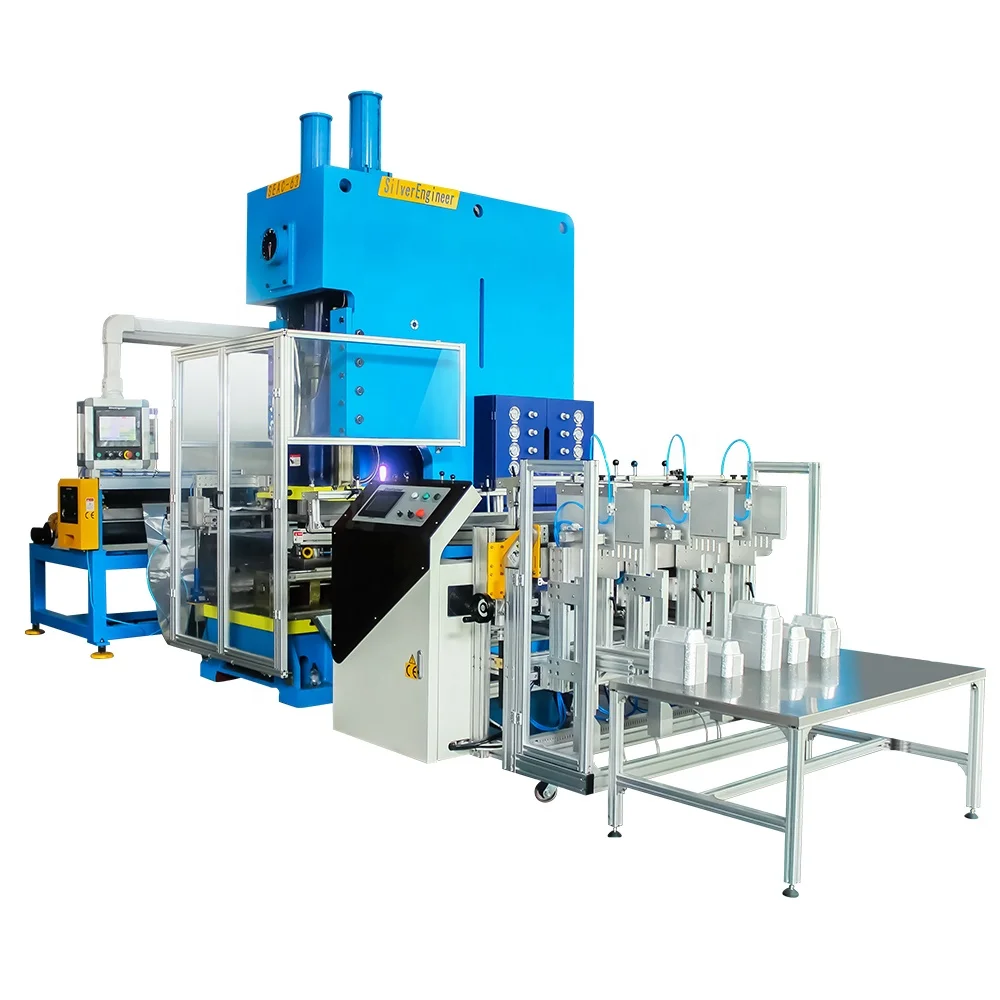

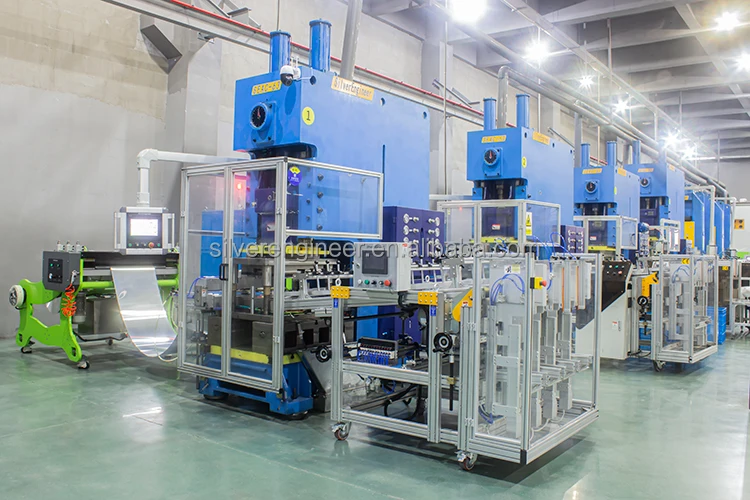

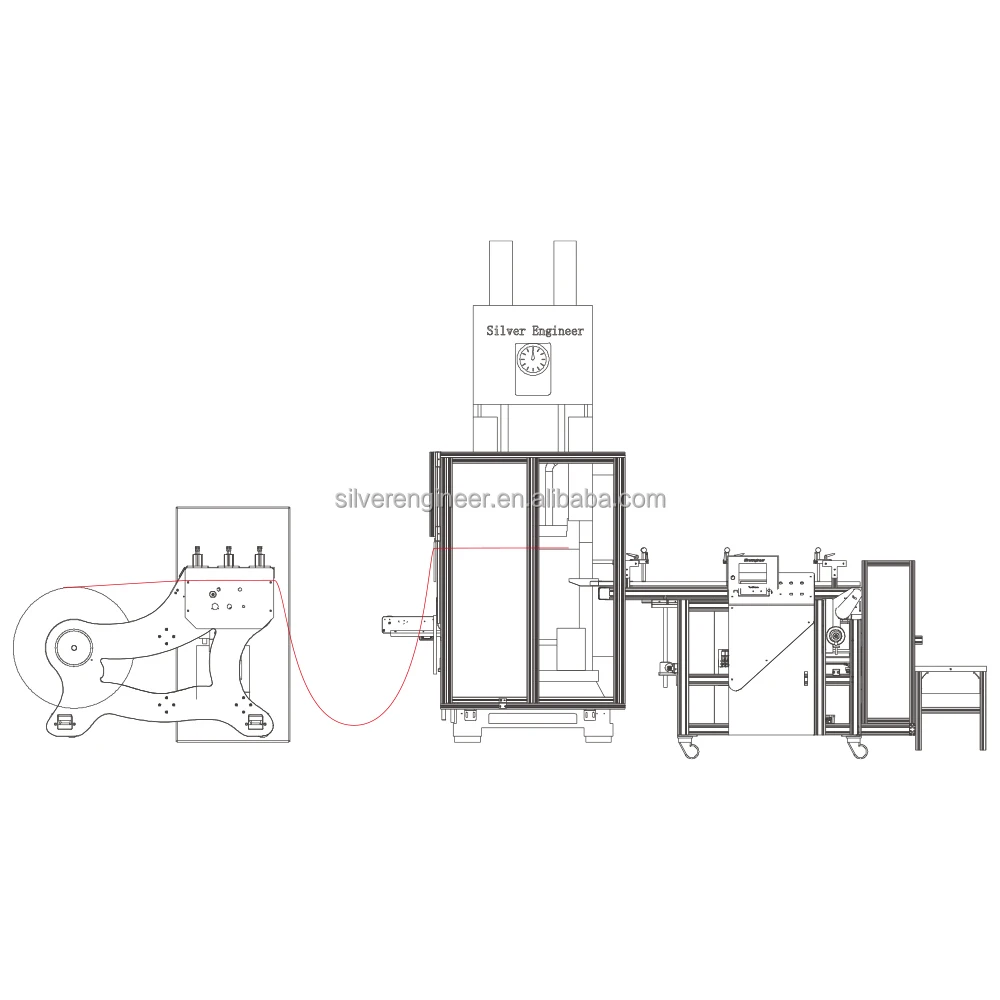

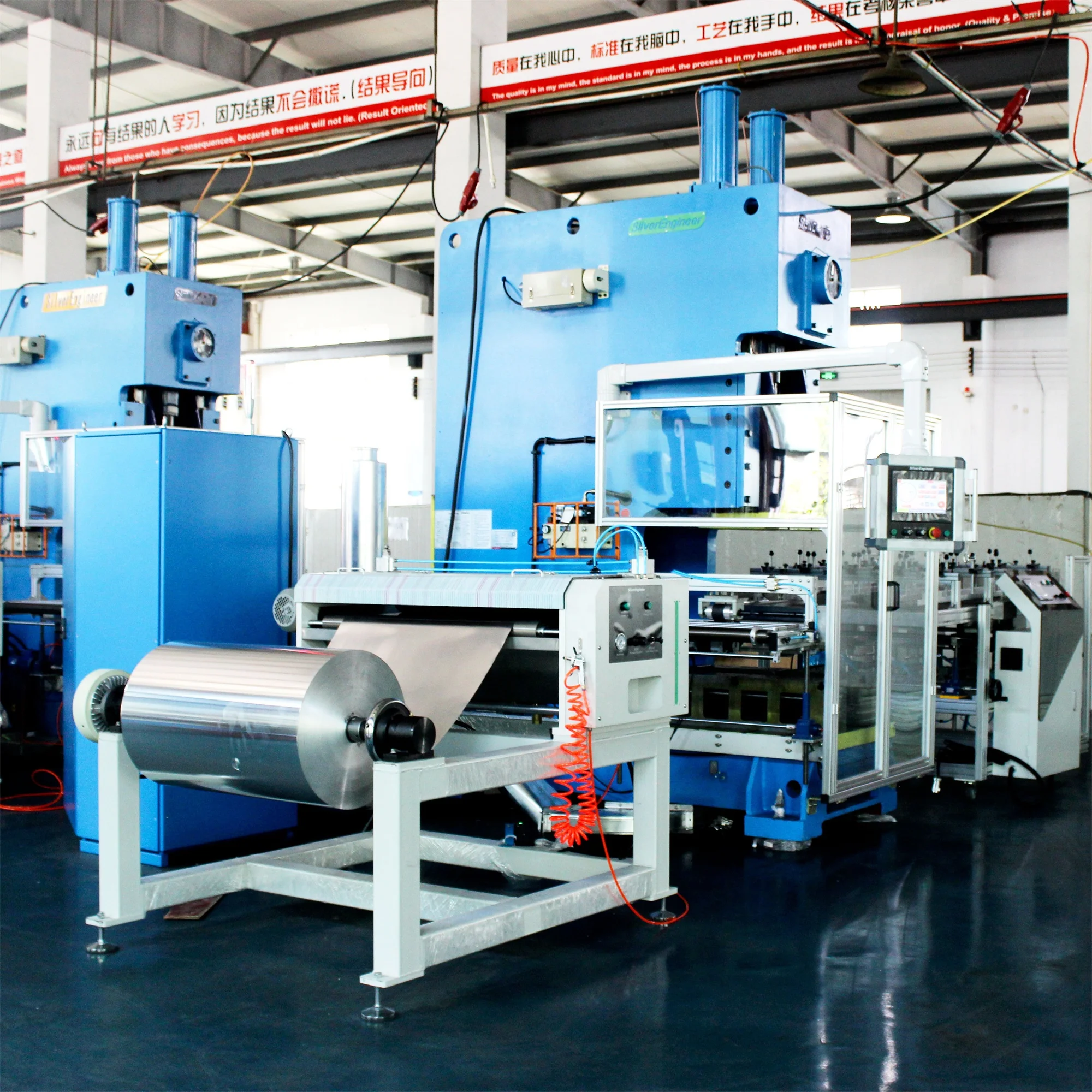

SEAC-63A uses C type six guide rail custom precision mechanical press. The hardware and software of the whole production line adopt mechatronics design. The whole automatic production line is mainly composed of feeder, press, stacker and scrap system. The integrated electrical control cabinet of the three units of feeder, press and waste system adopts independent system design, which is safe and anti-interference. The touch screen is hung on the left side of the press, which is convenient for operation and does not occupy space. The electrical cabinet of the stacker is installed on one side of the stacker and independently controls all parameter setting and operation of the stacker. The PLC program logic of the whole production line matches perfectly, which greatly improves the production efficiency of the whole machine and the rationality of the program control logic, and makes it more intelligent and humanized.
Model | SEAC-63A (1-4Cavities) |
Nominal Force | 630KN |
Main Motor | 11KW, SIEMENS |
Stroke Range | 150-300mm |
Adjustable Speed | 30-80times/min. |
Electromagnetic pressure regulating valve | 10sets (2*5cacities) |
Bed Plate Dimension | L1100xW920mm,2sets movable plate |
Max.Mould Dimension | L1200xW850xH450mm |
Number of Air Tank | 5units |
Press Lubricant Solution | Solid Lithium Grease, Manual Filling |
Max. Width of Foil Passage | 900mm |
Oil Coating Way of Feeder | Fast Drying Type Oil Immerse Oil Tank |
Feeder Tension Control | Automatic by Ultrasonic Sensor |
Max.Diameter of Foil Roll | 600-1500mm |
Feeder Precision Control | ±0.1mm, Mitsubishi Servo System |
Stacker Belt Size | L2000xW900mm |
Min.Size Stack Available | 120x120mm |
Products Stacking Size | One lane: L500xW800xH350mm Two lane: L500xW400xH350mm Three lane: L500xW250xH350mm Four lane: L500xW190xH350mm |
Lifting System | SMC Servo Cylinder |
Main Electric Brand | Mitsubishi,SMC,Schneider,OMRON,SIEMENS |

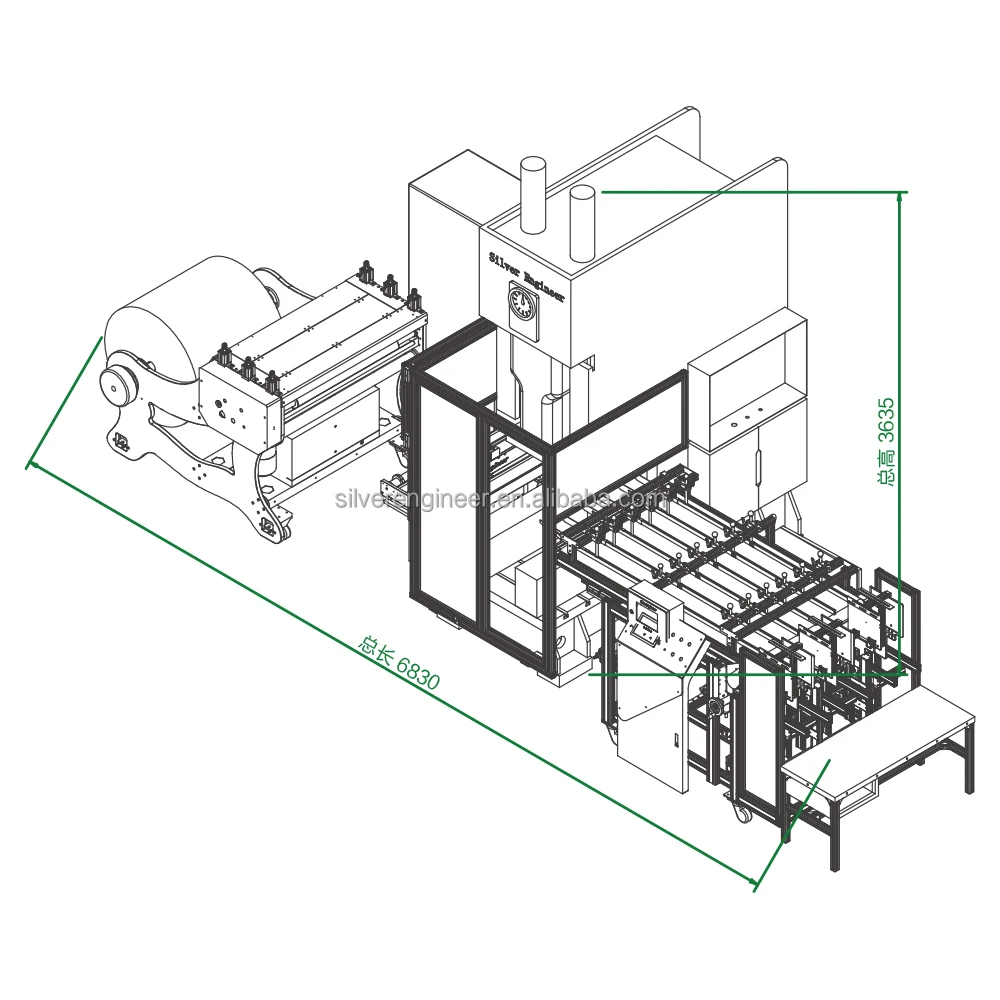

Production Line Dimension | 7100x2500x3500mm |
Production Line Weight | 11,500KGS |
PLC
Adopt High Configuration Mitsubishi FX5U-64M PLC: stronger function, more stable and faster response, and 30 sets of mould processing parameters are stored and memorized.
Control system
Adopt Cantilever Rotatable Integrated Touch Screen Control Structure: more flexible, safer and less space than the traditional mobile console.
workbench
The worktable adopts split 8 groups of lifting steel balls: one worker can unload the mould and change the mould within 15 minutes, which is really fast and labor manpower saving.
Product accessories

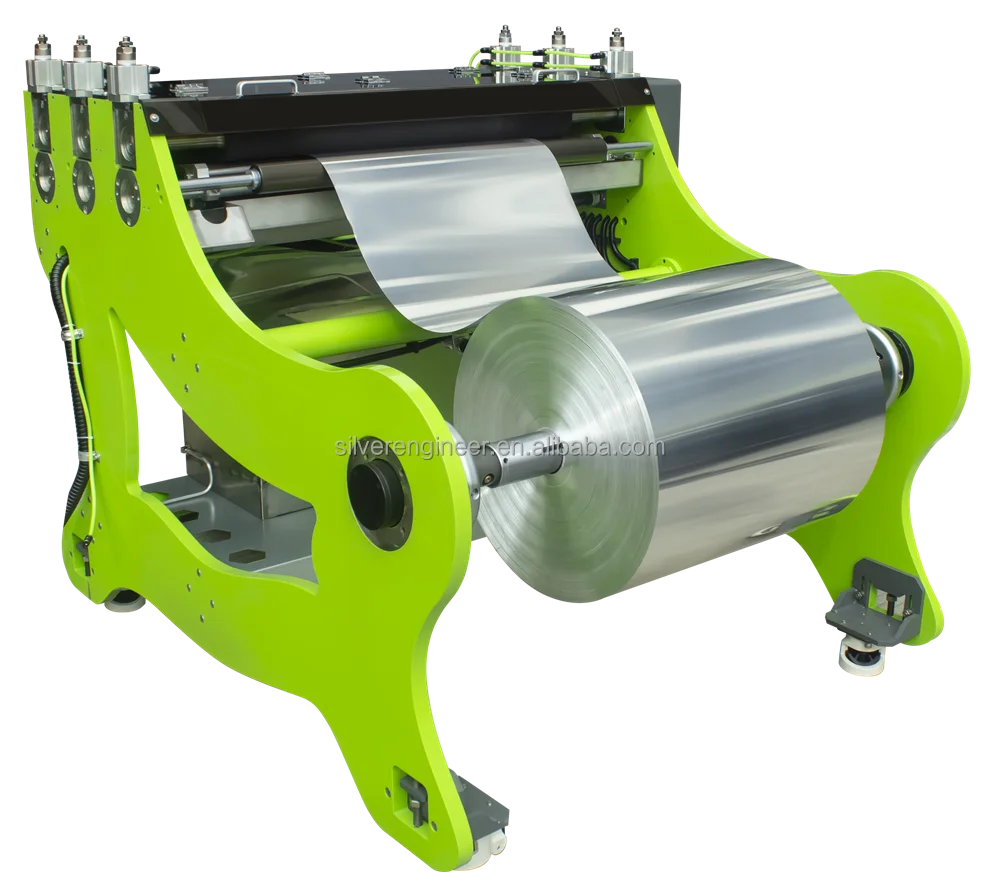

Aluminum Foil Feeder
There are four models of Aluminum Foil Feeder: Common Version C, Common Embossing Version E, Smooth Wall Version S and Flexo Flagship Version P.

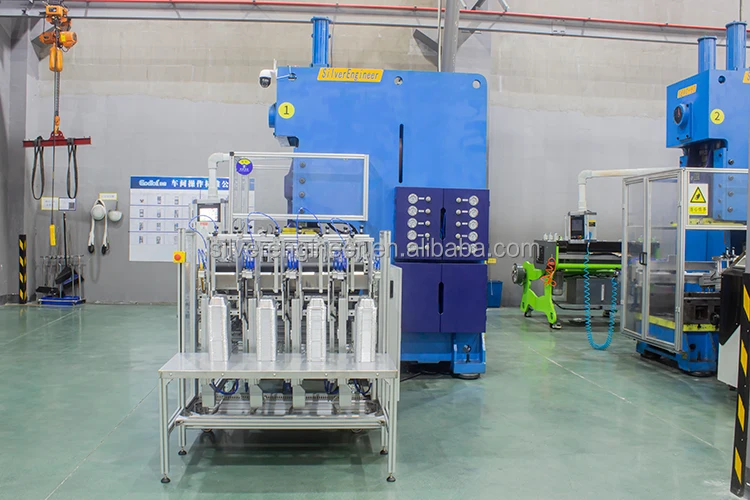

Aluminum Foil Container Stacker
Auto Stacker adopts aluminum profile structure, and the belt adopts Two-Stage structure, which is conducive to the production of aluminum foil container with high speed, stability and no blockage. Panasonic Sensor for Product Detection Out from mould, Detection Moving, Fiber Counting and SMC lifting control are automatically controlled by Mitsubishi PLC program, Independent intelligent control system is convenient, safe and reliable. The height adjustment of belt is flexible and convenient.
Automatic Foil Scrap Hydraulic Baler
stable operation and simple maintenance. It can be selected under automatic and manual working conditions. It is suitable for small projects. One set Baler can handle 1-2 sets of Aluminum Foil Container Production Lines.
Mold customization process
FAQ
1: Warranty for machines and moulds?
A: We gurantee a period of 24 months from the date of machine & mould installation and setting to work.
2.Q: What about leadtime ?
A: Normally the leadtime is 60days after we receive the deposit and confirm the details. All the press machines we use is the best quality in China Yangli brand. The press machine leadtime from Yangli is 50days, the best leadtime we can give is 60days.
3.Q: What's the lead time for moulds?
A: Normally the mould leadtime is 45 days after we confirm all the details with customer. Our professional mechanical enginners from Austria will design the mould according to the samples from customer, or by the specifications offered by customers.
4.Q:What kinds of mould you can make? and what is your strong point for the moulds?
A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 and 4 compartment conatiner moulds as long as you offer us sample or specifications.
5: How to purchase raw material or lubricating oil?
A: SE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
6:How to install machine and train our staff on our factory?
A: Yes, we do. We'll send our engineers to your factory to install, test machines and give your workers training guidance.
A: We gurantee a period of 24 months from the date of machine & mould installation and setting to work.
2.Q: What about leadtime ?
A: Normally the leadtime is 60days after we receive the deposit and confirm the details. All the press machines we use is the best quality in China Yangli brand. The press machine leadtime from Yangli is 50days, the best leadtime we can give is 60days.
3.Q: What's the lead time for moulds?
A: Normally the mould leadtime is 45 days after we confirm all the details with customer. Our professional mechanical enginners from Austria will design the mould according to the samples from customer, or by the specifications offered by customers.
4.Q:What kinds of mould you can make? and what is your strong point for the moulds?
A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 and 4 compartment conatiner moulds as long as you offer us sample or specifications.
5: How to purchase raw material or lubricating oil?
A: SE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
6:How to install machine and train our staff on our factory?
A: Yes, we do. We'll send our engineers to your factory to install, test machines and give your workers training guidance.
If you have any questions, please do not hesitate to contact us.
