80A 100 amps MPPT Solar Panel Battery Charge 12V 24V 36V 48V Solar Charger Controller for Solar System
- Category: >>>
- Supplier: Easun Power Technology Corp Limited
Share on (1600489563685):
Product Overview
Description
EASUN POWER Factory Wholesale 80A 100 Amp 36V 48V with Max PV Input 150VDC MPPT Solar Controller Charger Regulator
Feature:
80A MPPT solar charge controller(Fan cooling)
12V/24V/48V (auto detection);36V(setting)
MPPT efficiency>99%,Peak conversion
efficiency >98%
DSP processors technology ensure high
speed and performance
Multi-stage charging mode
Protection: PV array short circuit ,
PV reverse polarity , Battery reverse polarity ,
Over charging , Output short circuit

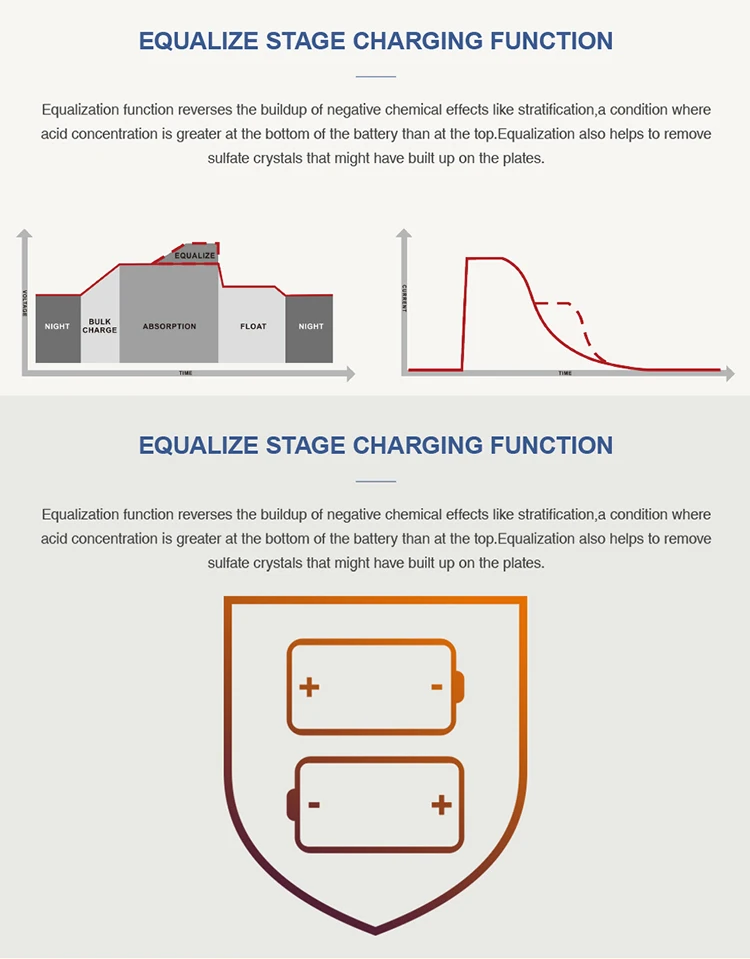

Equalization charging function
BTS function
80A MPPT solar charge controller(Fan cooling)
12V/24V/48V (auto detection);36V(setting)
MPPT efficiency>99%,Peak conversion
efficiency >98%
DSP processors technology ensure high
speed and performance
Multi-stage charging mode
Protection: PV array short circuit ,
PV reverse polarity , Battery reverse polarity ,
Over charging , Output short circuit
Equalization charging function
BTS function
you can Put two pieces 80A in parallel ,So total is MPPT 160A
Support unlimited parallel connection
Support unlimited parallel connection
Specification
MODEL | ICharger MPPT-4880 | ||||||||
Nominal Battery System Voltage | 12V\\24V\\48VDC (Auto detection); 36V (Setting) | ||||||||
CONTROLLER INPUT | Battery Voltage | 12V | 24V | 36V | 48V | ||||
Maximum Solar Input Voltage | 100V | 145V | |||||||
PV Array MPPT Voltage Range | 15~95V | 30~130V | 45~130V | 60~130V | |||||
Maximum Input Power | 12 Volt-1250W/24 Volt-2500W/36 Volt-3750W/48 Volt-5000W | ||||||||
BATTERY | Charging Set Points | Absorption Stage | Float Stage | ||||||
Flooded Battery | 14.2V \\ 28.4V \\ 42.6V \\ 56.8V | 13.7V \\ 27.4V \\ 41.1V \\ 54.8V | |||||||
AGM (Default) | 14.4V \\ 28.8V \\ 43.2V \\ 57.6V | 13.7V \\ 27.4V \\ 41.1V \\ 54.8V | |||||||
Over-charging Voltage | 15.5V \\ 30.0V \\ 45.0V \\ 60.0V | ||||||||
Over-charging Comeback Voltage | 14.5V \\ 29.5V \\ 44.5V \\ 59.0V | ||||||||
Battery Defect Voltage | 10.0V \\ 17.0V \\ 25.5V \\ 34.0V | ||||||||
Temperature Compensation Conefficient | -5mv \\ ℃ \\cell (25℃ vef) | ||||||||
Peak Conversion Efficiency | 98% (MPPT Efficiency 99%) | ||||||||
Mximum Battery Current | 80Amps | ||||||||
Max Charging Current | 80amps continuous @ 40℃ ambient | ||||||||
GENERAL SPECIFICATION | Radiating Mode | Fan cooling | |||||||
DISPLAY & PROTECTION | Protections | Solar high voltage disconnect/Solar high voltage reconnect/Battery high voltage disconnect/Battery high voltage reconnect/High temperature disconnect/High temperature reconnect | |||||||
MECHANICAL SPECIFICATIONS | Mounting | Wall mount | |||||||
Machine Dimension (W*H*D) | 152*85*294 mm (per pcs) | ||||||||
G.W (kg) | 3kg/pcs | ||||||||
Package Dimension (W*H*D) | 625*366*232 mm (4pcs / Carton) | ||||||||
Gross Weight (kg) | 14kg | ||||||||
OTHER | Environmental Rating | Indoor | |||||||
Operation Temperature Range | -10~55℃ | ||||||||
Ambient Humidity | 0~90% relative humidity (non-condensing) | ||||||||
Altiude | ≤3000m | ||||||||

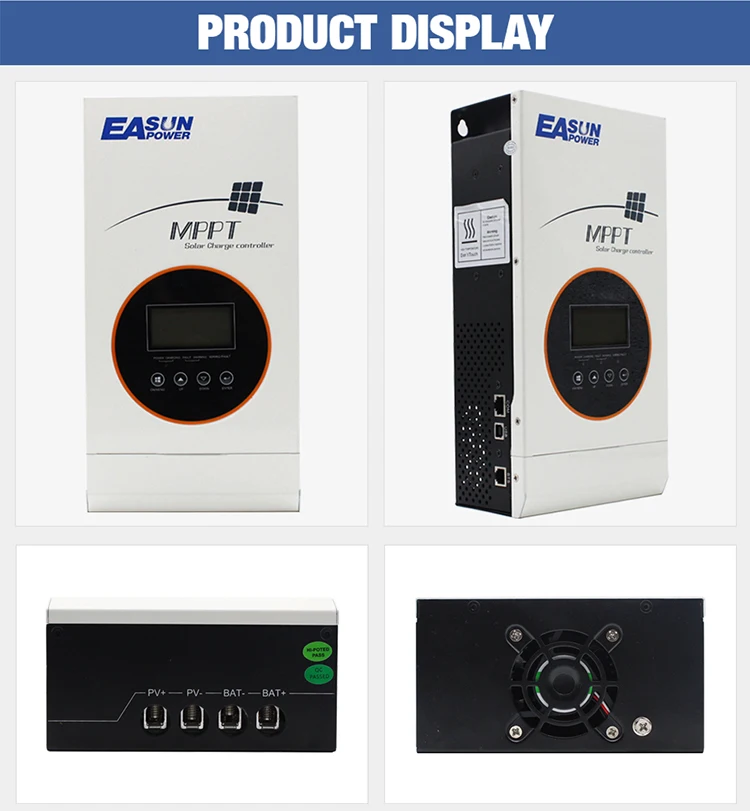

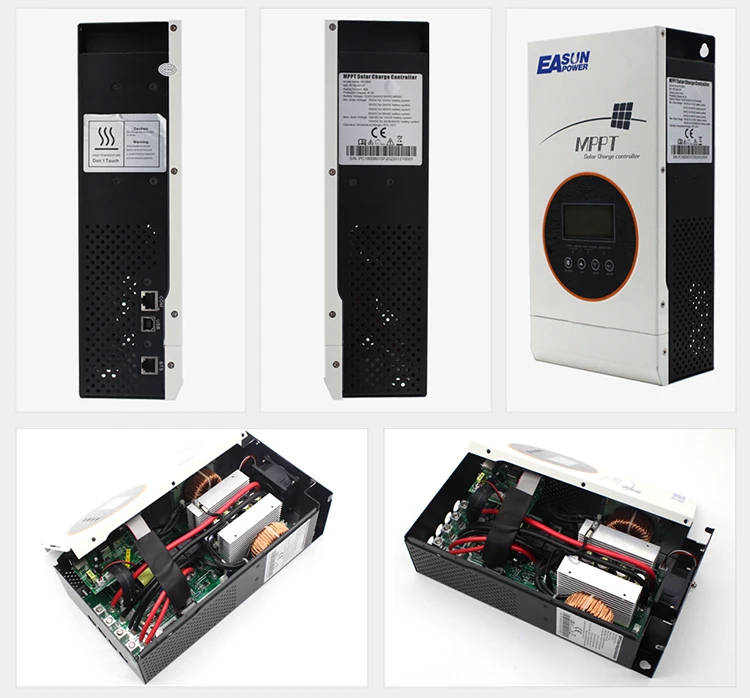

Product Description

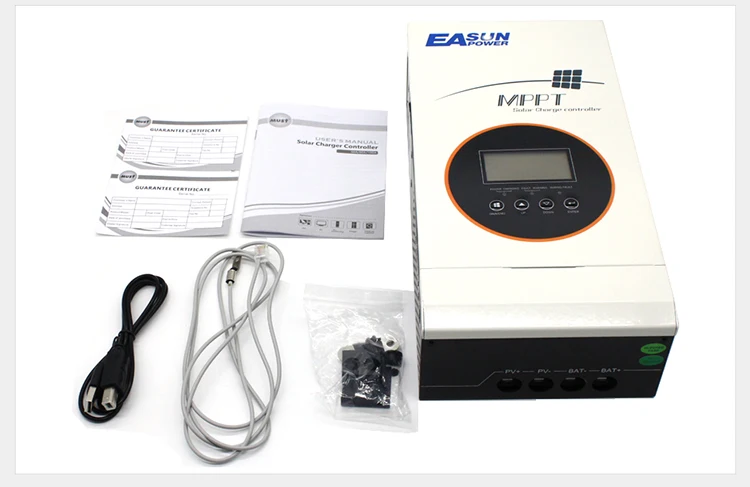

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
