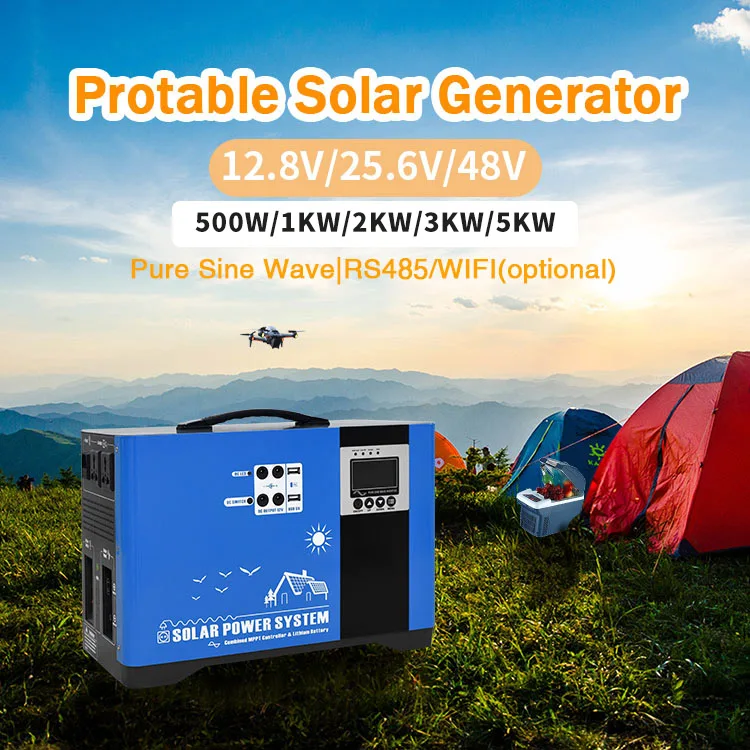

Anern Home Lighting 1KW mini kit panel solar energy generator
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1600490249117):
Product Overview
Description
Main Features:
1. One-time investment in permanent income, Maintenance free, easy to installation.
2. Long life span and high stability, Large capacity battery.
3. Easy installation, using directly according to our datailed use manual and viedo, our engineers can guide the installation through vedio if necessary.
4. After sales service, just send back the pictures or videos, we will provide professional solution within 48 hours.
5. Digital LCD and LEDs for visualization of operation status of the equipment.
6. Overcharge protection and overdischarge protection for a longer battery life.
7. Overall automatic protection and alarms including AC output overload protection, short arcuit protection etc.
8. Our product are CE ROHS, TUV, ISO, FC approved, meeting various certification requirements for different countries.
Product Specification
Model | MPSG-N500 | MPSG-N1000 | MPSG-N3000 | MPSG-N5000 | ||||||
Battery Voltage | 12.8V | 25.6V | 25.6V | 48V | ||||||
Inverter | ||||||||||
RATED POWER | 500W | 1000W | 3000W | 5000W | ||||||
Input Voltage Range | 110/220VAC±10% | |||||||||
Input Frequency | 45-65Hz | |||||||||
Output Voltage | 110/120/220/240VAC(optional) | |||||||||
Output Frequency | 50/60Hz | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Speficifation Of Built-in Lithium Battery | 600WH | 1200WH | 3000WH | 5000WH | ||||||
Communication | RS485/WIFI(optional) | |||||||||
Solar Input | ||||||||||
Max. PV Power | 240W | 480W | 1500W | 3000W | ||||||
Range Of Charging Voltage | 15-90VDC | 30-90VDC | 30-130VDC | 60-160VDC | ||||||
Rated Charge Current | 20A | 60A | 60A | |||||||
DC Output | ||||||||||
5VDC USB Output | 2pcs/MAX 2A | |||||||||
12VDC Output Ports | 2pcs/MAX 2A | |||||||||
PHYSICAL | ||||||||||
Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | |||||||||
Display | Digital LCD | |||||||||
Electricity Charging | Yes | |||||||||

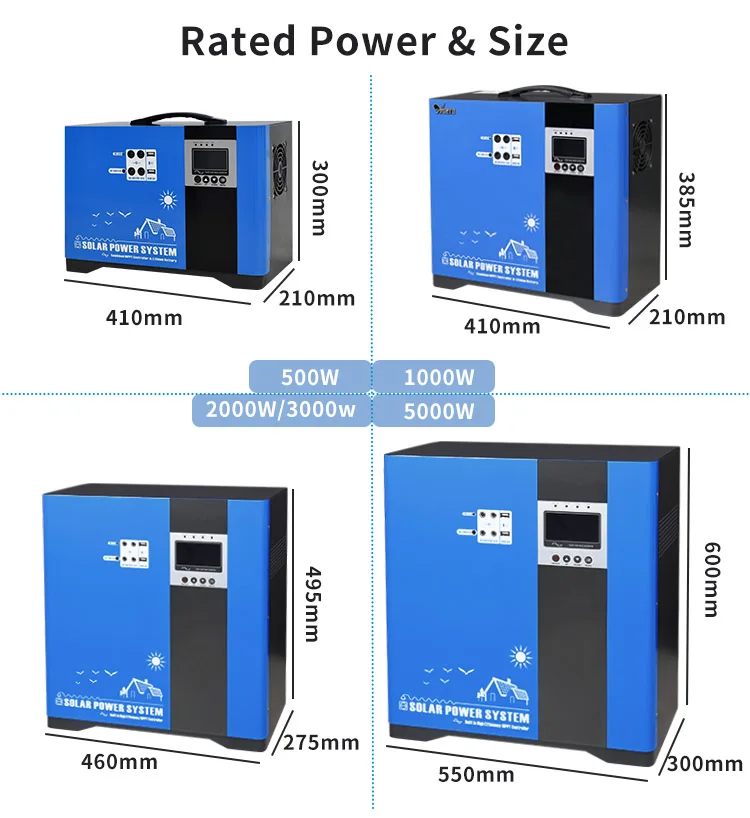

External Size：W*D*H（mm） | 410*210*300mm | 410*210*385mm | 460*275*495mm | 550*300*600mm | ||||||
G.W.(Gross Weight) | 18kg | 27kg | 59kg | 90kg | ||||||

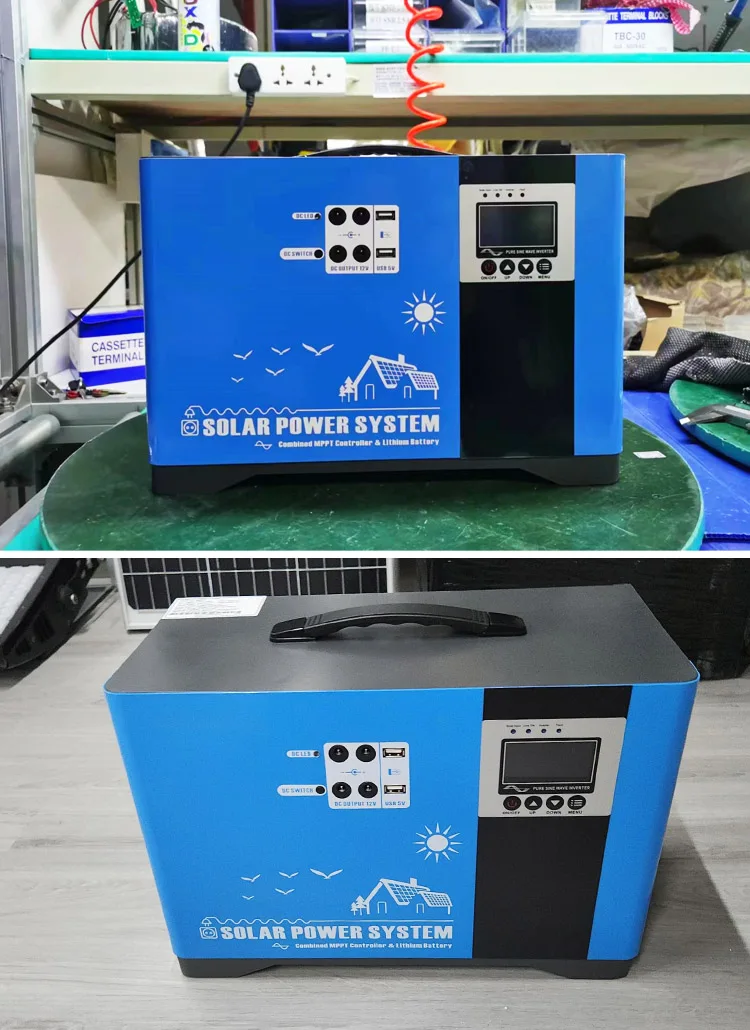

Products Details
Applications

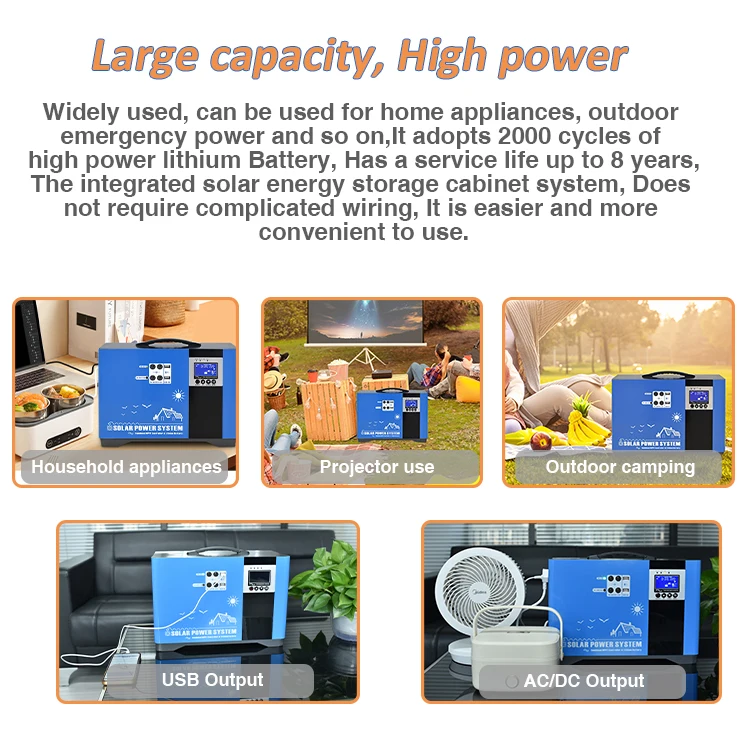

Application of Off Grid Mini Solar Generator Energy System :
◆Indoor Home appliances
◆Outdoor or Balcony Camping
◆Commercial Projector
◆Industrial USB/AC/DC Output
◆Outdoor or Balcony Camping
◆Commercial Projector
◆Industrial USB/AC/DC Output
Anern Factory
We can offer OEM /ODM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor lighting solution.
Project & Feedback
Anern has strong supply capacity with a fast delivery time and the shortest delivery time is 7 days.
Exhibition
Anern participates in high quality exhibitions in many areas every year.Such as the Canton Fair, Middle East Electricity in Dubai, EXPO ELECTRICA INTERNACIONAL in Mexico, etc.Each year there are over 1,000 personnel from various countries clients and government institutions come to visit us.

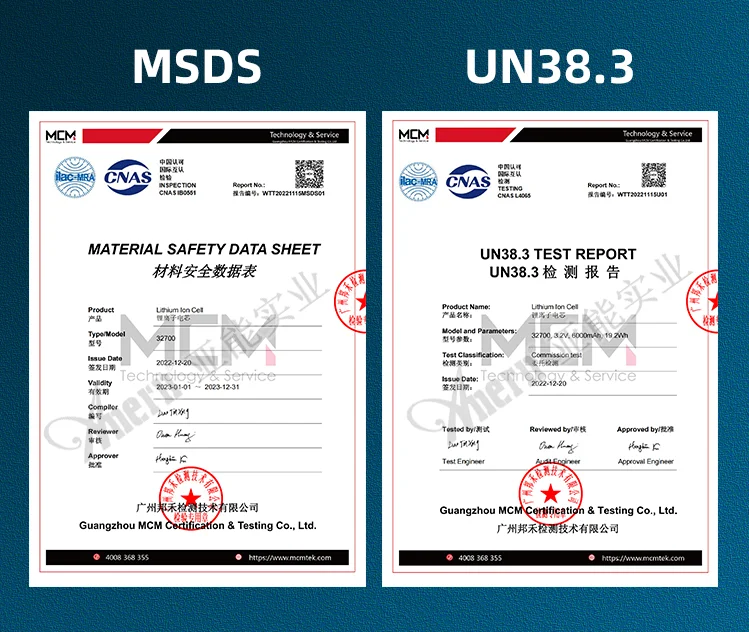

Certifications
Anern products are ISO9001, CE, ROHS,TUV, ISO, FC approved, meeting various certification requirements for different countries, Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.
Company Introduction
Anern has 14 years of manufacturer experience in solar energy system field with strong R&D ability. We have a professionable technique team engaged in R&D, with our own patents and unique features.
