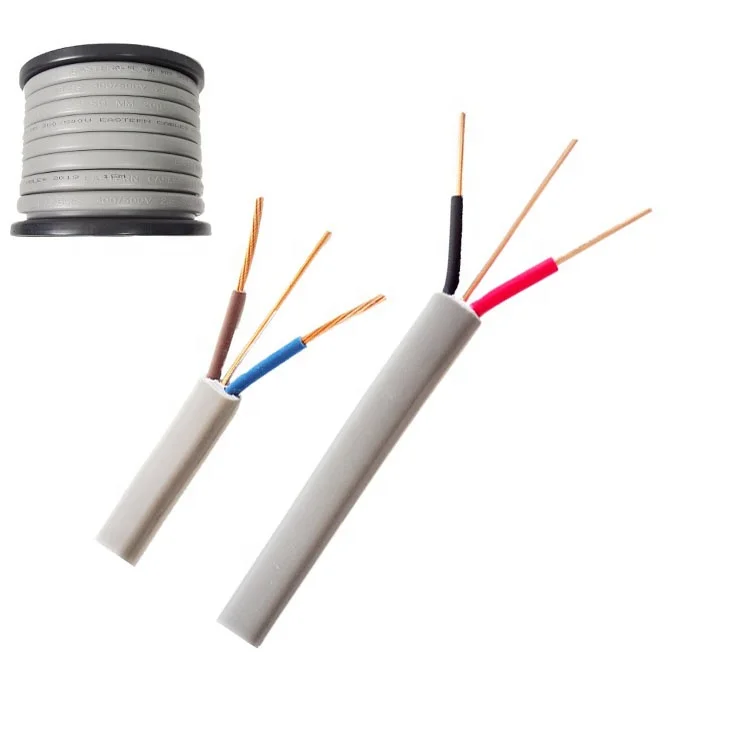

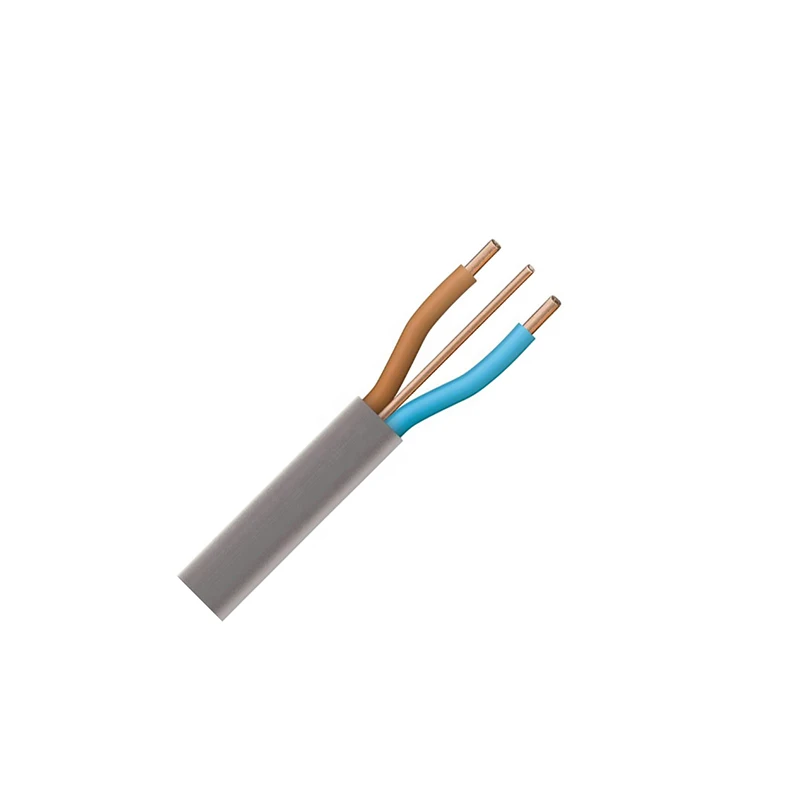

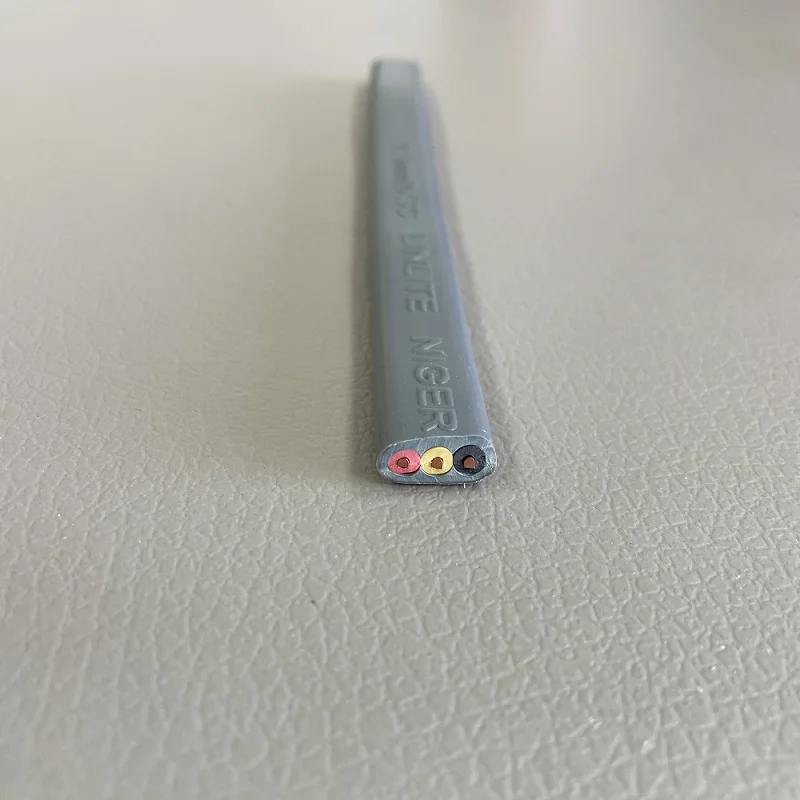

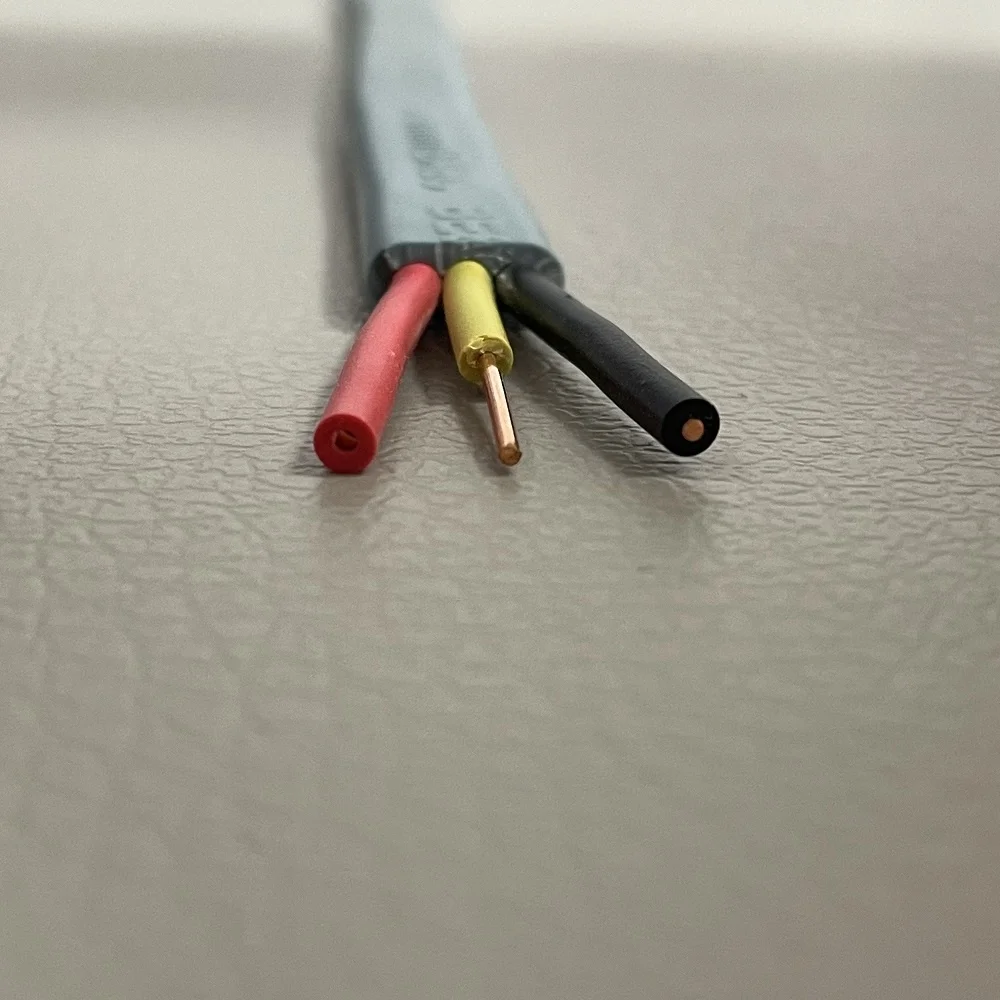

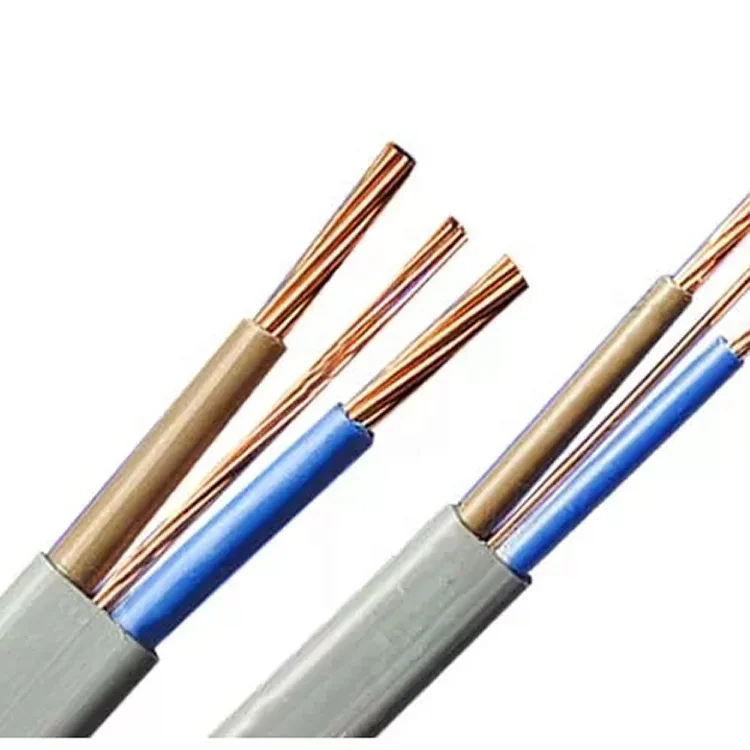

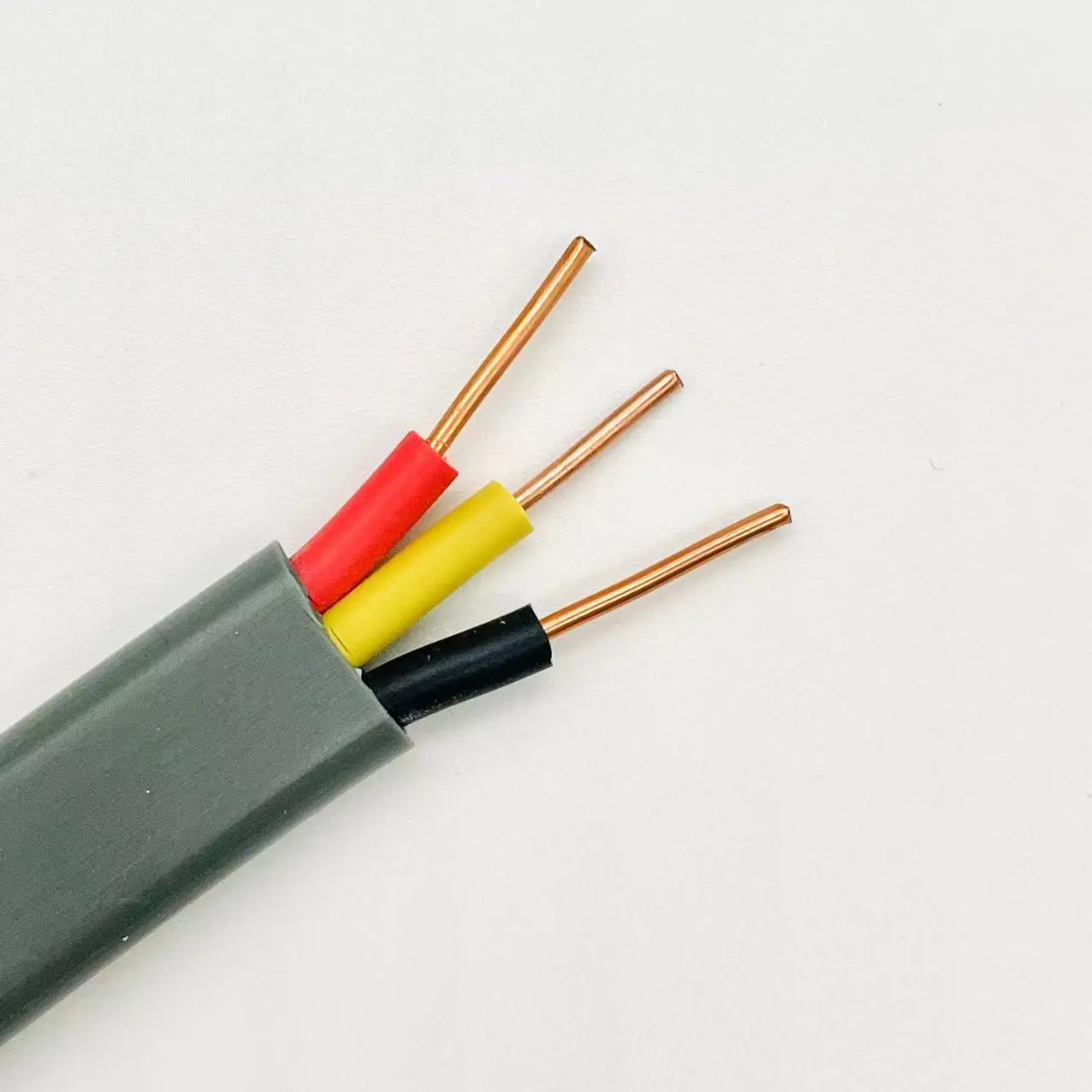

Flat Cable Twin and Earth 2.5mm2 Flat Wire Power Cord electrical cable copper wire pvc 3 core
- Category: >>>
- Supplier: Zhejiang Zhongyi Cable & Wire Co. Ltd.
Share on (1600490277142):
Product Overview
Description
What is Twin and eartrh cable?
they are suitable for power & lighting circuits and building wiring for UK or African market. unenclsoed, enclosed in conduit,
buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical
damage.
buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical
damage.
1. U0/U: 300/500V, 450/750v
2. Standard applied: BS 6004 or 6242Y
3. Max working temperature: 70°C
4. Conductor
Class 2 stranded plain copper conductors
Class 1 solid plain copper conductor
5. Insulation: PVC (Polyvinyl Chloride)
6. Sheath: PVC (Polyvinyl Chloride)

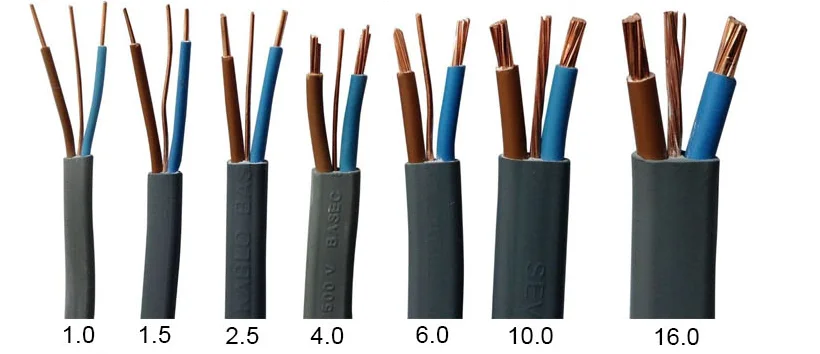

7. Cross section area: 1.0mm2-16mm2
8. Temperature rating: 0°C to +70°C
9. Color: Grey, or as per request
10. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available
11. 100meters/coil, or as per request
12. OEM can be available
13. Certification: Third party test reports
2. Standard applied: BS 6004 or 6242Y
3. Max working temperature: 70°C
4. Conductor
Class 2 stranded plain copper conductors
Class 1 solid plain copper conductor
5. Insulation: PVC (Polyvinyl Chloride)
6. Sheath: PVC (Polyvinyl Chloride)
7. Cross section area: 1.0mm2-16mm2
8. Temperature rating: 0°C to +70°C
9. Color: Grey, or as per request
10. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available
11. 100meters/coil, or as per request
12. OEM can be available
13. Certification: Third party test reports
Nominal Section | No./dia. of Conductor | No./dia. of Earth | Insolation thickness | Sheath thickness | Max outer diameter | Ref weight | Conductor resistance |
(mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | KM/KG | (Ω.Km) |
2x1.0+E | 2x1/1.13 | 1/0.85 | 0.6 | 0.9 | 4.8x8.2 | 64.16 | 18.1 |
2x1.5+E | 2x1/1.13 | 1/1.13 | 0.7 | 0.9 | 5.1x9.2 | 89.52 | 12.1 |
2x1.5+E | 2x7/0.52 | 7/0.43 | 0.7 | 0.9 | 5.3x9.4 | 91.52 | 12.1 |
2x2.5+E | 2x1/1.79 | 1/1.39 | 0.8 | 1 | 5.4x10.1 | 128.36 | 7.41 |
2x2.5+E | 2x7/0.68 | 7/0.52 | 0.8 | 1 | 5.6x10.3 | 130.36 | 7.41 |
2x4+E | 2x1/2.25 | 1/1.78 | 0.8 | 1 | 5.9x11.8 | 180.56 | 4.61 |
2x4+E | 2x7/0.85 | 7/0.68 | 0.8 | 1 | 6.1x12.1 | 202.66 | 4.61 |
2x6+E | 2x1/2.76 | 1/2.25 | 0.8 | 1.1 | 6.7x12.8 | 247.18 | 3.08 |
2x6+E | 2x1/1.04 | 7/0.85 | 0.8 | 1.1 | 6.9x13.3 | 267.18 | 3.08 |
2x10+E | 2x7/1.35 | 7/1.04 | 1 | 1.2 | 7.8x14.5 | 435.05 | 1.83 |
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit our factory. We'll pick you up in Shanghai or Hangzhou.
2. How can I get a sample to test your quality?
Some models would be free if we have stocks Charged, depend on which style, color and logo printing you required.
(2) high quality which is suitable for both scuba diving and snorkeling
(3) one stop purchasing
(4) fast response and professional suggestion on all inquiries
(5) 10 years quality guarantee for all our products.
5. Does your company accept OEM & ODM production?
Yes, could print your company name, we even custom the quality card to promote your company.
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit our factory. We'll pick you up in Shanghai or Hangzhou.
2. How can I get a sample to test your quality?
Some models would be free if we have stocks Charged, depend on which style, color and logo printing you required.
3. What’s your Minimum Order Quantity?
Normally 2km. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. What’s your advantage?
(1) competitive price
Normally 2km. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. What’s your advantage?
(1) competitive price
(2) high quality which is suitable for both scuba diving and snorkeling
(3) one stop purchasing
(4) fast response and professional suggestion on all inquiries
(5) 10 years quality guarantee for all our products.
5. Does your company accept OEM & ODM production?
Yes, could print your company name, we even custom the quality card to promote your company.
6. How long to deliver the products?
The exact delivery date need to according to your style and quantity. Usually within 30 work days after receive the 30% down payment If you choose the items which we have stock, we can deliver in 3 days.

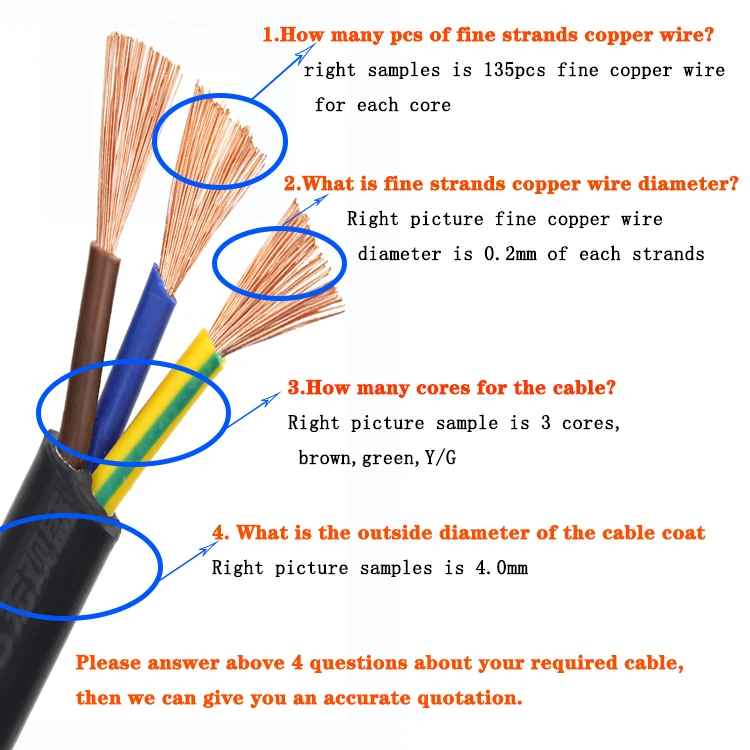

Do you want a accurated price quotation?
We need to know 5 information about your required cable:
1. What is the conductor for the cable? Pure copper or Aluminum?
2. How many pcs of the fine conductor wire strands
3. What is the fine conductor wire strands diameter?
4.How many cores for the cable?
5. what is the outside diameter of the cable coat?
2. How many pcs of the fine conductor wire strands
3. What is the fine conductor wire strands diameter?
4.How many cores for the cable?
5. what is the outside diameter of the cable coat?
