Surge Protective Device SPD Lighting Surge Protector Surge 10KV Approved LED Street light SPD

Introduction

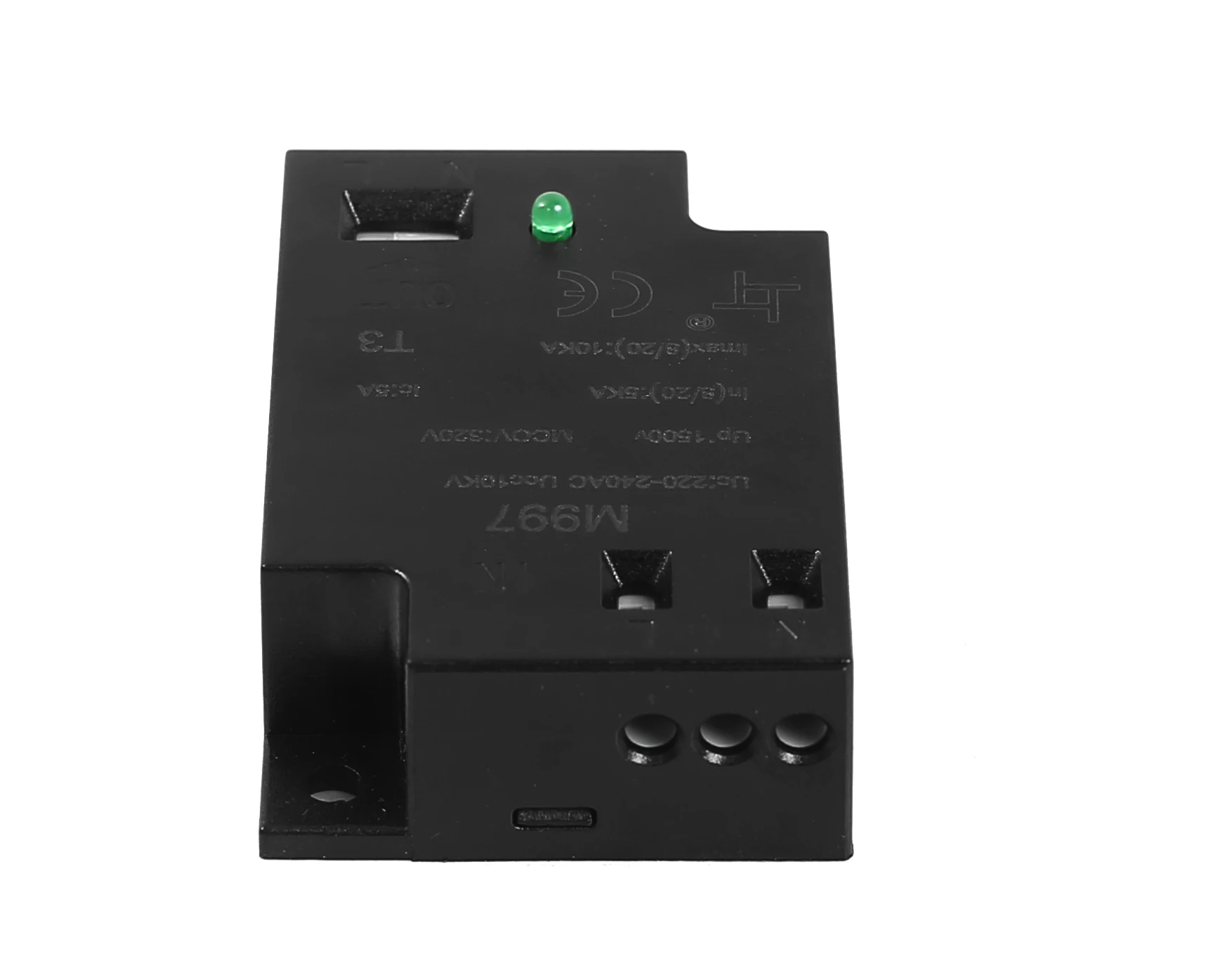

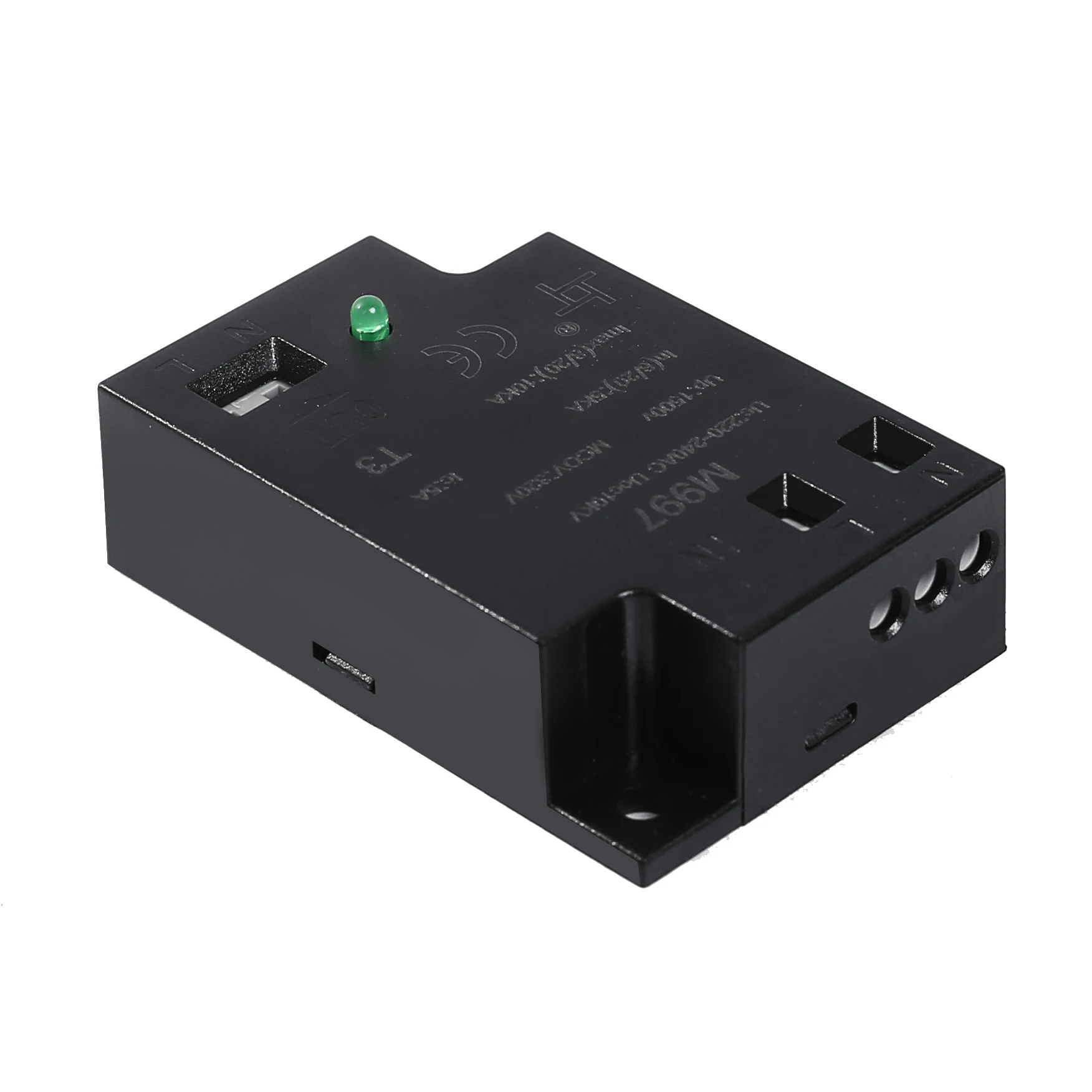

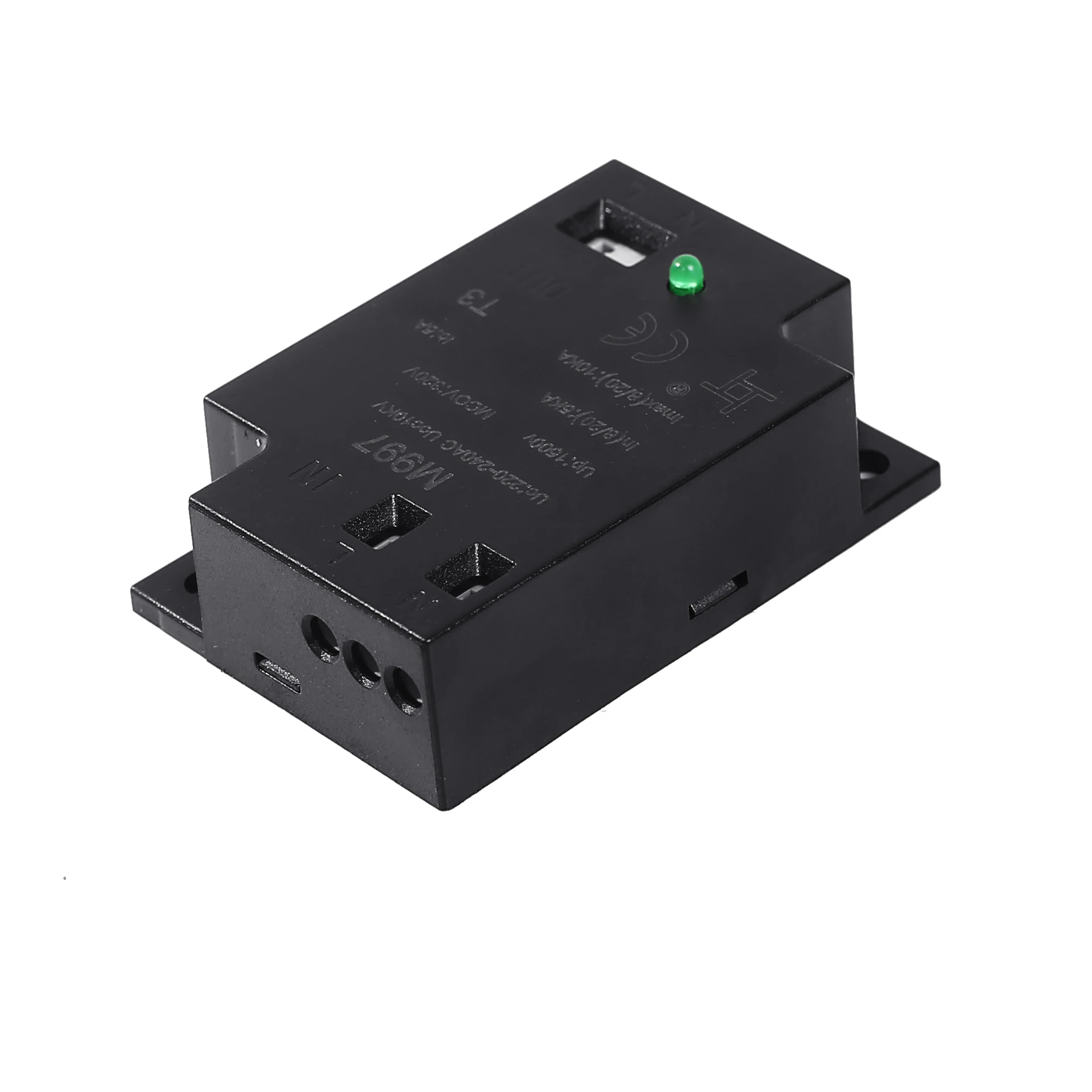

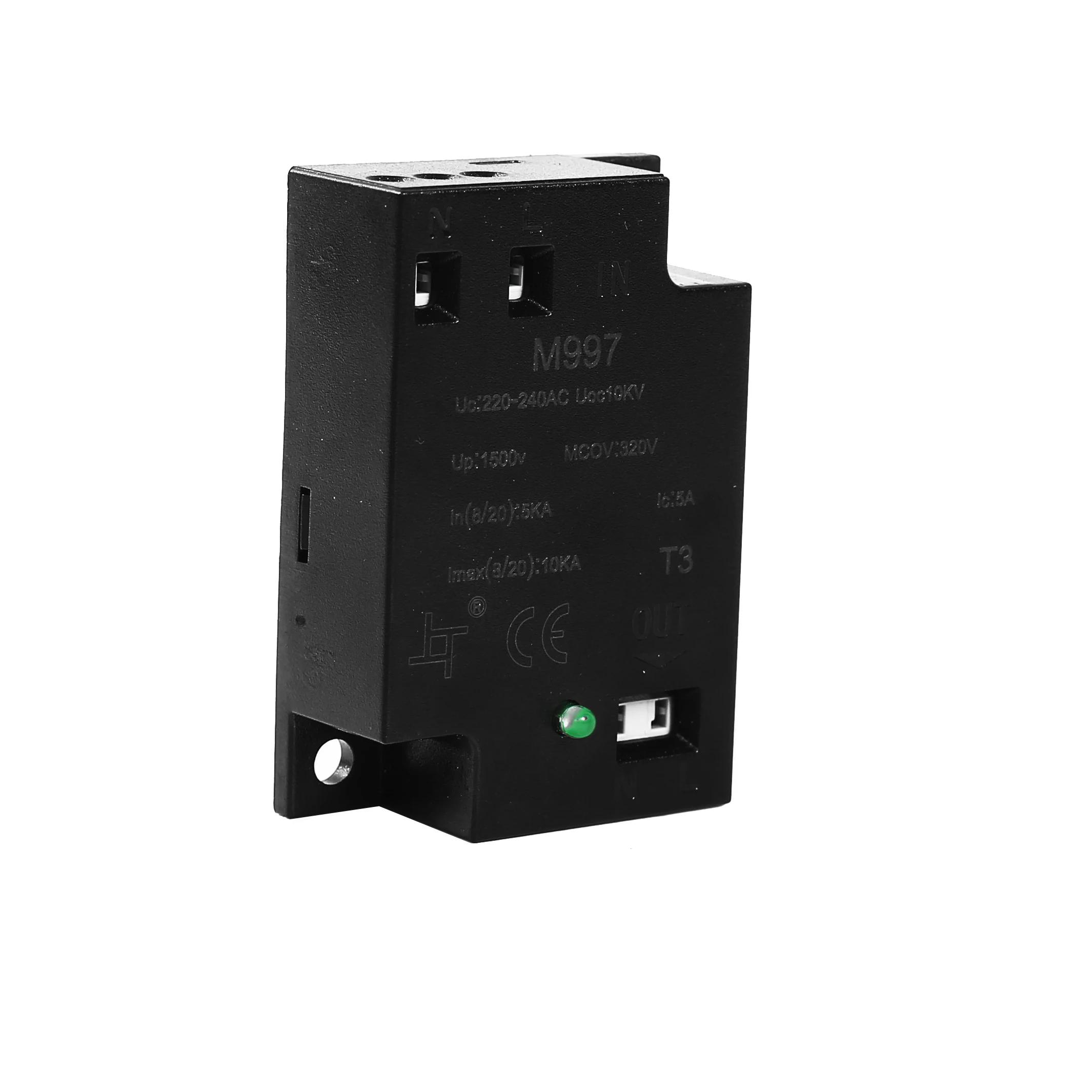

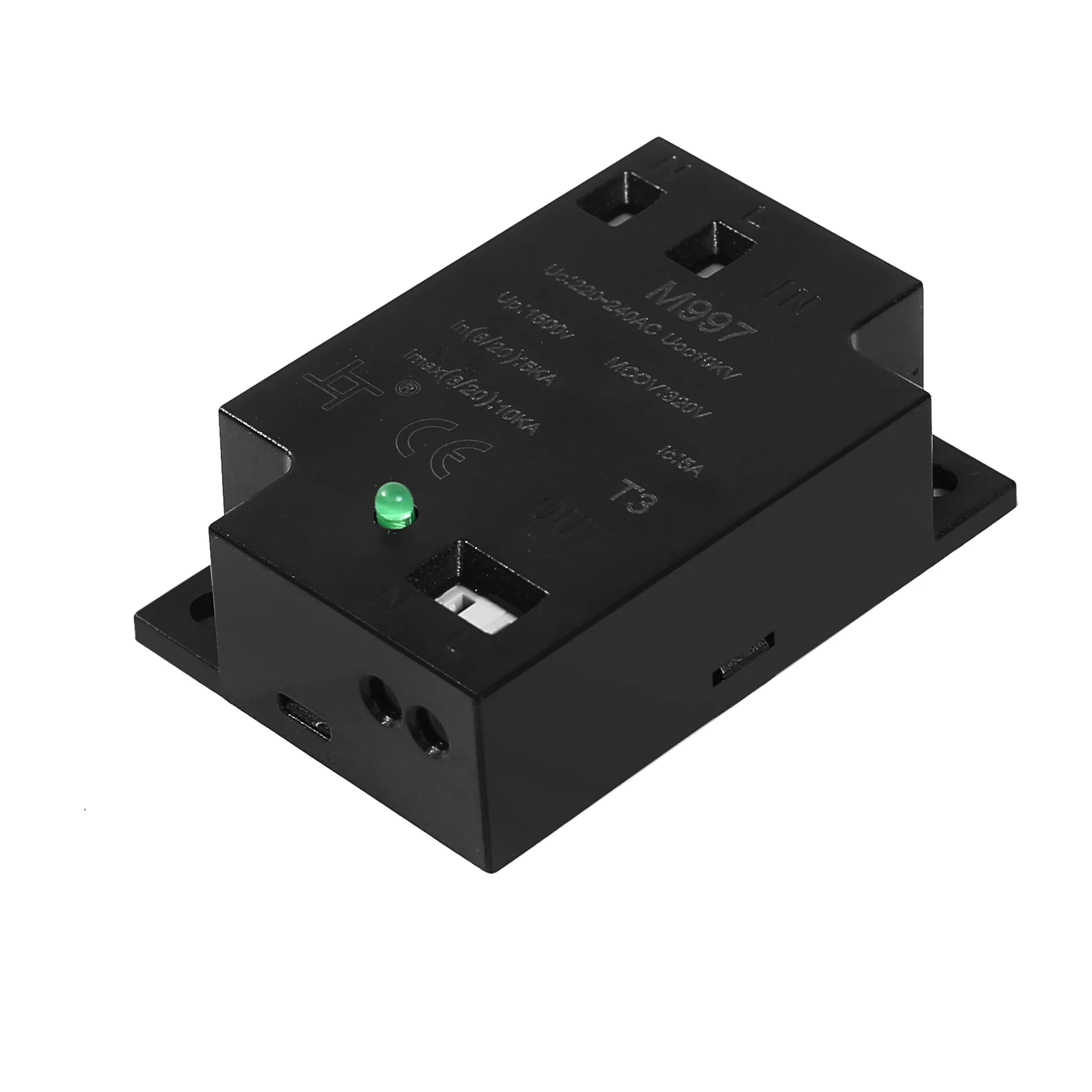

LED Street Lights Power SPD: M997 designed for protecting 220V LED driver and could be connected perfectly with its input port, sealed enclosure, waterproof and dustproof, IP20 protection grade, belongs to Class III power SPD.This SPD use common mode, differential mode, full protection with leakage currennt and cut the overcurrent capabilities.

Introduction

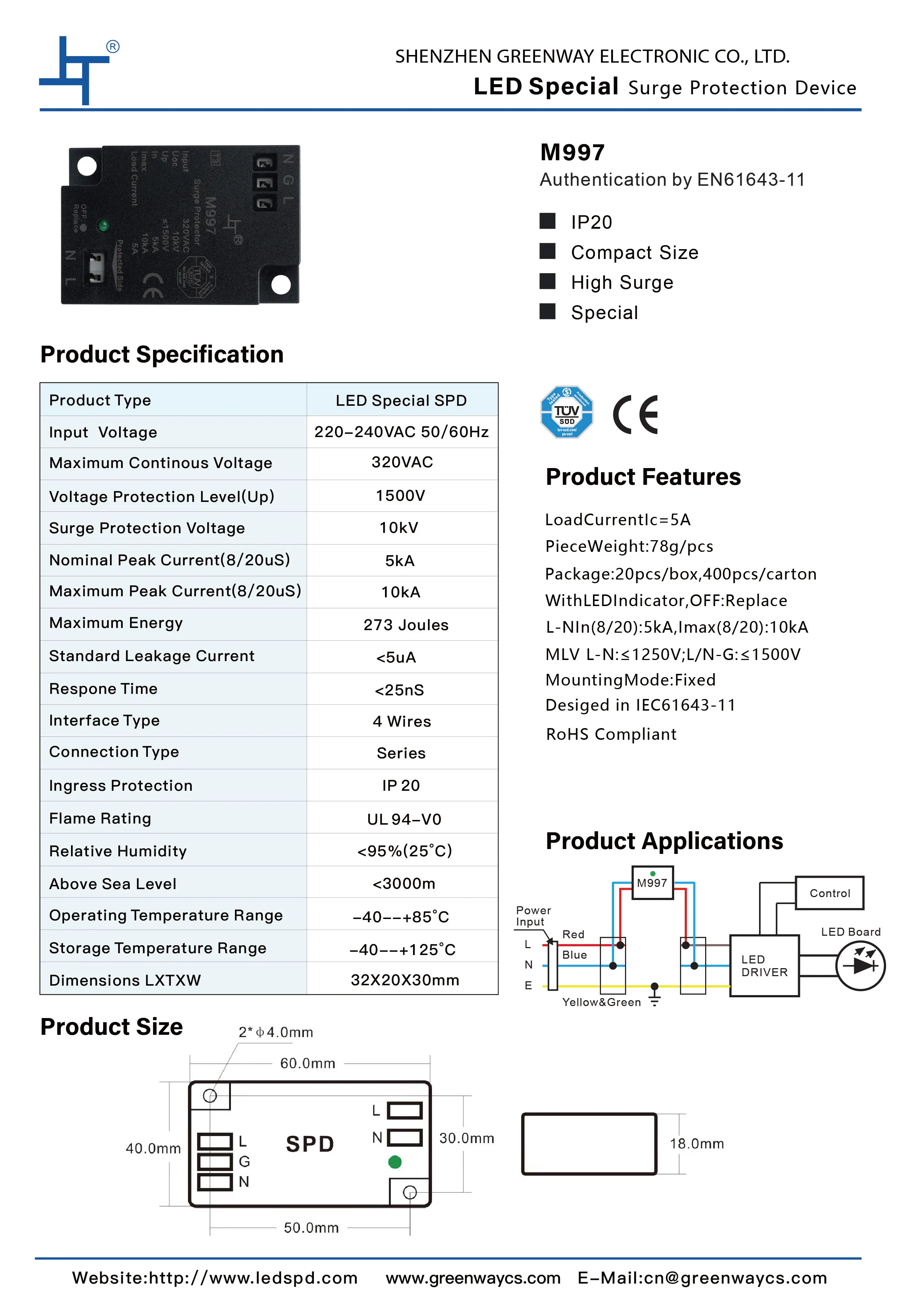

The product size small, 32*20*30mm(includes mounting holes), using series wiring, attached with L,N and PE cable,very convenient in installing. The maximum discharge current is 10kA/line, nominal discharge current is 5kA/line, able to withstand voltage 10kV, the level of protection is below 1500V, especially good for protecting LED Street lights form lightning surge damage.
