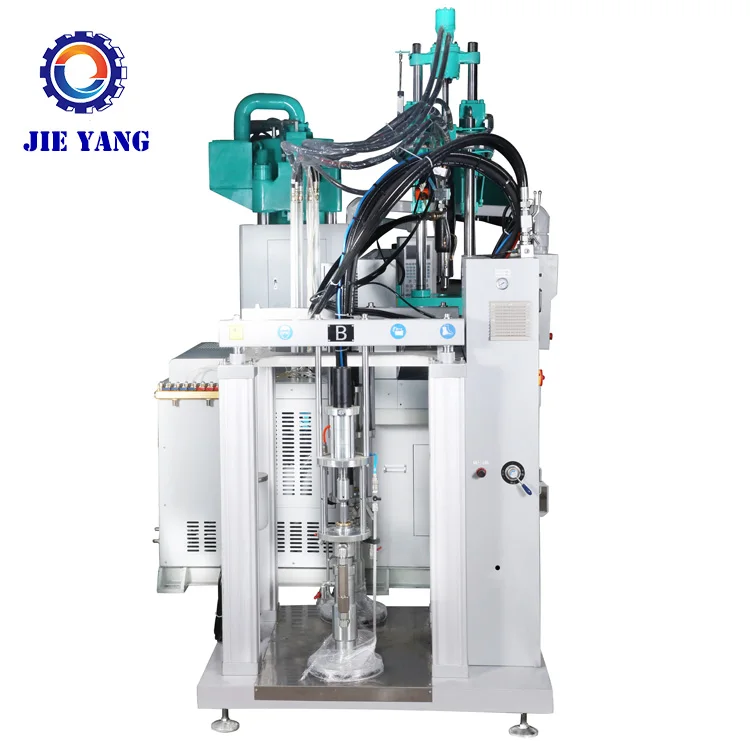

Small Liquid silicone injection molding machine for nipples phone case mask
- Category: >>>
- Supplier: Dongguan Jieyang Machinery Co. Ltd.
Share on (1600490398557):
Product Overview
Description

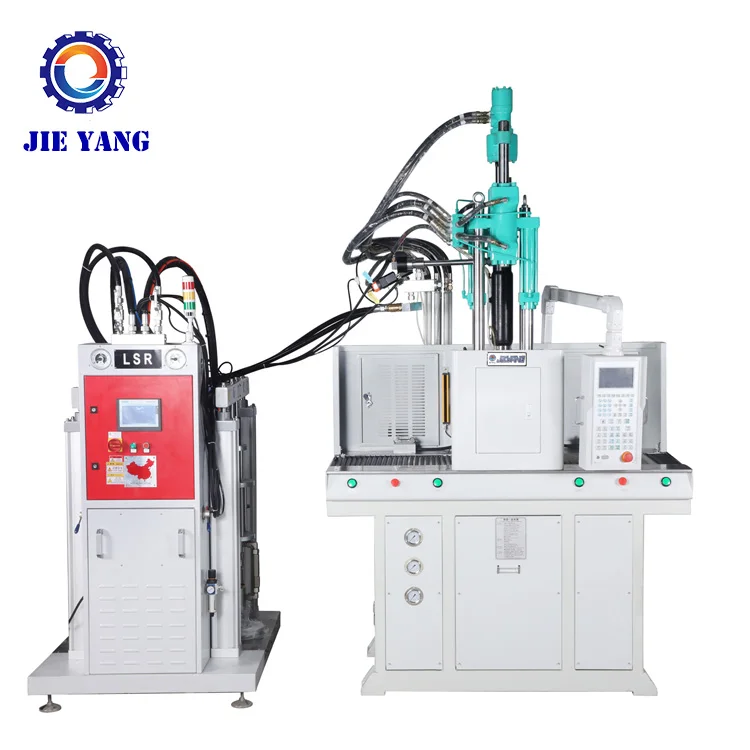

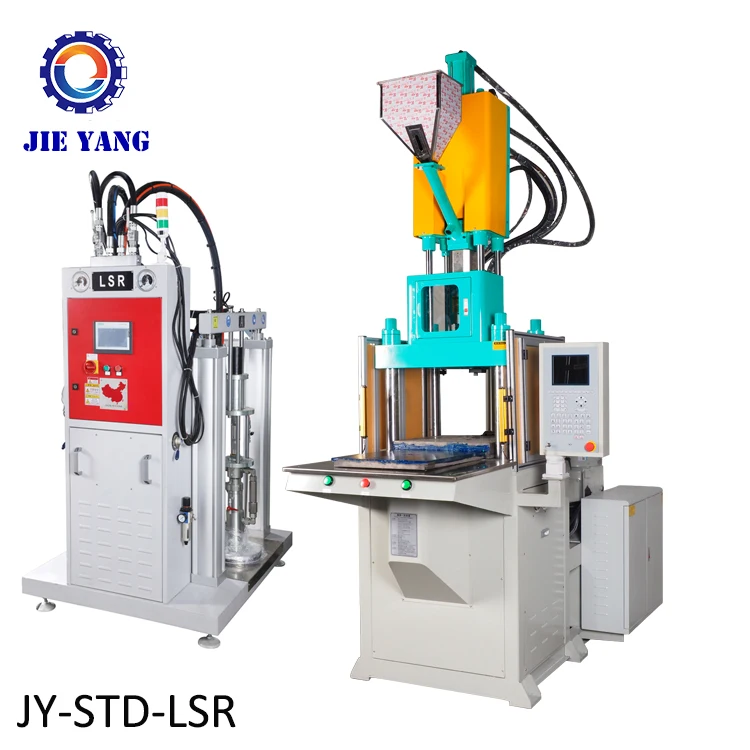

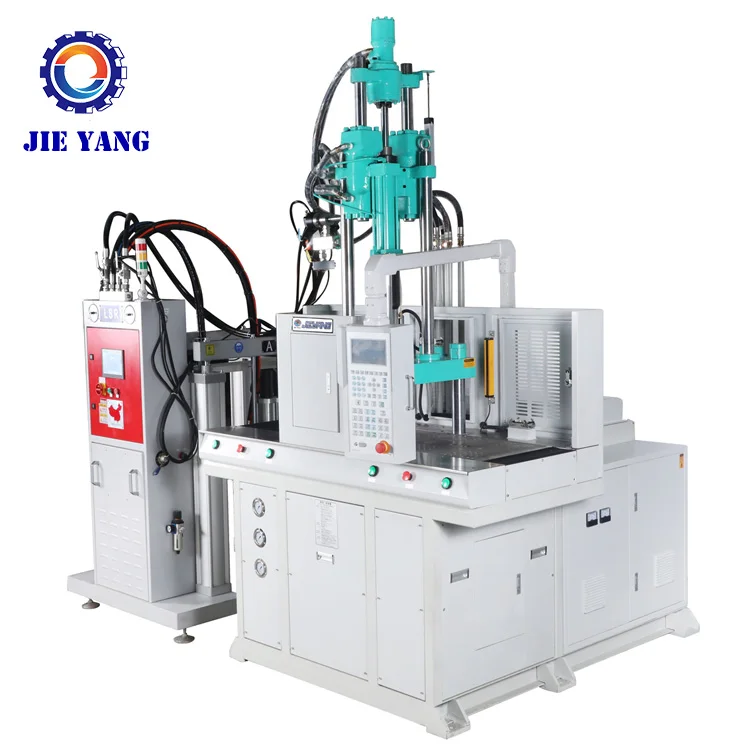

Vertical Small Liquid silicone injection molding machine
Supply the whole set solution of LSR injection molding machine with high performance for our clients in all over the world
One-stop complete solution
"raw material + liquid silicone injection molding machine + mold +technical support + personnel training + finished products”
1. Provide considerate suggestion to choose suitable material with low cost high-performance.
2. Help customer make mold design, manufacturing and testing.
3. According to customer's demand, supply machine solution,including whole produce line.
4. Correctly guide customer to operate machine by video or on-site training.
5.Help client purchase essential accessory .
Product overview

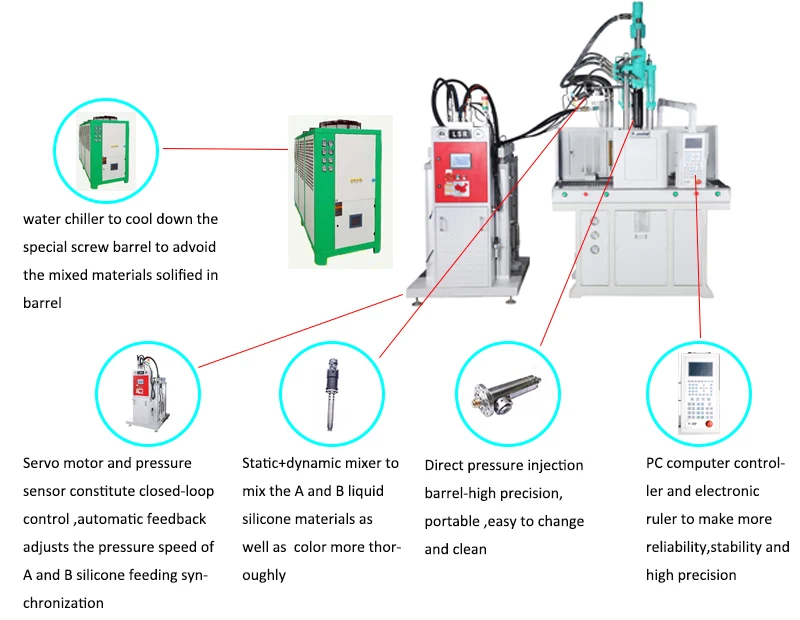

Product Features

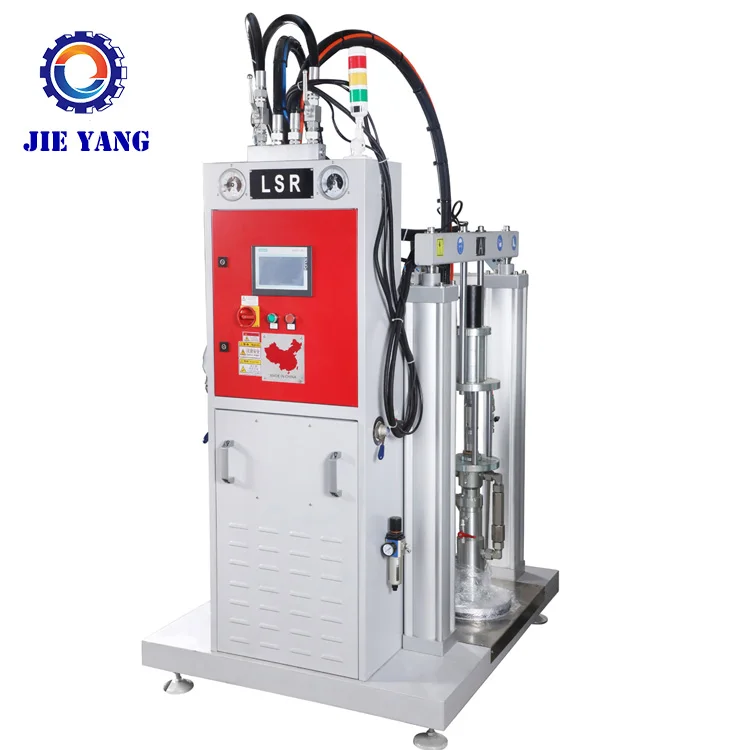

1.Including German "2KM" (200L) liquid state silicone gel feeding main engine;2.Multi section type precision mold electric
temperature control;
3.Liquid silicone rubber special oil water cooled closed nozzle;
4.Liquid silicone rubber special material pipe group;
5.Thermal cold plate;
6.Insulating glass plate;
7.Double sliding table design(one upper mold and two bottom molds),it is more convenient to take out and put something into the
mold.It will not waste the stop time of Liquid silicone rubber thermosetting.When the one bottom mold is in molding,the operator
could do the preparation on other bottom mold.This will greatly increase the production efficiency;
8.Special feeding injection design will make the measurements more accurate;
9.Equipped with adjustable vacuum device will prevent the product of bubbles.
temperature control;
3.Liquid silicone rubber special oil water cooled closed nozzle;
4.Liquid silicone rubber special material pipe group;
5.Thermal cold plate;
6.Insulating glass plate;
7.Double sliding table design(one upper mold and two bottom molds),it is more convenient to take out and put something into the
mold.It will not waste the stop time of Liquid silicone rubber thermosetting.When the one bottom mold is in molding,the operator
could do the preparation on other bottom mold.This will greatly increase the production efficiency;
8.Special feeding injection design will make the measurements more accurate;
9.Equipped with adjustable vacuum device will prevent the product of bubbles.
PRODUCT SPECIFICATIONS
Model | Item | Unit | JY-550ST-DM-LSR | |||
Injection Unit | Screw Diameter | mm | 28 | 36 | ||
2 | Theoretical Injection Volume | cm3 | 86 | 142.4 | ||
3 | Injection Weight(LSR) | g(oz) | 103(3.6) | 170.8（6.0） | ||
4 | Max.Injection Pressure | Mpa(kgf/cm2) | 196(2000) | 118.6（1210） | ||
5 | Injection Rate | cm3/s | 72.6 | 120 | ||
6 | Injection Speed | mm/s | 118 | |||
7 | Injection Stroke | mm | 140 | |||
8 | Screw Speed Rotation | r.p.m | 0-200 | |||
Nozzle Out From Platens | mm | ≥45 | ||||
Clamping Unit | Clamping Force | KN(tf) | 539(55) | |||
Clamping Stroke | mm | 200 | ||||
Min.Mold Thickness | mm | 180/240 | ||||
Max.Opening | mm | 380/440 | ||||
Distance Between Tie Bars（L*W) | mm | 470*280 | ||||
Max.Mould Size（L*W) | mm | 425*425 | ||||
Platen Size（L*W) | mm | 930*450 | ||||
Ejector Distance | mm | 100 | ||||
Ejector Force | KN(tf) | 26.5（2.7） | ||||
Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
Oil Tank Capacity | L | 200 | ||||
Motor Power | KW(HP) | 7.5（10） | ||||
Heater Power | KW | 5.3 | ||||
Machine Dimensions(L*W) | m | 1.86*1.7 | ||||
Machine Dimensions(H) | m | 2.6 | ||||
Machine Weight | tf | 2.1 | ||||
Products Application
Successful Project
Project in India
Project in Egypt
Project in Canada
Company Profile
SIMILAR PRODUCTS
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade
broke),life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity
and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or
Changping Railway(Bus) station.
Q5: Why choose Dongguan Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving
forwards.We will devote every efforts to do the best level machine and service.
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade
broke),life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity
and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or
Changping Railway(Bus) station.
Q5: Why choose Dongguan Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving
forwards.We will devote every efforts to do the best level machine and service.
