Agricultural rice planter, fertilizer applicator, rice transplanter Seedlings Machine Seeds Sowing Machine Rice transplanter
- Category: >>>
- Supplier: Wuxi Rafiki Tools Co. Ltd.
Share on (1600490449970):
Product Overview
Description
Product Overview

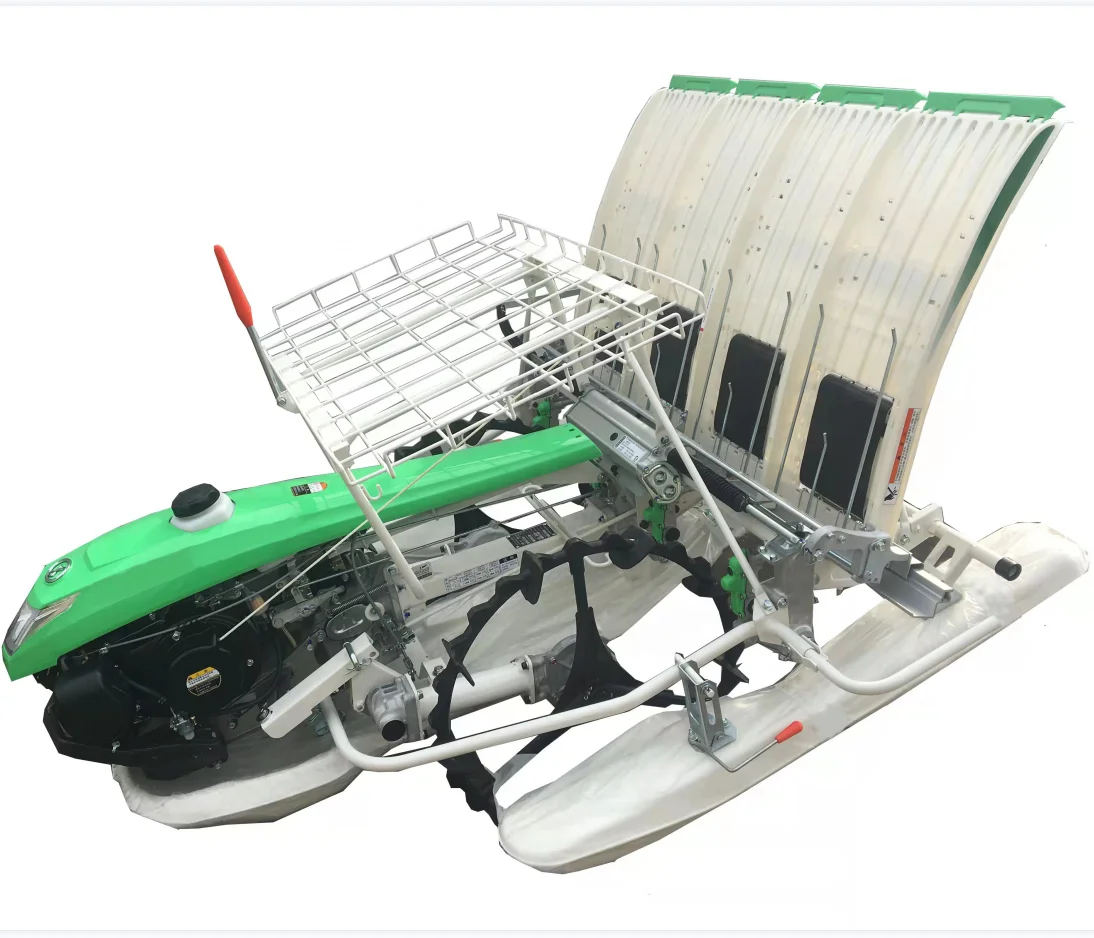

Rice transplanter
1. ENGINE: Yamaha MZ175 gasoline engine, power 3.3 kw (4.5 horsepower) ;
2. Adopting wide seedling needle 16 mm, the quantity of taking seedling is large;
3. Gasoline filter: large diameter, filter well, not easy to block;
4. It is easy to send rice with roller, and the quantity of rice is large.
5.The outer diameter of the connecting rod is coarser and the stability is better.
6. Even to increase the lining, large contact surface, more durable use time;
7. The material of the connecting pipe is thickened and stiffened;
8. The tire is a wide tire, which is more suitable for all kinds of fields.
2. Adopting wide seedling needle 16 mm, the quantity of taking seedling is large;
3. Gasoline filter: large diameter, filter well, not easy to block;
4. It is easy to send rice with roller, and the quantity of rice is large.
5.The outer diameter of the connecting rod is coarser and the stability is better.
6. Even to increase the lining, large contact surface, more durable use time;
7. The material of the connecting pipe is thickened and stiffened;
8. The tire is a wide tire, which is more suitable for all kinds of fields.
FEATURES AT A GLANCE
Rice transplanter
1. ENGINE: Yamaha MZ175 gasoline engine, power 3.3 kw (4.5 horsepower) ;
2. Adopting wide seedling needle 16 mm, the quantity of taking seedling is large;
3. Gasoline filter: large diameter, filter well, not easy to block;
2. Adopting wide seedling needle 16 mm, the quantity of taking seedling is large;
3. Gasoline filter: large diameter, filter well, not easy to block;
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Driving type | Two-wheel drive | ||
2 | Structural Mass， kg： | 163 | ||
3 | SIZE（L×W×H），mm ： | 2140×1630×910 | ||
4 | Model | MZ175（E170CY） | ||
5 | Type | Air cooled four stroke OHV engine | ||
6 | Nominal power， kW(ps)： | 3.3(4.5) | ||
7 | Rotational speed， r/min： | 3600 | ||
8 | Starting Mode | Hand pull recoil | ||
9 | Wheel type | Rubber Wheel Claw | ||
10 | Outside diameter of wheel， mm ： | φ660 | ||
11 | Operating speed, m/s ： | 0.34-0.77 | ||
12 | Travelling speed, m/s： | 0.58-1.48 | ||
13 | Variable speed series ：Forward 2、BACK 1 | Forward 2、BACK 1 | ||
14 | Row spacing， mm ： | 300 | ||
15 | Number of transplanting holes，Strains/3.3㎡： | 90、80、70、60、50 | ||
16 | Seedling spacing， mm ： | 120、140、160、180、210 | ||
17 | Regulation of seedling number per plant： | Lateral transmission（Level 2）And the amount of rice taken longitudinally（7-17mm） | ||
18 | Depth of transplanting mm： | 7-37（5 Level） | ||
19 | Seedling species | Cushion seedling |
