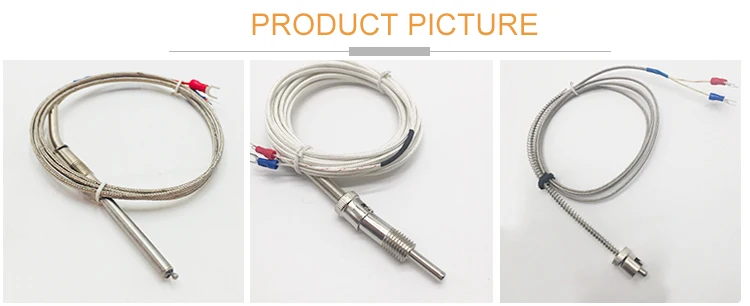

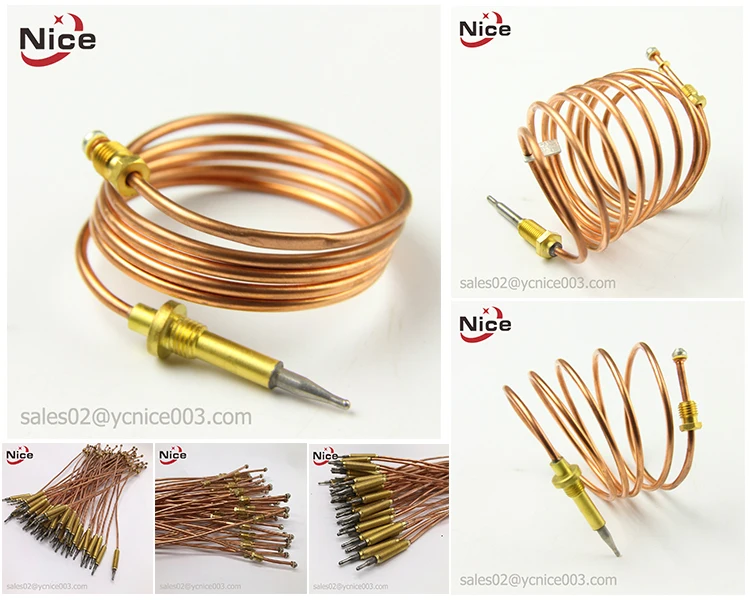

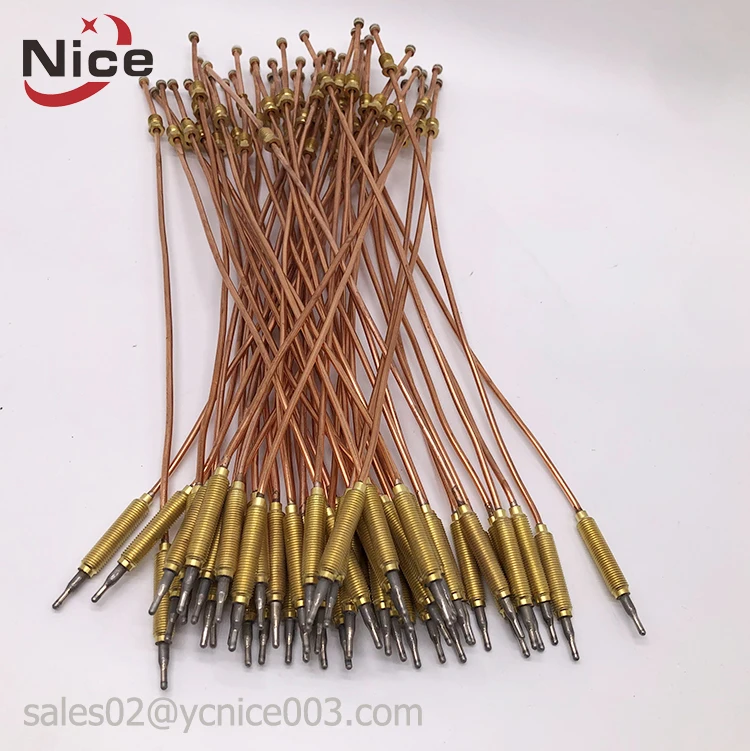

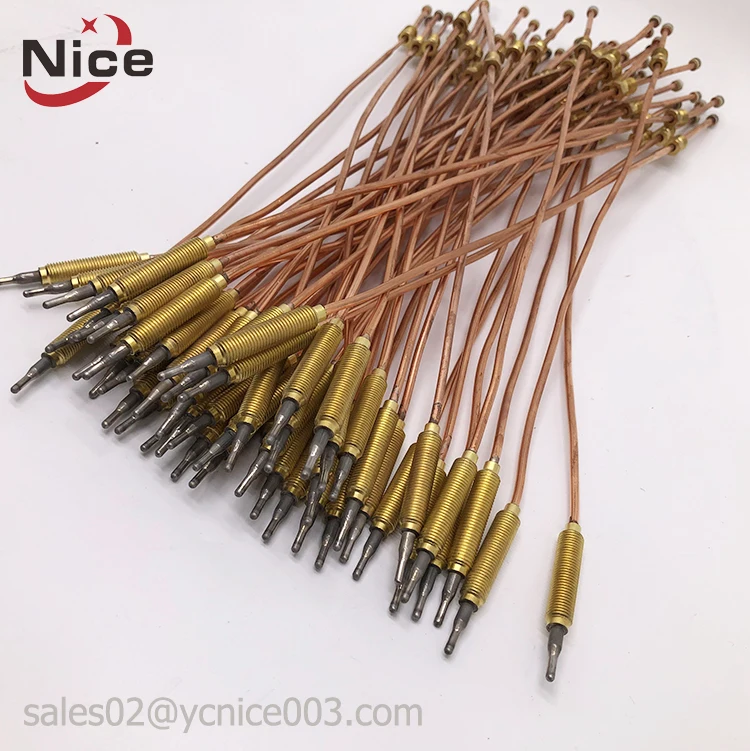

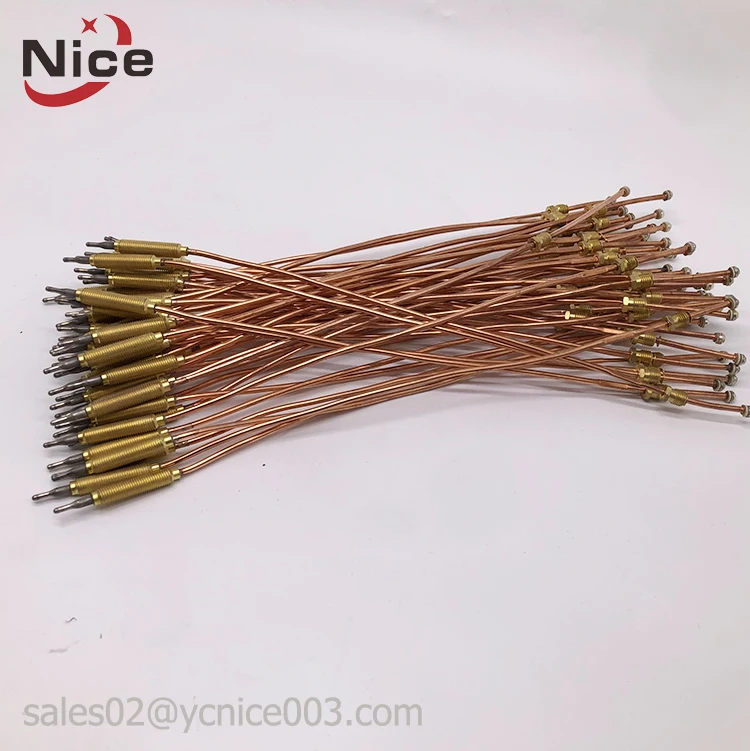

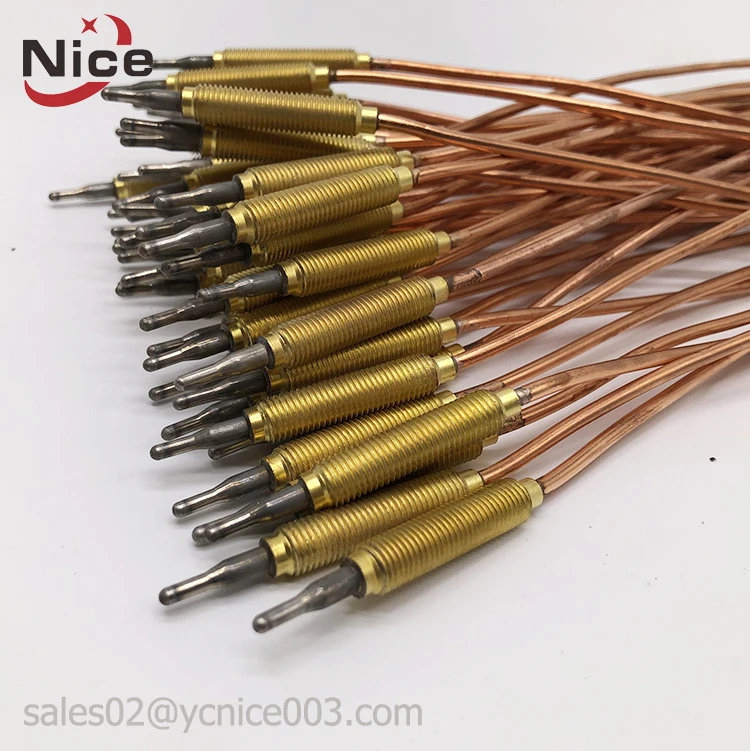

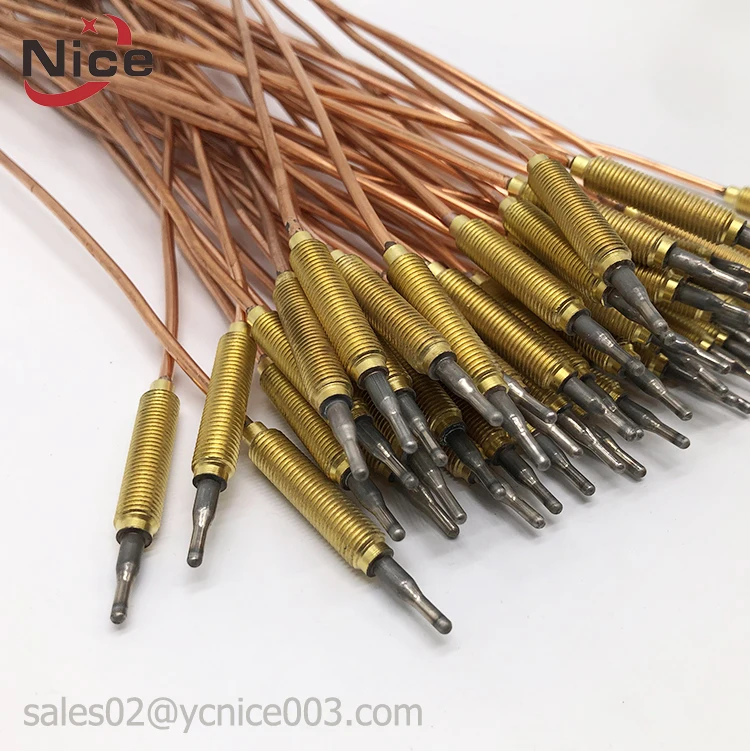

Universal gas thermocouple temperature sensor

Product Overview

Description

Description

Thermocouple is a part that is working from thermo energy converse into electrical energy. It mainly functions as a provider of continuous electrical energy for magnet. It will stop providing electrical energy for magnet when the flame is put out by external factors, then the magnet acts so that the gas valve is closed, which prevent the danger from gas leakage.

Technical Characteristics

(1) Thermal potential

heat characters: the temperature of thermocouple on flame is 600-700 and the heat potential should≥25mv

cool characters: the temperature of thermocouple on flame is 600-700. The heat potential should be≤1.5mv when heated for 5min and then cut off the power.

Work temperature: the top temperature is lower than 700 and the other parts higher than 125

(2) Inner resistance

according to its type and length, the tolerance is ±3mΩ as requested.

(3)Length according to request of customers

(4)For head & terminal according to request of customers

Features
* Can be used to measure high temperatures because metals have high melting points
* Respond very quickly to temperature changes because metals have high conductivities
* Sensitive to very small changes in temperature
* Has precision accuracy in temperature measurement

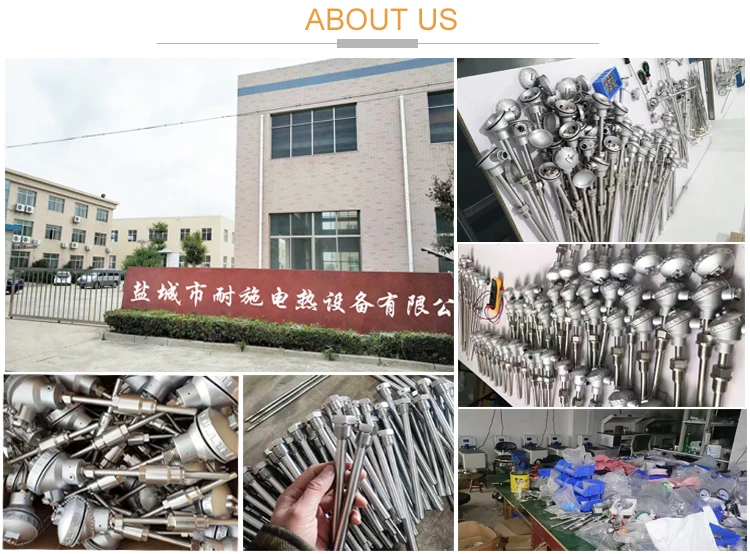

Yancheng Nice Electric Heating Equipment Co.,Ltd,a professional manufacturer according to customers’ requirements,has advanced production lines,testing equipment and QC department to provide clients with high quality goods.In addition,an experienced R&D department and service team to give clients best heating solutions.

Our products have been exported to Europe,America,Asia,Mid East etc,more than 200 countries,and used widely in Plastic Machinery,Vacuum Packing,Petroleum Chemical Industry,Food,Industrial Furnaces and Autonmation etc.

Thank you for your patience and welcome your cooperation.

1.Shipping

by Express or by sea Samples and small packages are usually shipped by International Express Large quantity goods are usually shipped by Sea

2.Package

Packing material: polybag, cartons, pallets.

10pcs/polybag or 100pcs/polybag, 500pcs/export carton or 1000pcs/export carton, Non-fumigation Pallets
