Product Overview


EU Standard Diesel Car Heating Spray Booth for Car Painting

Product Description

 Technical Parameter:

Outside Size:


Inside Size:







Cabin system:





Antiflaming EPS Plate,50mm thick,steel skin is 0.4mm thick, tongue & groove style, anti-flame and heat-insulation, galvanized steel roof panel.

Main door:

3-fold main doors,total 3000*2500mm(W*H),with safety glass,

with handles and high-pressure safety lock.

Side door:

1 unit 700*1800mm(W*H), with safety glass windows,

aluminum alloy frame, with handle and safety lock.


280mm height galvanized metal-base.

2 rows of grid plates made by flat bar and round steel, 3 rows of embossed plates.

Two sets of hard strength ramps.

Air circulation system:



Intake Fan:

2*3kw;double-inlet centrifugal fans, air capacity:21000m3/h.

Exhaust Fan:

1*5.5kw; double-inlet centrifugal fans, air capacity:18000m3/h.

Cabinet for the fans*1unit,air ducts*3pcs,electric damper switch*1unit.


Filtering system:

Pre-filter, filtering rate>83%,can capture granules larger than 10μm;

Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm

Fiberglass floor filter, filtering rate>70%.

Heating System:

Diesel burner heating, Italy Riello G10 oil burner.

Heating productivity: 100000 Kcal/h, stainless steel heat exchanger, with anti-explosion hole for protection, max working temperature is 80ºC.

Lighting system:

Ceiling lights: 8units*3pcs=24pcs*36W, powder-coated light box.

Side lights:6units*3pcs=18pcs*36W,vertically set,powder-coated light box.

Controlling system:

Intelligent control,power switch,spray/baking switch,light switch,emergency stop,breakdown alarm.

Power total:

About 17KW (380V/3P/50hz)

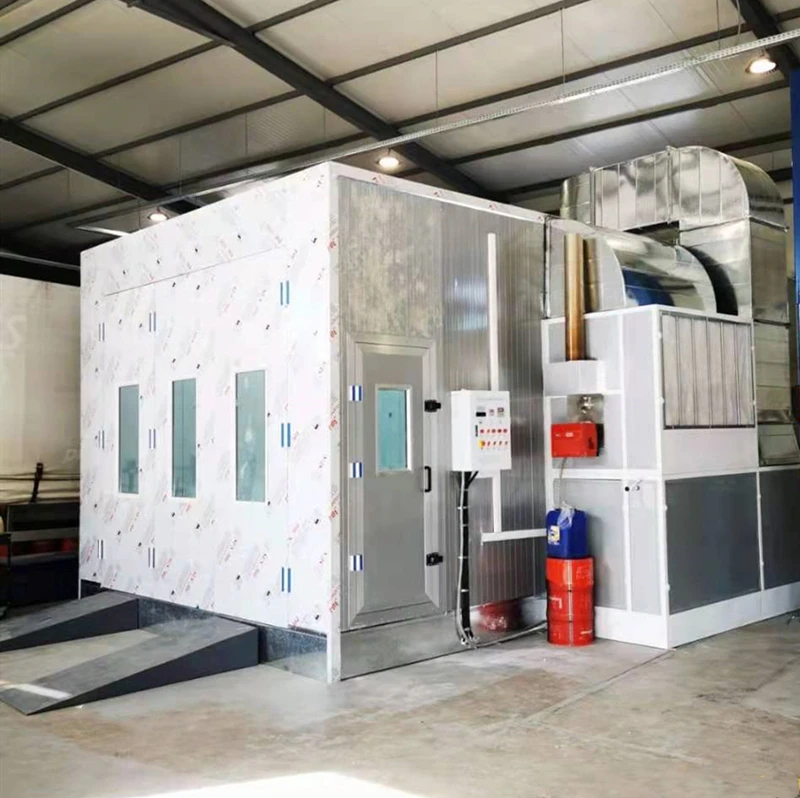

 Images Show for EU Standard Diesel Paint Oven Spray Booth:

diesel spray booth 2.jpg

spray booth detail2.jpgspray booth.jpg1.jpg (2).jpg1 (3).jpg

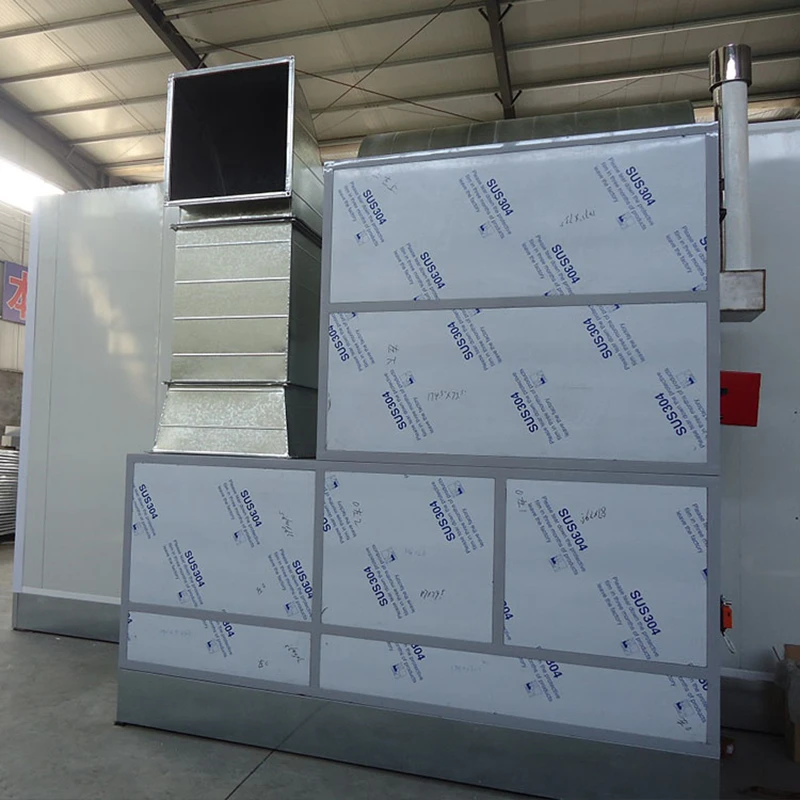

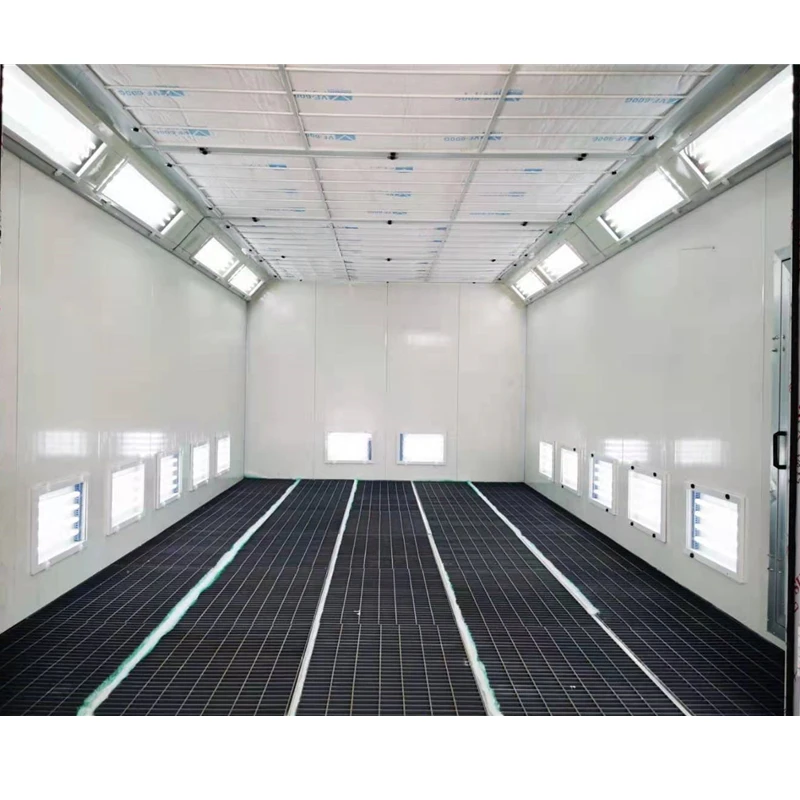

Details for EU Standard Diesel Paint Oven Spray Booth:

detail 4.JPGdetail 5.JPGdetail 6.jpg

detail 8.jpgdetail 9.jpg

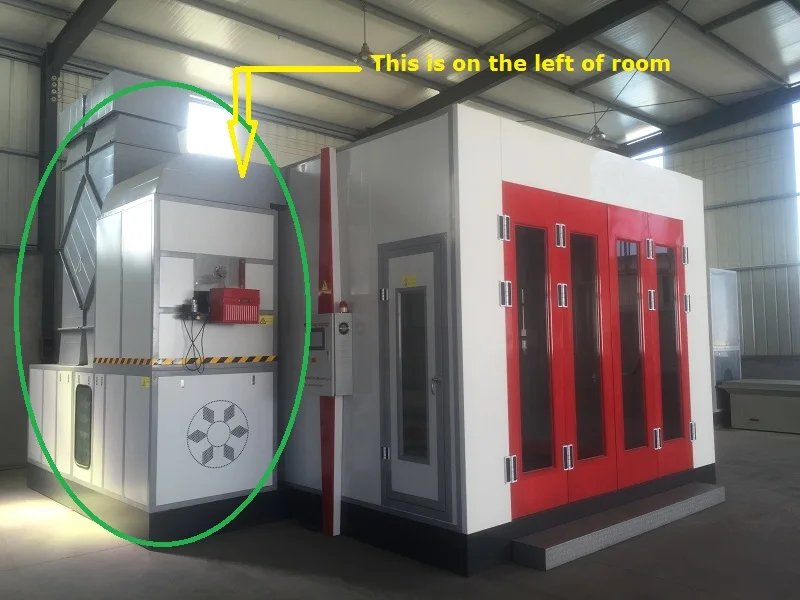

Other Pictures for EU Standard Diesel Paint Oven Spray Booth:

We manudacture electric heating, diesel heating, gas heating and water paint booth, customers just need to tell us the requirement, our professional technical people will provide best solution.

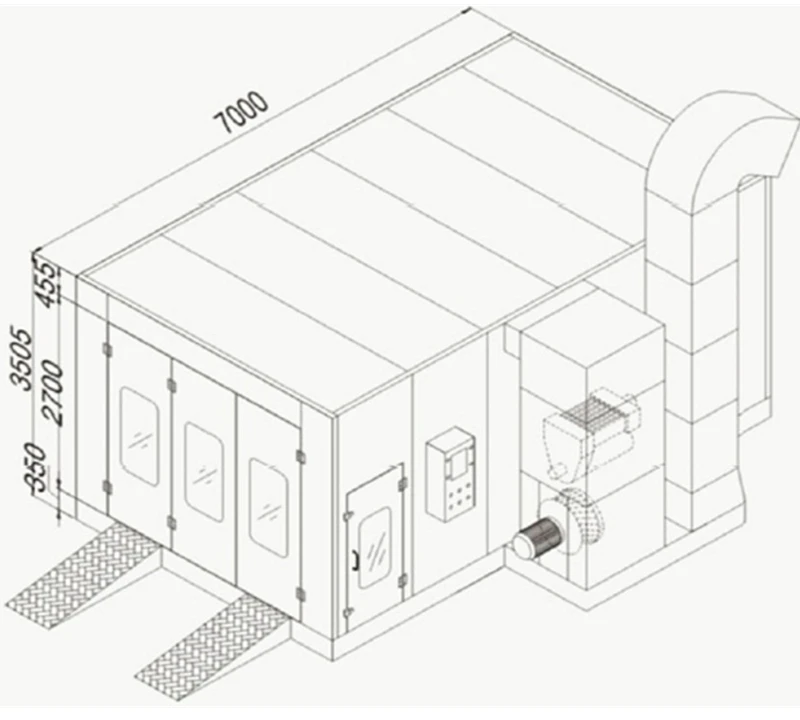

draft left.jpgdraft right.jpg1.pngdraft 1.jpgdraft2.jpg

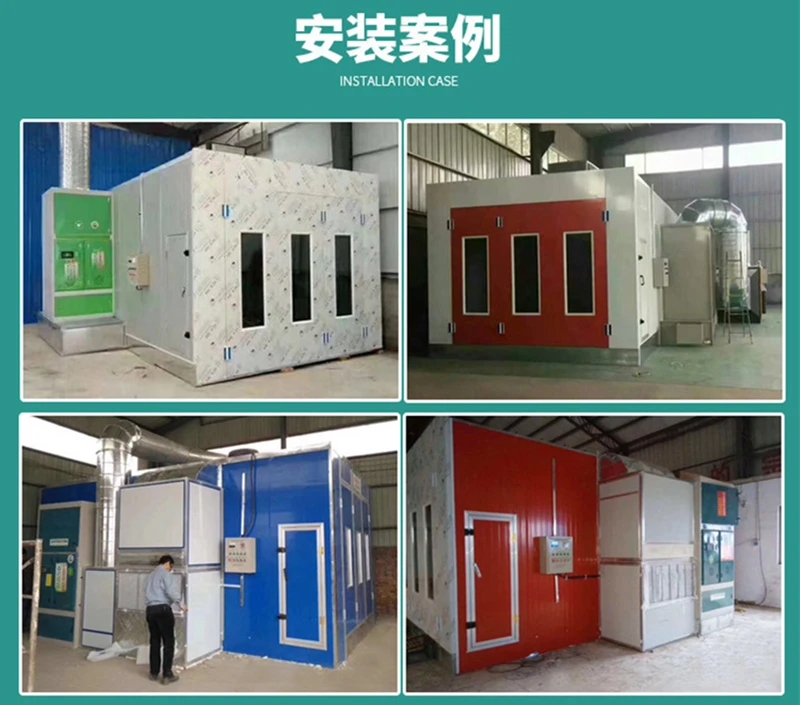

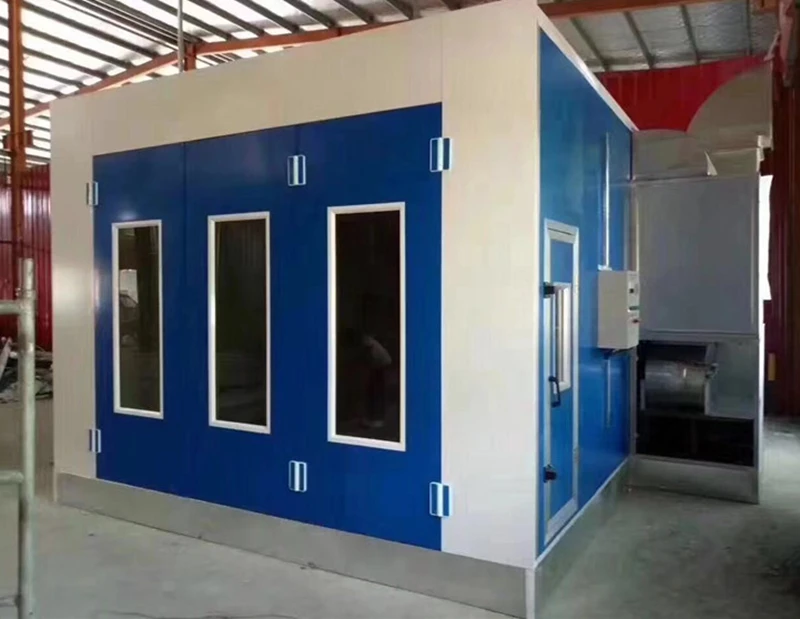

installed booth.jpgpainting booth.jpgspray booth2 (2).jpgspray paint booth 2.jpgspraybooth8.jpgbooth 1.jpg




Packaging & Shipping


 We can pack spray booth by a whole container,  generally 20ft container can put just one set booth, but 40HQ container can put 3sets.

shipping.JPGshipping (2).jpg
