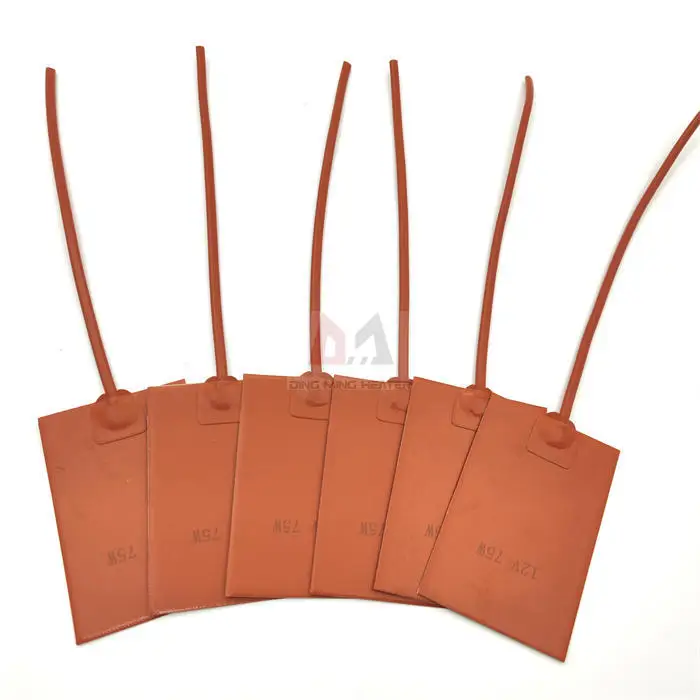

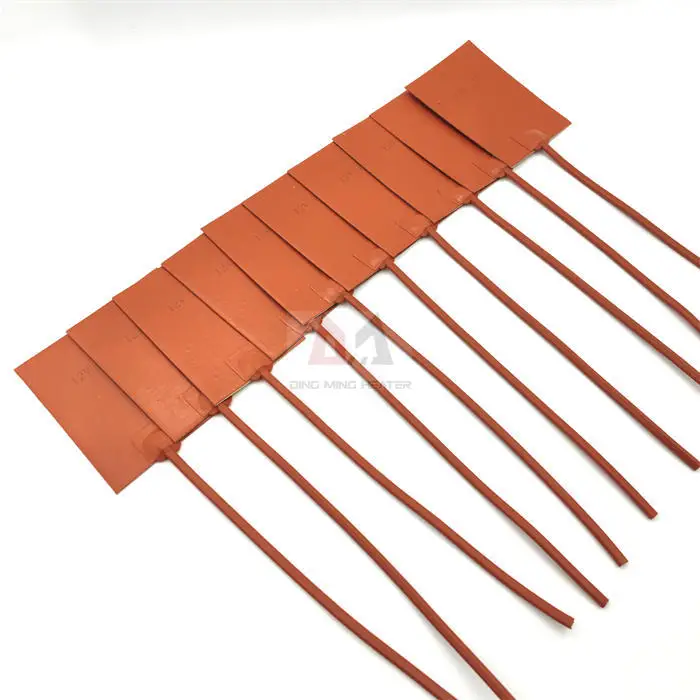

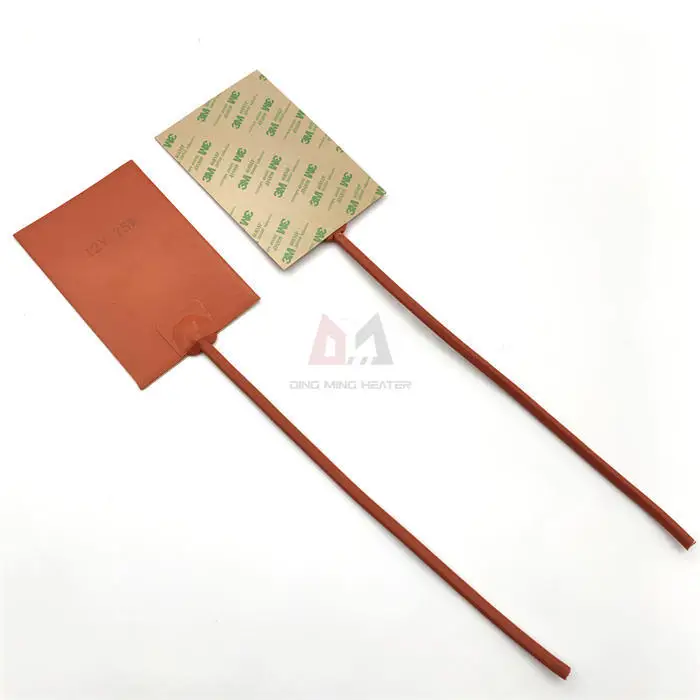

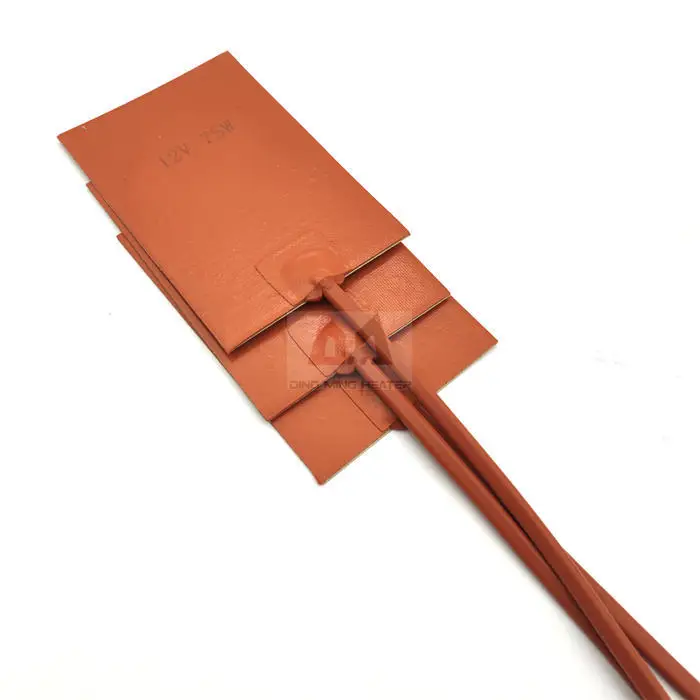

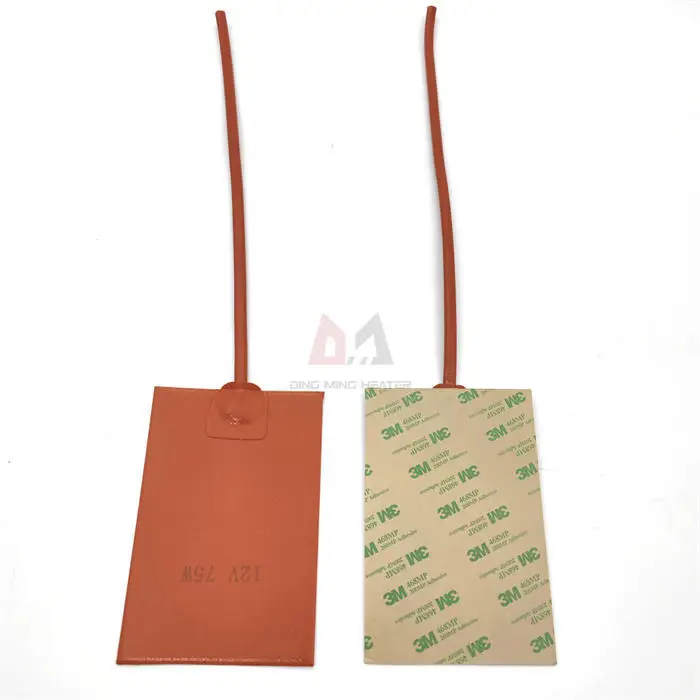

12v Engine Oil Pan Heater Silicone Rubber Heating Element
- Category: >>>
- Supplier: Yancheng Dingming Electric Heating Technology Co. Ltd.
Share on (1600490627271):
Product Overview
Description
Products Description
Specification
Technical Parameter | ||||||
Rated power | w | Lead length | 300mm standard, customizable | |||
Rated voltage | 12v-480v | Wire tension | 15N *15N | |||
Maximum size | 1000-1200mm | Minimum size | 20mm *20mm | |||
Ambient Temperature | -60-250℃ | Highest temperature | 250℃ | |||
Maximum thickness | 1.5mm-4mm | Withstand voltage | 1.5KV | |||
Insulation resistance | ≥5MΩ | Size deviation | ±0.5% | |||
Power deviation | ±5% | Wire type | Silicone braided wire | |||
Accessories options for heating pads | ||
Thermocouple | K / J / withouut | |

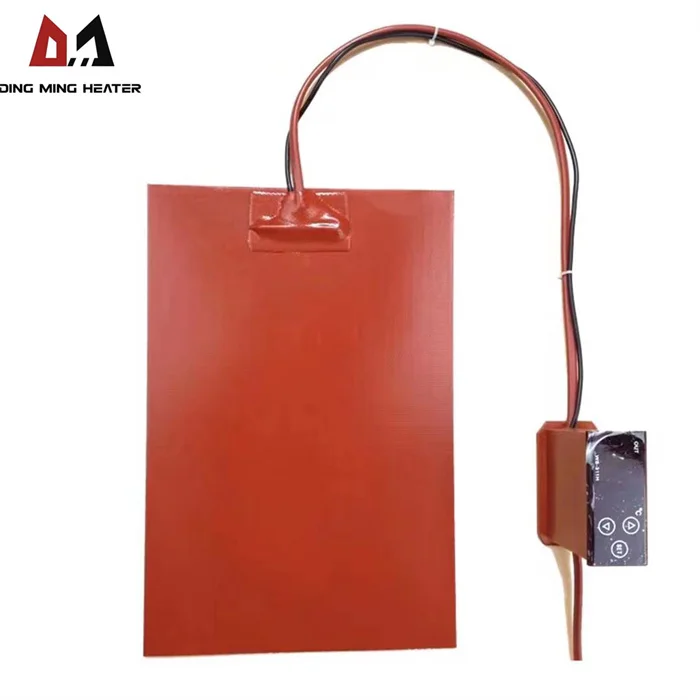

Controller | Dial / Digital / Anti-explosion | |
Plug | American Standard / European Standard / British Standard | |

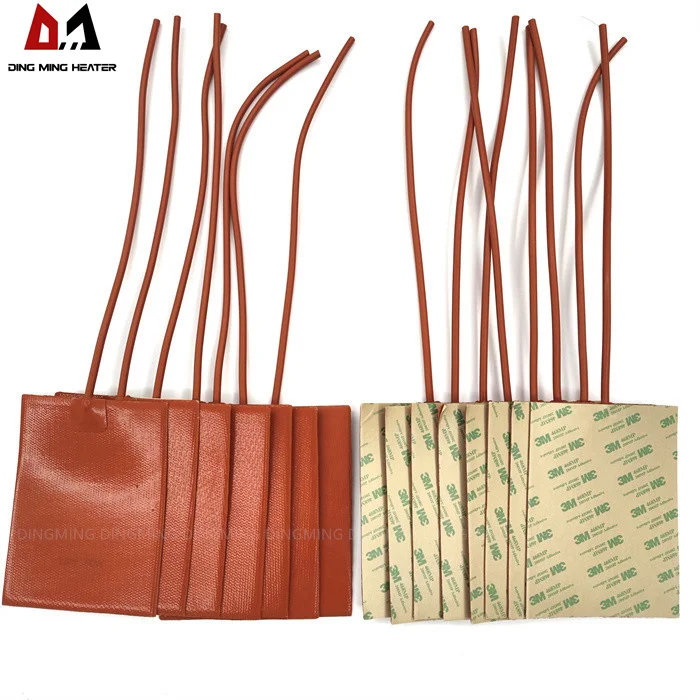

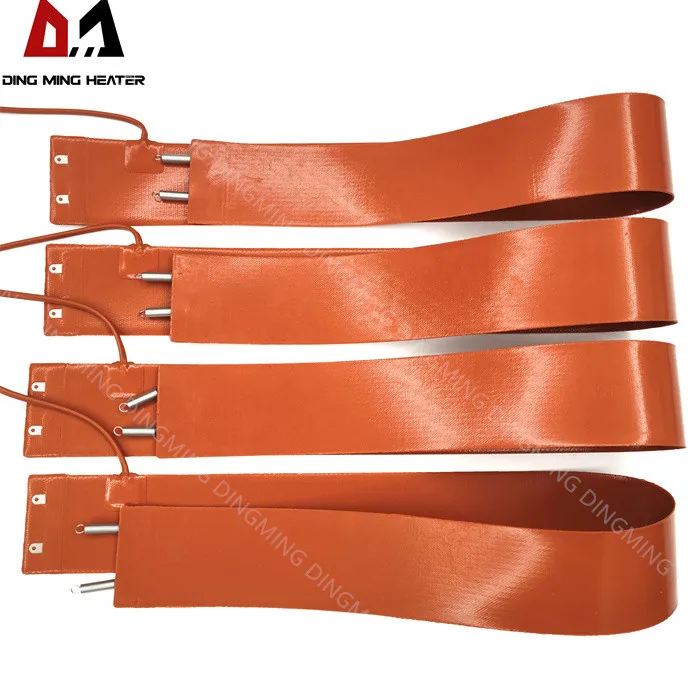

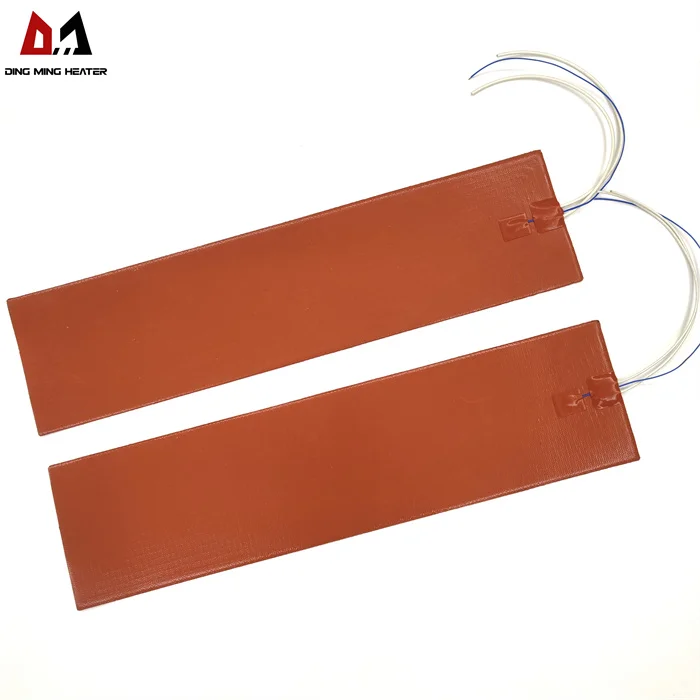

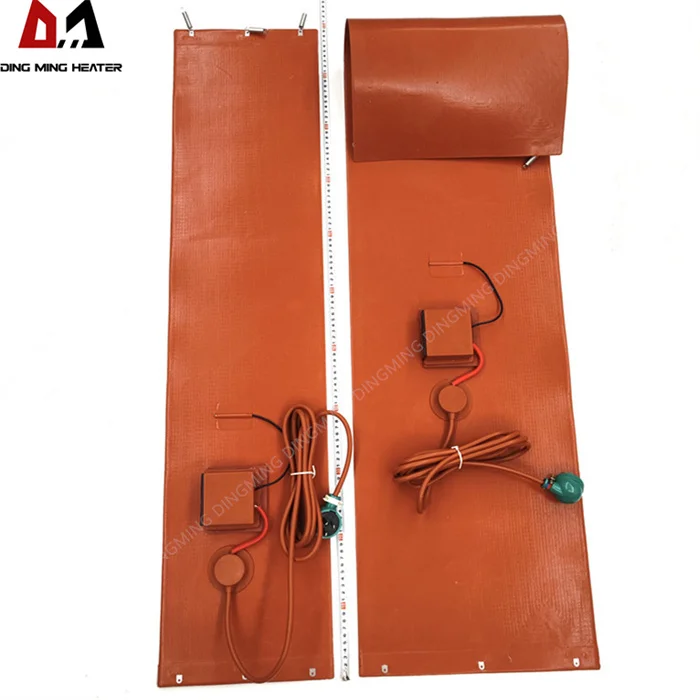

Details Images
- The silicone rubber heater's max wattage can be made for 1 w/cm²;
Advantages
- The silicone rubber heater can improve heat transfer, accelerate warming and decrease power under the process of operation;

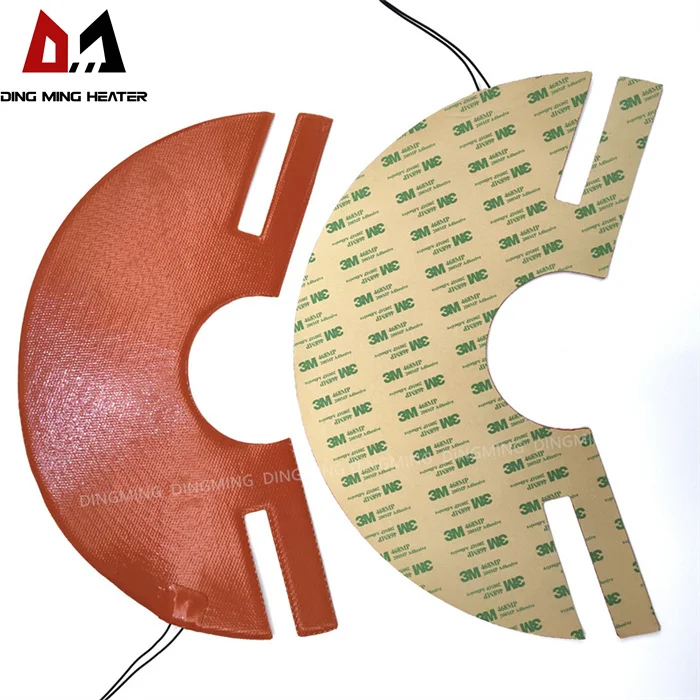

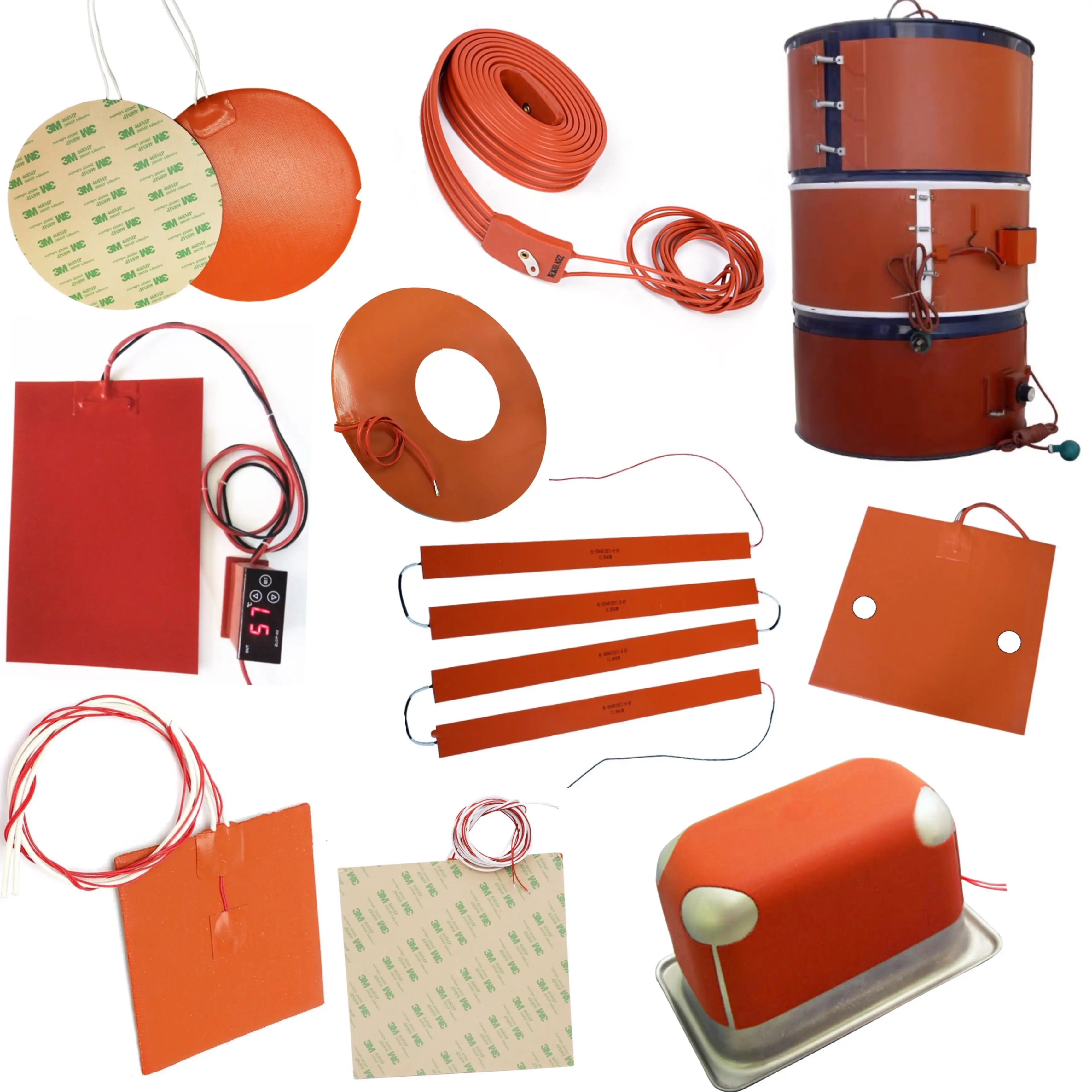

- The silicone rubber heater's can be made for any size and any shapes.
1.What wattage and voltage will be used?
2.What is the shape and size?
3.What is the lead wire length?

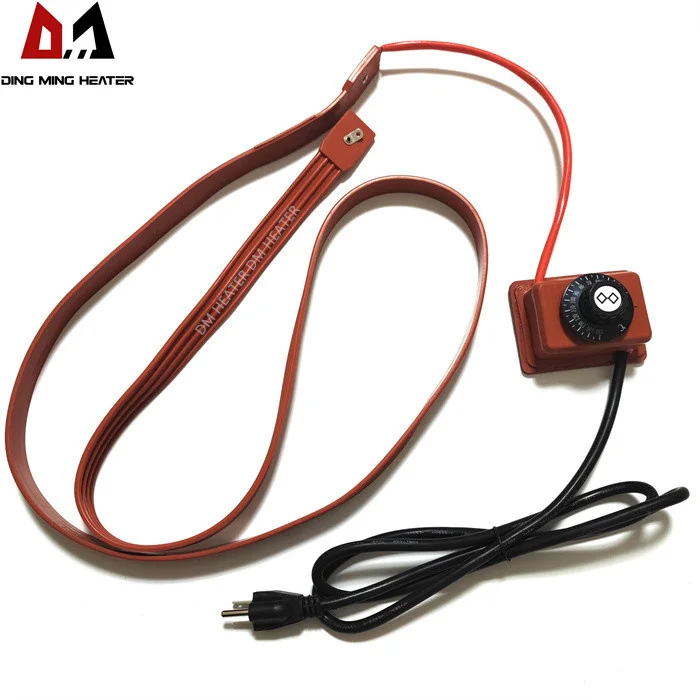

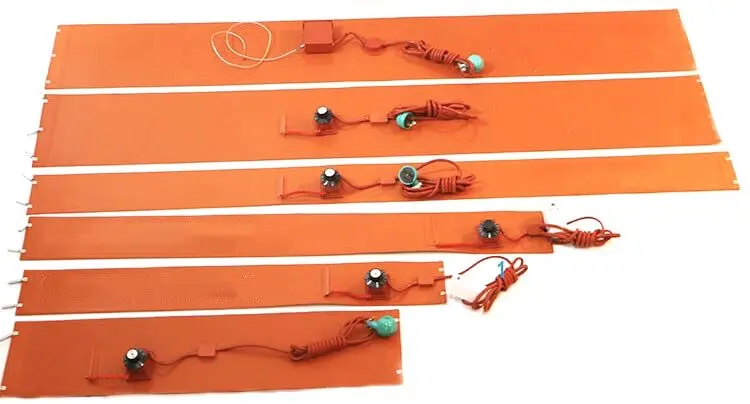

Standard specifications for Oil Tank and Gas Tank
Product Name | Size | Voltage/Power | Weight |
200L Drum heater | 250*1740mm | 220V/2KW(3KW) | 1.6KG |
200L Drum heater | 125*1740mm | 220V/1KW | 0.85KG |
100L Drum heater | 250*1250mm | 220V/1.5KW | 0.8KG |
20L Drum heater | 200*860mm | 220V/800W | 0.75KG |
15KG Gas tank | 100*970mm | 220V/300W | 0.55KG |
50KG Gas tank | 100*1250mm | 220V/350W | 0.6KG |
50KG Gas tank | 180*1250mm | 220V/500W | 0.9KG |

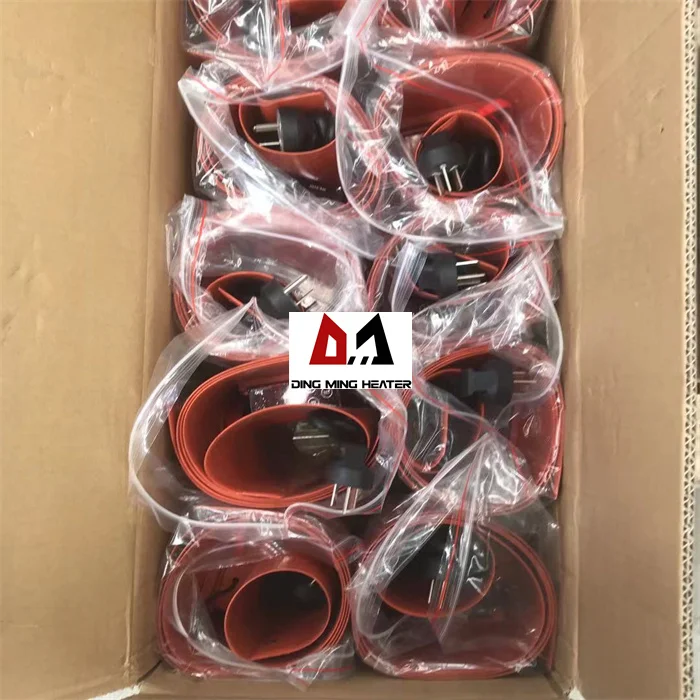

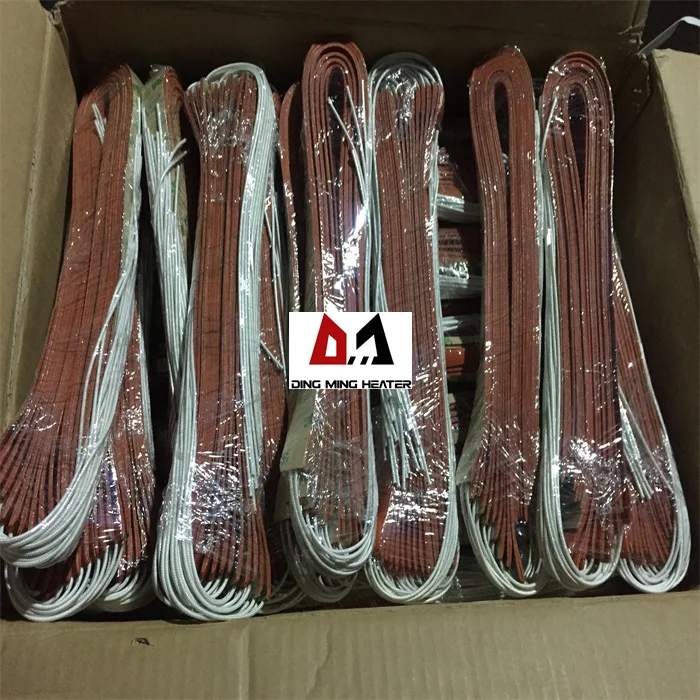

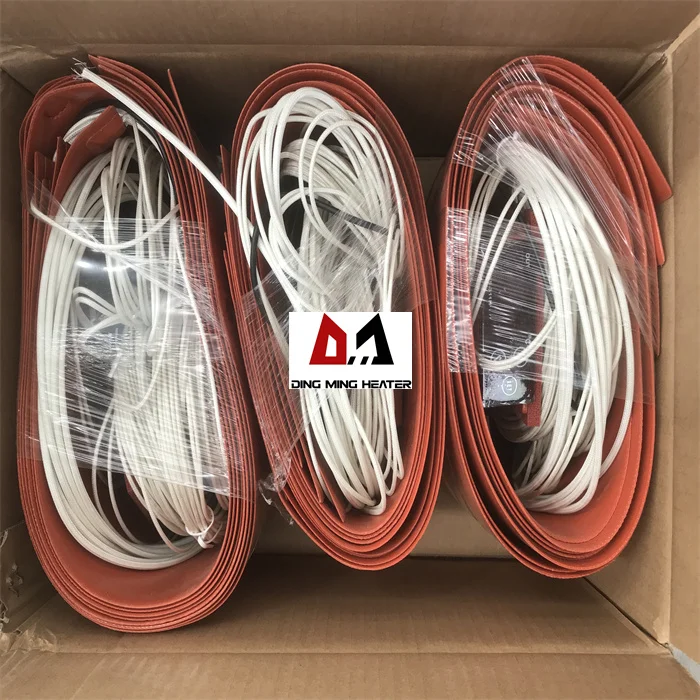

Package & Delivery
