ASC Series Aluminum Alloy Pneumatic Air Manual Flow Control Valve ASC100 06 ASC200 08 ASC300 10 ASC300 15
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1600490655960):
Product Overview
Description
ASC Series Aluminum Alloy Pneumatic Air Manual Flow Control Valve ASC100-06 ASC200-08 ASC300-10 ASC300-15

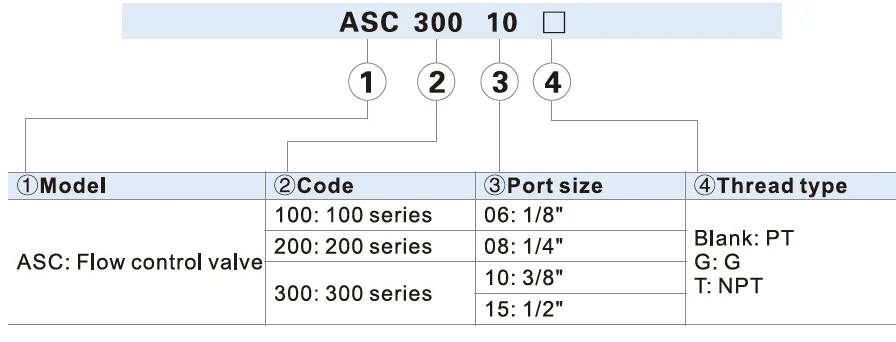

Ordering Code:
Specifications
Model | ASC100-06 | ASC200-08 | ASC300-10 | ASC300-15 | |||||
Fluid | Air (to be filtered by 40 µ m filter element) | ||||||||
Port size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | |||||
Pressure range | 0.05~0.95MPa(7~135psi) | ||||||||
Proof pressure | 1/5MPa(215psi) | ||||||||
Temperature | -20~70℃ | ||||||||
Material body | Aluminum alloy | ||||||||
Flow(L/min) | Control | 200 | 450 | 1250 | 1650 | ||||
Free flow | 400 | 800 | 1500 | 2500 | |||||
More products:
Other type for you to choose

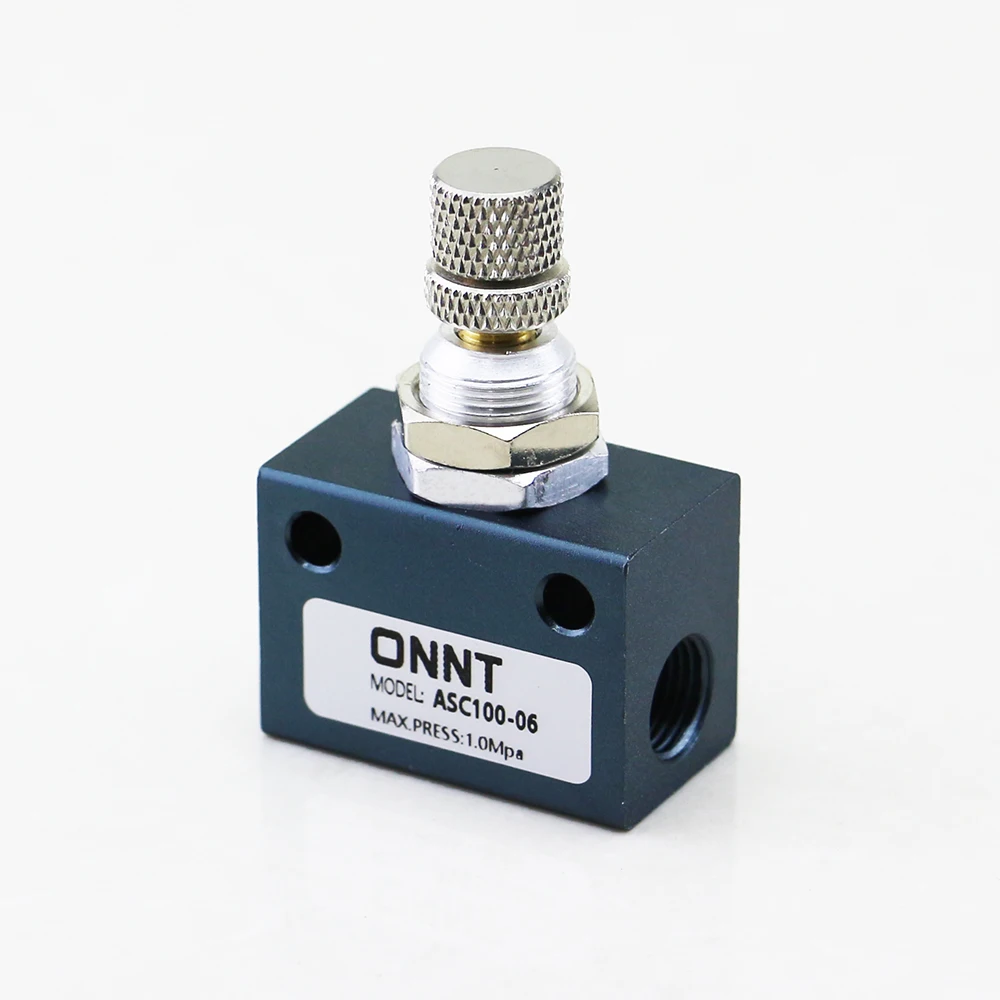

Details Images:

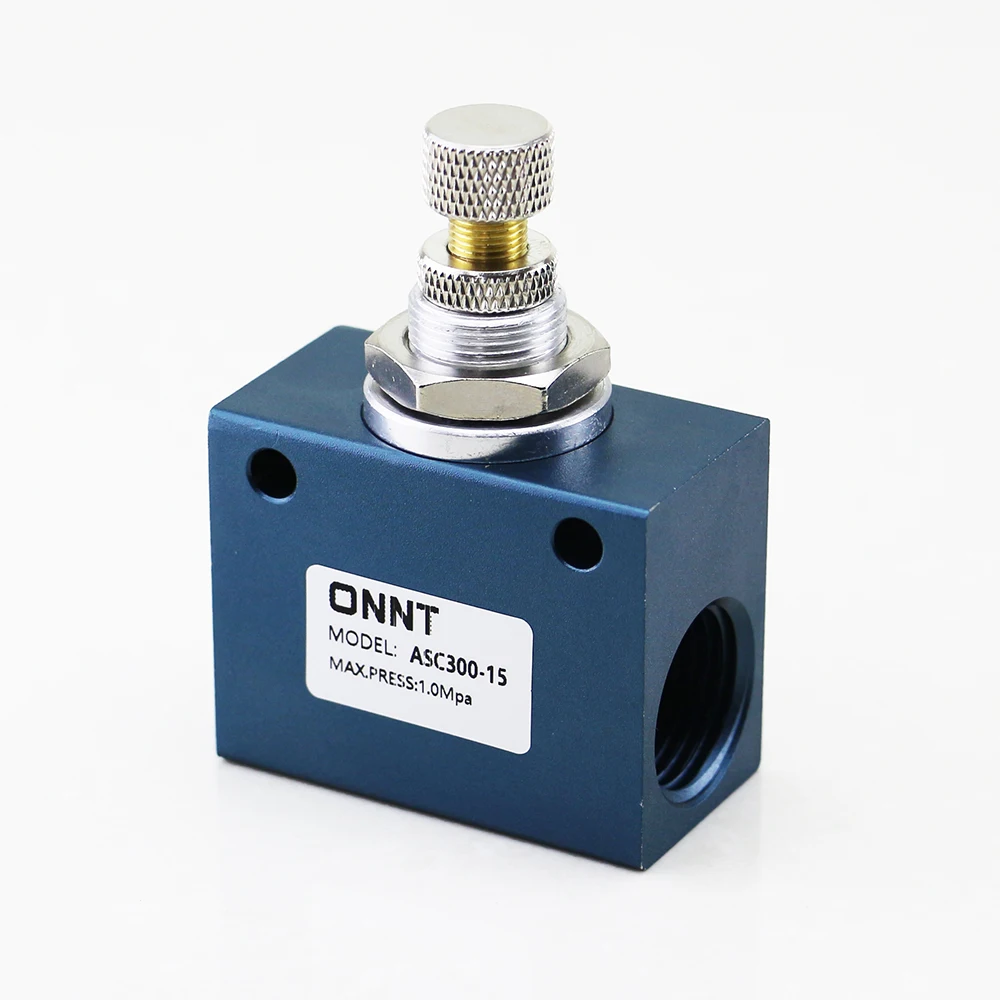

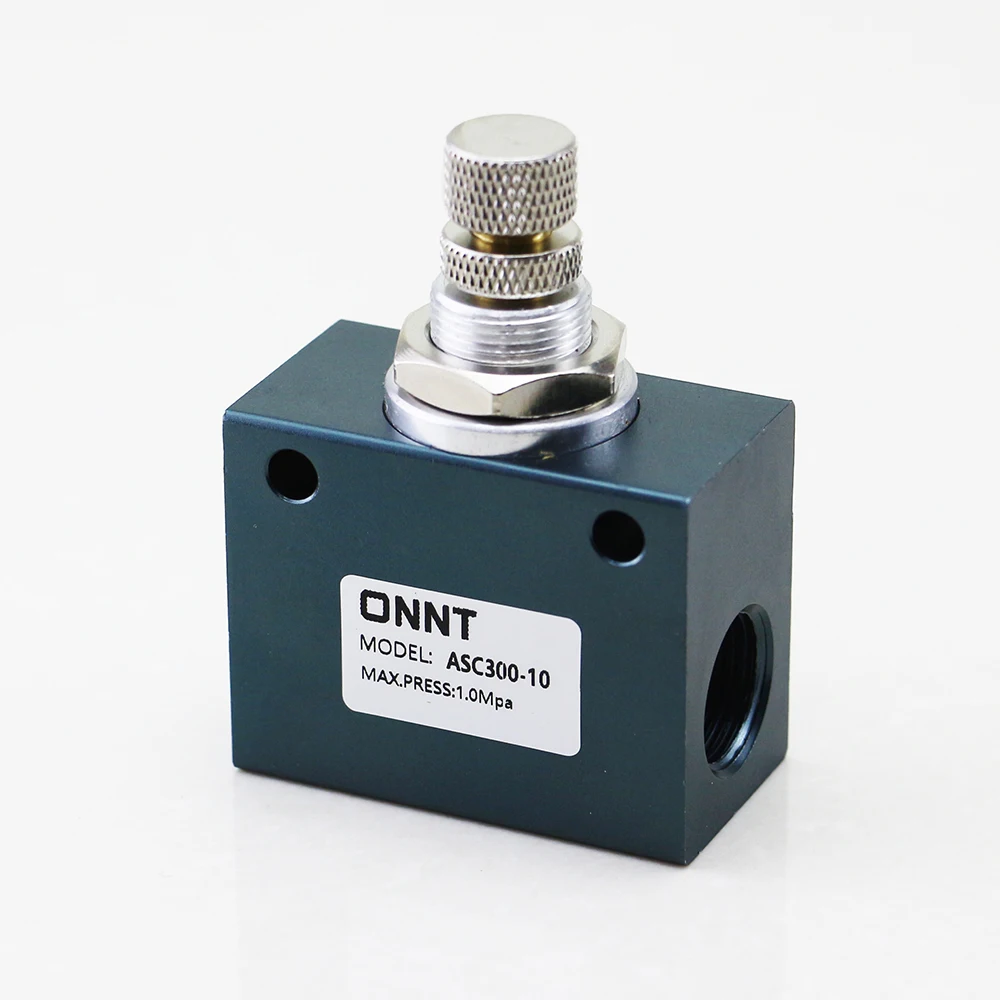

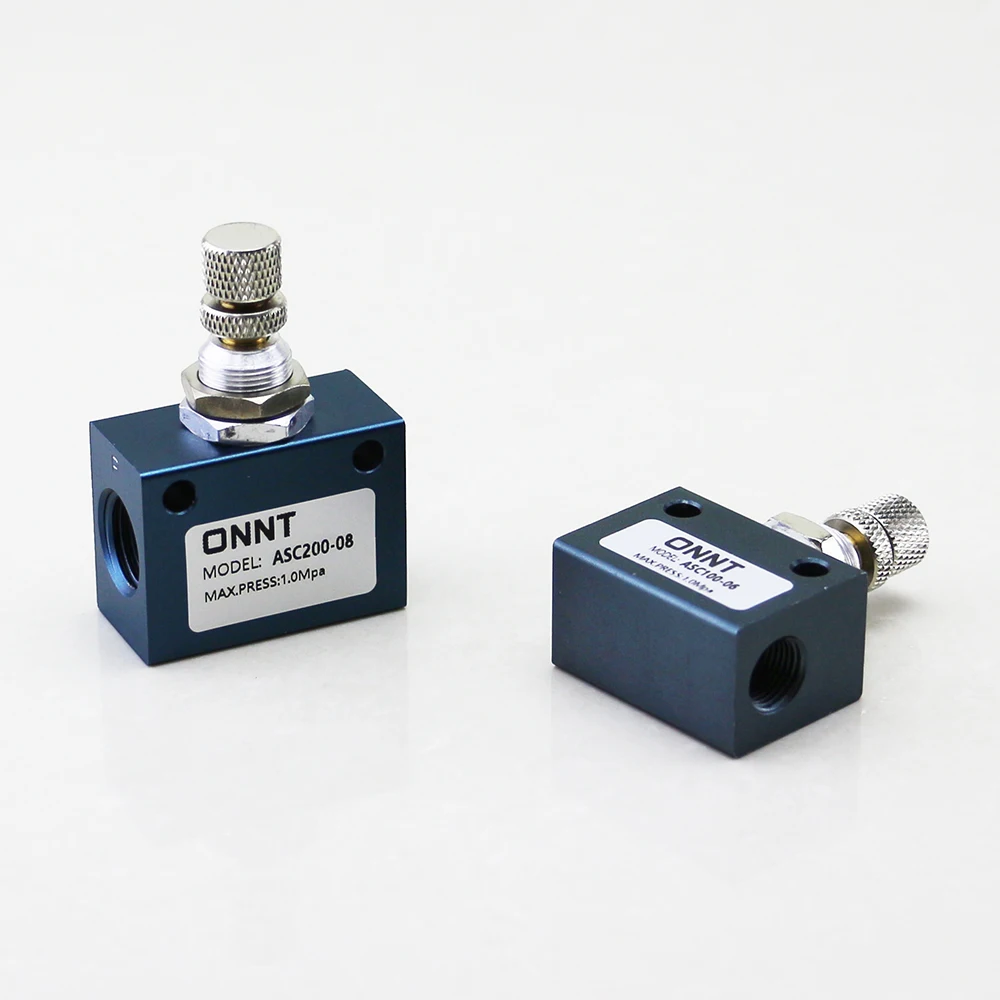

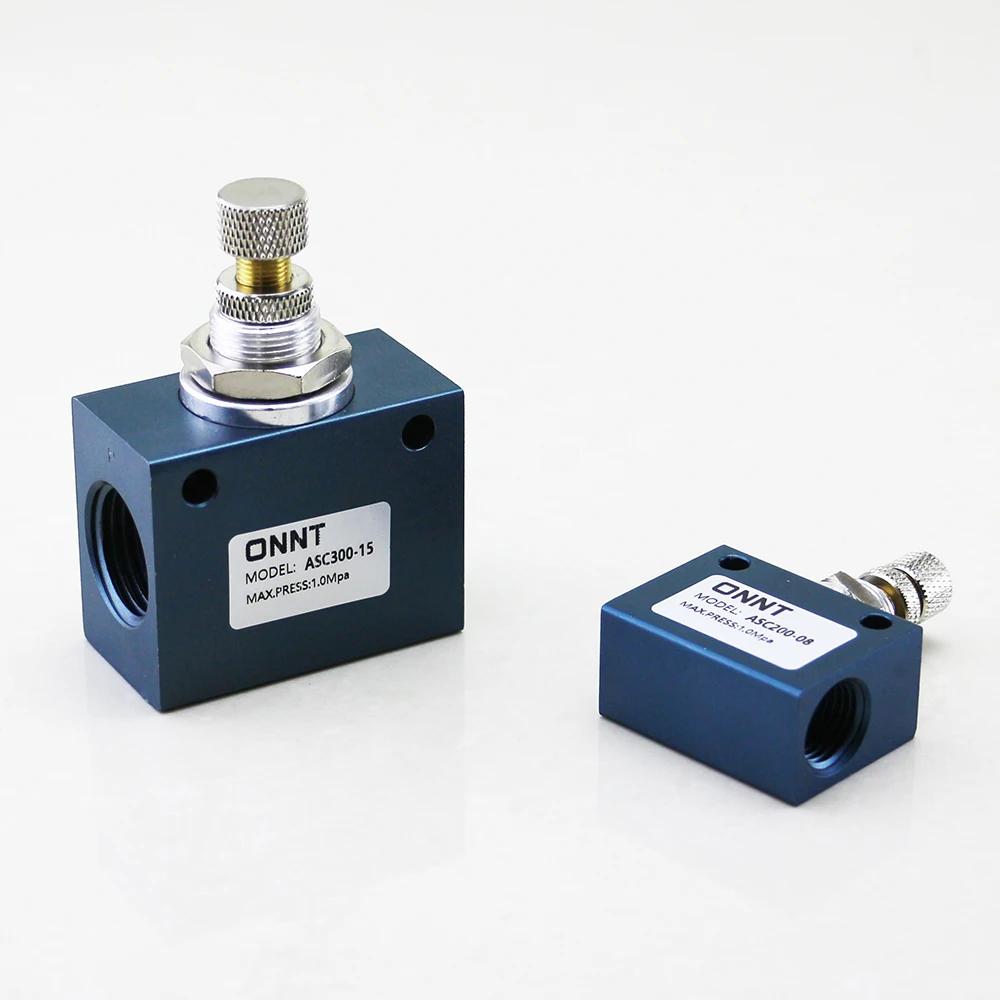

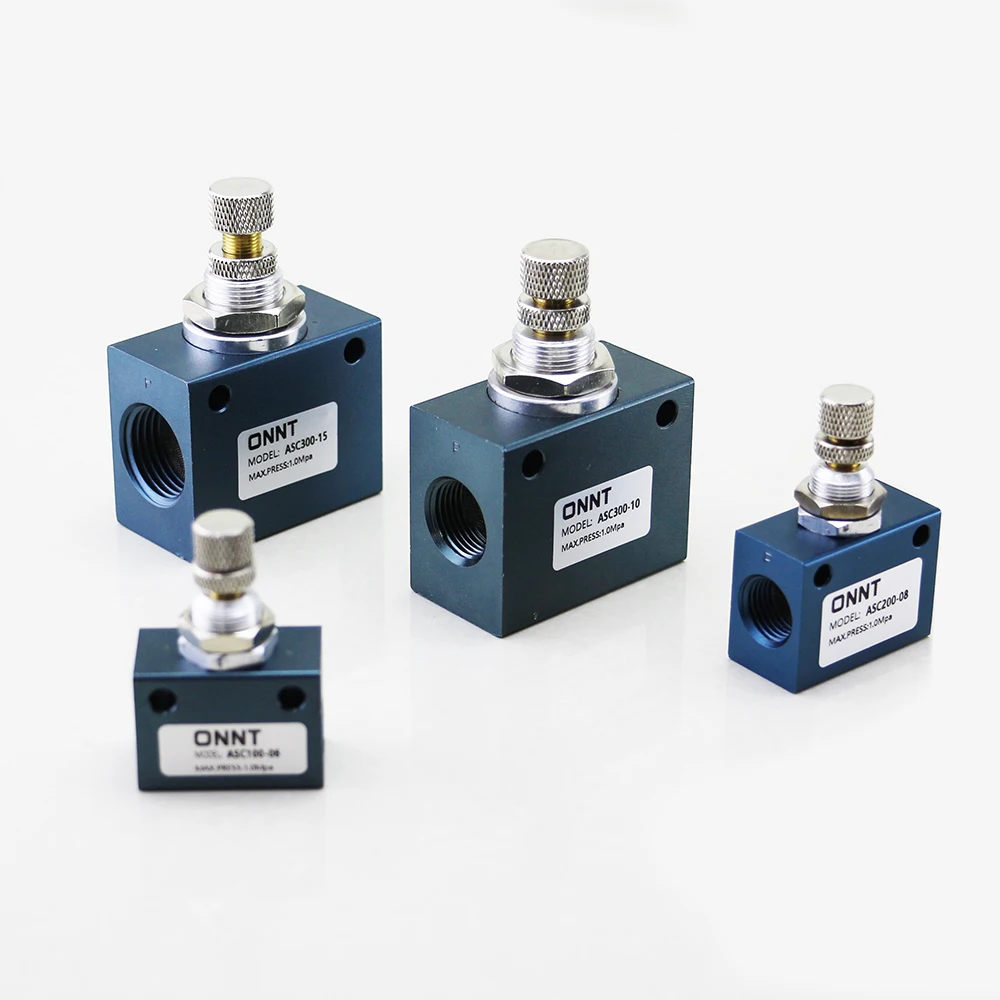

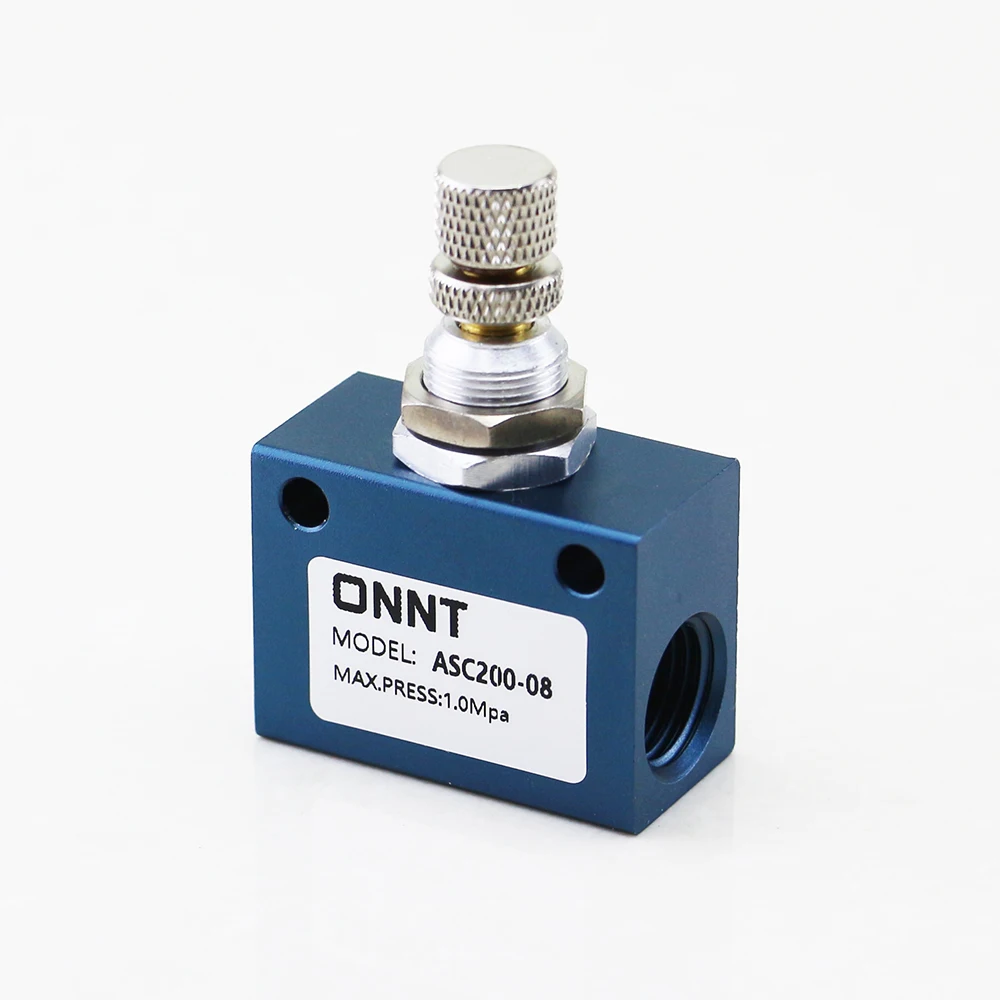

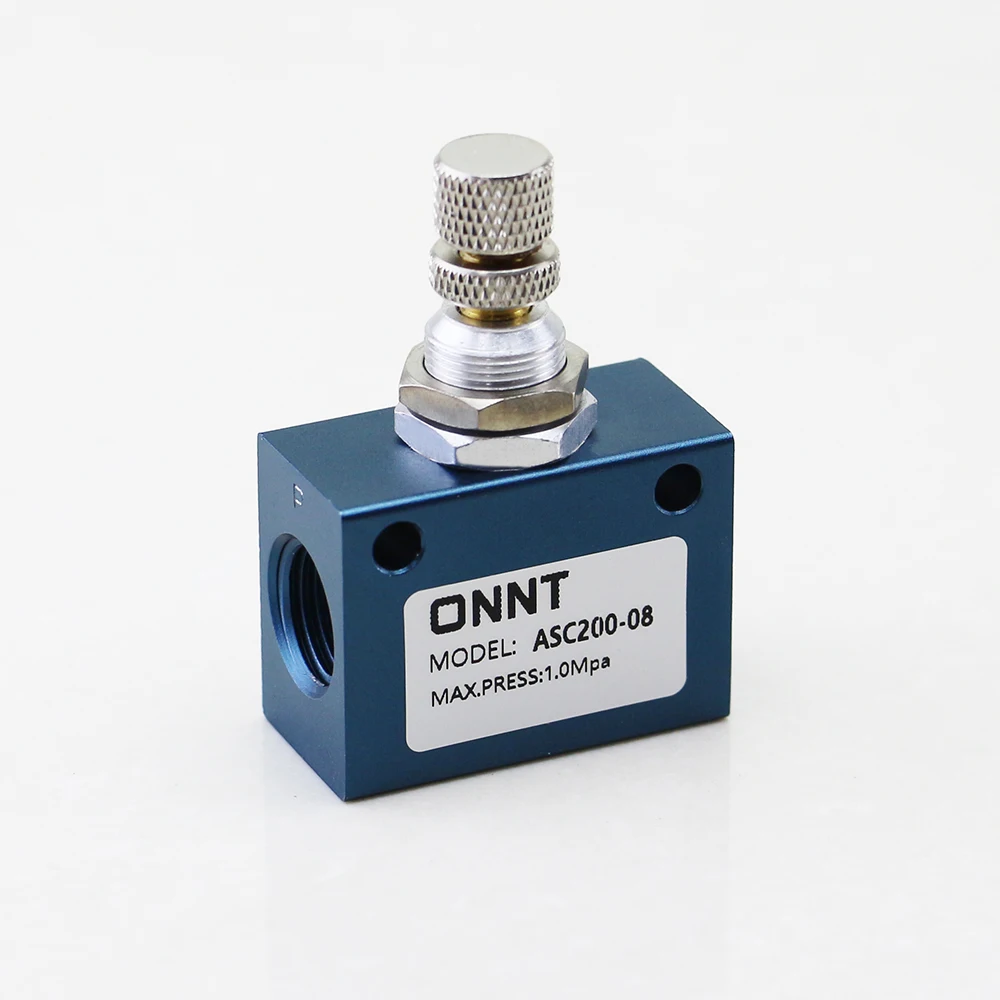

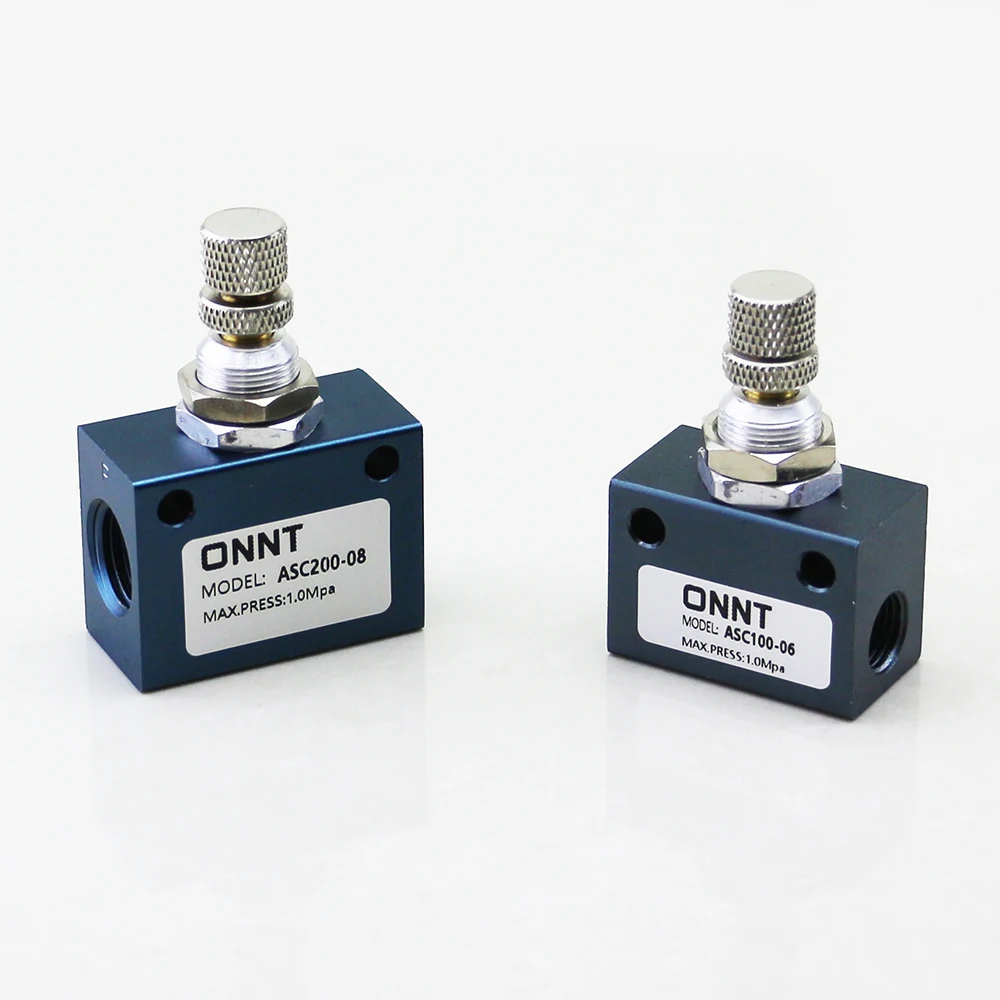

ASC100-06 ( G1/8 ) ASC200-08 ( G1/4 ) ASC300-10 ( G3/8 ) ASC300-15 ( G1/2 )

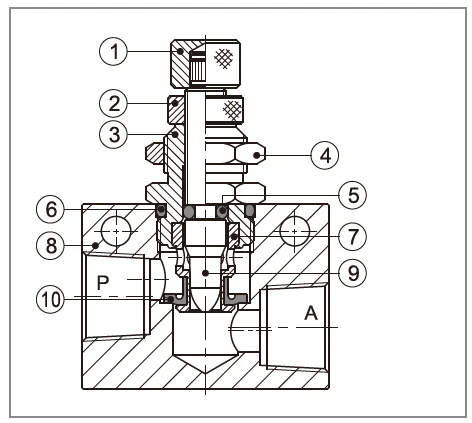

Inner structure and material of major parts:
No | Item | NO | Item |
1 | Adjustment cap | 6 | O-ring |
2 | Clamping cap | 7 | Throttle sheath |
3 | Throttle body | 8 | Body |
4 | Hexagon nut | 9 | Throttle column |
5 | O-ring | 10 | Spool O-ring |

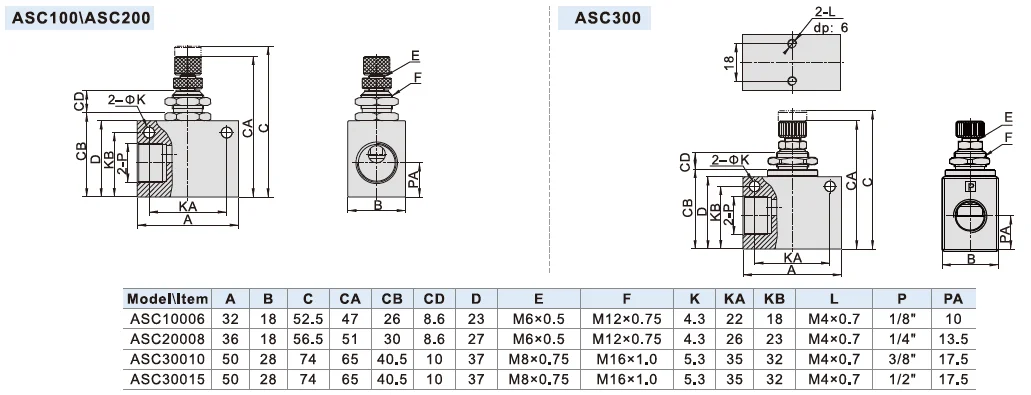

Dimensions
