2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe
2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe
2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe
2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe
2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe
2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe
2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe

2.4g Wireless Bridge Wireless Cpe Elevator Monitoring Cpe 300mbps Wireless 1km Wifi Ap Bridge Point To Point Outdoor Cpe

Share on (1600490682833):


Price:$15.00 - $17.00

Quantity:


Product Overview

Description



Product Description


WB200 is one professional outdoor AP/CPE/Bridge, professional for outdoor transmission using.

* Easy setting via DIP switch, no need computer/phone

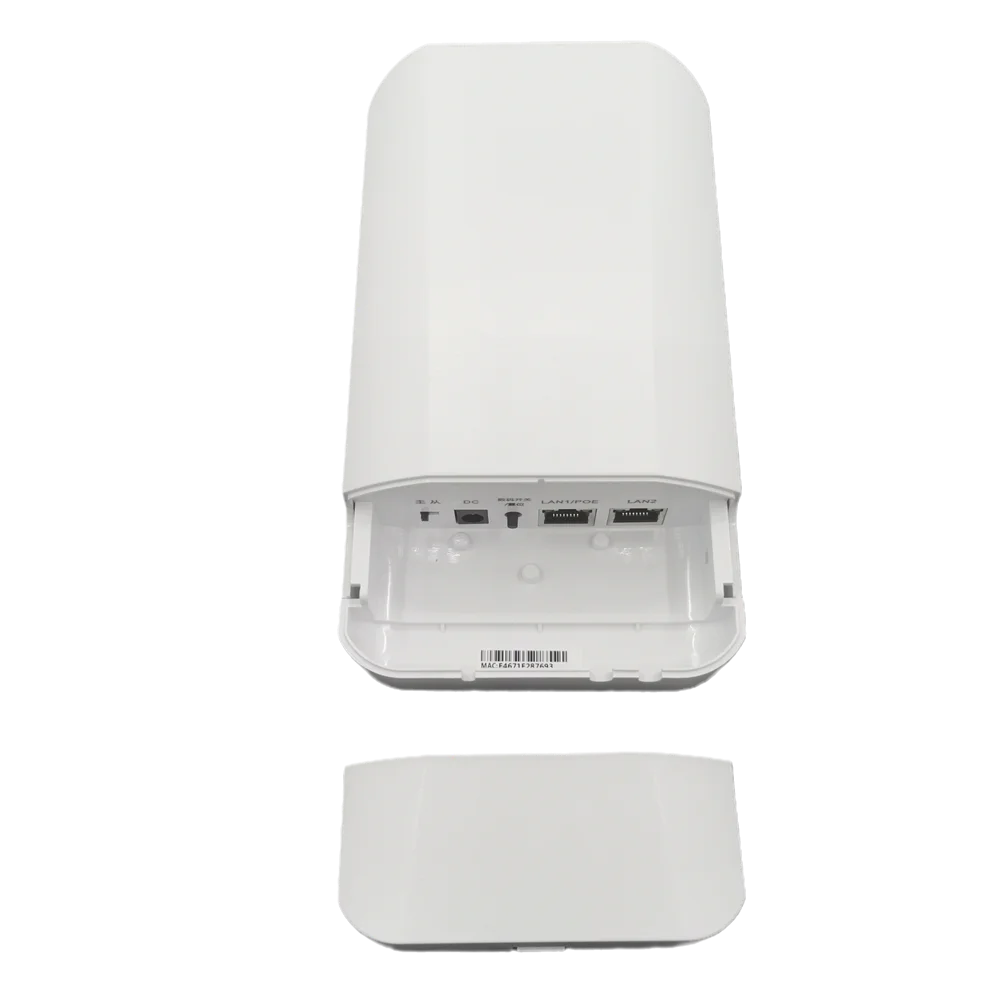

* 1 WAN+1 LAN Port, support 24V POE power supply
* 2.4G 300Mbps wifi rate
* Suitable for 1KM transmission
* Professional for outdoor using, waterproof

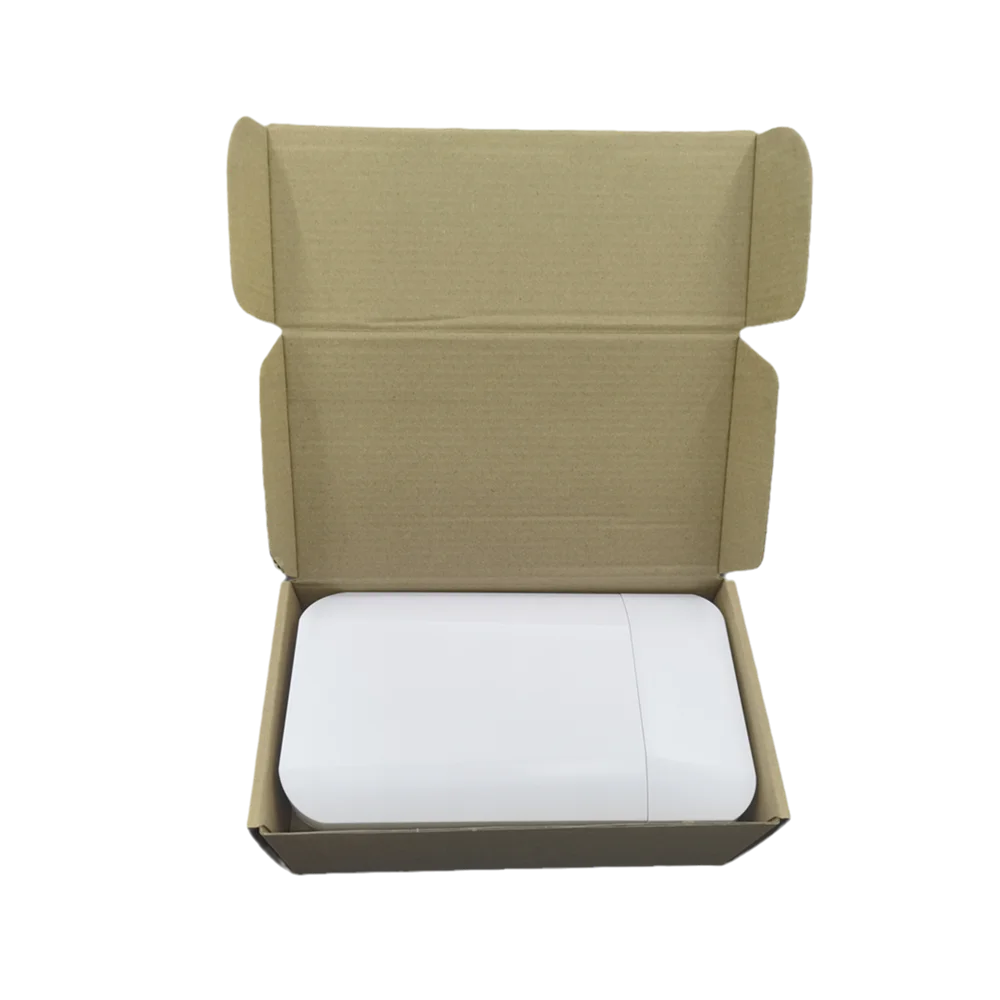

* Default packing is 1pcs device in 1 package




1 Package includes 1pcs Devices

With Mounting Brackets for Outdoor Installation

Generally use >=2pcs, one is sender, others are receiver

Support Point to Point or Point to Multi-Point transmission

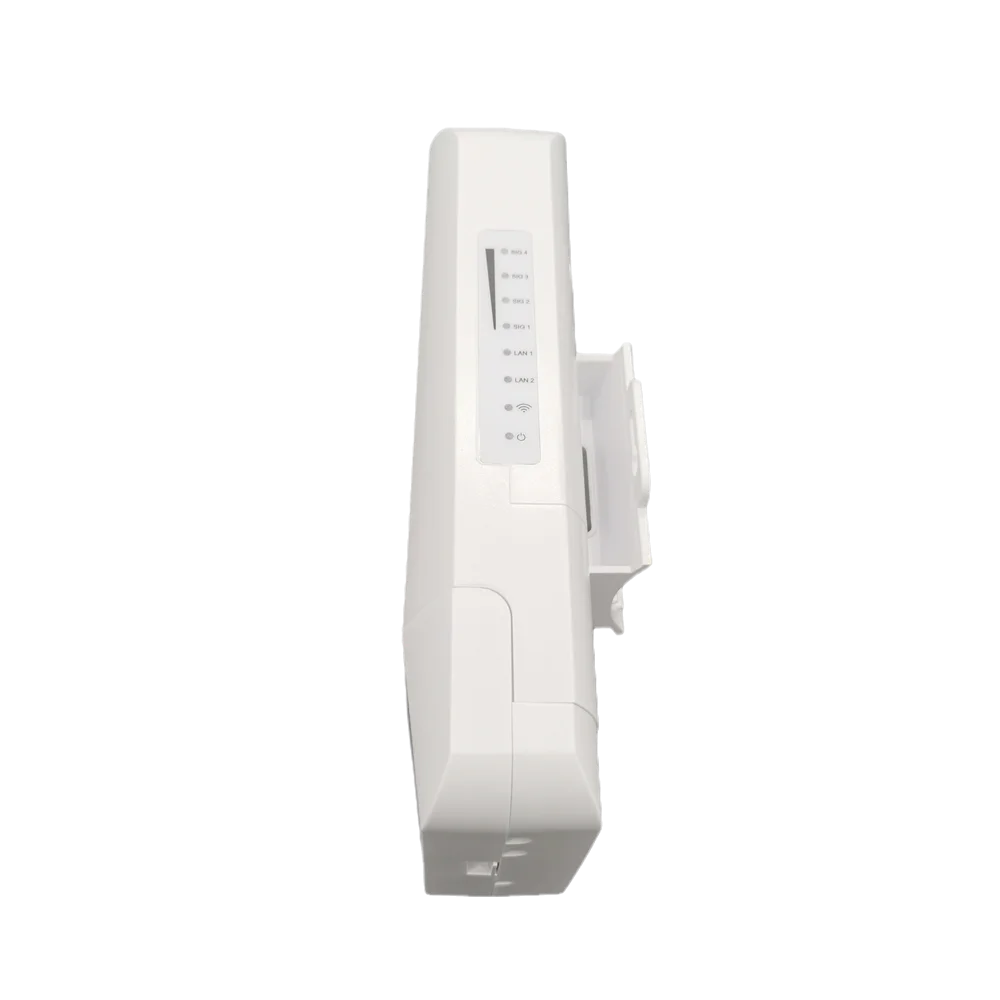

LED indicator shows devices bridge status

Sender device and receiver device LED changes

Easy setting, no need to use phone/computer

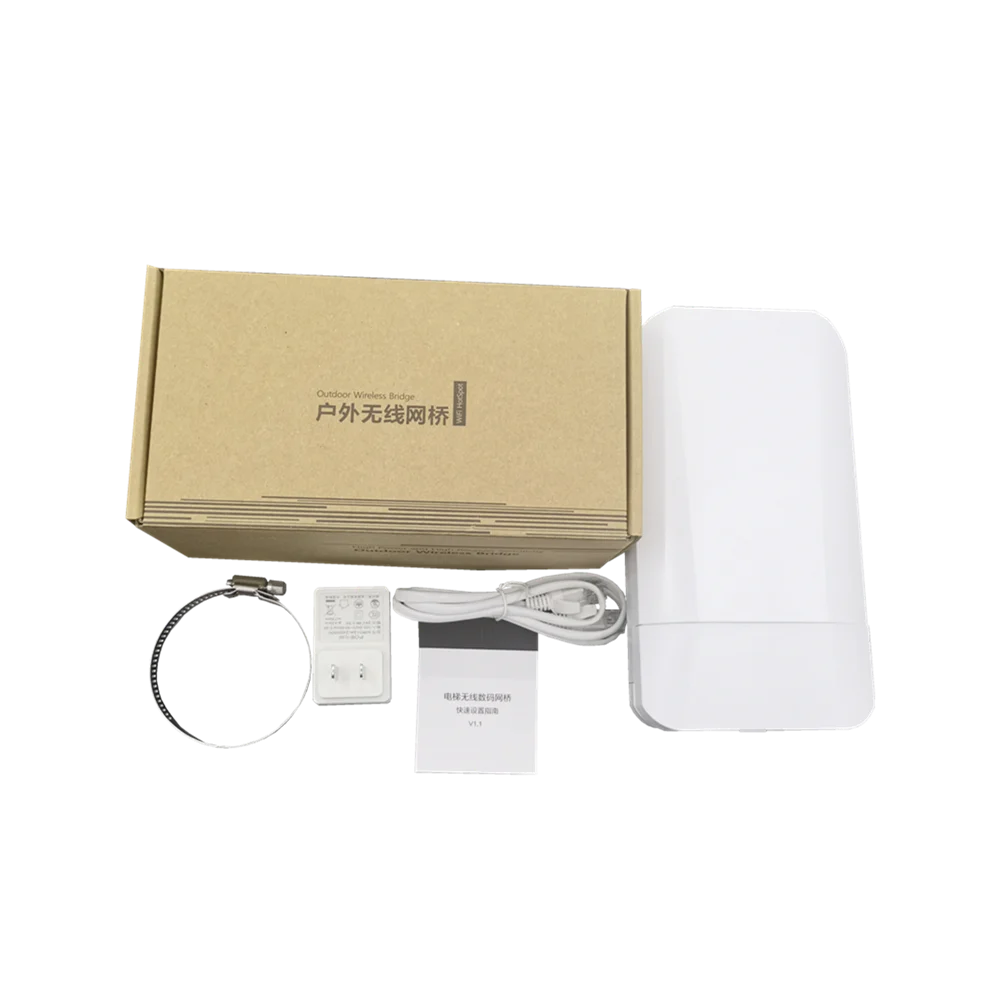

Packing List:
1pcs Device
1pcs RJ45 Patch Cable
1pcs 24V POE Power Adapter
1pcs Cable Tie




Specification


Hardware Profiles
Model
WB200
Main chip
MTK7628
dominant frequency
580MHz
Wireless technology
2.4G:300M 802.11b/g/n MIMO technology
Memory
8MB DDR RAM
Flash
1MB
network interface
2*10/100 Mbps Adaptive network interface
button
1*Digital Switch / reset button，Short press on the digital tube display value to add one， Press it long for 15 seconds to restore
the factory settings
guiding lights
LAN network interface status indicator, power indicator
Power
24V 0.5A POE power supply；
DC 12V 1A，capacity factor﹤10W
work environment
Temperature storage：-30℃～+55℃（work），-40℃ ～+70℃（storage）
temperature（Non-condensation）：10％～90％（work），5％～95％（storage）
Product size
140mm×75mm×34mm
product weight
0.15kg
Antenna
5dbi directional plate antenna （Horizontal wave half Angle 90°，Vertical wave half Angle 90°）


RF characteristics
Frequency range
ISM BAND: 2.400GHz ~ 2.4835GHz
Channel distribution
2.4G：1、2、3、4、5、6、7、8、9、10、11、12、13
modulation mode
OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Output power
802.11n: @MCS7:14±2DB, @MCS0:16±2DB
802.11g: @54M:15±2DB, @6M:17±2DB
802.11b: @11M:17±2DB, @1M:19±2DB
receiving clarity
802.11n: -70dbm@MCS7, -88dbm@MCS0
802.11g: -72dbm@54Mbps, -88dbm@6Mbps
802.11b: -85dbm@11Mbps, -94dbm@1Mbps
EVM
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB
Frequency deviation
±20ppm
Software Features
working modes
Main AP second AP（Switch ）
Main network mode
point to point, point to-point (within 8 points)
management mode
WEB telemanagement
Bridge configuration
Wireless mode: bridge access point / bridge client
Access point: bridge ssid / encryption mode / bridge password / protocol / bandwidth / channel / power
Client: bridge ssid / encryption mode / bridge password / paired-end mac address / channel / power
network settings
Automatic acquisition / static ip
system
Password modification / reset / upgrade


Certifications




Company Profile




Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers.

HCYL provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.

All of products passed CE, FCC, ROHS certificate.

HCYL vision is providing best service to customers.
