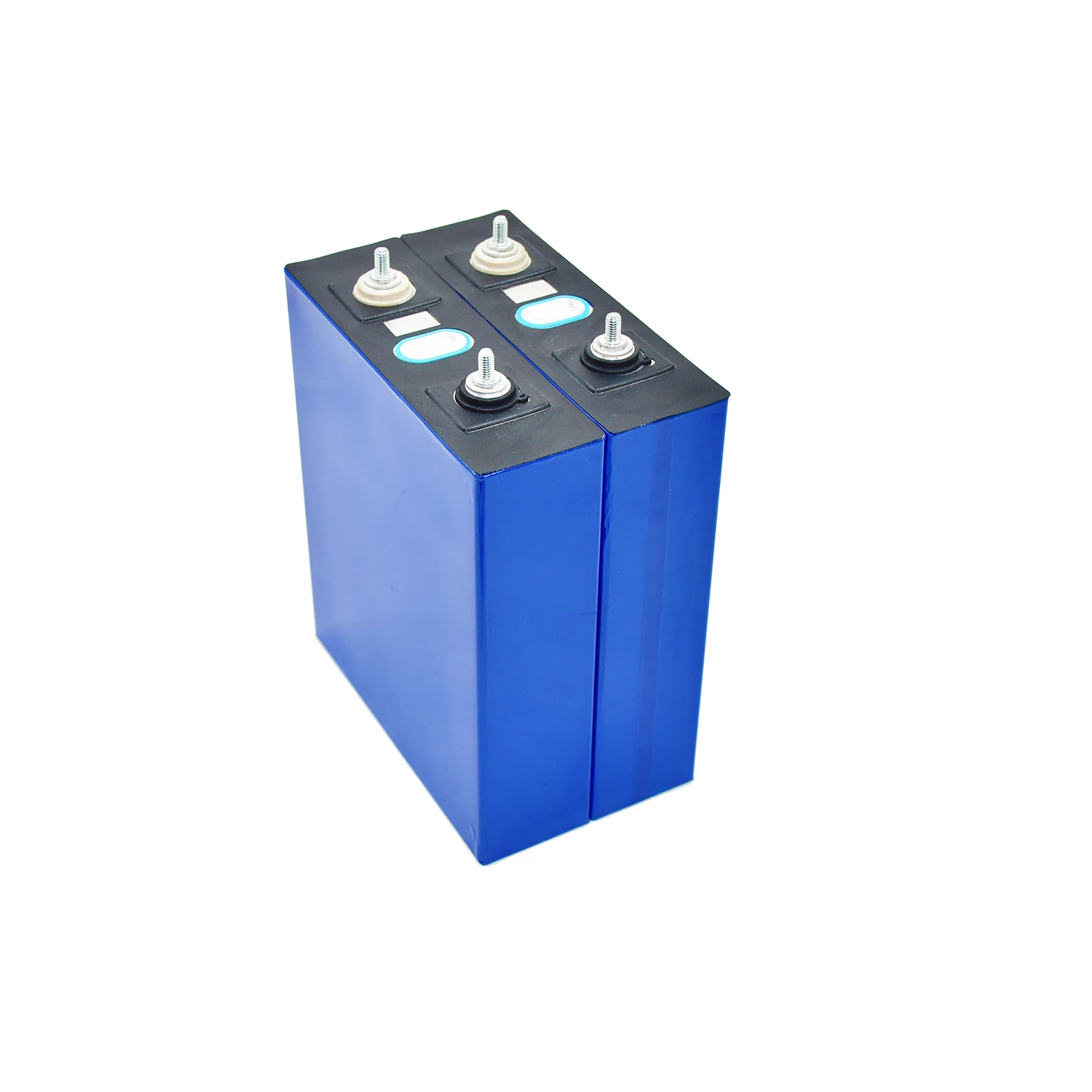

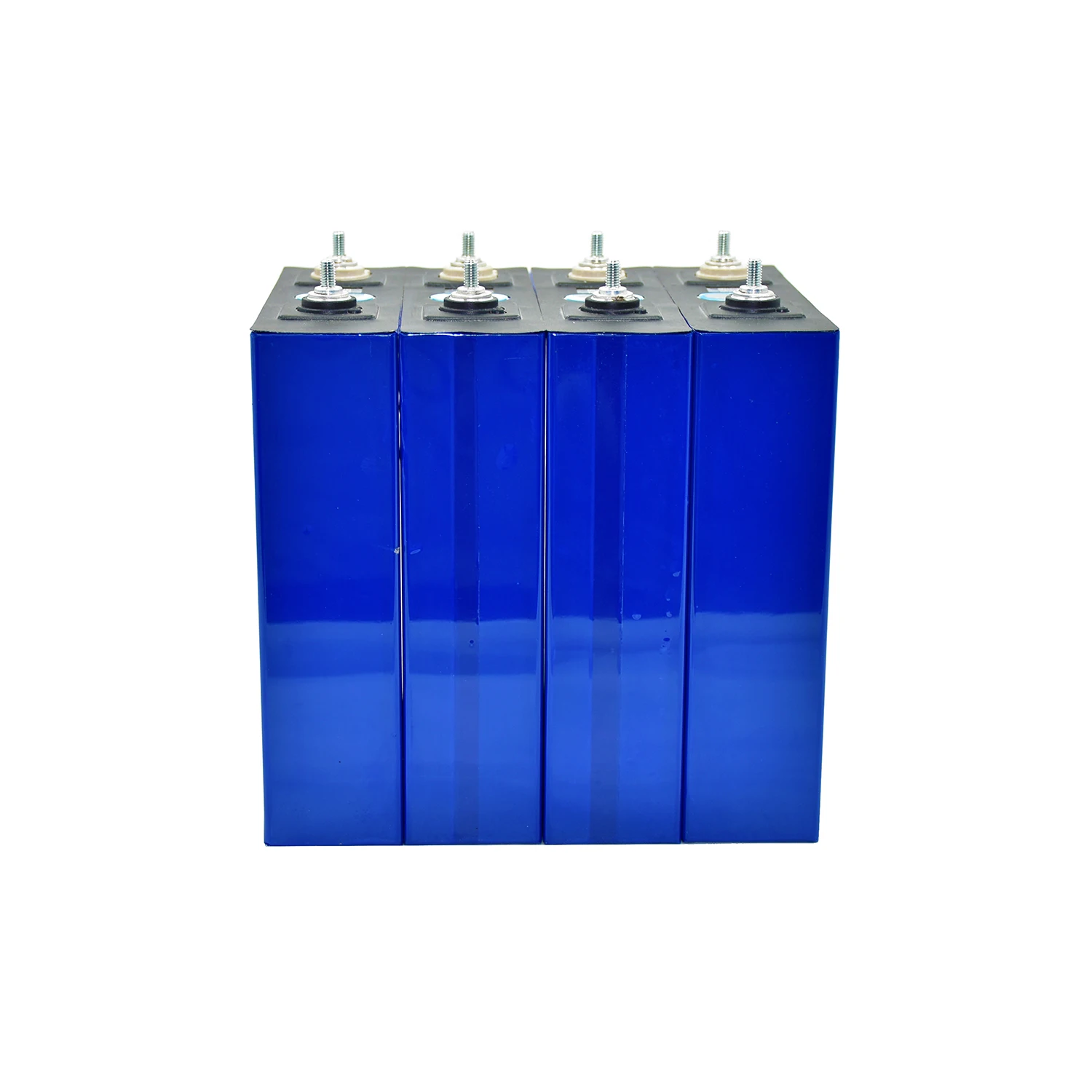

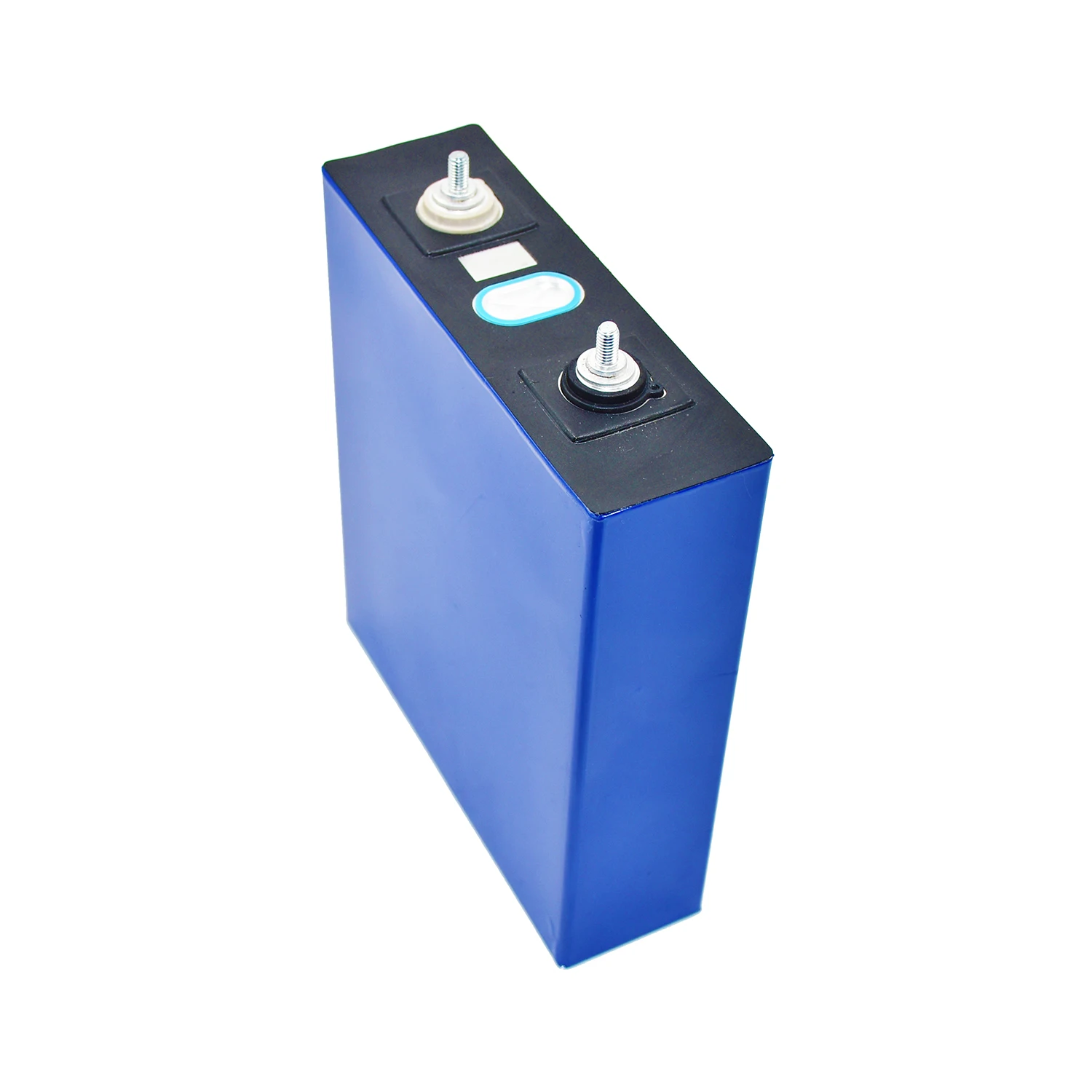

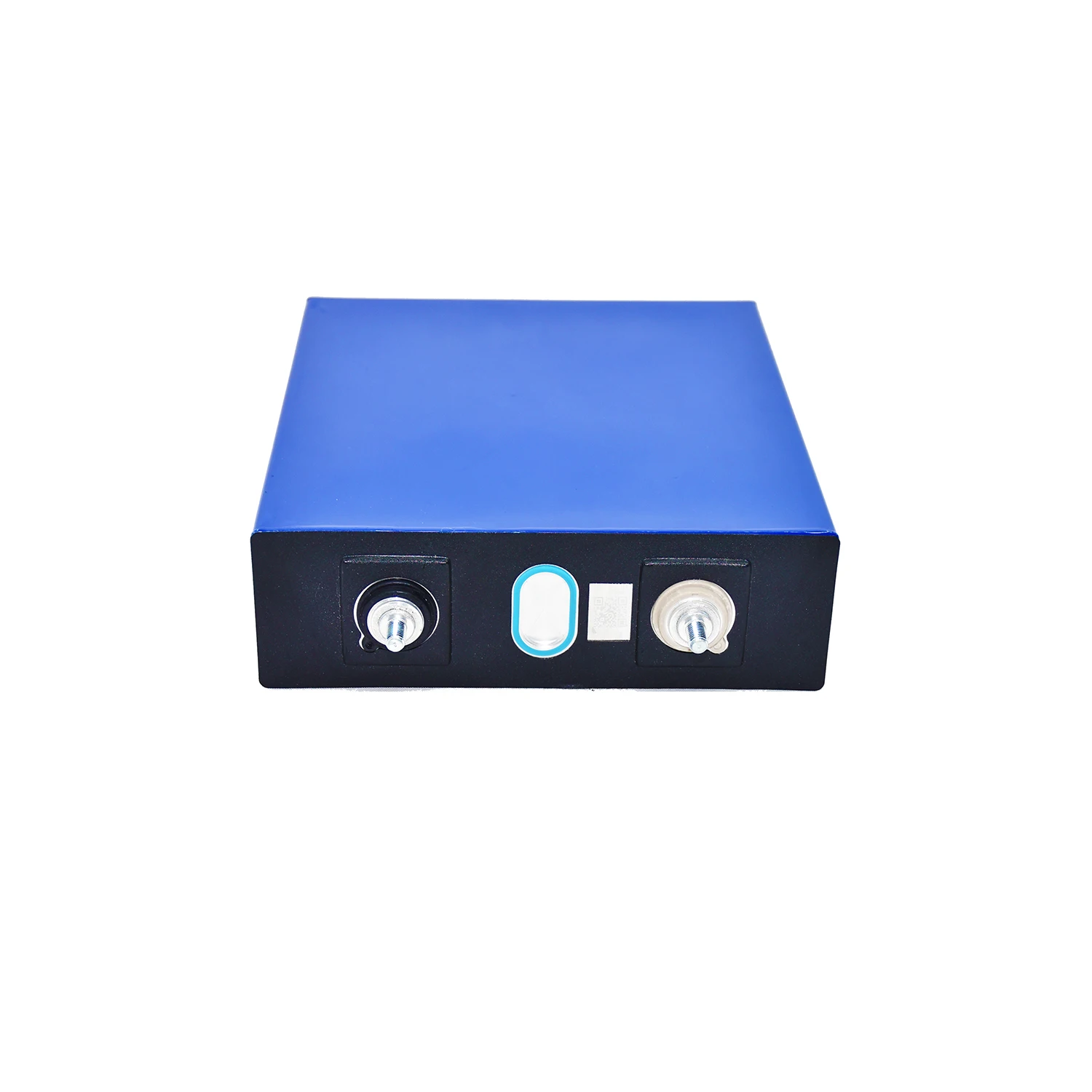

A grade lishen 202ah 200ah prismatic lithium cell 3.2V lifepo4 battery for DIY solar power
- Category: >>>
- Supplier: Dongguan Blue Whale New Energy Co. Ltd.
Share on (1600490707477):
Product Overview
Description
Product Description
Product Name | Prismatic Lithium Ion Cell LP54173210-202AH |
Nominal Capacity | 202 Ah (at 0.5C Discharge) |
Average working Voltage | 3.2V@0.5C |
Maximum Charge Voltage | 3.65V |
Internal Impedance | ≤0.4mΩ |
Standard Charge Method | CC/CV ; Max 1C Continuous at 25℃, Max 2C(30s) ; End Voltage : 3.65V |
Maximum Charge Current | 15℃ < T ≤ 35℃ 0.5C (100A) |
Standard Discharge | Constant Current (CC) ; Current 0.5C (100A) ; End Voltage 2.5V |
Maximum Discharge Current | Max 1C Continuous at 25℃;2C (30S) ; End Volatge 2.0V |
Cycle Life | 3000th cycle ≥80% of 1st Capacity (0.5C charge/1.0C discharge at 25℃) |
Cell Size | Thickness 54mm , Height 224mm (Including Screw Nut) ; Width 173mm |
Cell Weight | 3.95kg |
Why Choose Us

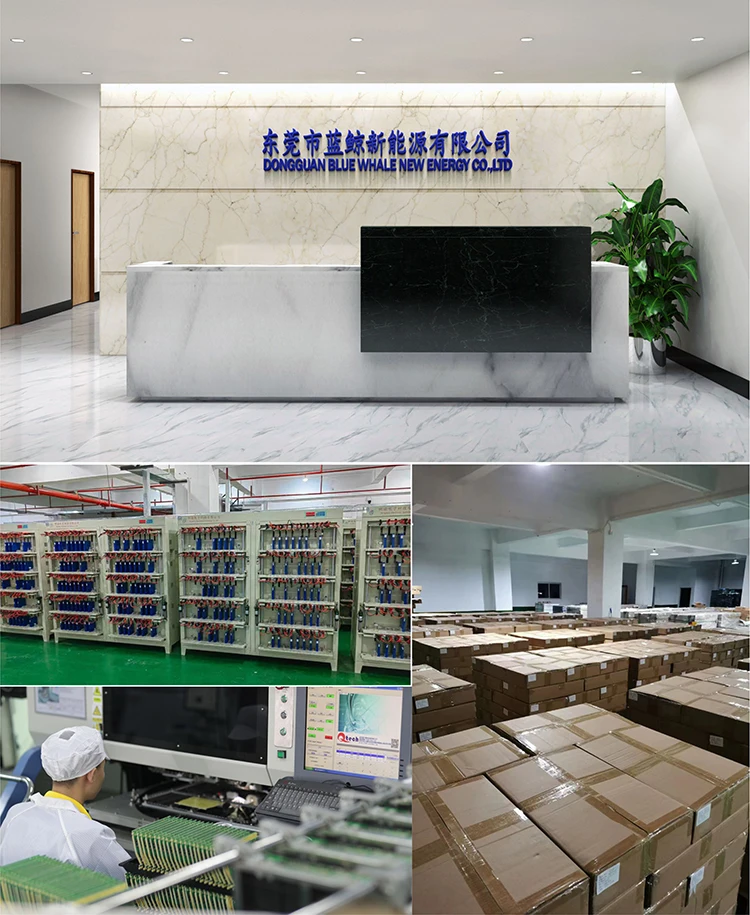

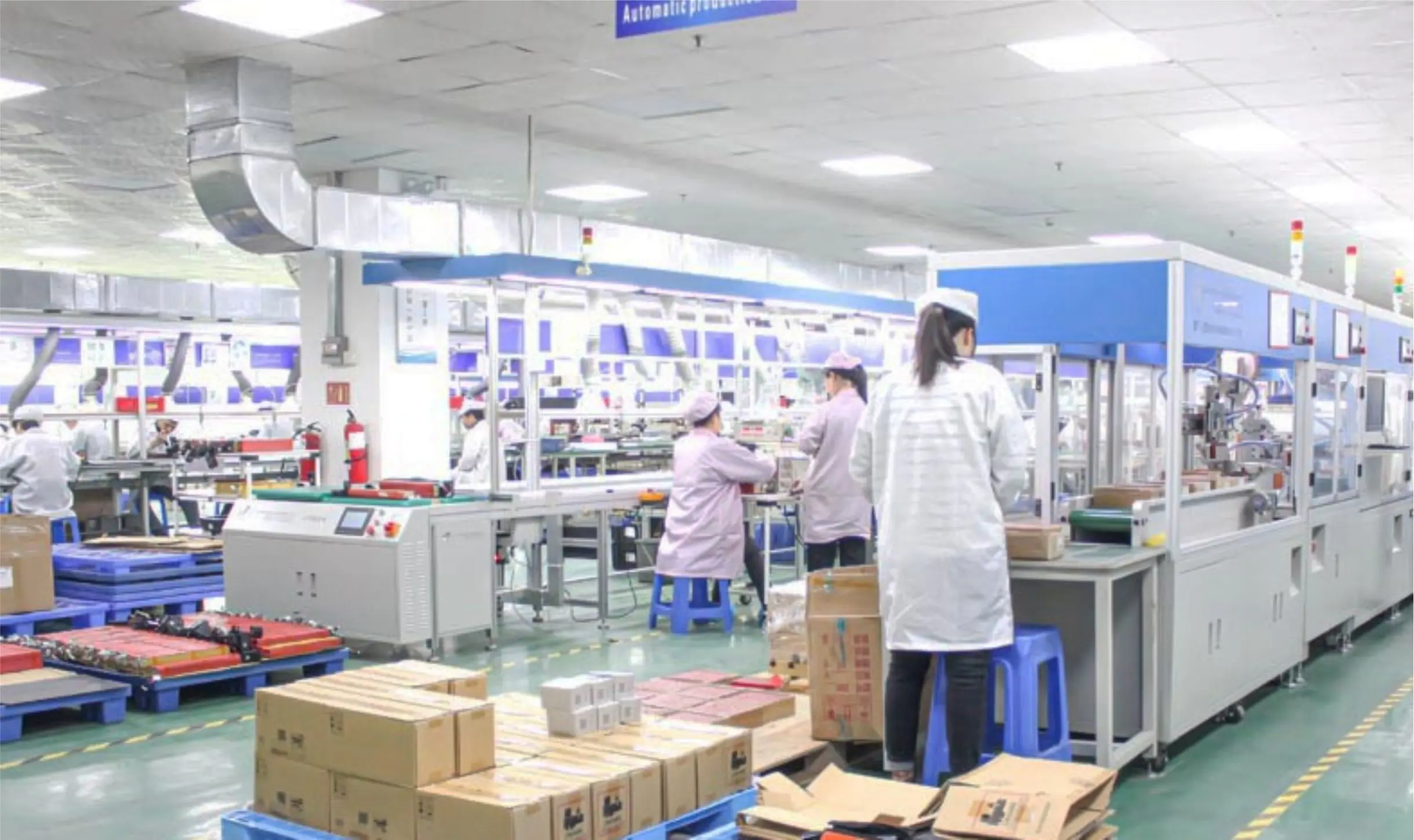

Company Profile
