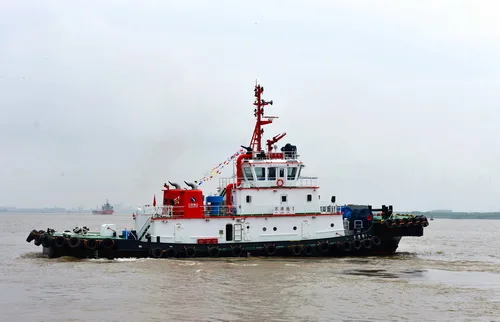

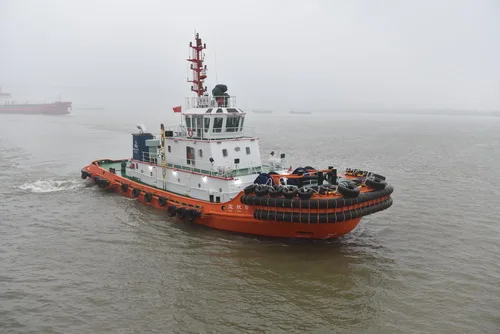

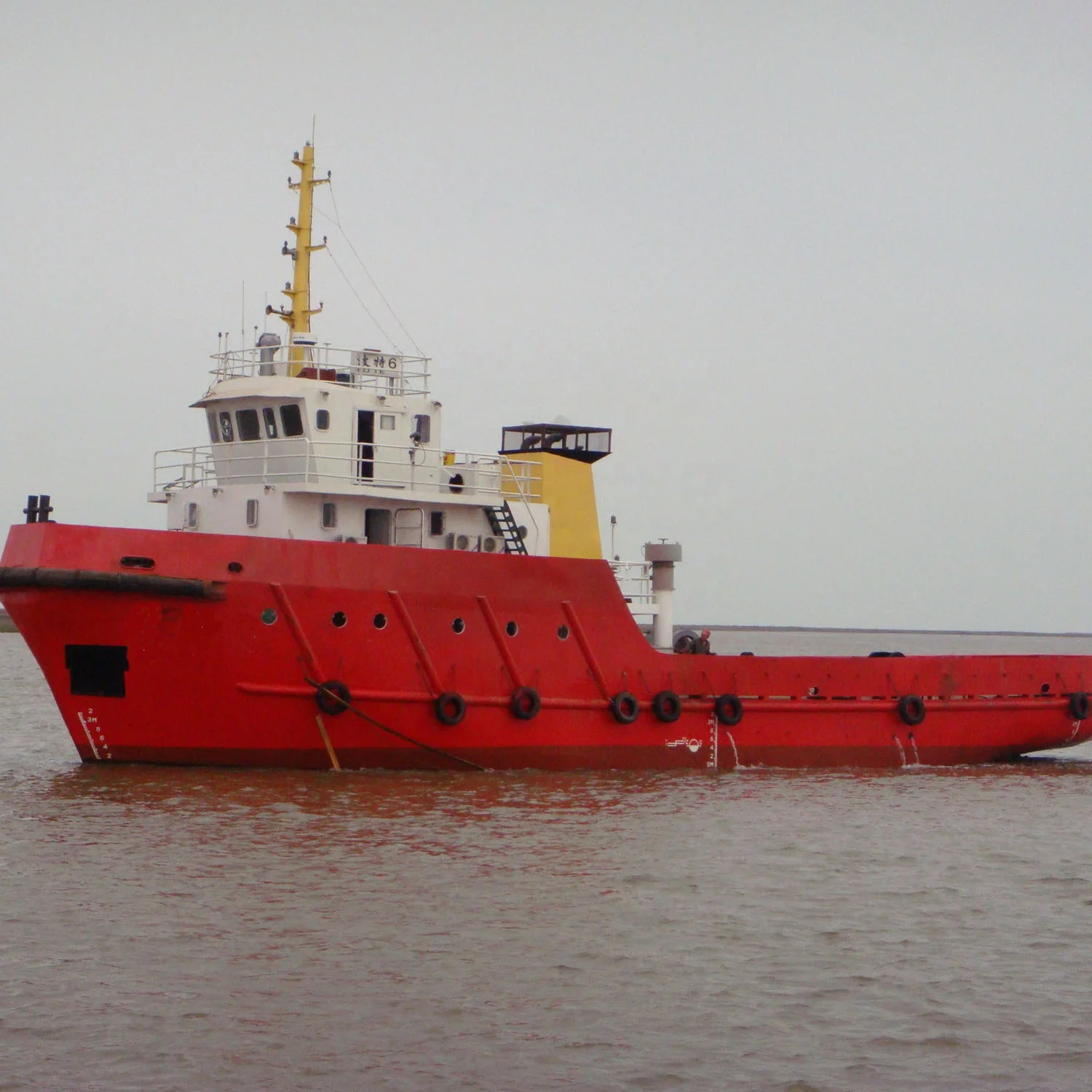

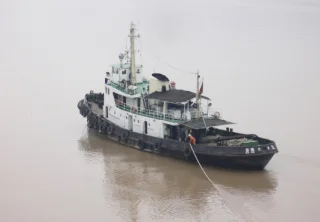

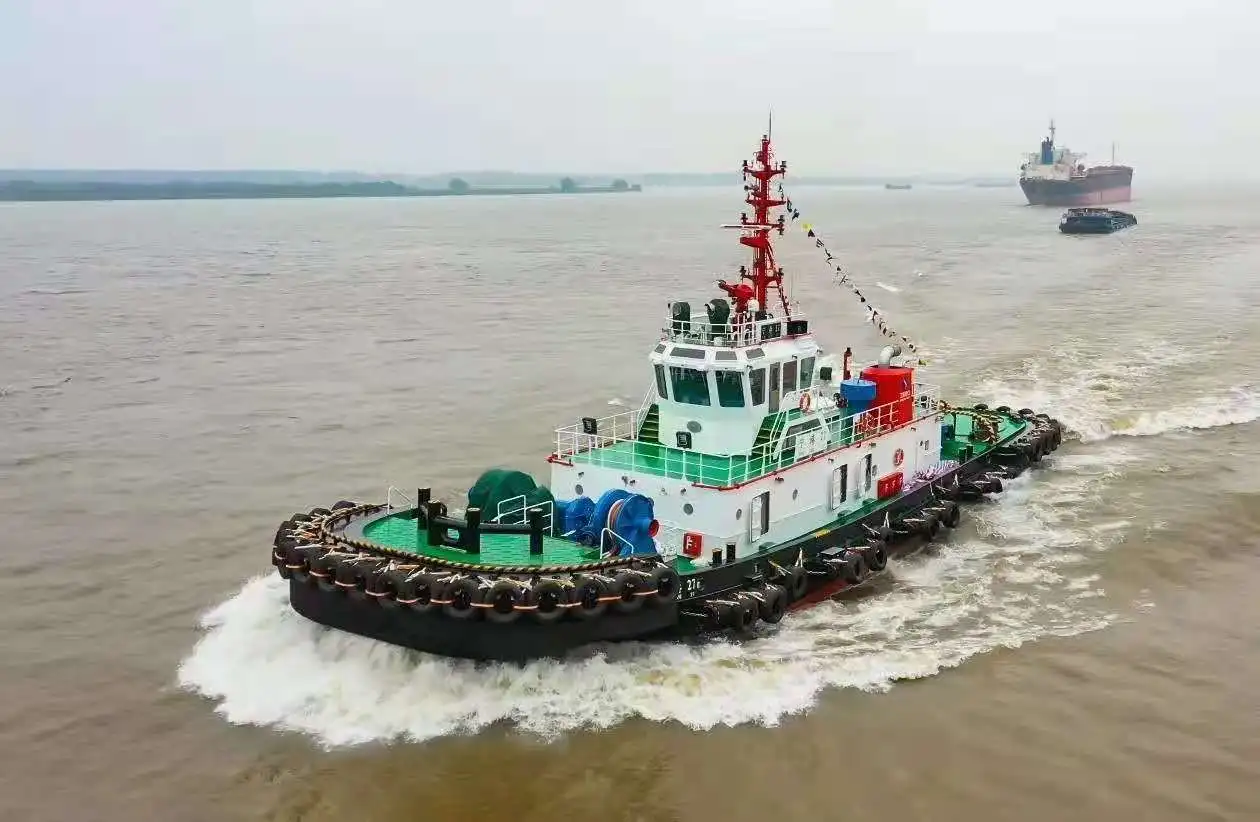

HIKOS 35M 115FT Dredge Crane barge Towing and pushing Tugboat Vessel
- Category: Barges >>>
- Supplier: Weifang Hikos Shipyards Co. Ltd.
Share on (1600490714224):
Product Overview
Description
Product Overview
General Description of Tug Boat
Our tug boats are mainly used for pushing, towing, assisting all kinds of large vessels to enter and leave the port, berthing and leaving the dock, turning around etc. in the near navigation area (non ice area) and port waters, as well as to mobilize the berths, repairing ships in and out of dock, assisting trial sailing, etc., and the stability meets the requirements in the near sea navigation area. Our tug boats are characterized by strong structure, good stability, high main engine power, large traction and good maneuverability.
The tug boat can undertake the follow tasks:
-- Pushing all kinds of large vessels to enter and leave the port
-- Towing all kinds of large vessels to enter and leave the port
-- Assisting all kinds of large vessels to enter and leave the port
-- Mobilize the berths
-- Repairing ships in and out of dock
-- Assisting trial sailing
-- Towing all kinds of large vessels to enter and leave the port
-- Assisting all kinds of large vessels to enter and leave the port
-- Mobilize the berths
-- Repairing ships in and out of dock
-- Assisting trial sailing
FEATURES AT A GLANCE
Our advantage of tug boat:
1-Reliable and efficient quality
2-The key equipment like engine is adopted the famous international brand.
3-The whole ship is fully tested and qualified before delivery.
4-After sales service - key equipment has after-sales service office all over the world
5-Engineers provide 24-hour technical support
6-Economic price and high efficiency
7- Low running costs and low energy consumption
2-The key equipment like engine is adopted the famous international brand.
3-The whole ship is fully tested and qualified before delivery.
4-After sales service - key equipment has after-sales service office all over the world
5-Engineers provide 24-hour technical support
6-Economic price and high efficiency
7- Low running costs and low energy consumption
In building workshop
In building workshop
In building site
PRODUCT SPECIFICATIONS
1200HP Tug Boat technical specification | ||||
No. | Model | HK-TB2000 | ||
1 | Total length | 35.5m | ||
2 | Breadth | 10m | ||
3 | Depth | 3.8m | ||
4 | Draught | 3.4m | ||
5 | Main engine brand | International famous brand | ||
6 | Main engine power | 1470KW * 2 | ||
7 | Free speed | 12Kn | ||
8 | Towing speed | 6Kn | ||
9 | Max. bollard towing force being towed forward | 45 tons | ||
10 | Max. bollard towing force being towed backward | 33 tons | ||
11 | Material | Marine Steel | ||
12 | Certificate | Classification Society Certificate | ||
Details Images
Ship Building Site
There are at least 10 slipways, which can produce multiple ships of different types at the same time.
Ship Building Workshop
Workshops with different types of work, have blanking workshop, machining workshop, anti-corrosion workshop, general assembly workshop, product debugging and testing center before factory etc.
Diesel engine
The boats are equipped with world famous powerful Cummins, Caterpillar, Weichai, Yuchai etc. engine, which are famous for it’s durability, environmental protection, lower consumption, standardized accessories and easy maintenance. The engine brands are all global warranty, spare parts can be available in short time.
Hull
The boat hull can be an integral structure or split structure according to the model requirements.
And it is sandblasted and painted by 4 layers of marine epoxy paint suitable for saltwater service. The zinc anode can be used to give better anti-corrosion function.
All boats are made of special marine steel plates, which have been certified by CCS.
And it is sandblasted and painted by 4 layers of marine epoxy paint suitable for saltwater service. The zinc anode can be used to give better anti-corrosion function.
All boats are made of special marine steel plates, which have been certified by CCS.
Water testing center
Our company has a unique dredger water testing center.
Every finished barge will be tested in the testing center to make sure its good working condition. Each equipment installed on the
barge will be tested so as to guarantee they could be work normally.
Every finished barge will be tested in the testing center to make sure its good working condition. Each equipment installed on the
barge will be tested so as to guarantee they could be work normally.
All of the products from Hikos will be tested in the testing center before dismantle to the Port. This is for performance testing and safety testing which like the products are working in the work site.
Clients will be invited to watch the whole testing processes.
Clients will be invited to watch the whole testing processes.
Each barge is detachable structure to facilitate truck transportation on land. Depending on the size, some models of barge can be disassembled and transported through containers, some models can be disassembled and transported through bulk carriers. Simple disassembly and fast installation.
Hikos Global After-Sales Service
Spare parts:
*Support spare parts are in stock.
*We provide a convenient way for you to order parts. You can simply select the parts you need according to your specs and have them delivered directly to your site.
*Free spare part in the first year and later cost price and services.
*Support spare parts are in stock.
*We provide a convenient way for you to order parts. You can simply select the parts you need according to your specs and have them delivered directly to your site.
*Free spare part in the first year and later cost price and services.
Installation and commissioning:
*After delivery we send two experienced engineers who will be to guide installing and train local workers. 24/7 technical support standby.
*We have offices and agents in some countries and are ready to provide you with solutions.
*After delivery we send two experienced engineers who will be to guide installing and train local workers. 24/7 technical support standby.
*We have offices and agents in some countries and are ready to provide you with solutions.
Maintenance and Support:
*12 months manufacturing warranty on all new installed component parts.
*12 months warranty on engine.
*12 months warranty on hull and all fabricated parts.
*In the event that our customers dredging experience unskilled or mechanical failure or they just need to shoot a minor problem, our engineers are available at customer's services, there are always engineers for installation and training if customers needs. Before dredger ex-factory, it will be tested at our launching site for performance and safety like in the work place.
*12 months manufacturing warranty on all new installed component parts.
*12 months warranty on engine.
*12 months warranty on hull and all fabricated parts.
*In the event that our customers dredging experience unskilled or mechanical failure or they just need to shoot a minor problem, our engineers are available at customer's services, there are always engineers for installation and training if customers needs. Before dredger ex-factory, it will be tested at our launching site for performance and safety like in the work place.
Certificate
Our company has been through ISO 9001 Quality System Certification of CCS. The design, construction, quality inspection is according to the standards and regulations of CCS.
Training:
*Our Services offer training and expertise that can help you make sure all of you personnel are operating as safely as possible.
*We will help you teach people at every level of your operation how to operate safely and how to communicate clearly, effectively and openly about any potential safety concerns.
*As technology continues to enhance our world, we are constantly developing and refining advanced technologies. These products, along with the extensive training curriculum offered, provide everything you need to maximize the performance of your equipment, reduce costly downtime, increase your return on investment, improve safety in your workplace, enhance operator performance, and
much more.
*Our Services offer training and expertise that can help you make sure all of you personnel are operating as safely as possible.
*We will help you teach people at every level of your operation how to operate safely and how to communicate clearly, effectively and openly about any potential safety concerns.
*As technology continues to enhance our world, we are constantly developing and refining advanced technologies. These products, along with the extensive training curriculum offered, provide everything you need to maximize the performance of your equipment, reduce costly downtime, increase your return on investment, improve safety in your workplace, enhance operator performance, and
much more.
And we have obtained 26 types of Certificate of Utility Model Patent and 23 types of Certificate of Design Patent.
1. Has 30 years of development
2. Can be designed and customized
3. Core and main components with world grade technology
4. All products have been through ISO 9001 Quality System Certification of CCS
5. Professional R&D department, quality control department and service department
6. All products test before delivery
7. Engineers are suitable for oversea after-sales service
8. Products have simple structure, easy to install, operate and maintain
9. Short delivery time
10. Exported to 50 countries, and over 300 projects worldwide
2. Can be designed and customized
3. Core and main components with world grade technology
4. All products have been through ISO 9001 Quality System Certification of CCS
5. Professional R&D department, quality control department and service department
6. All products test before delivery
7. Engineers are suitable for oversea after-sales service
8. Products have simple structure, easy to install, operate and maintain
9. Short delivery time
10. Exported to 50 countries, and over 300 projects worldwide
Customer visiting and signing contract
Signing Contract with Customers
Recommend Products
FAQ
Q1:What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2:What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3:What's the payment methode?
We can accept T/T, L/C, WESTERN UNION and so on.
Q4:Is it factory?
Yes, we have our own factory. and welcome to visit our factory. thanks
Q5.Whether it can be customized according to customer requirements?
Yes, we can design according to customer's requirement, we have many kinds of model. you can choose the suitable one.
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2:What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3:What's the payment methode?
We can accept T/T, L/C, WESTERN UNION and so on.
Q4:Is it factory?
Yes, we have our own factory. and welcome to visit our factory. thanks
Q5.Whether it can be customized according to customer requirements?
Yes, we can design according to customer's requirement, we have many kinds of model. you can choose the suitable one.
