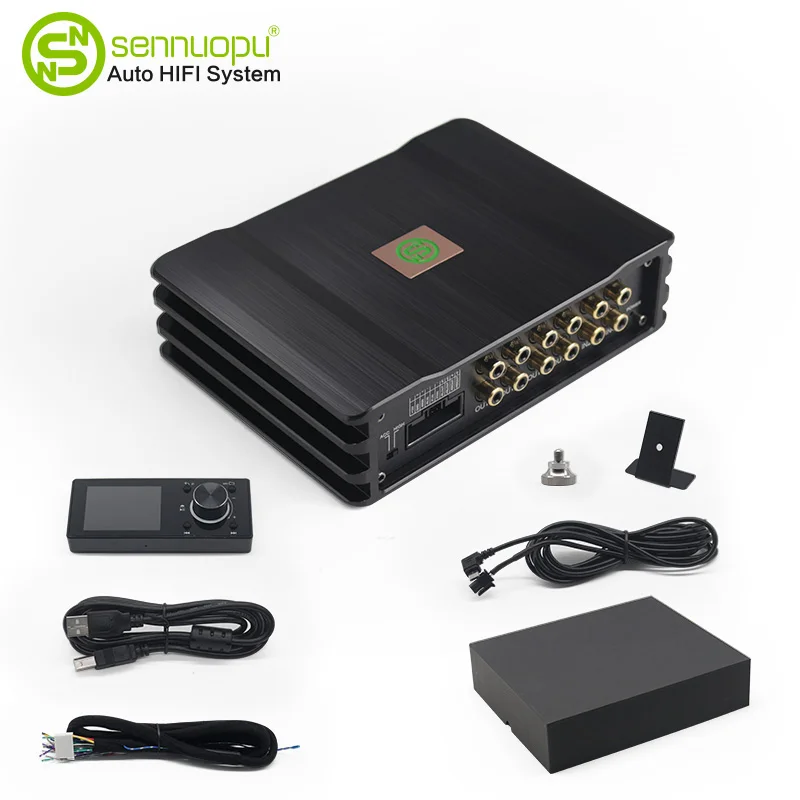

Sennuopu X10A car dsp processor audio amp power 24v car amplifier 4 channel
- Category: >>>
- Supplier: Guangzhou Nisson Automobile Products Co. Ltd.
Share on (1600490863147):
Product Overview
Description
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
★★★Sennuopu X10A car dsp processor audio amp power 24v car amplifier 4 channel★★★
Product Description
The Car amplifier dsp DP-X10A Packs High Quality Audio Media Player, Amplifier and Digital Signal Processor into a Compact. Designed to Simplify Great Audio, Every Amplifier Combines Advanced Switching Amplifier Technology with an Integrated, Full Featured Digital Signal Processor.
●DP-X10A is a High Sound Quality Audio Media Player;
HI-FI BT5.0 Player Audio Scheme Application; Udisk Playback Input, USB Audio Input, Optical Input.
●DP-X10A is a 4 Channel Power Amplifier;
The 4 Channel Amplifier Combines Advanced Switching Amplifier Technology. Real Time Checking and Correcting Errors in Switching Circuit, Adjusting the Dynamic Effect of Output Filter, Correcting and Amplifying in Time, Making The Amplified Sound Output Smooth, Fine and Natural.
●DP-X10A is also an 8 Channel Digital Signal Processor;
Used of 2 Dual Core High-End Hi-Res Audio Processing Chips, The Appeal of The Instrument and The Sound Separation Degree has been Natural Expression.
Product Technical Specification
Item | Specification |
Working voltage: | 10V～17V |
Standby Power Loss: | ＜0.1W |
Frequency response: | 20Hz～20KHz |
S/N Ratio: | ＞100dB |
Degree of separation: | ＞80dB |
Output signal gain: | -60dB~6dB |
High level output: | MAX 80W*4 @4Ω；RMS 50W*4 @4Ω |
Signal input range: | 0.05Vrms～10Vrms |
USB input: | FLAC/APE/WAV/MP3/WMA/FIA etc. |
REM Output: | 12V（0.2A） |
THD+N: | ＜0.01% |
Size: | 180*130*48mm |
Product Function ＆ Application
Sampling rate = number of samples per time point, bit rate = number of points per sample at each time point represents the sampled sample, line is more sound HI-RES from the sampled sample than from CD sample, then continuous sound (line) from the sample is more accurate and sound is clearer

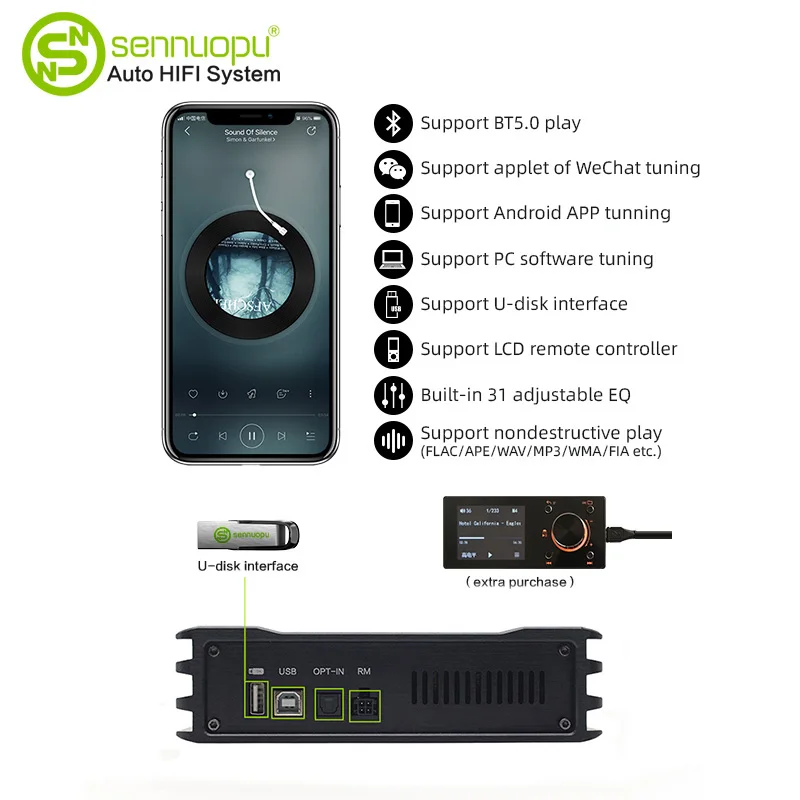

Support BT5.0 play |
Support applet of WeChat tuning |
Support Android APP tunning |
Support PC software tuning |

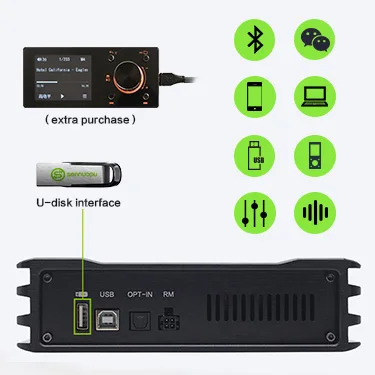

Support U-disk interface |
Support LCD remote controller |
Built-in 31 adjustable EQ |
Support nondestructive play (FLAC/APE/WAV/MP3/WMA/FIA etc.) |
Product Details
HI-FI Class Component Supplier, Refined polishing in every detail, Provides assurance of exceptional sound performance;
2. DYNAMIC UPGRADE TECHNIQUE
Circuit Input Voltage+Capacitive voltage, dual voltage more stable and stronger;
3. HIGH PURITY SOUND
We have selected a higher-priced amplifier chip to meet your performance requirements for the amplifier;
4. MUSIC IS MORE BOLD
Double amplifier for high performance audio has the advantages of low distortion, low noise, high conversion rate, wide operating voltage and large output current;
5. Restores more true and natural sound
AK5358 CHIP will be used, Sampling rate up to 192KHz, Four times higher than traditional DSP with a higher sampling rate;
6. Intelligently improve sound quality
Break up the music, restore each sound, restore the essence, enhance the effect for different instrument sounds and voices, and finally reorganize the music, transfer to the speaker, let your car instantly upgrade one grade.
1 | Start-up mode | 2 | 20PIN universal DSP interface | 3 | 8-channel RCA audio output |
4 | 4-channel RCA audio input | 5 | U-disk interface | 6 | USB interface |
7 | Optical fiber interface | 8 | Color screen controller | 9 | Radiator |

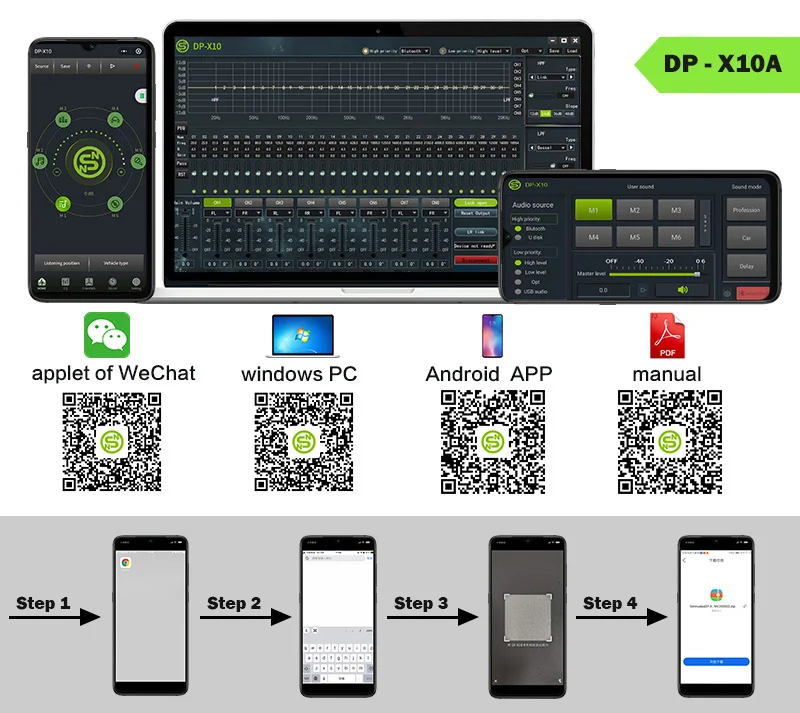

Step 1 | Open Google browser | Step 2 | click the search box, display below, scan the QR code icon, click |
Step 3 | scan the scan frame to the QR code | Step 4 | at the bottom of the page, click download |
Customer Evaluation
Company Strength
Founded in 2013,Guangzhou NISSON Automobile Products Co., Ltd is professional manufacturer for Car Audio subwoofer,Amplifier, DSP(Digital Sound Processor), Speaker, Audio car accessories,etc.
It is in integration of science, industry and trade ,with injection molding, metal processing,Painting, SMT and assembly workshops. Our core competitiveness: rich experience in R & D and production, strong and flexible supply capacity, rigorous quality control system and perfect sales service system.
Our products comply with EU standards and have CE, ROHS, FCC and other certifications. Over the years, it has been exported to all over the world, and has won a good reputation with professional technology and meticulous service. Our own brand "sennuopu" is famous all over the world.
We always Stick to the "Technology innovation,
Common development" service objective to provide our clients with excellent sound.We sincerely welcome you to visit our company
for more cooperation.
Common development" service objective to provide our clients with excellent sound.We sincerely welcome you to visit our company
for more cooperation.
Complete production line
The factory not only has a strong team of design engineers, but also has the highest standards for raw materials, production technology and product quality.So these products are of high quality and able to compete internationally.
1 | Product design | 2 | Mold making | 3 | Machining |
4 | Injection | 5 | Painting | 6 | Circuit design |
7 | SMT | 8 | SMT test | 9 | Horn assembly |
10 | Product assembly | 11 | Sound effect detection | 12 | Aging test |
13 | Software test | 14 | Packing area | 15 | Warehouse |
Wanted agents, to offer OEM/ ODM services
Inquiry >>> Design solution >>> Detail discussion >>> Comfort order >>> Payment >>> Production >>> Shipping >>> After-sale service
Payment method
Packing & Shipping
Sennuopu top-grade packing
Sennuopu packaging
Neutral packaging (Or Use Your LOGO)
We have professional logistics companies and overseas warehouses, which can provide you with the best logistics scheme to help you reduce costs and deliver safely. Please refer to the following information:
1. Express: DHL, FedEx, UPS, TNT, AMI, etc.
2. Sea transportation: LCL or container.
2. Sea transportation: LCL or container.
FAQ
1. Are you a trade company or a manufacturer?
A : We are manufacturer who have factory with own patent design products line, sales team, QC team and customer service.
2: How can I get the samples?
A : If you need some samples to test,we can make as per your request .You should pay for the transportation freight of samples and our samples cost,The samples cost can be refundable partly after you place a formal order.
3: Can you print my logo and put private label on product and package box? What's MOQ?
A : Yes. MOQ 100pcs for printing logo, 500pcs for customized package and label with factory standard available models.
4: How long is your sample lead time?
A : For stockage samples, we could send out within 2 business days.
For customized samples, it is takes around 5-7 business days.
For customized samples, it is takes around 5-7 business days.
5: How long is your mass production lead time?
A : Without customize request around 5-10 business days.
For 1st customized order, mass production time around 15-20 business days.
For repeat customize order, around 10-15 business days. the production capacity is about 800k outputs per month.
6: What's your warranty policy?
A : All the products are 100% inspect by QC, we offer 12 months guarantee for the defective products due not caused by users. We could help to fix it free.
7. Do you have certifications？
A : The factory has been engaged in export for many years, and has its own export qualification, CE FCCcertification, export customs clearance qualification department, and the qualification certificates of various countries for exporting products are complete.
8. How to ensure the quality and delivery for the large orders?
A : In terms of quality control, the company has a strong production control system and perfect company culture to ensure the stability of workers. Raw materials are well stocked to handle the increased supply of large orders.
9. Strengths in RTS (Read To Ship) and inventory?
A : Strong inventory of more than 200 products, can be quickly shipped in 2 days; Large warehouse reserve, sufficient supply.
10. Strengths in product development?
A : Strong development ability, there are nearly 5 new products every month, nearly 60 new products every year, most of them are private molds, not easy to be copied.
11. Price Advantage and competitive?
A : Full Supply chain advantage, each link has its own factory, plastic mold and injection factory, own carton factory, and horn factory, to ensure product quality and price can be controlled to the lowest.
12. Brand and export market advantage？
A : We have our own brands, have many years of product export experience, understand the trend of hot selling products in different regions overseas.
