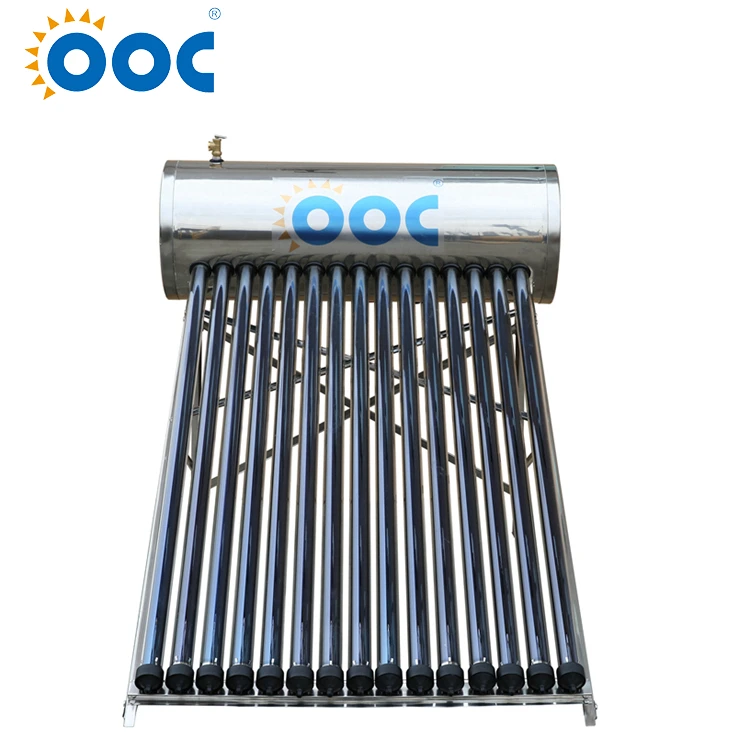

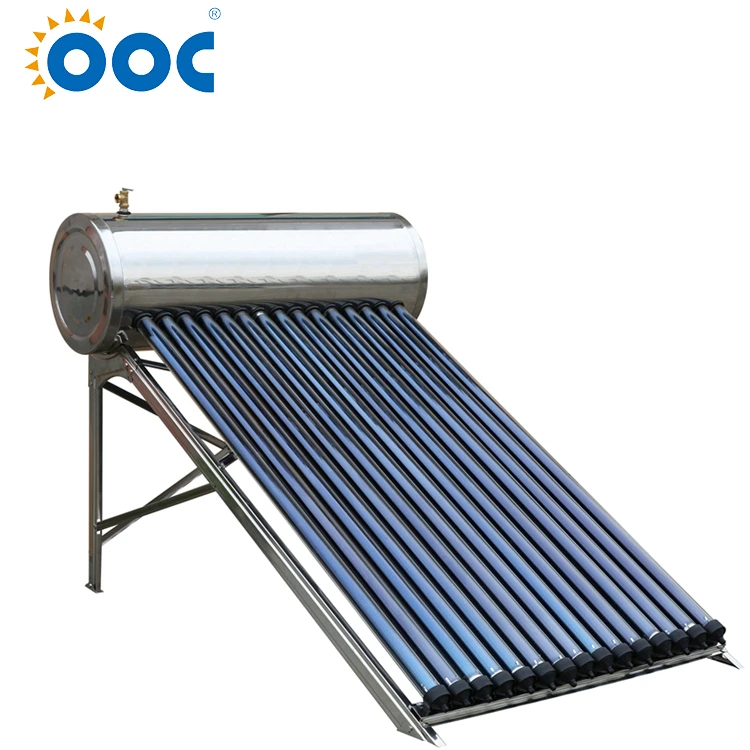

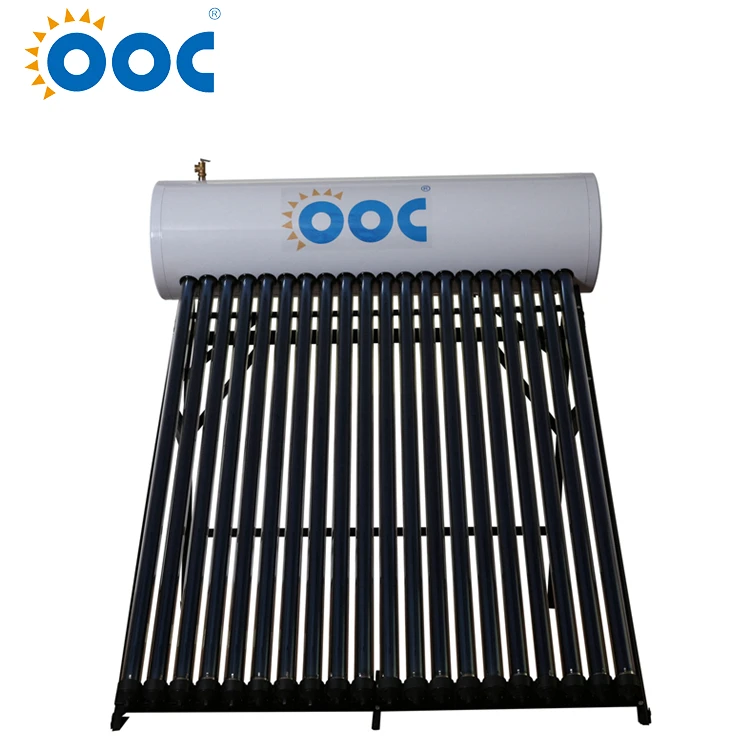

Compact vacuum tube heat pipe Galvanized steel Solar Water Heater with 316 inner tank

Product Overview

Description



name	Integrated and pressure solar water heater
model	6 tubes- 36 tubes
inner tank	Sus304-2B, thickness 1.2mm/ sus316 1.2mm
out tank	zinc steel plate 0.4mm/ stainless steel 0.4mm
Bracket	Zinc steel plate 1.5mm/ stainless steel 1.2mm
insulation	High density polyurethane foam 50mm/55mm/60mm
frame degree	0 degree-45 degree. Dual-purpose frame for both flat and inclined roof
inner tank size	Inner tank diameter with 370mm
out tank size	Outer tank diameter with 470mm
vacuum tubes	Tri- element tubes 58*1800/47*1500
capacity	60L-300L
holding time	72Hours
Hail resistance	25mm
Max. Fluid pressure (Pa)	0.6mpa
Operating fluid pressure (Pa)	0.6mpa
Test pressure	1.0mpa
Heat pipe	90mm length condenser, 14mm diameter body, thickness:0.6mm
Dust Proof Rubber	EPDM

Main Features

Reliable performance with average daily efficiency over 50%

High efficiency heat pipe for fast and indirect water heating

System works without drainage even if one tube is broken

High pressure hot water supply from solar storage tank

Compatible with electric or gas heating devices

Working all year round even in cold climate

Designed for 25 years working life

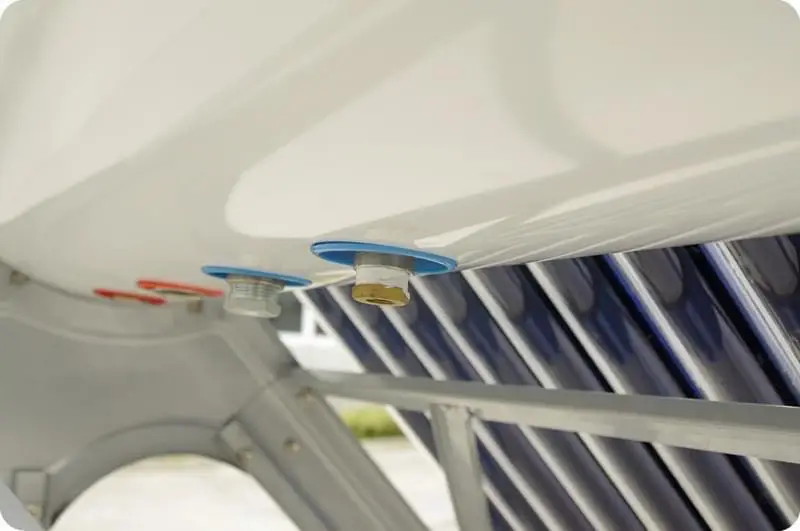

Pressure tank system tank information

Yousun pressure solar system tank adopts food-grade stainless steel storage tank to keep hot water clean . We can produce inner tank thickness from 1.0mm to 2.5mm. 1.2Mpa leakage testing for each tank before they leave the factory.



Technical Parameters

Inner tank :SUS304-2B/SUS316L

Out tank:colar steel/stainless steel

Insulation layer:High-desity Pu foam

Insulation thickness:50mm to 60mm

Testing pressure:1.2Mpa

Duration:20 years

Warranty time: 10 years

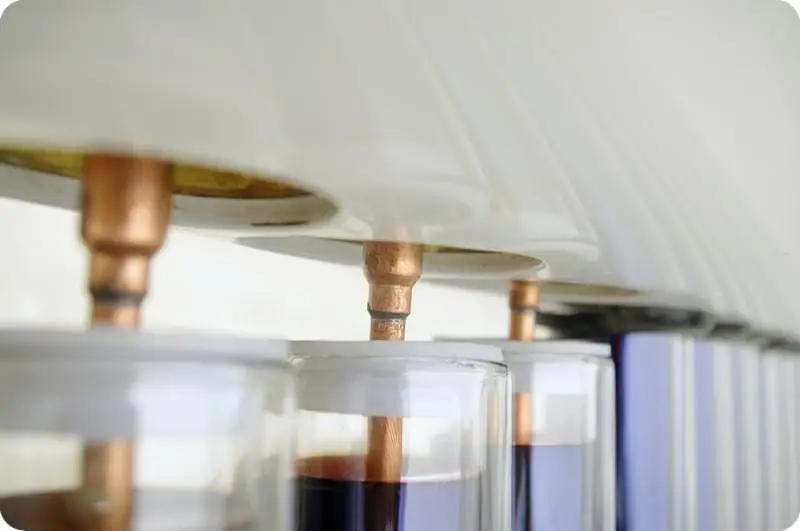

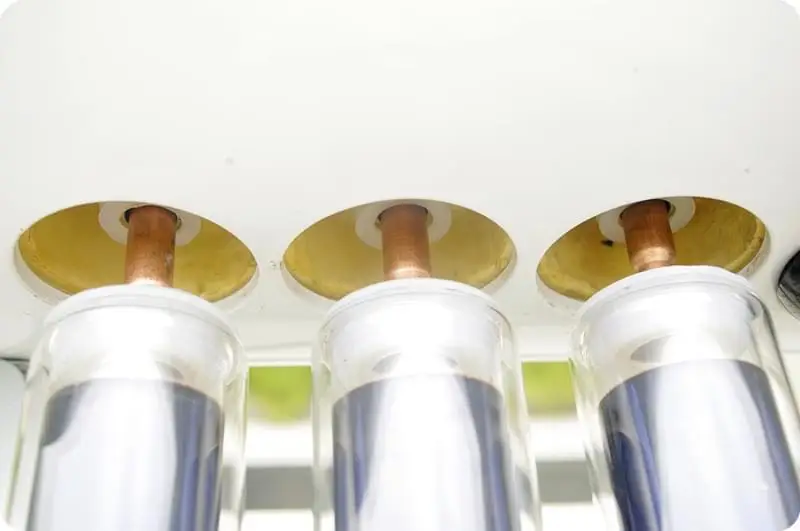

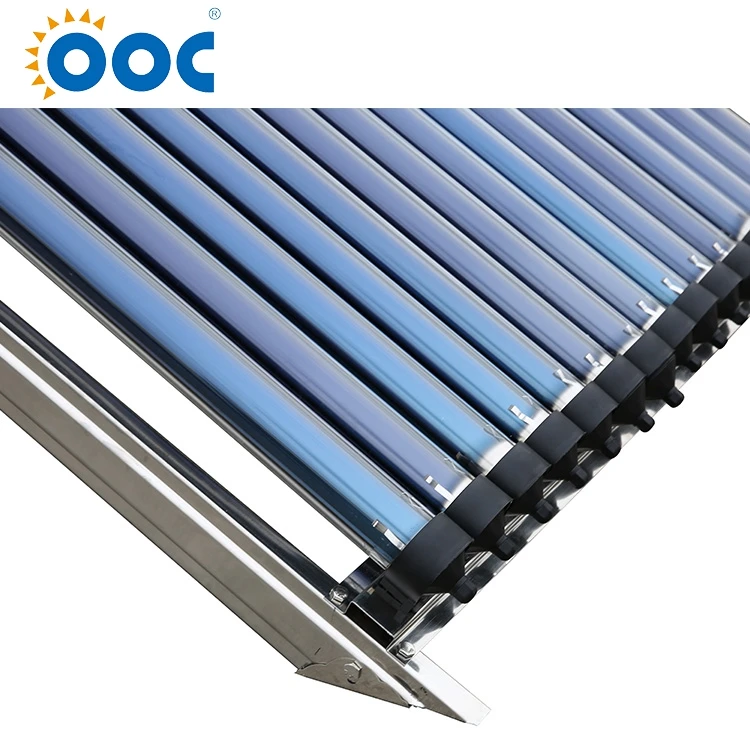

Heat pipe vacuum tube

Technical parameters:

Vacubbn tube size:Ø 58*1800MM

Absorber:Tri-target CU/SS-Ain

Absorption coefficient 93%

Heat pipe meterial:TU1 Copper

Condenser diameter:Ø 14mm

Working temperature:-40~+220℃

Heat transfer efficiency 95%
