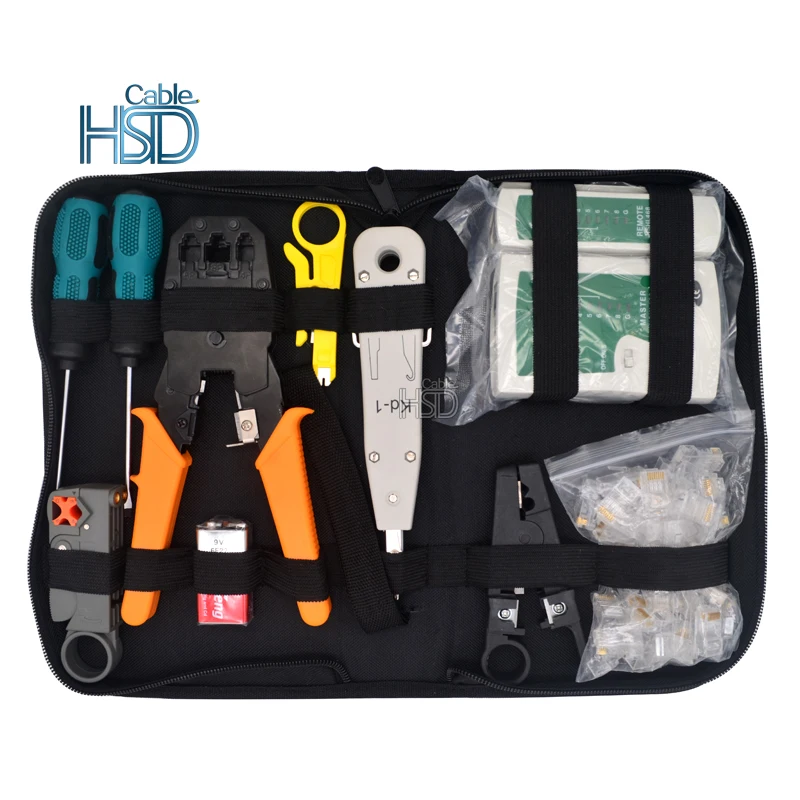

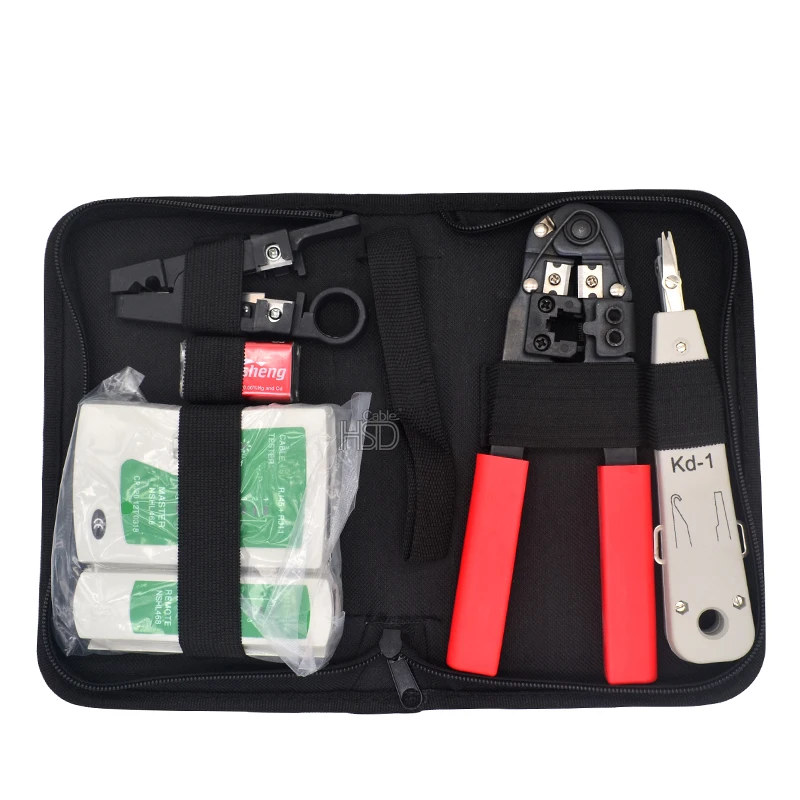

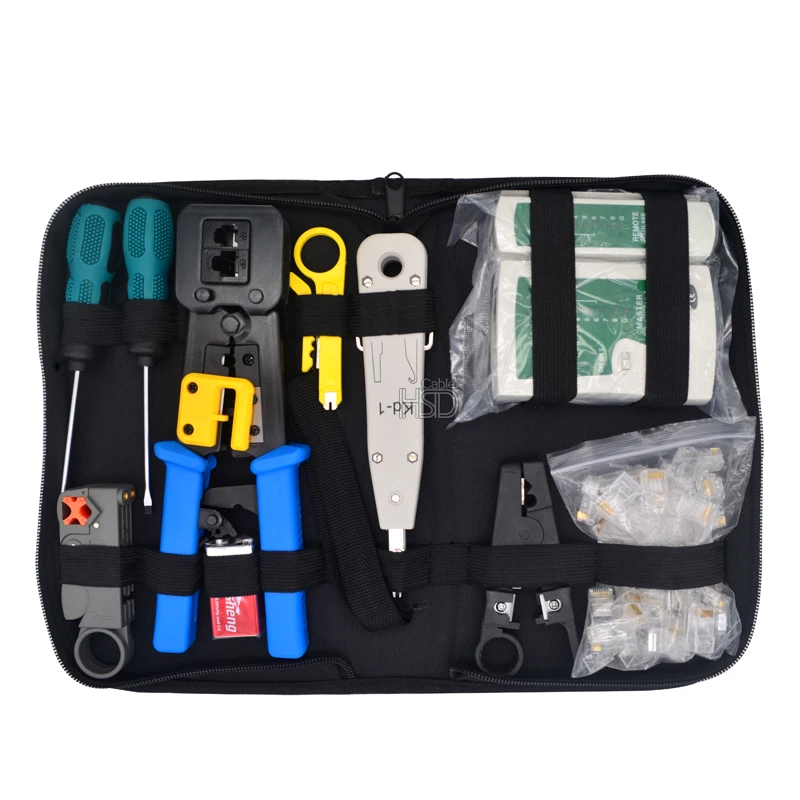

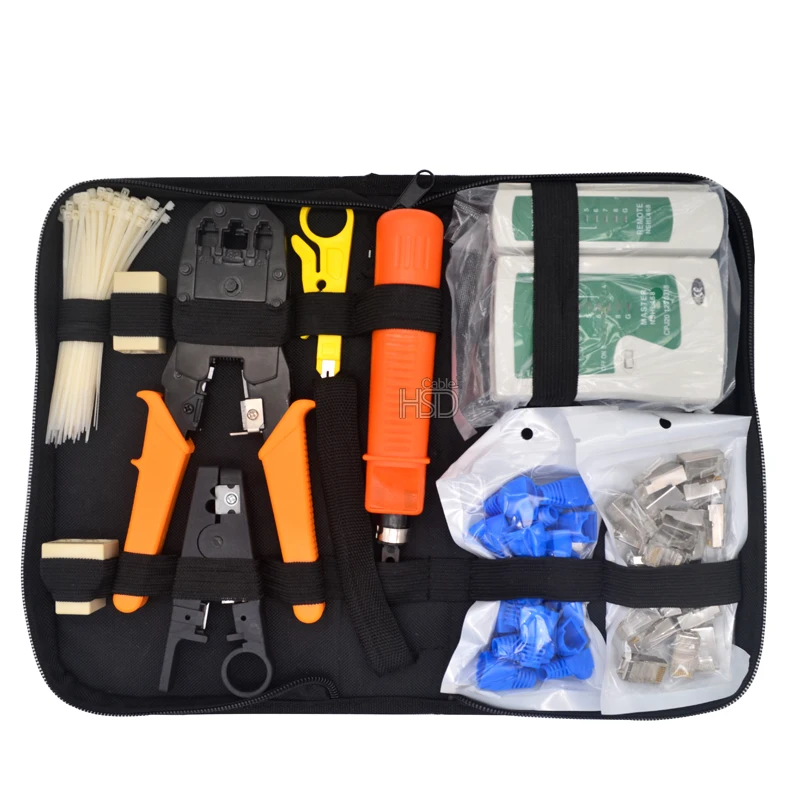

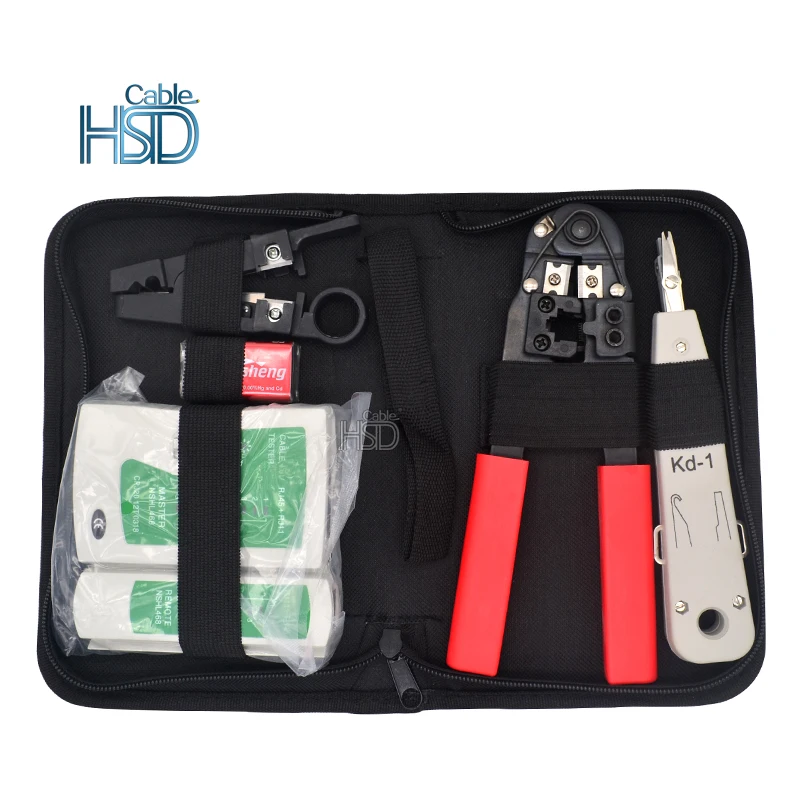

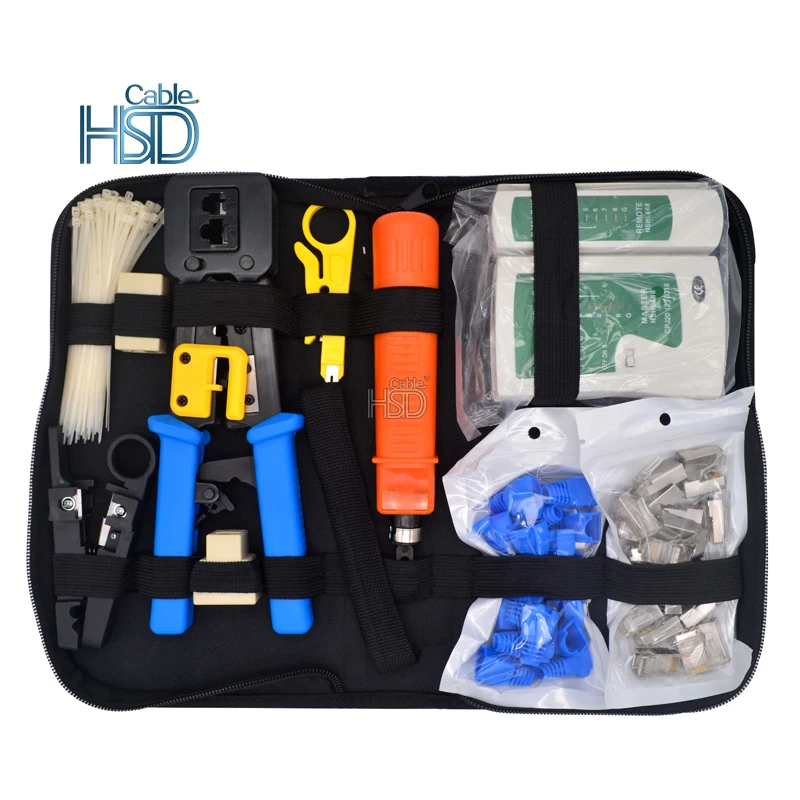

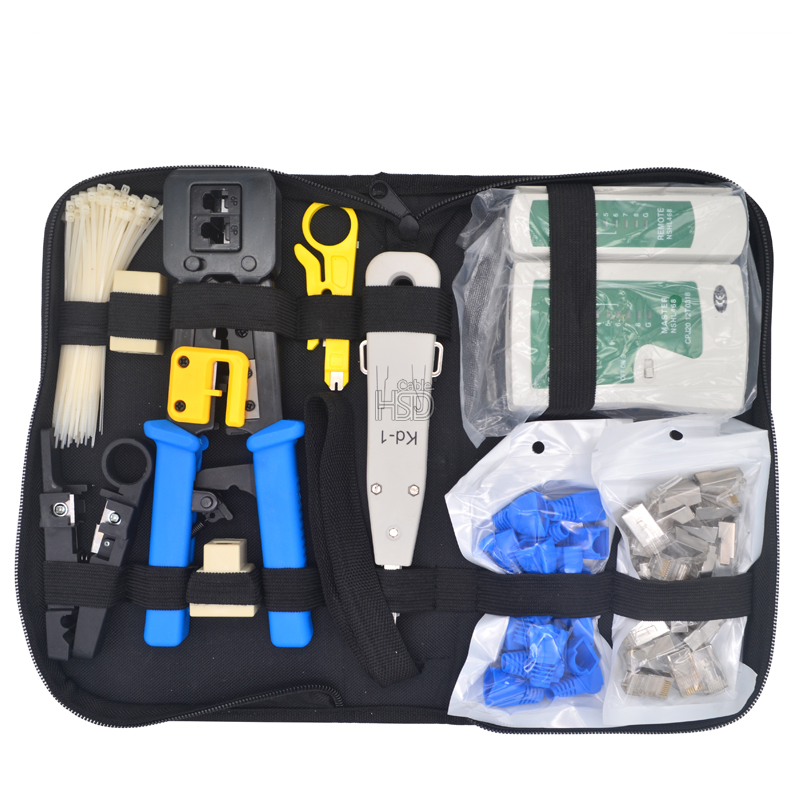

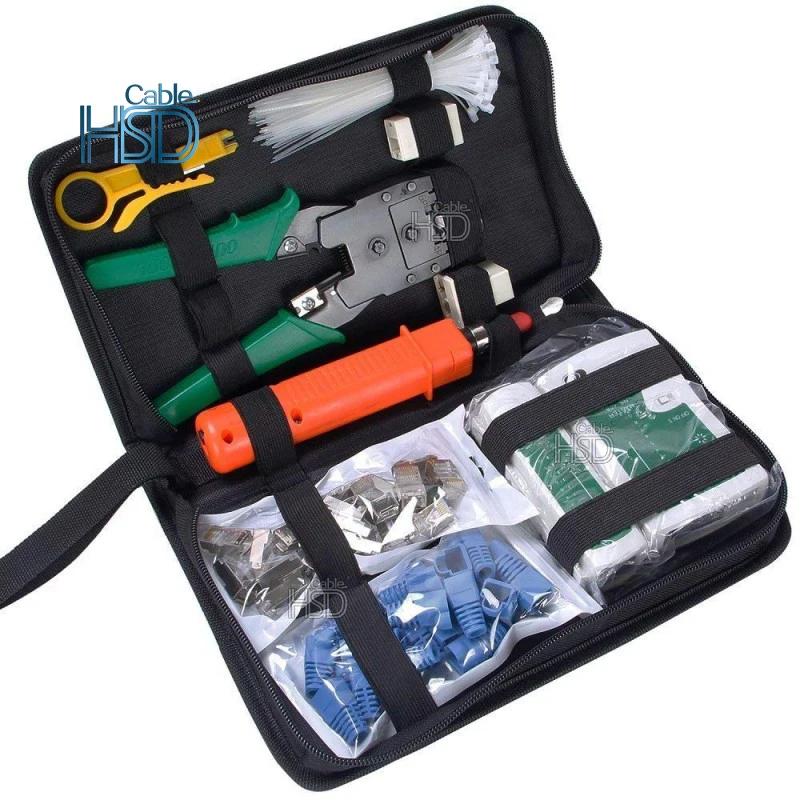

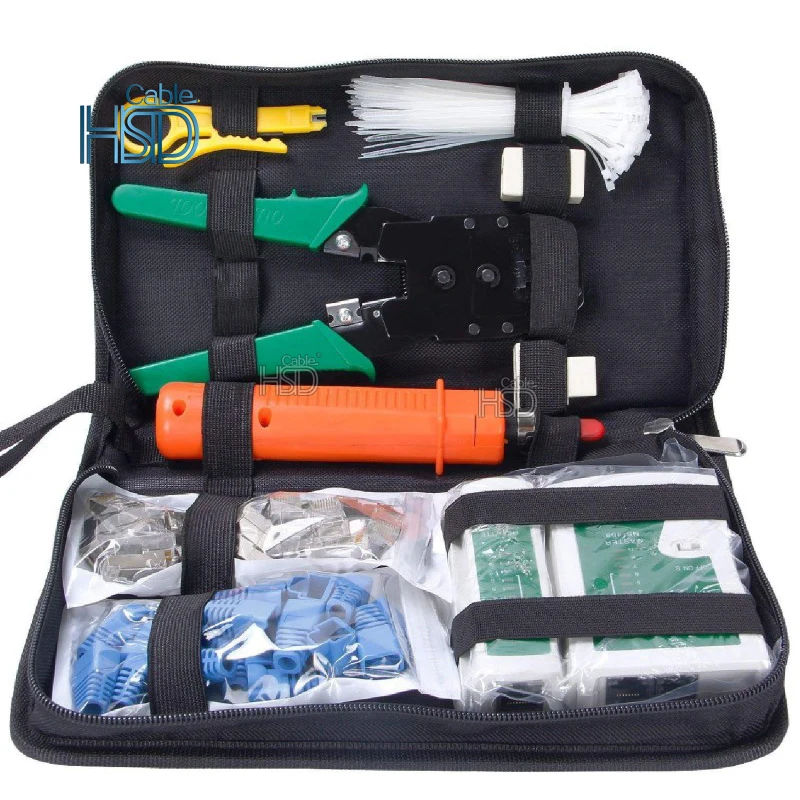

Professional Cat6 Network multi Crimper Cuts Strips RJ45 Rj12 RJ11 Crimp including network cable tester kit set Custom Package

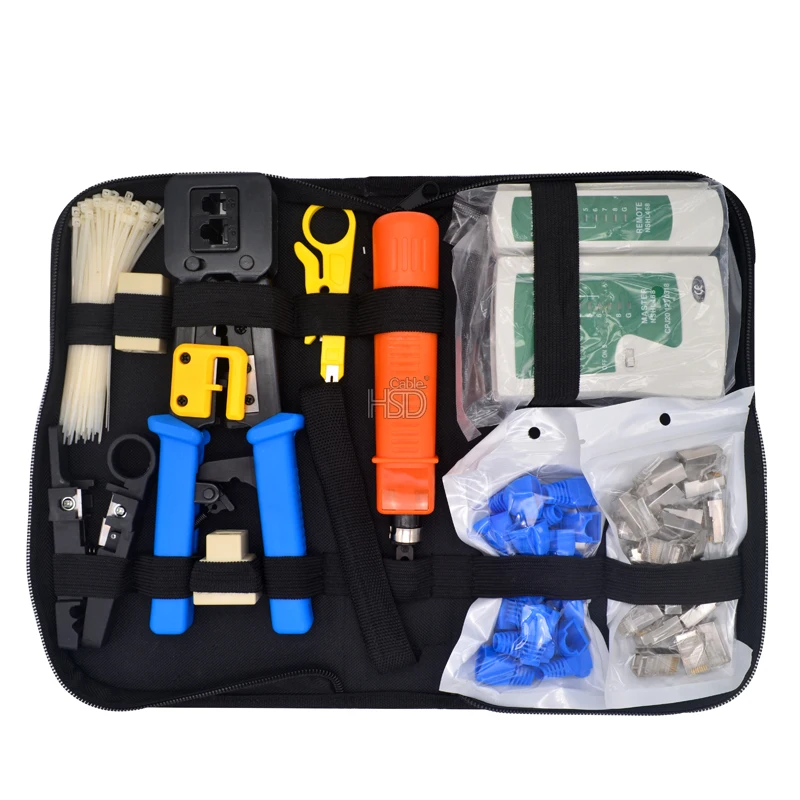

Product Name : Network Crimp Tool Kits

Cat5e standard, suitable for RJ45 connector. With stripping function, meet domestic installation requirements, quality assurance
This tool integrates all the functions of wire clamp, and can easily cut, press and strip the wire.
Standard connection of twisted pair:

Twisted pairs are generally used for star network wiring. Each twisted pair connects various network devices through RJ-45 connectors (commonly known as crystal heads) installed at both ends. The standard connection method of twisted pair cable is not arbitrarily stipulated. The purpose is to ensure the symmetry of cable joint layout, so that the interference between the cables in the joint can be offset each other.

Cat5e line is a common network line in network routing, which can be divided into shielding and non-shielding. If it is used outdoors, shielded wires are better. Generally, it is enough to use non-shielded five types of wires indoors. Because there is no shielding layer, the cable will be relatively soft, but the connection method is the same. Generally, there are four pairs of twisted thin lines in the super-five lines, and they are marked with different colors.

There are two types of twisted pair connection: EIA/TIA 568B standard and EIA/TIA 568A standard.

The tail of the RJ45 connector is downward (i.e. the flat side is upward) from left to right, which is set at 1 23 4 5 6 7 8, respectively. The following is the distribution of each orifice.

T568A line order
Green, white, green, orange, white, blue, white, orange, brown and white brown

T568B line order
Orange, white, orange, green, blue, white, green, brown and white brown


Specification parameter :
